Product Description

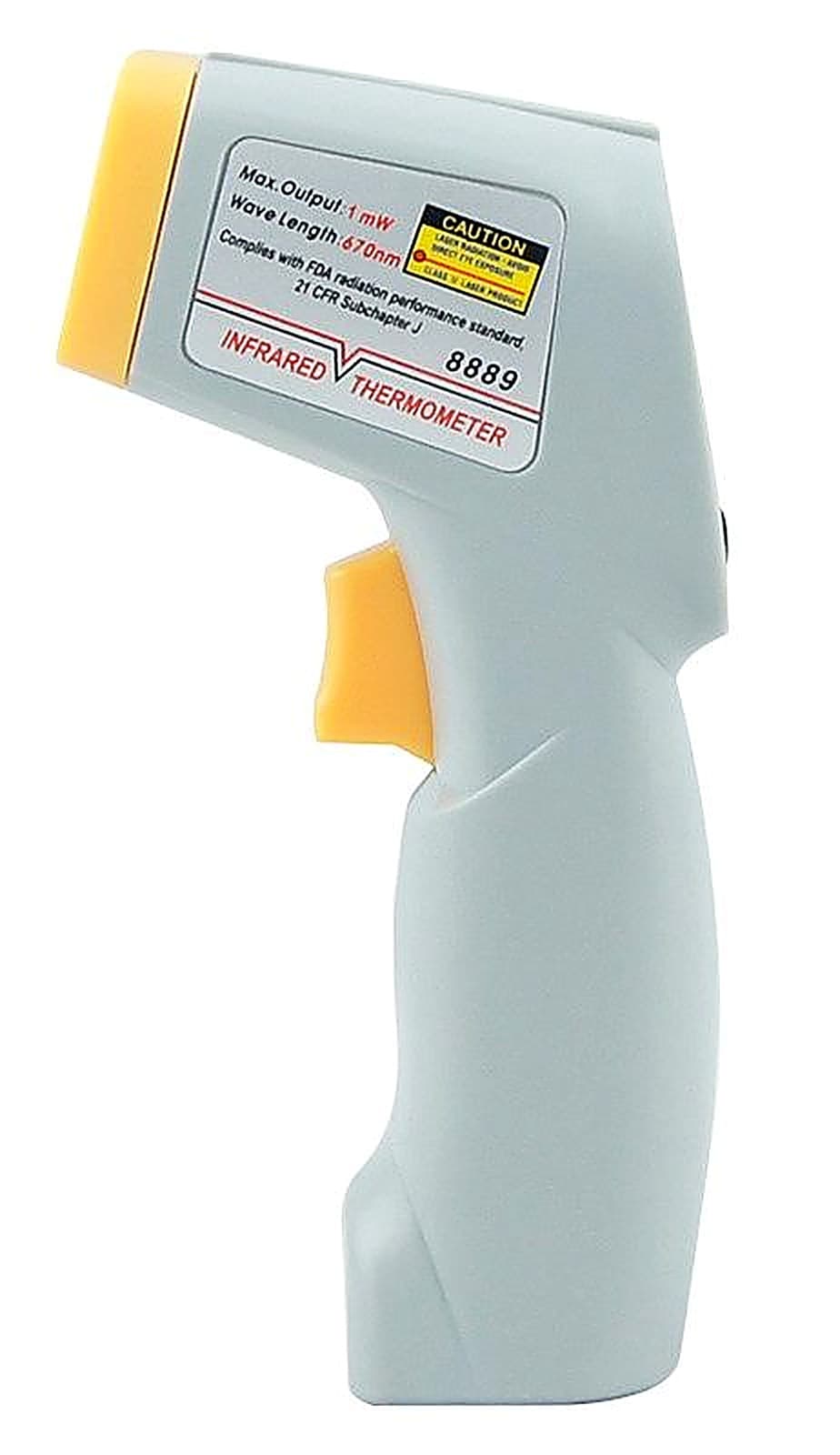

8889 Low Cost Digital Mini Gun Infra Red Thermometer

The 8889 Digital Mini Gun Infrared Thermometer, is compact in size and allows you to get into tight places while its convenient laser targeting and high distance to spot ratio (D:S) gives you accurate readings on distant targets.



Features

  • Non-contact measurement with laser pointer
  • Low cost and simple to use
  • A great portable device for Mobile industry
  • A popular meter for temperature measurement of process and maintenance conditions
  • Easy one hand operation
  • Auto Power off after 4 seconds of non operation
  • Ambient temperature at 0 +/-5 deg C calibrated by black body Backlight feature for use in dark areas

  • Wide range of applications include:
    • Food preparation,
    • Safety and Fire inspectors,
    • Plastics moulding,
    • Asphalt,
    • Marine and Screen printing,
    • Measure ink and Dryer temperature,
    • Diesel and Fleet maintenance.
  • Class II laser product, complies with FDA radiation performance standard 21CFR subchapter



Specifications

8889 Digital Mini Gun Infra Red Thermometer – Specifications

Description Specification
Temperature Range : -40 to 500 deg C
Resolution : 1 deg C
Repeatability : +/- 1 deg C
Emissivity : 3 point selectable
Reponse Time : 500 ms
Power Consumption : Max. 40 mA
Accuracy : -20 to -40 deg C +/-3% or 3 deg C
-20 to 420 deg C or
-20 to 500 deg C +/- 2% or 2 deg C whichever is greater
Storage ambient : -20 to 50 deg C (Humidity <90%)
Operating ambient : 0 to 50 deg C (Humidity <80%)
Dimension : 44 x 40 x 170 mm
Power : 9 volt battery x 1
Weight Approx : 140 g

Data Sheet

8889 Digital Mini Gun Infra Red Thermometer – Data Sheet

8889 Digital Mini Gun Infra Red Thermometer Data Sheet

Instruction Manual

8889 Digital Mini Gun Infra Red Thermometer – Instruction Manual

8889 Digital Mini Gun Infra Red Thermometer Instruction Manual
