Elcometer 3086 Motorised Pencil Hardness Tester

Product Description

Elcometer 3086 Motorised Pencil Hardness Tester

Traditional pencil hardness testers can be limited in their reproducibility and repeatability by two key factors; the uniformity of the carriage speed and the variation of the applied force by the user as the manual tester is moved across the coating. The Elcometer 3086 Motorised Pencil Hardness Tester, using the same test methods and principles as the Elcometer 501 Pencil Hardness Tester, removes both of these variables by being fully independent.

The internal motor drives the unit at a constant, uniform speed across the coated surface, exerting a fixed, user determined force between 0-10N.

Read More

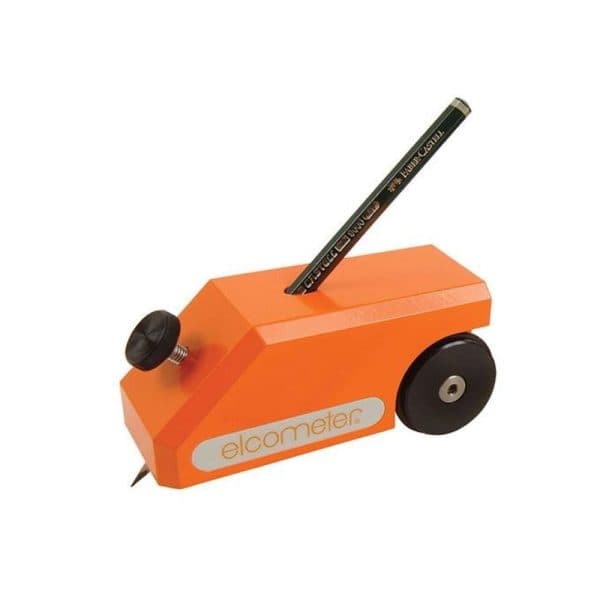

Elcometer 501 Pencil Hardness Tester

Product Description

elcometer-501-pencil-hardness-tester-200

The Elcometer 501 Pencil Hardness Tester, also referred to as the Wolff-Wilborn test, uses the varying hardness values of graphite pencils to evaluate a coating’s hardness. The Elcometer 501 Pencil Hardness Tester has been designed to ensure that the cylindrical pencil lead is maintained at a constant angle of 45° and exerts a force of 7.5N (1.68lbF).  The pencil lead, prepared beforehand using the special sharpener and abrasive paper, is inserted into the Elcometer 501 hardness tester and pushed over the smooth, flat coated surface. The lowest hardness value of the pencil which marks the coating determines the coating’s hardness rating. Read More

Elcometer 3080 Pencil Hardness Tester – Hardness Pencils

Product Description

elcometer-3080-pencil-hardness-tester-hardness-pencils

The Elcometer 3080 Pencil Hardness Tester – The set of Elcometer 3080 Hardness Testing Pencils is a simple but effective technique to evaluate the hardness of many coatings. The pencil lead, prepared beforehand by using the special pencil sharpener and rubbing it on fine abrasive paper (400 grade), is maintained at an angle of 45° and pushed with uniform pressure on to the sample, leaving either a superficial trace or causing destruction down to the substrate. The Elcometer 3080 Pencil Hardness Test is supplied complete with stand and a series of 14 pencils, ranging from 6B to 6H hardness values. Read More

Elcometer 4695 Opacity Charts

The term “Opacity Chart” refers to charts on which the test pattern is a simple combination of black and white areas, large enough for wider aperture reflectance instruments, as well as for visual opacity and colour observations.

Used to test the hiding power of the coating, using large black and white areas.

2a rgb 2c rgb 3b rgb 5c rgb



Technical Specification

Part Number Description Chart Dimensions Box Weight Quantity
per Box
Boxes
per Case
Box Case mm inches
K0004695M003 K0004695M203 Leneta Chart 2A 140 x 254 5½ x 10 2.72kg (6lb) 250 6
K0004695M004

Leneta Chart 2C 194 x 260 75/8 x 10¼ 4.08kg (9lb) 250 4
K0004695M006 K0004695M206 Leneta Chart 3B 194 x 289 75/8 x 113/8 4.08kg (9lb) 250 4
K0004695M015 K0004695M215 Leneta Chart 5C 194 x 260 75/8x 10¼ 4.08kg (9lb) 250 4

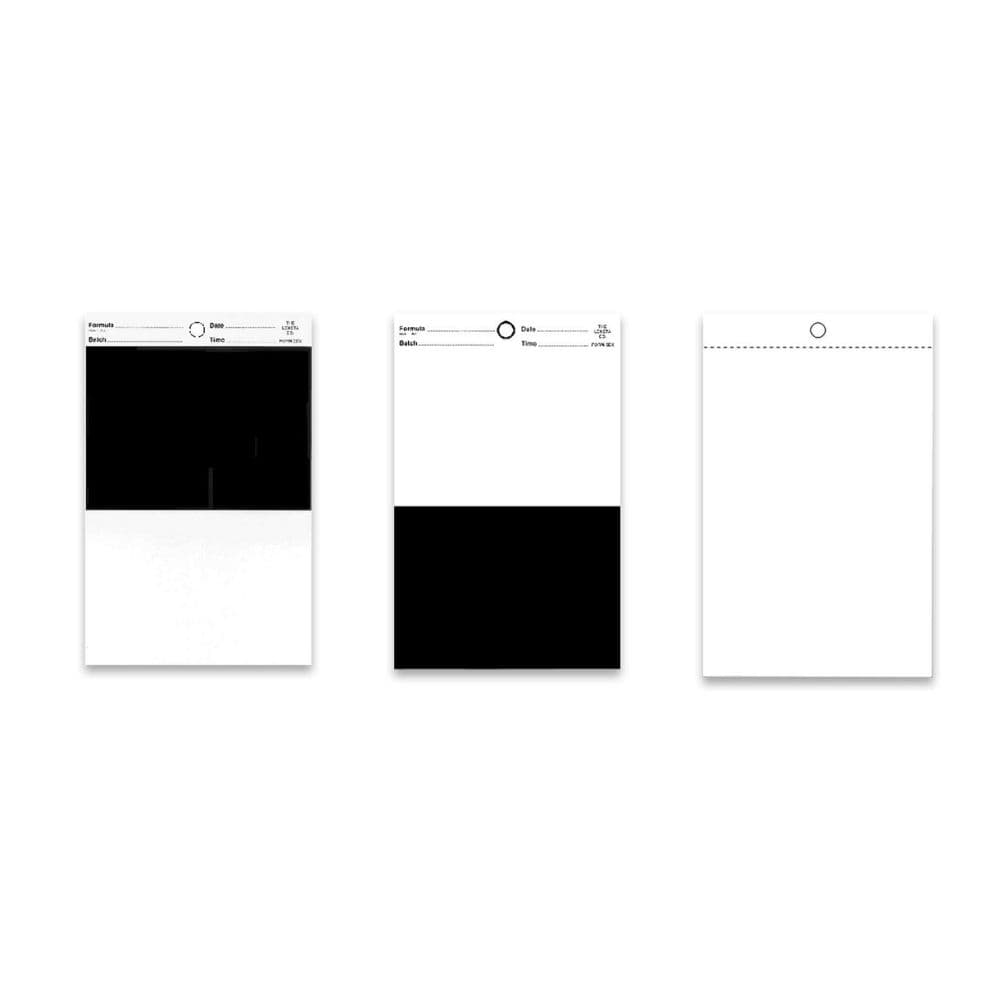

Elcometer 4695 Brushout Cards

Designed for informal brushout applications, thicker paper is used for the testing of coatings applied with a brush or roller.

The paper stock is almost twice the thickness of regular chart paper to give greater rigidity for more convenient handling – nominal thickness 0.5mm (20 mils).

Brushout Cards are also used widely for drawdowns and colorimetric measurements.

2dx rgb 5dxgw rgb wdx rgb

Technical Specification

Part Number Description Chart Dimensions Box Weight Quantity
per Box
Boxes
per Case
Box Case mm inches
K0004695M005 K0004695M205 Leneta Chart 2DX 98 x 152 37/8 x 6 3.18kg (7lb) 500 4
K0004695M016 K0004695M216 Leneta Chart 5DX 98 x 152 37/8 x 6 3.18kg (7lb) 500 4
K0004695M102 K0004695M302 Leneta Chart WDX 98 x 152 37/8 x 6 3.18kg (7lb) 500 4



Elcometer 4695 Unvarnished Test Charts

Unvarnished Test Charts are ideal for testing applications of clear coatings and stains.

The unvarnished (semi-porous) surface simulates wood or unsealed wallboard.

Elcometer-4695-Unvarnished-Test-Charts

Technical Specification

Part Number
Description Chart Dimensions
Box Weight
Quantity per Box
Boxes per Case
Box Case mm inches
K0004695M064 K0004695M264 Leneta Chart N2A 140 x 254 5½ x 10 2.72kg (6lb) 250 6



Elcometer 4695 Metopac™ Metal Test Panels

Painted steel panels, used for measuring the hiding power of powder coatings and industrial enamels.

Available in half black/half white and all black.
Black surface:
Solvent Resistant, Non bleeding, Reflective

  • 1% maximum, measured according to ASTM Method E1347

White surface:
Solvent Resistant, Colour Retentive, Reflective, Reflectance

  • 80% minimum, measured according to ASTM Method E1347





4695metopac rgb

Technical Specification

Part Number Description Chart Dimensions Box Weight Quantity
per Box
Boxes
per Case
Box Case mm inches
K0004695M094 K0004695M294 Leneta Panel T12G 76 x 132 3 x 53/16 3.63kg (8lb) 125 4
K0004695M095 K0004695M295 Leneta Panel T12M 132 x 279 53/16 x 11 1.81kg (4lb) 50 4



Elcometer 4695 Plain White & Plain Black Charts

Available in varying thicknesses and size. The Leneta WBX, WDX, WA, and WB cards all come with convenience hole at the top.

Technical Specification

Part Number Description Chart Dimensions Box Weight Quantity
per Box
Boxes
per Case
Box Case mm inches
K0004695M094 K0004695M294 Leneta Panel T12G 76 x 132 3 x 53/16 3.63kg (8lb) 125 4
K0004695M095 K0004695M295 Leneta Panel T12M 132 x 279 53/16 x 11 1.81kg (4lb) 50 4



Elcometer 4695 Grey Scale Charts

The Elcometer 4695 Grey Scale Charts are sealed paint test charts with six stripes on a white field, ranging in shade from very light grey to black.

The stripes are numbered 1 to 6, representing uniform steps of increasing contrast.

The hiding power of the applied coatings is rated as the number of the darkest stripe that is completely (or almost completely) obscured, at a specified thickness or spread rate.

Form CU-1 is used for more practical large-area brush or roller applications as in ASTM D5150. Applications on Form 24B are made with a drawdown blade.

Elcometer-4695-Grey-Scale-Chart

Technical Specification

Part Number Description Chart Dimensions Box Weight Quantity
per Box
Boxes
per Case
Box Case mm inches
K0004695M053 Leneta Chart CU-1 610 x 946 24 x 37¼ 22.68kg (50lb) 100 1
K0004695M043 K0004695M243 Leneta Chart 24B 194 x 289 75/8 x 113/8 4.08kg (9lb) 250 4



Elcometer 4695 Duplex Applicator Charts

Originally made to be used with Duplex Film Applicator, the Elcometer 4695 Duplex Applicator Charts are designed for rapid production of side-by-side drawdowns, they now serve mostly as generic paint test charts.

Elcometer-4695-Duplex-App-Chart

Technical Specification

Part Number Description Chart Dimensions Box Weight Quantity per Box Boxes per Case
Box Case mm inches
K0004695M019 Leneta Chart 6F6 76 x 184 3 x 7¼ 2.27kg (5lb) 500 6
K0004695M103 K0004695M303 Leneta Chart WF 76 x 184 3 x 7¼ 2.27kg (5lb) 500 6
