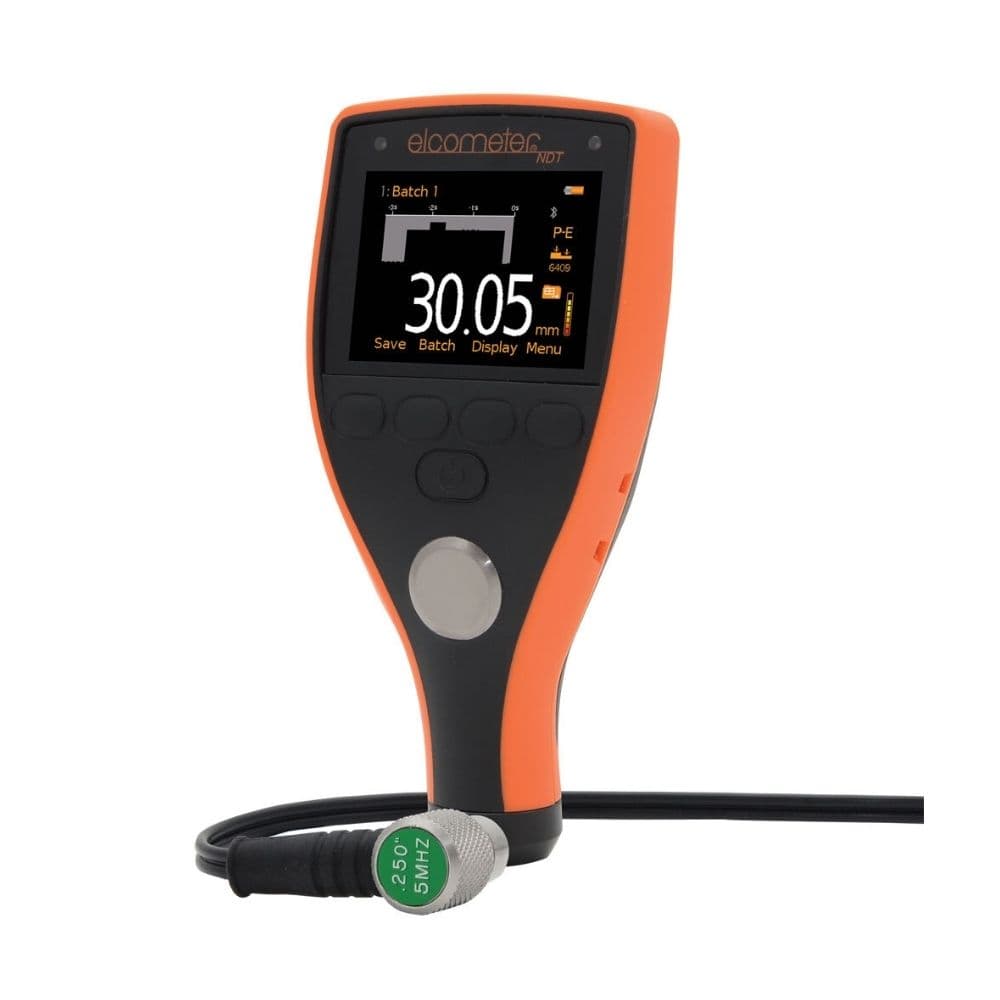

Elcometer MTG8 Ultrasonic Material Thickness Gauge

Product Description

Elcometer MTG8 Ultrasonic Material Thickness Gauge

With a choice of calibration options, measurement modes – including high speed scan mode, display options and data-logging, the Elcometer MTG8 Ultrasonic Material Thickness Gauge is ideal for taking readings on a wide range of coated and uncoated materials and downloading data for further analysis and reporting.

The Elcometer MTG8 Ultrasonic Material Thickness Gauge is the top of the range gauge with all the features and functionality necessary for measuring material thickness and velocity on virtually any material and for a wide range of applications.

As well as all the features of the MTG2, MTG4 and MTG6, the MTG8 allows users to store into memory up to three calibrations. Once saved the user can select a calibration memory without the need to re-calibrate the gauge, ideal for users who are measuring a variety of materials or thicknesses. Using the gauge’s alpha-numeric function, calibration memories can be re-named to suit the calibration setting.

The Elcometer MTG8 Ultrasonic Material Thickness Gauge has user definable upper and lower limits with audible and visual pass/fail warnings. Limits can be set for individual readings or for each batch. If a measurement is taken which falls outside set limits, the reading value and the limit icon turn red, the red LED flashes and the alarm beeps providing immediate indication of problem areas.

The Elcometer MTG8 Ultrasonic Material Thickness Gauge has Differential Mode; once a user defined nominal thickness value is set, the gauge displays the measured thickness together with the variation from the set nominal value thus indicating areas of the material which are thinner or thicker than expected.

The Elcometer MTG8 Ultrasonic Material Thickness Gauge is the only gauge in the range to offer B-Scan, a time based, cross sectional 2D block, graphical view of the material under test, ideal for relative depth analysis. The zoom of the B-Scan reading can be set automatically or can be defined by the user to focus on areas of interest.

The Elcometer MTG8 Ultrasonic Material Thickness Gauge can store 100,000 readings in up to 1,000 sequential or grid type batches. Using grid batching, readings are taken and stored in a grid, a template of the measurement area and where each reading is to be taken. If for any reason a reading cannot be taken in a particular location, due to a steel girder for example, the obstruction feature (Obst), allows the user to record this within the batch data.

Compatible with both ElcoMaster® Data Management Software and ElcoMaster® Mobile Apps, readings can be downloaded via USB or Bluetooth® to PC, iOS or Android™ devices for further analysis and reporting.

Read More

Elcometer MTG6 Ultrasonic Material Thickness Gauge

Product Description

Elcometer MTG6 Ultrasonic Material Thickness Gauge



With a choice of calibration options, measurement modes – including high speed scan mode, display options and data-logging, the Elcometer MTG6 Ultrasonic Material Thickness Gauge is ideal for taking readings on a wide range of coated and uncoated materials and downloading data for further analysis and reporting.

As well as all the features of the MTG4, the Elcometer MTG6 Ultrasonic Material Thickness Gauge has additional calibration options; 2-Point, Velocity and Thickness Set.

The MTG6 offers Velocity Mode (VM) which is ideal for determining the homogeneity of a material/alloy and the correct velocity of a material for calibration.

Using Scan Mode, readings can be taken at a rate of 16Hz (16 readings per second) over a large surface area. When the transducer is lifted off the surface, the average, lowest and highest thickness value is displayed making scan mode ideal for checking a sample’s overall uniformity.

With a user definable display, users can choose to view readings, statistical information, bar graph – an analogue representation of the current reading together with the highest (Hi) , lowest (Lo); and average (ẋ), reading or a run chart; a trend graph of the last 20 readings. For further information on display options, see pages 4 and 5.

The MTG6 has a single batch gauge memory and can store up to 1,500 readings. Compatible with both ElcoMaster® Data Management Software and ElcoMaster® Mobile Apps, readings can be downloaded via USB or Bluetooth® to PC, iOS or Android™ devices for further analysis and reporting.

Read More

Elcometer MTG4 Ultrasonic Material Thickness Gauge

Product Description

Elcometer MTG4 Ultrasonic Material Thickness Gauge



With a choice of calibration options and measurement modes, the Elcometer MTG4 Ultrasonic Material Thickness Gauge is ideal for taking readings on a wide range of coated and uncoated materials.

As well as all the features of the MTG2, the MTG4 has two calibration options. Using an uncoated sample of test material of a known thickness, the gauge can be calibrated using 1-Point calibration. Alternatively, the user can select one of 39 pre-set materials stored within the gauge including; aluminium, steel, stainless steel, cast iron, plexiglass, PVC, polystyrene and polyurethane.

Read More

Elcometer MTG2 Ultrasonic Material Thickness Gauge

Product Description

Elcometer MTG2 Ultrasonic Material Thickness Gauge

The Elcometer MTG2 Material Thickness Gauge with automatic transducer recognition, which ensures correct probe identification even when the transducer is changed, and with a measurement rate of 4Hz (4 readings per second) and integral zero disc ensuring maximum accuracy of ±1%, makes the MTG2 ideal for taking basic thickness measurements.

The MTG2 is supplied complete with 5MHz, ¼” transducer and is pre-calibrated for measuring on steel only with a thickness range of up to 500mm in Pulsed-Echo (P-E) mode. Compatible with ElcoMaster® software, individual readings can be downloaded via USB to PC or similar device for further analysis.

Read More

Elcometer NDT BG80TDL Bolt Tension Monitors

Elcometer NDT BG80TDL Bolt Tension Monitors

elcometer-ndt-bg80tdl-bolt-tension-monitors

When nuts and bolts are fastened together under load the action of tightening the nut increases the force applied to the bolt causing elongation. The Elcometer NDT BG80TDL Bolt Tension Monitors Series accurately measure this elongation allowing the gauges to accurately measure time (nanoseconds), elongation, load, stress, and %strain of the bolt.By using ultrasonics, bolt tension monitors are not affected by temperature, friction or resistance factors affecting the accuracy of standard torque measurement techniques – giving the Elcometer NDT BG80TDL Bolt Tension Monitors Series accuracy within 0.0001mm.Using the gauge’s RS232 interface together with the optional shut off accessory the gauge can be programmed to automatically stop the tightening process when the appropriate load has been applied.
Read More

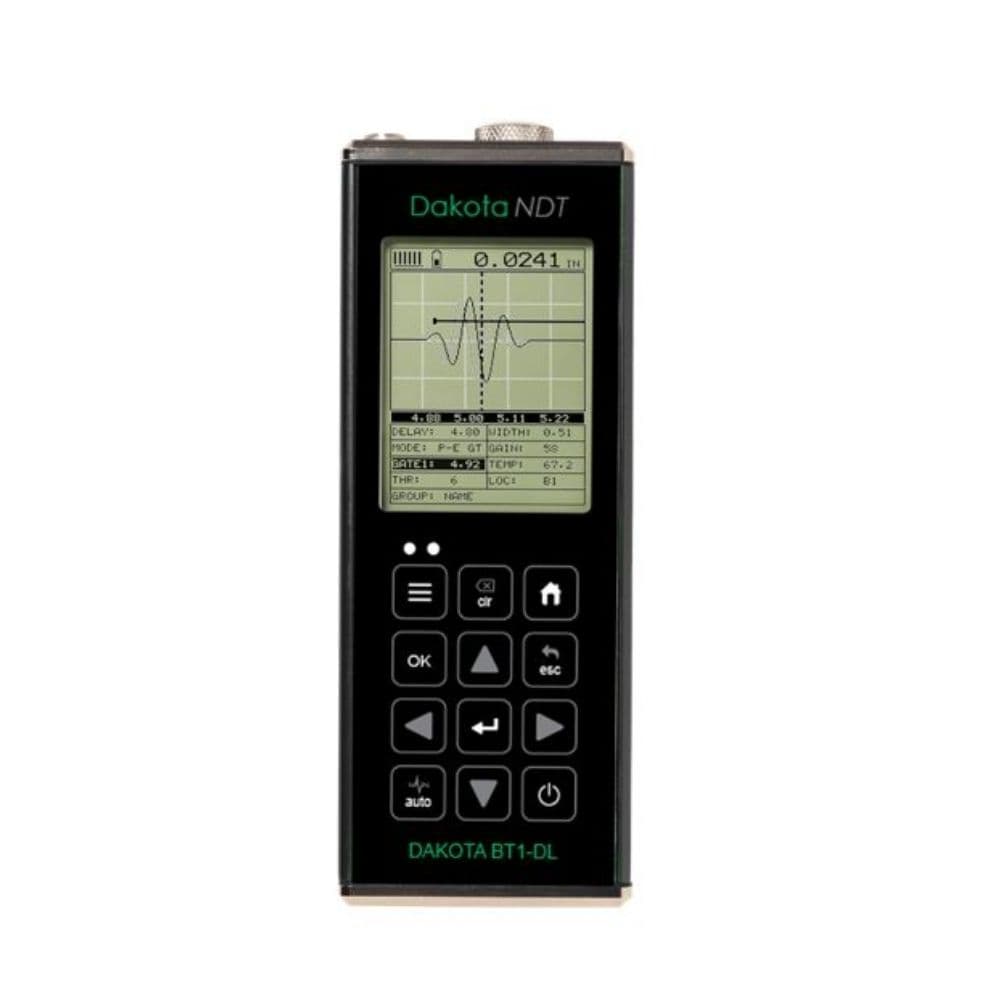

Elcometer NDT BG80DL Bolt Tension Monitors

Product Description

elcometer-ndt-bg80dl-bolt-tension-monitors

When nuts and bolts are fastened together under load the action of tightening the nut increases the force applied to the bolt causing elongation. The Elcometer NDT BG80DL Bolt Tension Monitors Series accurately measure this elongation allowing the gauges to accurately measure time (nanoseconds), elongation, load, stress, and %strain of the bolt.By using ultrasonics, bolt tension monitors are not affected by temperature, friction or resistance factors affecting the accuracy of standard torque measurement techniques – giving the Elcometer NDT BG80DL Bolt Tension Monitors Series accuracy within 0.0001mm.Using the gauge’s RS232 interface together with the optional shut off accessory the gauge can be programmed to automatically stop the tightening process when the appropriate load has been applied.
Read More

Elcometer NDT SG80BDL Sonic Gauge

posted in: Ultrasonic NDT | 0

Product Description

elcometer-ndt-sg80bdl-sonic-gauge

The Elcometer NDT SG80BDL Sonic Gauge is commonly used for measuring the thickness of cylinder walls, intake or exhaust ports, chassis, tubing, body panels, and windscreens. It also has the ability to scan the length of a part to find the minimum thickness.The time-based B-Scan feature of the Elcometer NDT SG80BDL Sonic Gauge displays a cross section of the opposite surface, allowing engine builders the ability to see the contour of the back surface in cylinders while scanning.

Use the Echo-Echo ThruPaint™ feature of the Elcometer NDT SG80BDL Sonic Gauge to measure chasis tubing with or without paint and other coatings. Read More

Elcometer NDT SG80 Sonic Gauge

posted in: Ultrasonic NDT | 0

Product Description

elcometer-ndt-sg80-sonic-gauge

The Elcometer NDT SG80 Sonic Gauge is commonly used for measuring the thickness of cylinder walls, intake or exhaust ports, chassis, tubing, body panels, and windscreens. It also has the ability to scan the length of a part to find the minimum thickness. Read More

Elcometer NDT VG10 Ultrasonic Velocity Gauge

posted in: Ultrasonic NDT | 0

Product Description

elcometer-ndt-vg10-ultrasonic-velocity-gauge

The Elcometer NDT VG10 Ultrasonic Velocity Gauge is a simple hand-held velocity gauge. Ideal for determining the speed of sound (velocity) of an unknown material or as a device to assess the homogeneity of a component of known thickness. By simply placing the transducer probe on the material the gauge will display the speed of sound of that material at that point.The high speed scan mode allows the operator to drag the probe across the material and when the probe is lifted from the material, the gauge displays the fastest velocity recorded during the scan.

Elcometer NDT VG10 Ultrasonic Velocity Gauge Advantages

  • Durable gauge and probe construction
  • Tough, impact, water, dust & petroleum product resistant
  • Up to 200 hours battery life
  • Multi-function 4.5 digit LCD display, backlit for use in poor light conditions
  • Backlight is selectable on/off/auto (illuminates only when taking a measurement)
  • Measurements in metres/second and inches/microsecond
  • Scan bar display indicates stability of reading



Specifications



Elcometer NDT VG10 Ultrasonic Velocity Gauge – Specifications



Model & Part Number VG10 Ultrasonic Velocity Gauge
Material thickness digits display
Measurement Mode PE
Measurement Rate
Manual: 4 readings per second
Scan Mode 16 readings per second
Measurement Range 0.63 – 500mm
Measurement Accuracy ±0.01mm
Measurement Resolution 0.01mm
Velocity Calibration Range 1250 – 10,000m/s
Additional Features:
High speed scan mode
Transducer Probe Type dual element
Transducer Frequency Range 1 – 10MHz
V-path / dual path error correction automatic
Probe Zero Manual (via integrated probe disk)
Display 12.7mm high digits
Units (selectable) metres/second or inches/microsecond
LED Backlight on / off / auto
Repeatability / Stability Indicator
Battery Type 2 x AA alkaline
Battery Life (approximate) 200 hours
Low Battery Indicator
Battery Save Mode auto
Operating Temperature -30 to 50°C
Size (w x h x d) 63.5 x 114.3 x 31.5mm
Weight (including batteries) 284g
Aluminium case design with
gasket sealed end caps,
waterproof membrane keypad
Transducer Connector Type LEMO
RS232 Interface for programming only

Elcometer NDT VG10 Ultrasonic Velocity Gauge Packing List:

  • Elcometer NDT VG10 Ultrasonic Velocity Gauge
  • Couplant
  • Carry case
  • User manual
  • Test certificate
  • 2 x AA batteries



Data Sheet



Elcometer NDT VG10 Ultrasonic Velocity Gauge – Data Sheet

Elcometer NDT VG10 Ultrasonic Velocity Gauge Data Sheet



Instruction Manual



Elcometer NDT VG10 Ultrasonic Velocity Gauge – Instruction Manual

Elcometer NDT VG10 Ultrasonic Velocity Gauge Instruction Manual
