Product Description


Elcometer 106 Pull Off Adhesion Tester

The Elcometer 106 Pull Off Adhesion Tester is easy to operate, fully portable, and provides a numerical value for adhesion. Applications include paint or plasma spray on bridge decking, coatings on steel, aluminium, concrete etc.

  • Supplied in a carry case – ideal for site tests
  • Hand operated – no need for a power supply
  • Includes a cutter for EN13144 and ISO 4624 tests

Adhesion Test Method

A test dolly is bonded to the coating using an adhesive. The Elcometer 106 adhesion tester houses a spring arrangement which applies a lift force to the dolly as the tension is increased.

When the coating is pulled off the surface, an indicator on the scale shows the numerical value of adhesion strength expressed in terms of the force per unit area required to remove the dolly.

Inspection of the dolly face is required to determine the failure mode.

To increase sensitivity at low values or for uneven surfaces, a 40mm (1.52”) dolly is available. When using the 40mm (1.52”) dolly, divide the scale reading by 4.

The Elcometer 106 Pull Off Adhesion Tester can be used in accordance with:

  • ISO 4624
  • ISO 16276-1
  • AS 1580.408.5
  • ASTM D 4541
  • AS/NZS 1580.408.5
  • EN 13144
  • EN 24624
  • NF T30-062
  • NF T30-606

Standards not in bold have been superseded but are still recognised in some industries



Specifications

Elcometer 106 Pull Off Adhesion Tester – Specifications

Part Number Description Range
MPa  kg/cm2 psi
(N/mm2)
F106—-5 Elcometer 106 Adhesion Tester – Scale 5 0 – 0.2 0 – 2 0 – 30
F106—-1 Elcometer 106 Adhesion Tester – Scale 1 0 – 3.5 0 – 35 0 – 500
F106—-2 Elcometer 106 Adhesion Tester – Scale 2 0 – 7.0 0 – 70 0 – 1000
F106—-3 Elcometer 106 Adhesion Tester – Scale 3 0 – 15 0 – 150 0 – 2000
F106—-4 Elcometer 106 Adhesion Tester – Scale 4 0 -22 0 – 220 0 – 3200
Dimensions Scales 1, 2, 5: 152 x 76mm
Scales 3 and 4: 150mm
Dolly Diameter 20mm
Dolly Area 314mm²
Gross weight of kit Scale 1, 2 and 5: 2.1kg Scale 3: 3.4kg Scale 4: 3.6kg
Certificate available Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability.


Elcometer 106 Pull Off Adhesion Tester

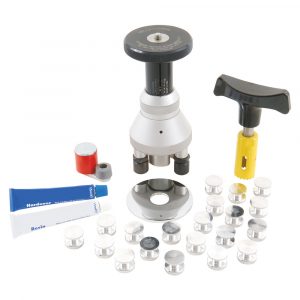

Packing List:

  • Elcometer 106 Pull Off Adhesion Tester
  • Pack of 20 dollies
  • Araldite adhesive
  • Base support ring
  • Magnetic dolly clamp
  • Dolly cutter
  • Ratchet spanner (scale 3 & 4 only)
  • Carry case
  • Operating instructions



Data Sheet

Elcometer 106 Pull Off Adhesion Tester – Data Sheet

Elcometer 106 Adhesion Tester Data Sheet

Standards

Elcometer 106 Pull Off Adhesion Tester – Standards

The Elcometer 106 Pull Off Adhesion Tester can be used in accordance with the following Standards:

  • ISO 4624
  • ISO 16276-1
  • AS 1580.408.5
  • ASTM D 4541
  • AS/NZS 1580.408.5
  • EN 13144
  • EN 24624
  • NF T30-062
  • NF T30-606

Standards not in bold have been superseded but are still recognised in some industries

Accessories

Elcometer 106 Adhesion Tester – Accessories

Part Number Description
T1062895-10 Spare Dollies 20mm Diameter (Pack of 10)
T1062895- Spare Dollies 20mm Diameter (Pack of 100)
T1062914- Large Dollies 40mm Diameter (Pack of 5)
T1062915- Large Base Ring for 40mm Dollies
T99912906 Araldite Epoxy Adhesive
T99914009 20mm Dolly Cutter



Test Method

Elcometer 106 Pull Off Adhesion Tester – Test Method

A test dolly is bonded to the coating using an adhesive. The 106 houses a spring arrangement which applies a lift force to the dolly as the tension is increased.

When the coating is pulled off the surface, an indicator on the scale shows the numerical value of adhesion expressed in terms of the force per unit area required to remove the dolly.

Inspection of the dolly face is required to determine the failure mode.

To increase sensitivity at low values or for uneven surfaces, a 40mm dolly is available. When using the 40mm dolly, divide the scale reading by 4.

Instruction Manual

Elcometer 106 Pull Off Adhesion Tester – Instruction Manual

Elcometer 106 Adhesion Tester Instruction Manual
