Elcometer 107 Cross Hatch Cutter

Elcometer 107 Cross Hatch Cutter

Product Description


The Elcometer 107 Cross Hatch Cutter for adhesion tests provides an instant assessment of the quality of the bond to the substrate. Due to its rugged construction this cross hatch gauge is ideal for thin, thick or tough coatings on all surfaces. An ideal field or laboratory test.

• Robust design
• Large, non slip grip
• Ideal for thin, thick or hard coatings
• A quick change, 4 sided cutter allows adhesion testing on a wide range of coating thicknesses (1mm, 1.5mm, 2mm and 3mm)

The Elcometer 107 Cross Hatch Cutter for adhesion testing is available as a Basic or Full Kit.



Selecting the Appropriate Test Kit

Basic Kit Full Kit with ISO Tape Full Kit with ASTM Tape Cutter Type Number of Teeth
F10713222-1 F10713348-6 F10713348-1 1mm 6
F10713222-2 F10713348-2 1mm 11
F10713222-3 1.5mm 11
F10713222-4 F10713348-9 F10713348-4 2mm 6
F10713222-5 3mm 6



Selecting the Appropriate Elcometer 107 Cutter



Part Number Test Method Coating Thickness Substrate Type Teeth Spacing
T99913700-2 ASTM D3359B 0 – 50μm Metal 11 1mm
T99913700-1 BS EN ISO 2409 0 – 60μm Hard 6 1mm
T99913700-3 0 – 60μm Medium 11 1.5mm
T99913700-4 BS EN ISO 2409 0 – 60μm Soft 6 2mm
T99913700-4 ASTM D3559B 50 – 125μm Hard and Soft 6 2mm
T99913700-4 BS EN ISO 2409 61 – 120μm Hard and Soft 6 2mm
T99913700-5 Quick Check Only 125 – 250μm Hard and Soft 6 3mm



Elcometer 107 Cross Hatch Cutter can be used in accordance with:

• AS 3894.9
• AS 1580.408.4
• ASTM D 3359-B
• BS 3900-E6*
• ECCA T6
• EN 13523-6
• ISO 2409
• ISO 16276-2
• JIS K 5600-5-6*
• NF T30-038*

*Standards not in bold have been superseded but are still recognised in some industries.

Specifications

Elcometer 107 Cross Hatch Cutter – Specifications

Part Number Description Cutter Type Coating Thickness  Certificate
F10713222-1 Elcometer 107 Basic Kit 6 x 1mm 0 – 60µm ο
F10713348-6 Elcometer 107 Full Kit with ISO Tape 6 x 1mm 0 – 60µm ο
F10713348-1 Elcometer 107 Full Kit with ASTM Tape 6 x 1mm 0 – 50µm ο
F10713222-2 Elcometer 107 Basic Kit 11 x 1mm 0 – 50µm ο
F10713348-2 Elcometer 107 Full Kit with ASTM Tape 11 x 1mm 0 – 50µm ο
F10713222-3 Elcometer 107 Basic Kit 11 x 1.5mm 0 – 90µm1 ο
F10713222-4 Elcometer 107 Basic Kit 6 x 2mm 50 – 125µm ο
F10713348-9 Elcometer 107 Full Kit with ISO Tape 6 x 2mm 61 – 120µm ο
F10713348-4 Elcometer 107 Full Kit with ASTM Tape 6 x 2mm 50 – 125µm ο
F10713222-5 Elcometer 107 Basic Kit 6 x 3mm 121 – 250µm ο

Approximate Thickness
ο Optional Calibration Certificate available.

Packing List

Basic Kit:

  • Robust handle
  • Cutter
  • Hexagonal wrench
  • Presentation storage case and instructions

(together with Classification of Adhesion Test Results chart)

Full Kit:

  • Robust handle
  • Cutter
  • Hexagonal wrench
  • Instructions (together with Classification of Adhesion Test Results chart)

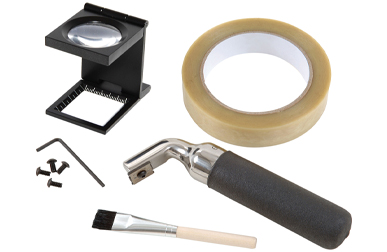

  • Eye glass
  • Brush and adhesive tape (either ASTM or ISO tape)
  • All in a plastic ABS carry case


Data Sheet

Elcometer 107 Cross Hatch Cutter – Data Sheet

Elcometer 107 Cross Hatch Cutter Data Sheet

Standards

Elcometer 107 Cross Hatch Cutter – Standards

Elcometer 107 Cross Hatch Cutter can be used in accordance with:

• AS 3894.9
• AS 1580.408.4
• ASTM D 3359-B
• BS 3900-E6*
• ECCA T6
• EN 13523-6
• ISO 2409
• ISO 16276-2
• JIS K 5600-5-6*
• NF T30-038*

*Standards not in bold have been superseded but are still recognised in some industries.

Accessories

Elcometer 107 Cross Hatch Cutter – Accessories

Part Number Description ISO
Method
ASTM
Method
Certificate
T99913700-1 6 x 1mm Four sided cutter blade ο
T99913700-2 11 x 1mm Four sided cutter blade ο
T99913700-3 11 x 1.5mm Four sided cutter blade ο
T99913700-4 6 x 2mm Four-sided cutter blade ο
T99913700-5 6 x 3mm Four-sided cutter blade ο
K0001539M001 Adhesive Tape (1 roll) ASTM D 3359
T9999358-1 Adhesive Tape (1 roll) ISO 2409
T9998894- Adhesive Tape (2 rolls) ASTM D 3359
T9999358-2 Adhesive Tape (2 rolls) ISO 2409

ο Optional Calibration Certificate available.

Instruction Manual

Elcometer 107 Cross Hatch Cutter – Instruction Manual

Elcometer 107 Cross Hatch Cutter – Instruction Manual
