Product Description

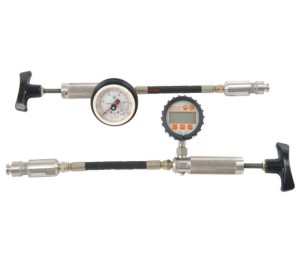

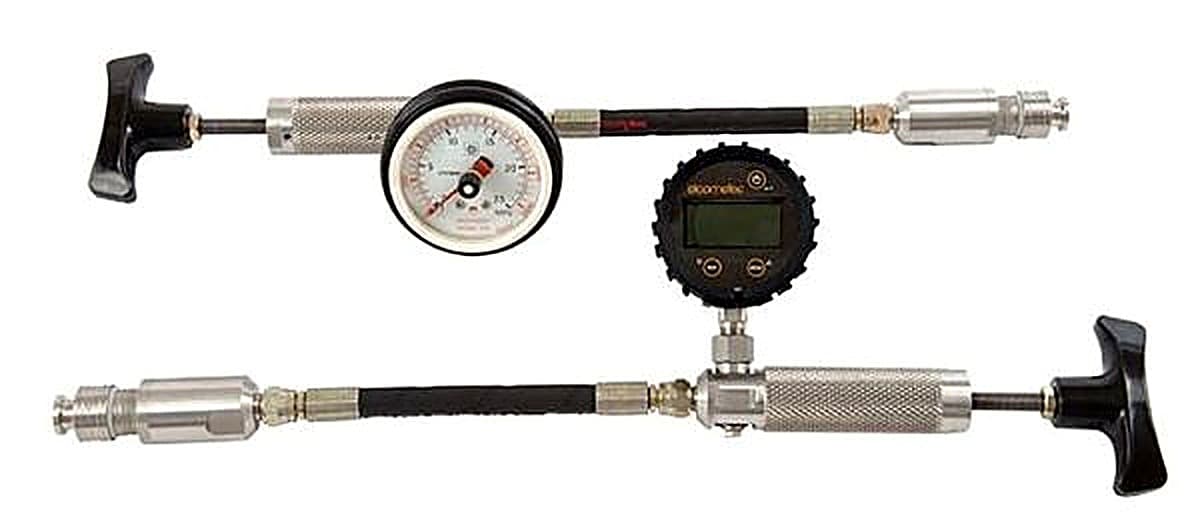

Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue)

The Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) is an extremely versatile gauge which can be used for many adhesion requirements. Tests can be made on flat or curved (concave and convex) surfaces.

The Elcometer 108 Hydraulic Adhesion Tester is the ideal gauge for coatings on Tanks, Pipelines, etc.

  • Hand-Powered and portable
  • Ideal for site work
  • Reusable stainless steel dollies

Elcometer Digital Adhesion Gauge features:

  • Maximum hold – displays the highest value reached
  • Backlit display for dark areas
  • Rubber protective casing
  • Switchable Metric/Imperial units.

The Elcometer 108 Hydraulic Adhesion Tester can be used with convex and concave dollies, making this the gauge for adhesion of coatings on all pipelines including those with small diameter, tanks and other curved surfaces. There is a wide range of curved dollies available, each designed for a specific range of curvature.

Concave and convex dollies designed to meet specific curvatures are available upon request.

The Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) can be used in accordance with:

  • ISO 16276-1
  • ASTM D 4541
  • NF T30-606



Specifications

Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) – Specifications

Part Number Description
F108—1B Elcometer 108/1 Hydraulic Adhesion Tester – Analogue Dial Gauge
F108—2B Elcometer 108/2 Hydraulic Adhesion Tester – Digital Gauge
Analogue Instrument Range Operating: 0 – 18MPa (0 – 2600psi)
Analogue Instrument Accuracy ±1 MPa Metric Scale; 150psi (Imperial Scale)
Digital Instrument Range Operating: 0 – 18MPa (0 – 2600 psi)
Digital Instrument Accuracy ±3% or 60 psi (whichever is the greater)
Dolly Sizes Outside Diameter 19.4mm
Inside Diameter 3.7mm
Area 284mm²
Certificate available Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability.


Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) Packing List:

  • Elcometer 108
  • ABS carry case
  • 5 flat dollies
  • 5 nylon plugs
  • MC1500 quick curing adhesive
  • Dolly cleaning tool
  • Heating tongs

Data Sheet

Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) – Data Sheet

Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) Data Sheet

Standards

Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) – Standards

The Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) can be used in accordance with the following Standards:

  • ISO 16276-1
  • ASTM D 4541
  • NF T30-606

Accessories

Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) – Accessories

Part Number Description
T99911135 Rite- Lok MC1500 Adhesive
T1089646- Standard Flat Dolly 19.4mm

Instruction Manual

Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) – Instruction Manual

Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) Instruction Manual
