Elcometer 123 Surface Profile Gauge

Product Description

Elcometer 123 Surface Profile Gauge

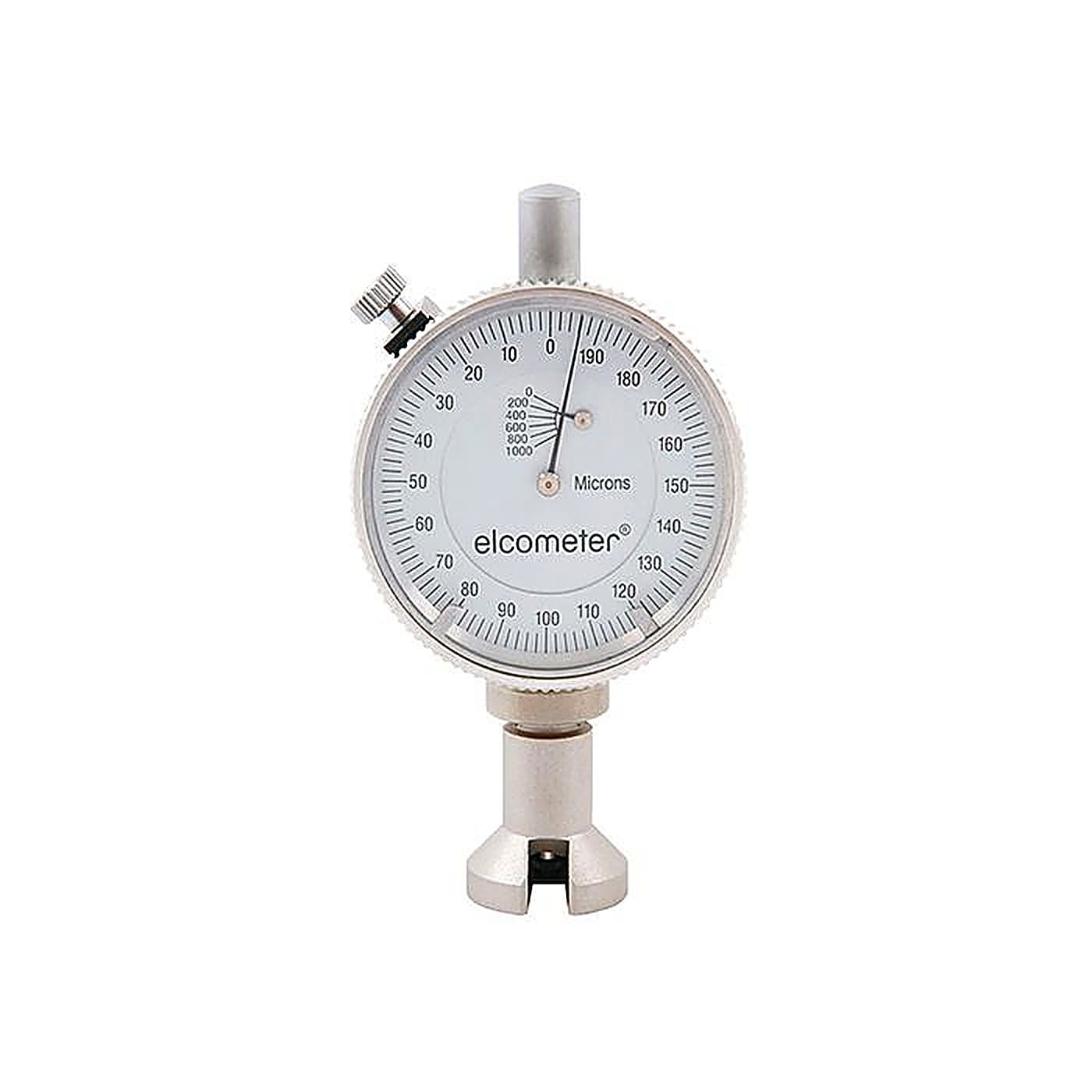

The Elcometer 123 Surface Profile Gauge is an easy to use gauge that measures the point-to-valley height of a surface. The average of a series of measurements provides an indication of the surface roughness and allows the surfaces to be compared.

  • Simple and low cost
  • Metric and Imperial Versions


See also the Elcometer 224 Digital Surface Profile Gauge

The Elcometer 123 Surface Profile Gauge can be used in accordance with:

  • ASTM D 4417-B
  • SANS 5772
  • US Navy NSI 009-32
  • US Navy PPI 63101-000



Specifications

Elcometer 123 Surface Profile Gauge – Specifications

Part Number Description
E123A–M- Elcometer 123 Surface Profile Gauge, Metric Version
Range 0 – 1000µm
Scale 2µm
Dimensions 105 x 55 x 25mm
Weight 335g
Certificate Available Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability.
Accredited Certificate: can be issued for Fixed Calibration Equipment and a full UKAS traceable certificate is issued from an independent Calibration Laboratory.


Elcometer 123 Surface Profile Gauge Packing List:

  • Elcometer 123 Surface Profile Gauge
  • glass slide,
  • 2mm allen key,
  • carry case
  • operating instructions

Data Sheet

Elcometer 123 Surface Profile Gauge – Data Sheet

Elcometer 123 Surface Profile Gauge Data Sheet

Standards

Elcometer 123 Surface Profile Gauge – Standards

The Elcometer 123 Surface Profile Gauge can be used in accordance with:

  • ASTM D 4417-B
  • SANS 5772
  • US Navy NSI 009-32
  • US Navy PPI 63101-000

Test Method

Elcometer Surface Profile Gauge – Test Method : ASTM D4417 Method B

Elcometer Surface Profile: ASTM D4417 Method B

In summary, ASTM D 4417 Method B requires the mean of ten measurements to be calculated at an agreed series of locations, which characterise the surface.

The gauge should be set to zero on a piece of glass prior to the measurements.

Instruction Manual

Elcometer 123 Surface Profile Gauge – Instruction Manual

Elcometer 123 Surface Profile Gauge Instruction Manual
