Product Description

elcometer-1506-cylindrical-mandrel-bend-tester

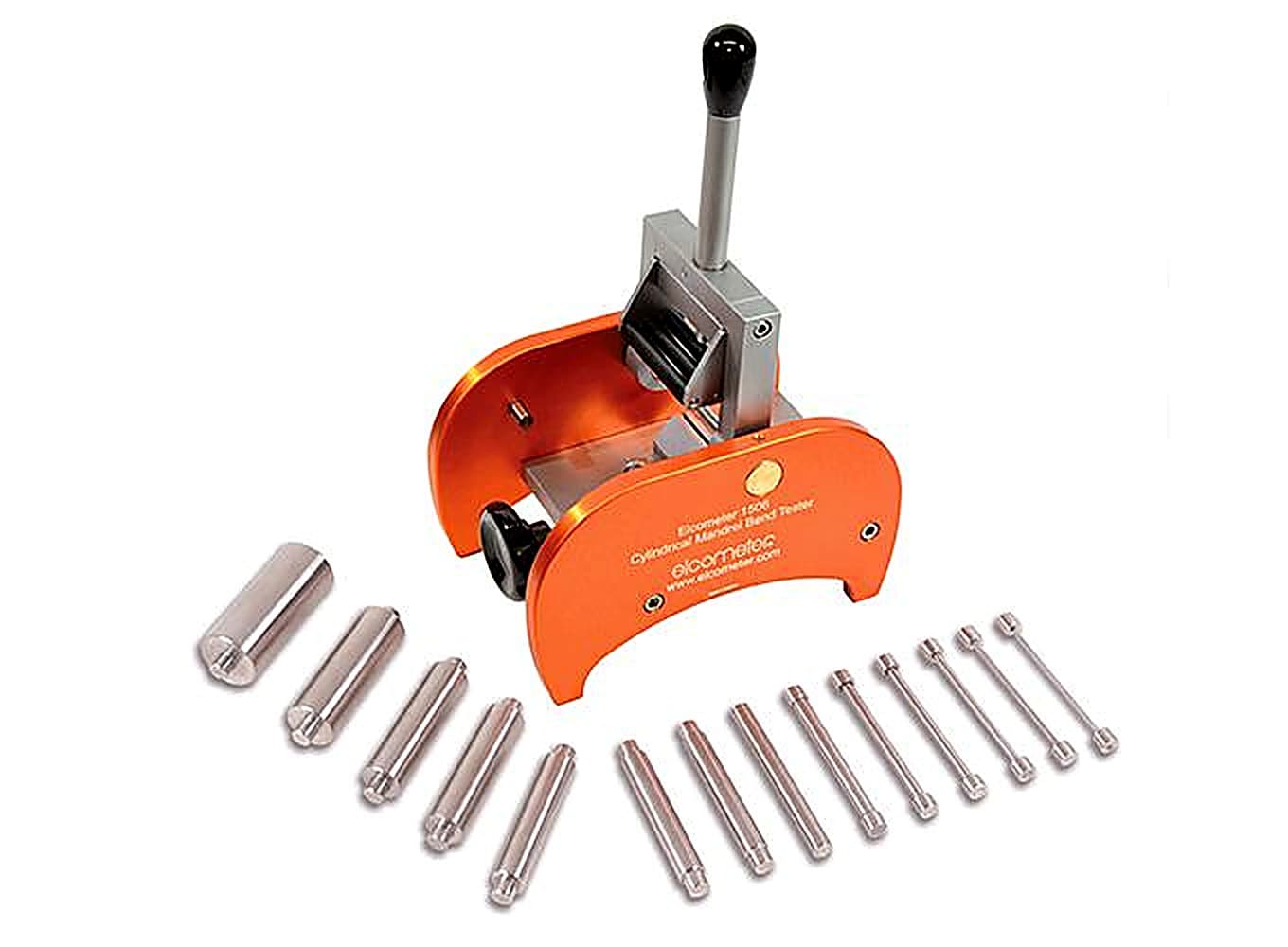

Similar in use to the Elcometer 1510, the Elcometer 1506 Cylindrical Mandrel Bend Tester is also a very robust mechanical unit for determining the elasticity, adhesion and elongation properties of cured coatings on sheet metal.The frame has a bending lever with height-adjustable rollers and a sliding vice for clamping the sample which means the test pieces are bent perfectly and regularly on decreasing mandrels until the desired effect can be observed.

The instrument can be adjusted to the diameter of the mandrel used and the mandrels are easily changed.

A wide range of mandrels with metric and imperial diameters is available. Mandrels are not supplied with the instrument and can be ordered as a set or individually.

The Elcometer 1506 Cylindrical Mandrel Bend Tester can be used in accordance with:

  • ISO 1519-2
  • AS/NZS 1580.402.1
  • ASTM D 522-B
  • ASTM D 1737

Standards not in bold have been superseded but are still recognised in some industries.



Specifications

Elcometer 1506 Cylindrical Mandrel Bend Tester – Specifications

Part Number Description
K1506M201 Elcometer 1506 Cylindrical Mandrel Bend Tester
Test Piece Width Maximum: 64mm
Test Piece Length Maximum: 80 to 100mm depending on the size of the Mandrel used
Dimensions 320 x 135 x 130mm
Weight 4.3kg


Elcometer 1506 Cylindrical Mandrel Bend Tester Packing List:

  • Elcometer 1506 Cylindrical Mandrel Bend Tester
  • operating instructions

Data Sheet

Elcometer 1506 Cylindrical Mandrel Bend Tester – Data Sheet

Elcometer 1506 Cylindrical Mandrel Bend Tester Data Sheet

Standards

Elcometer 1506 Cylindrical Mandrel Bend Tester – Standards

The Elcometer 1506 Cylindrical Mandrel Bend Tester can be used in accordance with:

  • ISO 1519-2
  • AS/NZS 1580.402.1
  • ASTM D 522-B
  • ASTM D 1737

Standards not in bold have been superseded but are still recognised in some industries.

Accessories

Elcometer 1506 Cylindrical Mandrel Bend Tester – Accessories

Part Number Description
KT001506P201 Elcometer 1506 Metric Mandrel Set, 2 to 32mm (one of each of the Metric Mandrels below)
KT001506F002 2mm Mandrel
KT001506F003 3mm Mandrel
KT001506F004 4mm Mandrel
KT001506F005 5mm Mandrel
KT001560F006 6mm Mandrel
KT001506F007 8mm Mandrel
KT001506F014 10mm Mandrel
KT001506F015 12mm Mandrel
KT001506F016 13mm Mandrel
KT001506F017 16mm Mandrel
KT001506F018 19mm Mandrel
KT001506F019 20mm Mandrel
KT001506F020 25mm Mandrel
KT001506F021 32mm Mandrel

Instruction Manual

Elcometer 1506 Cylindrical Mandrel Bend Tester – Instruction Manual

Elcometer 1506 Cylindrical Mandrel Bend Tester Instruction Manual
