Elcometer 154 Wet Film Combs

Product Description

Buy it online here

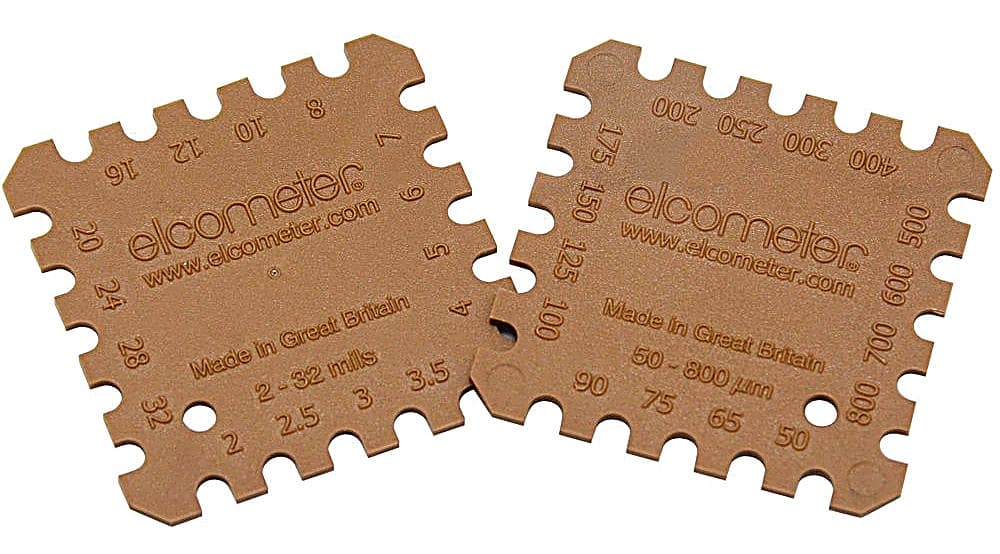

The Elcometer 154 Wet Film Combs are made from ABS plastic and are designed to be used once, and kept as a record of wet film thickness measurement for quality assurance or customer requirements. Metric and Imperial values are on the same comb, 50 to 800µm on one side, 2 to 32mils on the other.

Supplied in a pack containing 25 combs. Each comb has 16 measurement steps.

Using a wet film comb

Place a comb perpendicular to and touching the substrate. Hold the comb in position and wait a few seconds until the teeth are wet. Remove the comb from the film.  The wet film thickness lies between the biggest value ‘coated’ or ‘wet’ tooth and the smallest value ‘uncoated’ or ‘dry’ tooth.

The Elcometer 154 Wet Film Combs can be used in accordance with:

  • ISO 2808-1A
  • ISO 2808-7B*
  • BS 3900-C5-7B*
  • JIS K 5600-1-7
  • NF T30-125

*Standards not in bold have been superseded but are still recognised in some industries.

Specifications

Elcometer 154 Wet Film Combs – Specifications

Part Number Description
B154—-1 Elcometer 154 Plastic Wet Film Combs
Accuracy Nominal Values
Dimensions 40 x 40mm
Weight 900g



Packing List

  • Elcometer 154 Wet Film Combs (Batch of 25)
  • Operating Instructions



Data Sheet


Elcometer 154 Wet Film Combs – Data Sheet

Elcometer 154 Wet Film Combs Data Sheet

Standards

Elcometer 154 Wet Film Combs – Standards

The Elcometer 154 Wet Film Combs can be used in accordance with:

  • ISO 2808-1A
  • ISO 2808-7B*
  • BS 3900-C5-7B*
  • JIS K 5600-1-7
  • NF T30-125

*Standards not in bold have been superseded but are still recognised in some industries

Instruction Manual

Elcometer 154 Wet Film Combs – Instruction Manual

Elcometer 154 Wet Film Combs Instruction Manual

Test Method

Elcometer 154 Wet Film Combs – Test Method

1. Hold the comb perpendicular to the wet film and press the edge of the comb into
2. the film until it is stable on the substrate.
3. Remove the comb from the wet film
4. Examine the teeth of the comb and locate the last tooth which is wetted.
5. Read the thickness value of this tooth. The wet film thickness is between this value and the thickness value of the next dry tooth.

In the example shown, the wet film thickness lies between 2400µm and 2600µm
To use the comb on pipes, ensure it is placed parallel to the longitudinal axis of the pipe





Video

Elcometer 154 Wet Film Combs – Video


This is how to measure wet film thickness using a wet film thickness gauge, also known as a wet film comb.

Wet film combs measure wet film thickness, and are available in a variety of materials including stainless steel, aluminium and plastic, with various measurement scales ranging from 20µm to 3000µm.

Standards

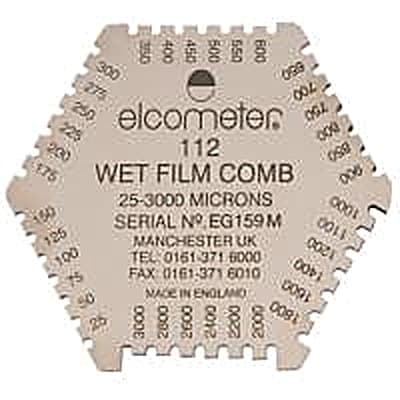

Elcometer 112AL, 112 & 3236 Hexagonal Wet Film Combs:

ASTM D 4414-A, AS/NZS 1580.107.3, BS 3900-C5-7B, ISO 2808-1A, ISO 2808-7B, JIS K 5600-1-7, NF T30-125, US NAVY PPI 63101-000, US NAVY NSI 009-32

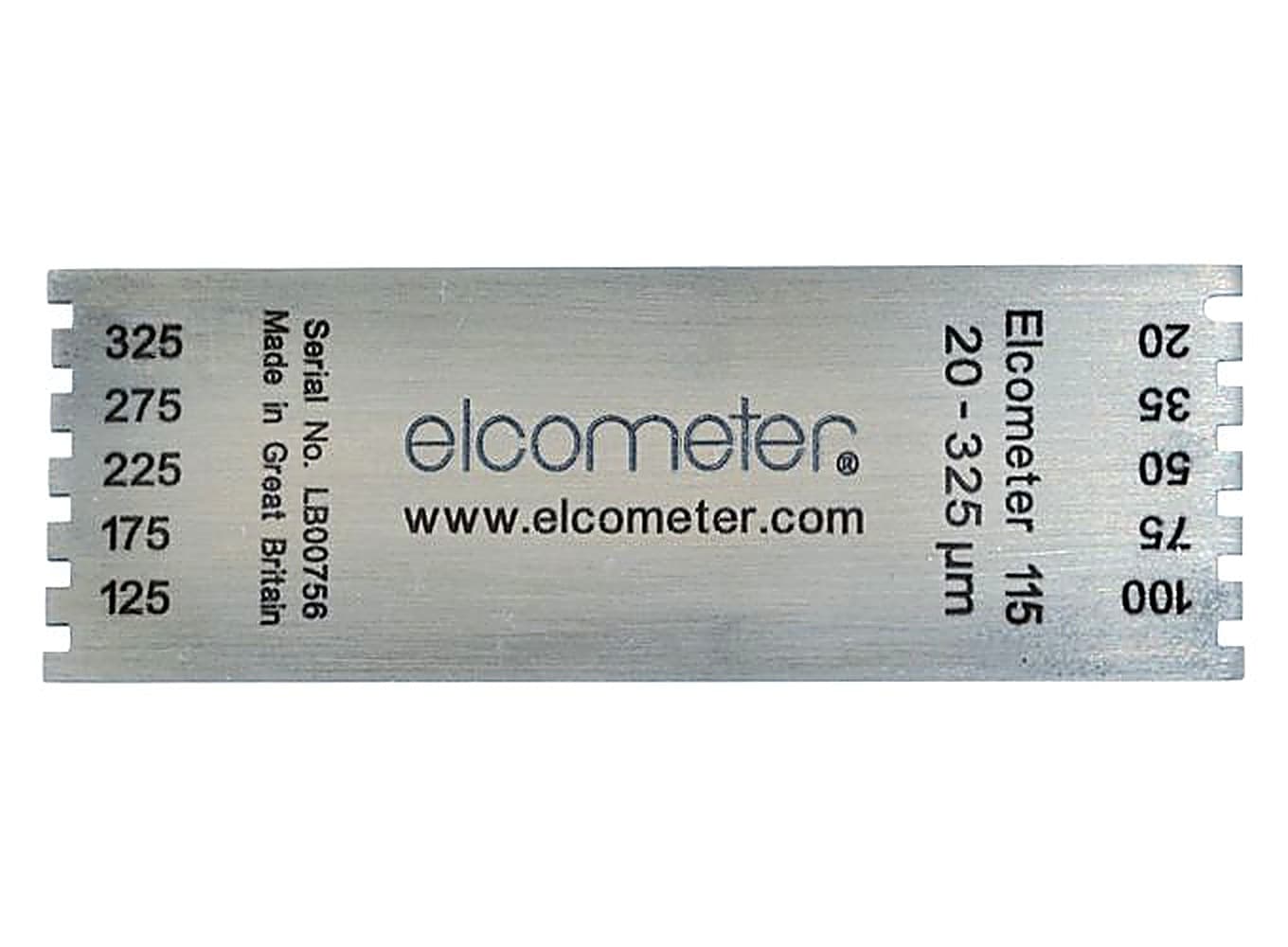

Elcometer 115 Wet Film Combs:

ASTM D 4414-A, AS/NZS 1580.107.3, BS 3900-C5-7B, ISO 2808-1A, ISO 2808-7B, JIS K 5600-1-7, NF T30-125, US NAVY PPI 63101-000, US NAVY NSI 009-32

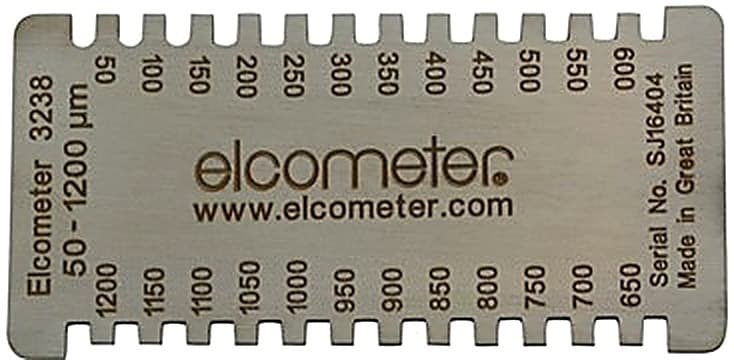

Elcometer 3238 Long Edge Wet Film Combs:

ASTM D 4414-A, AS/NZS 1580.107.3, BS 3900-C5-7B, ISO 2808-1A, ISO 2808-7B, JIS K 5600-1-7, NF T30-125, US NAVY PPI 63101-000, US NAVY NSI 009-32

Elcometer 154 Plastic Wet Film Combs:

BS 3900-C5-7B, ISO 2808-1A, ISO 2808-7B, JIS K 5600-1-7, NF T30-125
