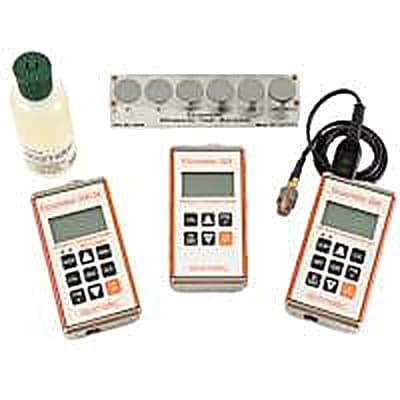

Elcometer 205, 206 and 206 DL Ultrasonic Thickness Gauges - Discontinued
PLEASE NOTE: THESE PRODUCTS HAVE BEEN DISCONTINUED – Please contact us if you would like a recommendation of a unit to replace any of these models.
Product Description
The Elcometer 205, 206 and 206 DL Ultrasonic Thickness Gauges gives you a range of 3 robust, hand held gauges allows you to make reliable measurements or scan a length of material for defects or the thinnest point using the scan mode.Each gauge comes with 3 calibration options: single point, 2 point and speed of sound selection – allowing accurate measurements on a wide range of materials. Compatible with a wide range of measurement transducers, these ultrasonic thickness gauges are available with or without memory and all come with a backlight for measuring in darkened environments. Measurement Modes:
Select from transducer options on Tab above Elcometer 206DL only- ElcoMaster™2.0 The Elcometer 205 & 206 and 205 & 206 DL Ultrasonic Thickness Gauges can be used in accordance with:
|
Specifications
Elcometer 205, 206 and 206 DL Ultrasonic Thickness Gauges – Specifications
Part Number | C205—-1 | C206—-1 | C206DL—-1 |
Model | Elcometer 205 | Elcometer 206 | Elcometer 206DL |
Scan Mode | • | • | • |
Differential Mode | • | • | |
Alarm Mode | • | • | |
Data Output (Immediate) | • | • | |
Data Logging | 1000 readings | ||
ElcoMaster™ software | • | ||
Maximum Measurement Range | 0.63 – 500mm ,dependent on transducer and material | ||
Velocity Range | 1250 – 10000m/s | ||
Accuracy | ±0.1mm , dependent on material and conditions | ||
Resolution | 0.01mm | ||
Units | Millimeters and inches | ||
Operating Temperature | -30°C to 50°C | ||
Keypad Type | Sealed Membrane | ||
Display | 114mm Digit Liquid Crystal Display with backlight | ||
Transducer | Select from transducer options | ||
Battery Type | AA 1.5V Alkaline or 1.2V NiCad cell | ||
Battery Life | 200 hours Alkaline/120 hours NiCad | ||
Weight | 295g | ||
Dimensions | 63 x 120 x 31mm | ||
Certificate available | Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability. | ||
Accredited Certificate: can be issued for Fixed Calibration Equipment and a full UKAS traceable certificate is issued from an independent Calibration Laboratory. |
Elcometer 205 & 206 and 205 & 206 DL Ultrasonic Thickness Gauges Packing List:
- Elcometer 205, 206 or 206DL gauge
- bottle of couplant
- 2 x batteries
- carry case
- operating instructions
- Elcometer 206DL only: CD with ElcoMaster™ software and data transfer cable
Data Sheet
Elcometer 205, 206 and 206 DL Ultrasonic Thickness Gauges – Data Sheet
Elcometer 205, 206 and 206 DL Ultrasonic Thickness Gauges Data Sheet
Standards
Elcometer 205, 206 and 206 DL Ultrasonic Thickness Gauges – Standards
The Elcometer 205 & 206 and 205 & 206 DL Ultrasonic Thickness Gauges can be used in accordance with:
- ASTM E 797
- EN 15317
Accessories
Elcometer 205, 206 and 206 DL Ultrasonic Thickness Gauges – Accessories
Part Number | Description |
T92015701 | Ultrasonic Couplant 120ml Bottle |
T92015874 | High Temperature Ultrasonic Couplant 60ml Bottle |
T9205243- | Test Wedge: 2 – 25mm in 6 steps |
T9205270- | Test Wedge: 30 – 100mm in 8 steps |
Transducers / Probes for the Elcometer 205, 206, 206DL Ultrasonic / Material Thickness Gauges
Measurement Range | Material | Probe Type | Part | |||||||||||||||||
in steel (mm) |
C a s t I r o n
|
P l a s t i c
|
G l a s s F i b r e
|
T h i n G l a s s F i b r e
|
Steels
|
Glass
|
Thin Plastic
|
Aluminium
|
Potted
|
Straight Probe
|
Right Angle Probe
|
Microdot
|
High Temp. (650 deg C)
|
Extra Resolution
|
Exxon Specification
|
Number (Bold & Highlighted are Ex Stock UK) |
Frequency (Mhz)
|
Colour Code
|
Crystal Diameter (mm)
|
Wearface Diameter (mm)
|
3.8-50.8 | ● | ● | ● | ● | ● | T92015620 | 1 | brown | 12.7 | 15.88 | ||||||||||
● | ● | ● | ● | ● | T92015621 | or | ||||||||||||||
● | ● | ● | ● | ● | T92015622 | yellow | ||||||||||||||
● | ● | ● | ● | ● | T92015623 | |||||||||||||||
1.5-101.6 | ● | ● | ● | ● | ● | T92015626 | 2.25 | red | 6.35 | 9.53 | ||||||||||
● | ● | ● | ● | ● | T92015627 | |||||||||||||||
● | ● | ● | ● | ● | ● | T92015628 | ||||||||||||||
● | ● | ● | ● | ● | T92015629 | |||||||||||||||
● | ● | ● | ● | ● | ● | T92015631 | ||||||||||||||
● | ● | ● | ● | ● | ● | T92015632 | ||||||||||||||
1.5-127.0 | ● | ● | ● | ● | ● | T92015633 | 2.25 | red | 12.7 | 15.88 | ||||||||||
● | ● | ● | ● | ● | T92015634 | |||||||||||||||
● | ● | ● | ● | ● | T92015635 | |||||||||||||||
● | ● | ● | ● | ● | ● | T92015636 | ||||||||||||||
● | ● | ● | ● | ● | ● | T92015637 | ||||||||||||||
● | ● | ● | ● | ● | ● | T92015638 | ||||||||||||||
1.5-50.8 | ● | ● | ● | ● | ● | T92015641 | 5 | green | 4.76 | 6.35 | ||||||||||
● | ● | ● | ● | ● | T92015642 | |||||||||||||||
● | ● | ● | ● | ● | T92015644 | |||||||||||||||
1.02-152.4 | ● | ● | ● | ● | ● | T92015645 | 5 | green | 6.35 | 9.53 | ||||||||||
● | ● | ● | ● | ● | T92015646 | |||||||||||||||
● | ● | ● | ● | ● | T92015647 | |||||||||||||||
● | ● | ● | ● | ● | T92015648 | |||||||||||||||
● | ● | ● | ● | ● | ● | T92015655 | ||||||||||||||
● | ● | ● | ● | ● | ● | T92015656 | ||||||||||||||
1.27-507.7 | ● | ● | ● | ● | ● | ● | T92015657 | 2.25 | green | 12.7 | 15.88 | |||||||||
● | ● | ● | ● | ● | ● | T92015658 | ||||||||||||||
● | ● | ● | ● | ● | ● | T92015659 | ||||||||||||||
● | ● | ● | ● | ● | ● | T92015660 | ||||||||||||||
● | ● | ● | ● | ● | ● | ● | ● | T92015661 | ||||||||||||
● | ● | ● | ● | ● | ● | ● | T92015662 | |||||||||||||
1.02-152.4 | ● | ● | ● | ● | ● | ● | ● | ● | ● | T92015663 | 7.5 | grey | 6.35 | 9.53 | ||||||
● | ● | ● | ● | ● | ● | ● | ● | ● | T92015664 | or | ||||||||||
● | ● | ● | ● | ● | ● | ● | ● | T92015665 | silver | |||||||||||
● | ● | ● | ● | ● | ● | ● | ● | T92015666 | ||||||||||||
0.635-152.4 | ● | ● | ● | ● | ● | ● | ● | ● | ● | T92015667 | 7.5 | blue | 6.35 | 9.53 | ||||||
● | ● | ● | ● | ● | ● | ● | ● | ● | T92015668 | |||||||||||
● | ● | ● | ● | ● | ● | ● | ● | T92015669 | ||||||||||||
● | ● | ● | ● | ● | ● | ● | ● | T92015670 | ||||||||||||
1.02-152.4 | ● | ● | ● | ● | T92015671 | 10 | white | 6.35 | 9.53 | |||||||||||
● | ● | ● | ● | T92015672 | ||||||||||||||||
● | ● | ● | ● | T92015673 | ||||||||||||||||
● | ● | ● | ● | T92015674 | ||||||||||||||||
1.52-254.0 | ● | ● | ● | ● | T92015676 | 10 | white | 12.7 | 15.88 | |||||||||||
● | ● | ● | ● | T92015677 | ||||||||||||||||
● | ● | ● | ● | T92015678 | ||||||||||||||||
● | ● | ● | ● | T92015679 |
Sound Velocities
Sound Velocities / Speed of Sound in Materials for Ultrasonic Thickness Gauges
The Ultrasonic Thickness Gauges can be programmed by the user to the appropriate Material in two ways :
- Using known standards of the same material – set the calibration to the thickness
- Using the Frequency calibration, set the frequency to the appropriate Material using the Velocity / Speed of Sound Chart below.
Metals | |||||
m/s | m/s | ||||
A | Aluminium | 6 320 – 6 400 | M | Molybdenum | 6 250 – 6 300 |
Aluminium (2024-T4) | 6 380 | Mercury | 1 450 | ||
Asbestos Cement | 2 200 | N | Nickel | 5 480 – 6 040 | |
B | Beryllium | 12 880 | P | Platinum | 3 690 |
Boron Carbide | 10 920 | S | Silver | 3 600 – 3 700 | |
Brass | 4 390 | Steel, Mild | 5 900 – 6 100 | ||
C | Cast Iron | 3 500 – 5 600 | Steel, Casting (4340) | 5 850 | |
Cast Iron (Modular Graphite) | 5 600 | Steel, 303 Stainless (Austenitic) | 5 660 – 6 120 | ||
Cast Grey Middle | 4 600 | Stellite | 7 050 | ||
Copper | 4 650 – 4 720 | T | Tin | 3 300 – 3 330 | |
Cadmium | 2 770 – 2 800 | Titanium | 5 900 – 6 100 | ||
Chromium | 6 200 | Tungsten Carbon | 6 650 | ||
G | Gold | 3 200 – 3 250 | Tungsten | 5 180 – 5 400 | |
I | Inconel | 5 820 | U | Uranium | 3380 |
Iron | 5 890 – 5 930 | W | Wolfram | 5 460 | |
L | Lead | 1 960 – 2 400 | Z | Zinc | 4 170 – 4 320 |
M | Manganese | 4 660 – 4 700 | Zircaloy 2 | 4 700 | |
Magnesium | 5 770 – 5 840 | Zirconium | 4 650 | ||
Non-Metal | |||||
m/s | m/s | ||||
A | Acrylic | 2 870 | N | Nylon | 2 600 – 2 690 |
Acrylic Resin | 2 730 – 2 870 | O | Oil (SAE 30) | 1 740 | |
Air | 330 | P | Paraffin Wax | 2 200 | |
Aluminium Oxide | 8 700 | Perspex | 2 860 | ||
C | Ceramic (Macor) | 5 631 | Phenolic | 1 400 | |
Diamond | 17 500 | Plexi Glass | 2 690 | ||
Diesel Oil | 1 250 | Polyamide | 2 380 | ||
Epoxy Resin | 2 650 | Polyethylene | 1 900 – 2 400 | ||
G | Glass (Flint) | 4 260 | Polyurethane | 1 780 – 1 900 | |
Glass (Crown) | 5 260 – 6 120 | Polystyrene | 2 340 – 2 400 | ||
Glass (Quartz) | 5 570 | Porcelain | 5 600 – 5 900 | ||
Glass (Window) | 6 800 | PVC | 2 400 | ||
Glycerine | 1 930 | Q | Quartz X Cut | 5 740 | |
I | Ice | 3 980 | Quartz Fused | 5 980 | |
H | Hi-Density Polyethelene | 2 220 – 2 300 | Rubber (Butyl) | 1 900 | |
(Grey & White, Not Black) | R | Rubber (Soft) | 1 480 | ||
M | Methylene-Oxide | 9 980 | Rubber (Vulc.) | 2 300 | |
Monel | 5 360 – 5 400 | S | Silicone Rubber | 948 | |
Motor Oil (SAE 30) | 1 750 | T | Teflon | 1 350 – 1 520 | |
N | Neoprene | 1 600 | W | Water | 1470 |
NB Note : This Schedule is only a Guide |
