Product Description

elcometer-p100-imp-concrete-rebar-locator-200

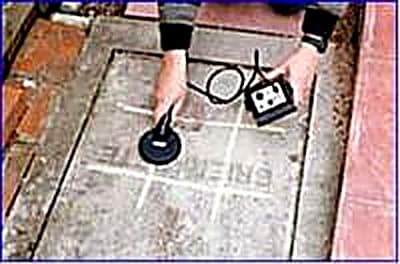

The Elcometer P100 Imp Concrete Rebar Locator gauge provides a quick determination of rebar orientation. The Elcometer P100 is a robust and economical gauge designed to identify the location and orientation of reinforcement bars, metal gas and metal water pipes.Mild steel and stainless steel galvanised wall ties can also be found with the addition of an optional Search Coil (or probe).

Simple to use, the Elcometer P100 is supplied in an ABS plastic carrying case, together with a 100mm search coil and batteries.

  • Fast and accurate- gives a loud audible signal when the exact location of the rebar has been found.
  • Directional Search Field- distinguishes between horizontal and vertical bars.
  • No need to re-zero- Unaffected by moisture, temperature changes and electrical interference.



Specifications

Elcometer P100 Imp Concrete Rebar Locator – Specifications

Detection Ranges for Single Reinforcement Bars
Rebar Diameter Detection Depth
mm mm
8 90
16 100
32 110



Model Description Part Number
Elcometer P100 Elcometer P100 Imp Rebar Locator W100157A9D
Accessories 100mm  Directional Search Coil for Rebar TW999198F
200mm  Hi-Depth Locator Search Coil – Short-handled (250mm) TW999198G
200mm  Hi-Depth Locator Search Coil – Long-handled (650mm) TW999198H



Data Sheet

Elcometer P100 Imp Concrete Rebar Locator – Data Sheet

Elcometer P100 Imp Concrete Rebar Locator Data Sheet

Instruction Manual

Elcometer P100 Imp Concrete Rebar Locator – Instruction Manual

Elcometer P100 Imp Concrete Rebar Locator Instruction Manual
