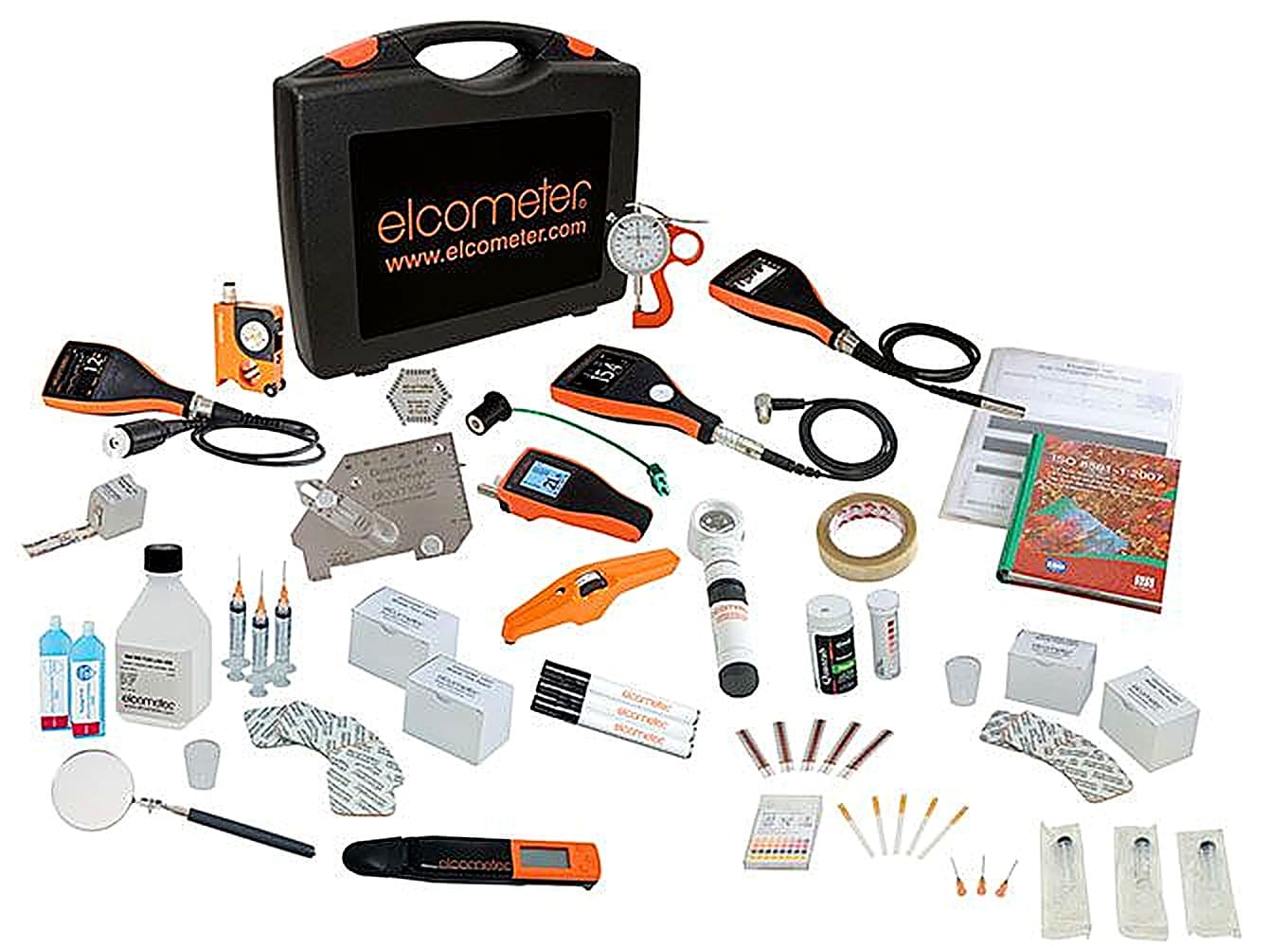

Elcometer Protective Coating Inspection Kit 5

Product Description

The Elcometer Protective Coatings Inspection Kit 5 provides a range of test equipment to help an inspector assess a substrate prior to the application of a coating.The Elcometer Protective Coatings Inspection Kit 5 measurement parameters include:

  • Surface inspection
  • Weld inspection
  • Surface cleanliness
  • Climatic conditions
  • Surface profile
  • Coating thickness
  • Adhesion

The Elcometer Protective Coatings Inspection Kit 5 can be used in accordance with :

  • AS 1580.108.2
  • AS 1580.408.4
  • AS 2331.1.4
  • AS 3894.3-B
  • AS 3894.6-A
  • AS 3894.6-C
  • AS 3894.6-D
  • AS 3894.9
  • AS/NZS 1580.107.3
  • AS/NZS 1580.108.1
  • ASTM B 499
  • ASTM D 1186-B
  • ASTM D 1400
  • ASTM D 2200
  • ASTM D 3359-B
  • ASTM D 4138-A
  • ASTM D 4414-A
  • ASTM D 4417-C
  • ASTM D 7091
  • ASTM E 376
  • ASTM E 797
  • ASTM G 12
  • BS 3900-C5-5B
  • BS 3900-C5-6A
  • BS 3900-C5-6B
  • BS 3900-E6
  • BS 5411-11
  • BS 5411-3
  • BS 5599
  • BS 7079-B4
  • BS 7079-C5
  • DIN 50981
  • DIN 50984
  • DIN 50986
  • ECCA T1
  • ECCA T6
  • EN 13523-1
  • EN 13523-6
  • EN 15317
  • IMO MSC.215(82)
  • IMO MSC.244(83)
  • ISO 1461
  • ISO 16276-2
  • ISO 19840
  • ISO 2063
  • ISO 2360
  • ISO 2409
  • ISO 2808-12
  • ISO 2808-1A
  • ISO 2808-5B
  • ISO 2808-6A
  • ISO 2808-6B
  • ISO 2808-7B
  • ISO 2808-7C
  • ISO 2808-7D
  • ISO 8501-1
  • ISO 8502-3
  • ISO 8502-4
  • ISO 8502-6
  • ISO 8502-9
  • ISO 8503-5
  • JIS K 5600-1-7
  • NACE RP0287
  • NF T30-038
  • NF T30-123
  • NF T30-124
  • NF T30-125
  • SANS 5772
  • SS 184159
  • SS 55900
  • SSPC Guide 15
  • SSPC PA 2
  • SSPC VIS 1
  • SSPC VIS 2
  • SSPC VIS 3
  • SSPC VIS 4
  • SSPC VIS 5
  • US Navy NSI 009-32
  • US Navy PPI 63101-000

Standards not in bold have been superseded but are still recognised in some industries

Specifications

Elcometer Protective Coating Inspection Kit 5 – Specifications

Instruments included in the Elcometer Protective Coating Inspection Kit 5 :

Elcometer 128 Pictorial Surface Standards
Elcometer 131 Inspection Mirrors
Elcometer 144 Paint Safe Marker Pens (Pack of 3)
Elcometer 147 Cambridge Weld Gauge
Elcometer 142 ISO 8502-3 Dust Tape Test Kit
Elcometer 138 Bresle Kit Elcometer 135 Bresle Patches
Elcometer 319 Digital Dewpoint Meter
Elcometer 224 Digital Surface Profile Gauge
Elcometer 112 3236 Hexagonal Stainless Steel Wet Film Combs
Elcometer 456 Digital Coating Thickness Gauges Dry Film Thickness Gauge DFTGElcometer 121 Paint Inspection Gauge with Cross Hatch

Kit Content / Part Number YKIT-PROTECTIVE-
  1M 2SM 2TM 3SM 3TM4M5M6M
Elcometer MTG2 Material Thickness GaugeYY
Elcometer 128 Pictorial StandardsYYY
Elcometer 131/1C Telescopic Inspection MirrorYYY
Elcometer 137 Illuminated MagnifierY
Elcometer 144 Paint Safe Marker Pens (Pack of 3)YYY
Elcometer 147 Weld GaugeYYY
Elcometer 142 Dust Tape Test KitYYY
Elcometer 138 Bresle Salt Kit2YYY
Elcometer 138/2 Surface Contamination KitYY
Elcometer 122 Testex Replica Tape – Coarse & X-Coarse YYYY
Elcometer 124 Thickness GaugeYYYYY
Elcometer 224 Integral Digital Surface Profile GaugeBasicBasicTopTop
Elcometer 224 Separate Digital Surface Profile GaugeTopTopTop
Elcometer 116 Whirling HygrometerY
Elcometer 114 Dewpoint CalculatorY
Elcometer 212 Digital Pocket Thermometer – Surface ProbeY
Elcometer 319 Digital Dewpoint MeterStdTopStdTopTopTopTop
Elcometer 107 Cross Hatch CutterYYYYY
Elcometer 112 Hexagonal Wet Film Comb: 25 – 3000μm YYYYYY
Elcometer 115 Wet Film Comb (Set of 4)YY
Elcometer 456 Integral Digital F Coating Gauge, 0 – 1500μm Basic
Elcometer 456 Separate Digital Coating Thickness GaugeStdStdTopTopTopTopTop
Elcometer 456 Standard Separate Probe, 0 – 1500μm  FerrousFerrousFNFFNF
Elcometer 456 Ferrous Standard Separate F2 Probe, 0-5mm     FerrousFerrousFerrous
ElcoMaster® Software CD and USB CableYYYYYYY
Elcometer 121 Paint Inspection Gauge with Cross Hatch TopTop
cutters 6 x 1, 2 & 3mm & ISO Adhesive Tape
Elcometer 270 Pinhole Detector (9, 67.5 & 90V)Y
Dimensions of Inspection Kit Carry CaseLength (mm)456456456456456495575575
 Breadth (mm)384384384384384420475475
 Height (mm)110127127127127175205205

² Supplied with Bresle Samplers not Bresle Patches
