Product Description

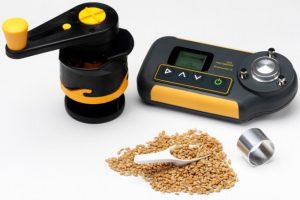

Grainmaster "i" Moisture Meter

The Grainmaster “i” Moisture Meter is a highly versatile instrument to measure the moisture and temperature of crops. The meter is pre-programmed with 15 crop calibrations, each of which can be adjusted individually, if required, for matching with respect to commercially used instruments. It is supplied with an integrated grinder-compressor unit that enables the user to take moisture readings in ground samples very quickly and simply.

There is also a range of optional probes for measuring temperature in stored grain and moisture levels in baled hay and straw. The Grainmaster “i” Moisture Meter is supplied in a pouch with grinder-compressor unit, grain cup, sample spoon, brush and ‘Quickcheck’. In addition to the 0-100 relative scale, the 15 pre-programmed calibrations include: Wheat, Barley, Oats, Oilseed, Rape, Canola, Linseed, Peas, Corn, Sunflower, Coffee, Soya, Rice, Sorghum, Paddy and Beans.

Specifications

Grainmaster “i” Moisture Meter – Specifications

Description Technical Specifications
Weight of Instrument c/w Grinder-Compressor Unit 1kg
Dimensions of Instrument c/w Grinder-Compressor Unit 195 mm length x 185 mm height x 100 mm width
Power x1 6F22R 9V battery
LCD Resolution 0.1
Operating Temperature Range 0 °C to 40 °C
%H2O Measurement Range See Table below.



Moisture Ranges of the various grains :
Wheat: 11.3 to 29.3
Oats: 10.9 to 29.3
OSR: 7.0 to 26.0
Barley: 10.9 to 29.3
Canola: 7.0 to 26.0
Linseed: 7.0 to 16.5
Sunflower: 6.2 to 23.0
Corn: 10.4 to 26.2
Coffee: 9.8 to 23.9
Soya: 7.4 to 22.2
Beans: 12.4 to 25.0
Peas: 12.0 to 30.9
Rice: 13.2 to 26.5
Sorghum: 10.2 to 26.9
Paddy: 10.4 to 26.2
0-100 relative


Grainmaster “i” Moisture Meter Packing list:

The Grainmaster “i” is supplied in a pouch with :

  • Grinder-compressor unit
  • Grain cup
  • Sample spoon
  • Brush
  • ‘Quickcheck’
  • Instructions Calibration Data Table

Data Sheet

Grainmaster “i” Moisture Meter – Data Sheet

Grainmaster “i” Moisture Meter Data Sheet

Accessories

Grainmaster “i” Moisture Meter – Accessories

Part Number Description
GRN6046 Fast Response Probe for Grainmaster “i”
GRN6138 Bale Probe for Grainmaster “i”
GRN3005 Moisture and Temperature Probe for Grainmaster “i”



Instruction Manual

Grainmaster “i” Moisture Meter – Instruction Manual

Grainmaster “i” Moisture Meter Instruction Manual
