Kolectric 8020 Concrete MicroCovermeter - Discontinued


Kolectric 8020 Concrete MicroCovermeter

Product Description

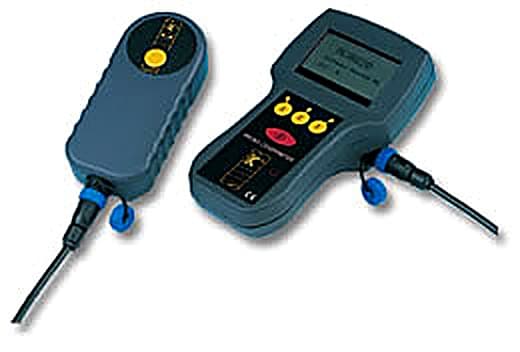

The Kolectric 8020 Concrete Micro Covermeter is the world’s first microprocessor-controlled reinforcement bar locator, now with Data logging.

  • Handheld Unit with Screen Display
  • Lightweight K9 Probe With Keypad
  • Auto Rebar Diameter Determination
  • Depth Displayed in High/Low Range
  • Accurate Discrimination of Close Bars
  • Audio and Visual Bar Location Aids
  • Data Logging
  • Quick Scanning Facility to Preset Depth
  • Data Logging to Spreadsheet
  • Soft key User Programmable
  • Carry case, Harness and Charger
  • IP65 Rated. Screen Backlight
  • Instructions and Optional Software

Using high-powered processors in conjunction with pulse induction search technology, automatic bar diameter determination within the parameters defined below enables very precise depth readings and bar orientation to be obtained even where there is the need to discriminate between bars on close centres. Several Menu and Set-up screens are available to tailor the 8020 to your local requirements, and the unit remembers these settings at switch on until modified, even after power-down for battery conservation. Battery life is shown on screen but an additional visual indication is given when to continue work might compromise stored data, and that re-charging is essential.

The Kolectric 8020 Concrete Micro Covermeter can be used in accordance with the following Standards:

  • ACI 318
  • BS 1881:204
  • CP 110
  • DIN 1045
  • EC 2
  • SIA 162



Specifications

Kolectric 8020 Concrete MicroCovermeter – Specifications

Using high-powered processors in conjunction with pulse induction search technology, automatic bar diameter determination within the parameters defined below enables very precise depth readings and bar orientation to be obtained even where there is the need to discriminate between bars on close centres. Several Menu and Set-up screens are available to tailor the Kolectric 8020 Concrete MicroCovermeter to your local requirements, and the unit remembers these settings at switch on until modified, even after power-down for battery conservation. Battery life is shown on screen but an additional visual indication is given when to continue work might compromise stored data, and that re-charging is essential.



Data Sheet

Kolectric 8020 Concrete MicroCovermeter – Data Sheet

Kolectric 8020 Concrete MicroCovermeter Data Sheet

Standards

Kolectric 8020 Concrete MicroCovermeter – Standards

The Kolectric 8020 Concrete Micro Covermeter can be used in accordance with the following Standards:

  • ACI 318
  • BS 1881:204
  • CP 110
  • DIN 1045
  • EC 2
  • SIA 162


Instruction Manual

Kolectric 8020 Concrete MicroCovermeter – Instruction Manual

Kolectric 8020 Concrete MicroCovermeter Instruction Manual
