Product Description

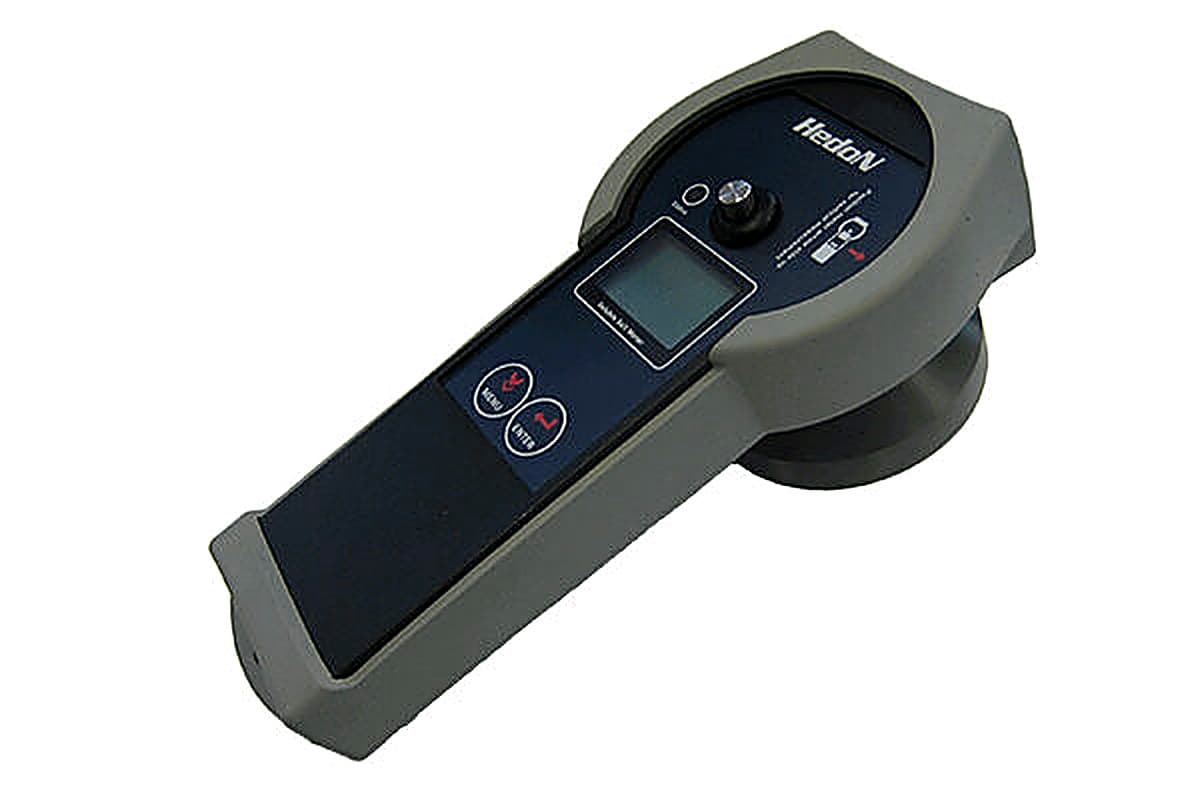

Soluble Salt Meter (SSM) Salt Contamination Meter

The Soluble Salt Meter (SSM) Salt Contamination Meter is developed specifically to address problems with US Navy and IMO test protocols using the Bresle Patch. The SSM exactly duplicates the Bresle Patch process but with a higher accuracy and reproducibility. Measurements are automated and there are no consumables. The complete test sequence requires less than a minute.
In comparison to the Bresle Patch the Soluble Salt Meter (SSM) Salt Contamination Meter :

  • cuts sampling and inspection time
  • low costs per sample. No consumables
  • extracts surface salts more reliably for more accurate readings
  • minimizes operator error through automatic metered water injection and electronic recording of measurements
  • improves safety by eliminating the need for syringe with needles
  • Does not leave sticky residue on the substrate


The Soluble Salt Meter (SSM) is a patented design that provides a hand held, automated method for detection of soluble salts on flat surfaces. The SSM has been independently tested both in laboratory and US Navy shipyard facilities and is approved by NAVSEA for use as a replacement to the Bresle patch method in NAVSEA Standard Item 009-32 (FY-10).

The Soluble Salt Meter (SSM) combines surface salt extraction and conductivity measurement in one tool, allowing convenient and ergonomic operation. It is developed as a direct replacement for the Bresle patch inspection method (ISO 8502-6). The hand held design provides a self-contained, easily transportable, unit for soluble salt measurements. The SSM and supplied fluid dispenser allow for quick and accurate injection of deionized water, automatic extraction of surface salts and conductivity measurement. The Soluble Salt Meter (SSM) is complete with a backlit LCD display and easy to follow on screen instructions.

Up to a 1000 measurements can be stored in the internal memory. This data can be downloaded to any PC and exported in Microsoft® Excel file format for use in any Coating Technical File (CTF) using the supplied software.

The Soluble Salt Meter (SSM) Salt Contamination Meter can be used in accordance with:

  • ISO 8502-6
  • ISO 8502-9

Specifications

Soluble Salt Meter (SSM) Salt Contamination Meter – Specifications

Description Technical Specifications
Standards E Equivalent to ISO Standard 8502-6 Extraction of soluble contaminants for analysis — The Bresle method; meets the requirements of ISO Standard 8502-9 Field method For the conductometric determination of water-soluble salts.
Measurement Area 1250 mm (circular) fixed footprint
Attachment Method Magnetic with silicone seal (no effect on surface quality; proven to seal over deep pits)
Water Injection Method Automated, with simple press of fixed volume dispenser
Dose 3 ± 0.05 ml
Measurement Process Steps 5
Total Process Time 60 seconds
Probe Range 0-300 µS/cm
Resolution 1 µS/cm
Measurement Accuracy ± 3 µS/cm
Surface Temperature Range 5 – 50 °C
Temperature probe accuracy ± 0,3 °C
Minimum radius of curvature 550mm
Memory Holds up to 1000 measurements (10 batches of up to 100 measurements each)
Connectivity via USB with PC or laptop
Power Supply Lithium-ion rechargeable battery
IP Rating IP54
Dimensions (Instrument only) 21 x 10 x 8 cm
Weight (Instrument only) 780 g


Soluble Salt Meter (SSM) Salt Contamination Meter Packing list:

The Soluble Salt Meter kit is supplied in a robust carry case and includes :

  • Soluble Salt Meter type HED7263901
  • 3ml fixed volume fluid dispenser
  • Container for deionized water
  • Flexible plastic tubing to interconnect SSM and dispenser
  • Universal AC adapter to charge the LiI-ion battery of the SSM
  • CD with SSMlink software and manual
  • USB connection cable
  • 4 sachets of 84 µS/cm validation fluid

Data Sheet

Soluble Salt Meter (SSM) Salt Contamination Meter – Data Sheet

Soluble Salt Meter (SSM) Salt Contamination Meter Data Sheet

Standards

Soluble Salt Meter (SSM) Salt Contamination Meter – Standards

The Soluble Salt Meter (SSM) Salt Contamination Meter can be used in accordance with:

  • ISO 8502-6
  • ISO 8502-9

Test Method

Soluble Salt Meter (SSM) Salt Contamination Meter – Test Method

Soluble Salts Meter
The Soluble Salts Meter (SSM) performs a measurement cycle in five easy steps:
1) Attach SSM to surface
2) Inject de-ionized water into SSM with one press of the dose bottle
3) Press “Start”: SSM automatically

  • agitates solution
  • takes a measurement
  • displays the result on the LC D screen
  • stores the data in memory

4) Remove SSM and wipe remaining water from surface
5) Clean meter by flushing with deionized water
