TT100 Low Cost Ultrasonic Wall Thickness / Material Thickness Gauge - Discontinued
PLEASE NOTE: THIS PRODUCT HAS BEEN DISCONTINUED – Please contact us if you would like a recommendation of a unit to replace this model.
Product Description

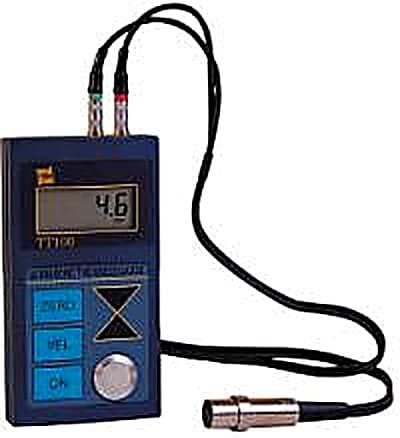

The TT100 Low Cost Ultrasonic Wall Thickness / Material Thickness Gauge is a hand-held microprocessor controlled thickness gauge, specifically designed for measuring the thickness of metallic and non-metallic materials eg. aluminium, titanium, plastics, ceramics, glass and other ultrasonic wave-conducting materials. It can measure thickness, as long as the material has parallel top and bottom surfaces. The TT100 can perform precise measurements on various types of raw materials, components parts, and assembled machinery. It can also be used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion. The TT100 is very easy to use. After a simple calibration to a known thickness or sound velocity, the gauge will give fast and accurate readings in millimeters. Sound velocities for 5 different materials can be pre-set and 10 thickness readings can be stored in the memory. |
Specifications
TT100 Low Cost Ultrasonic Wall Thickness / Material Thickness Gauge – Specifications
Description | Specification |
Material : | Metallic & Non-Metallic |
Range (probe dependent) : | 1.2 to 225.0 mm |
Accuracy : | ±1% of Material Thickness +0.1 mm |
Resolution : | 0.1 up to 99.9 mm |
Sound velocity range : | 1000 to 9999 m/sec |
Probe Tip diameter : | 12 mm |
Pipe Diameter Limits : | 20 mm x 3 mm |
Working Temp. : | -5 to 40 deg C |
Relative Humidity : | < 90% |
Surface Temperature : | < 60 deg C |
Measuring units : | mm |
Frequency : | 5 MHz |
Display : | 4 digit LCD |
Memory : | 10 readings |
RS232 : | no |
Sound Velocity : | 5 Preset Sound Velocities |
Auto power off : | yes |
Power Supply : | 2 x 1.5 AA Alkaline |
Alarm limit setting : | no |
Battery Life : | 250 hours per battery set |
Dimensions : | 126 x 68 x 23 mm |
Weight : | 170g |
Non-linear Automatic Compensation | |
Indication of Coupling Status and low Voltage |
TT100 Low Cost Ultrasonic Wall Thickness / Material Thickness Gauge Package List:
- Plastic case – foam lined with Combination Lock
- 2 Probes – Straight & Right angle – both 5 MHz
- Coupling Agent – (Vaseline or Grease Hand Cleaner will also give accurate readings)
- Instruction Manual
Data Sheet
TT100 Low Cost Ultrasonic Wall Thickness /
Material Thickness Gauge – Data Sheet
TT100 Low Cost Ultrasonic Wall Thickness / Material Thickness Gauge Data Sheet
Accessories
TT100 Low Cost Ultrasonic Wall Thickness / Material Thickness Gauge – Accessories
Type of Probe | Working | Measuring | Minimum | Characteristic |
Frequency | Thickness | Size of | ||
Range | Measuring Pipe | |||
5PØ10 | 5MHz | 1.2 – 225 | Ø20 x 3 | Straight Probe |
5PØ10/90° | 5MHz | 1.2 – 225 | Ø20 x 3 | Right Angle Probe |
7PØ6 | 7MHz | 0.75 – 60 | Ø15 x 2 | For testing thin materials |
SZ2.5P | 2.5MHz | 3 – 300 | For testing thick materials with Rough Surfaces | |
ZW5P | 5MHz | 4 – 80 | High Temp up to 300 deg C |
Sound Velocities
Sound Velocities / Speed of Sound in Materials for Ultrasonic Thickness Gauges
The Ultrasonic Thickness Gauges can be programmed by the user to the appropriate Material in two ways :
- Using known standards of the same material – set the calibration to the thickness.
- Using the frequency calibration, set the frequency to the appropriate Material using the Velocity / Speed of Sound Chart below.
Metals | |||||
m/s | m/s | ||||
A | Aluminium | 6 320 – 6 400 | M | Molybdenum | 6 250 – 6 300 |
Aluminium (2024-T4) | 6 380 | Mercury | 1 450 | ||
Asbestos Cement | 2 200 | N | Nickel | 5 480 – 6 040 | |
B | Beryllium | 12 880 | P | Platinum | 3 690 |
Boron Carbide | 10 920 | S | Silver | 3 600 – 3 700 | |
Brass | 4 390 | Steel, Mild | 5 900 – 6 100 | ||
C | Cast Iron | 3 500 – 5 600 | Steel, Casting (4340) | 5 850 | |
Cast Iron (Modular Graphite) | 5 600 | Steel, 303 Stainless (Austenitic) | 5 660 – 6 120 | ||
Cast Grey Middle | 4 600 | Stellite | 7 050 | ||
Copper | 4 650 – 4 720 | T | Tin | 3 300 – 3 330 | |
Cadmium | 2 770 – 2 800 | Titanium | 5 900 – 6 100 | ||
Chromium | 6 200 | Tungsten Carbon | 6 650 | ||
G | Gold | 3 200 – 3 250 | Tungsten | 5 180 – 5 400 | |
I | Inconel | 5 820 | U | Uranium | 3380 |
Iron | 5 890 – 5 930 | W | Wolfram | 5 460 | |
L | Lead | 1 960 – 2 400 | Z | Zinc | 4 170 – 4 320 |
M | Manganese | 4 660 – 4 700 | Zircaloy 2 | 4 700 | |
Magnesium | 5 770 – 5 840 | Zirconium | 4 650 | ||
Non-Metal | |||||
m/s | m/s | ||||
A | Acrylic | 2 870 | N | Nylon | 2 600 – 2 690 |
Acrylic Resin | 2 730 – 2 870 | O | Oil (SAE 30) | 1 740 | |
Air | 330 | P | Paraffin Wax | 2 200 | |
Aluminium Oxide | 8 700 | Perspex | 2 860 | ||
C | Ceramic (Macor) | 5 631 | Phenolic | 1 400 | |
Diamond | 17 500 | Plexi Glass | 2 690 | ||
Diesel Oil | 1 250 | Polyamide | 2 380 | ||
Epoxy Resin | 2 650 | Polyethylene | 1 900 – 2 400 | ||
G | Glass (Flint) | 4 260 | Polyurethane | 1 780 – 1 900 | |
Glass (Crown) | 5 260 – 6 120 | Polystyrene | 2 340 – 2 400 | ||
Glass (Quartz) | 5 570 | Porcelain | 5 600 – 5 900 | ||
Glass (Window) | 6 800 | PVC | 2 400 | ||
Glycerine | 1 930 | Q | Quartz X Cut | 5 740 | |
I | Ice | 3 980 | Quartz Fused | 5 980 | |
H | Hi-Density Polyethelene | 2 220 – 2 300 | Rubber (Butyl) | 1 900 | |
(Grey & White, Not Black) | R | Rubber (Soft) | 1 480 | ||
M | Methylene-Oxide | 9 980 | Rubber (Vulc.) | 2 300 | |
Monel | 5 360 – 5 400 | S | Silicone Rubber | 948 | |
Motor Oil (SAE 30) | 1 750 | T | Teflon | 1 350 – 1 520 | |
N | Neoprene | 1 600 | W | Water | 1470 |
NB Note : This Schedule is only a Guide |
