134 Folding Linen Magnifier 5X and 8X - Discontinued
Specialist pick
Image 1 / 1
About this product

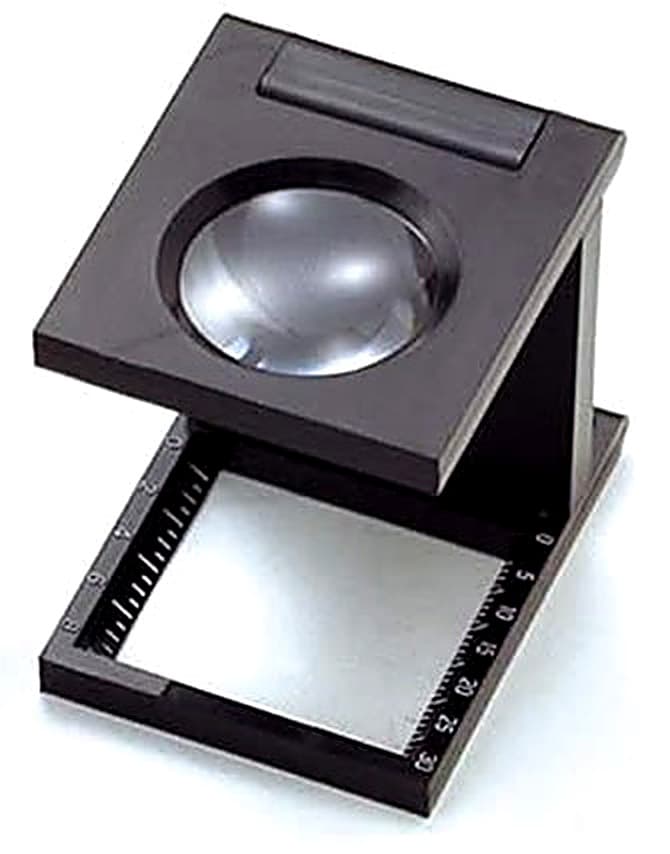

The 134 Folding Linen Magnifier is a pocket counting glass available in two magnifications, the 134-5X at five times and the 134-8X at eight times, used to inspect woven materials and assess fine detail that is hard to judge by eye. It helps an inspector check the spacing between items, identify discrepancies in the weave and count the number of strands per mm or cm, the sort of close work that decides whether a fabric or mesh meets specification.

The graduated baseplate folds flat for carrying and gives a measuring scale beneath the lens. The 134-5X carries graduations of 0-30 / 0-8 mm, while the 134-8X offers higher magnification with graduations of 0-20 / 0-6 mm over a smaller field, so the choice depends on whether wider coverage or finer detail matters more for the task in hand.

The magnifier is used in textile and material inspection where weave density and strand counts need to be verified quickly on site. This product line is now discontinued. It was supplied by BAMR, South Africa's authorised distributor of precision measurement and inspection instruments.

Discontinued

134 Folding Linen Magnifier 5X and 8X - Discontinued

SKU · 134 - 5X (+1 more)

The folding linen Magnifier is ideal for determining the spacing between items as well as the discrepancies in the weave and strands per mm or cm

  • Ideal for determining spacing between items
  • Measures discrepancies in the weave
  • Counts strands per mm or cm
Indicative price
POA
Specialist-built quote, by close of business
Or ask a quick question on WhatsApp
Used by inspection teams in
RefiningMarineMiningBridge / civil
Specifications

Specifications

Part NumberDescriptionGraduations
134 – 5XFolding Linen Magnifier – Five Times Magnification0-30 / 0-8 mm
134 – 8XFolding Linen Magnifier – Eight Times Magnification0-20 / 0-6 mm
