The 88463 AZ Bluetooth 4.0 Data Logger can measure the Humidity and Temperature and Barometric readings throughout the entire duration of the logging period. This data logger is equipped with Bluetooth communication for programming purposes, simplifying remote data logging and allowing the user to interact with the unit through their smartphone. There is a Bluetooth-integrated iOS and Android app is available, ensuring that reports and measurements can be shared seamlessly. Both PDF file and csv files can be generated by the free App "Nice Logger".
The 88463 AZ Bluetooth 4.0 Barometric, Temperature & Humidity Recorder is ideal for various uses, and is especially well-suited for warehouses, storerooms, laboratories, basements, wine cellars, industrial processing areas, industrial kitchens, HVAC fields or other controlled environments.
AZ 88463 BLE Temp & Humidity Logger

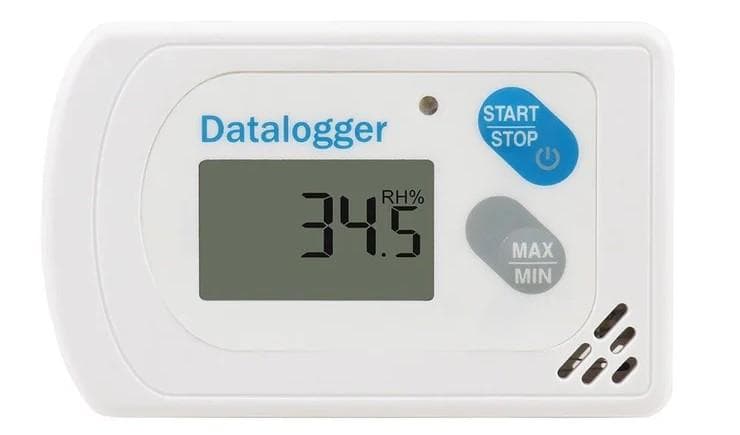

The AZ 88463 logs temperature, relative humidity and barometric pressure across a full logging period and sends the data to a smartphone over Bluetooth. Readings refresh on the LCD every 5 seconds, with LED alarm and status indicators. The free Nice Logger app for iOS and Android generates PDF and CSV reports.
- Wireless download Log and download data wirelessly through Bluetooth 4.0, so the unit can be programmed and read from a smartphone without removing it from the monitored space.
- Three measurands Temperature, barometric pressure and humidity readings from the built-in sensor, recorded throughout the entire logging period.
- Free app The Nice Logger app for iOS and Android downloads PDF reports containing summaries, graphs and detailed data measurements, and can also generate CSV files.
- Live display A large LCD and LED indicators give real time data every 5 seconds, with alarm and status indicators. Historical readings are available by checking Max and Min values.
Specifications
- Model
- 88463 AZ Barometric, Temperature & Humidity Recorder
- Temperature Range
- NTC Thermistor, -30 to 70°C
- Temperature Resolution
- 0.1°C
- Temperature Accuracy
- ±0.5°C
- Humidity Range
- Capacitor, 0.1 to 99.9% RH
- Humidity Resolution
- 0.1% RH
- Humidity Accuracy
- ±3% RH (at 25°C, 10 to 90% RH; others ±5% RH)
- Barometric Pressure
- 300 to 1100 hPa, 8.9 to 32.5 inHg
- Barometric Resolution
- 0.1 hPa, 0.1 inHg
- Barometric Accuracy
- ±3 hPa (at 0 to 60°C), ±5 hPa (-20 to 0°C). Accuracy is not specified in another temperature range.
- Sampling Points
- 24K:T & 24K:RH, 16K:T, 16K:RH, 16K:Baro
- Sampling Interval
- 10 seconds to 120 minutes
- Start Delay
- 0 to 1440 minutes, 10 minute steps
- Alarm Range
- Programmable from -30 to 70°C
- Alarm Delay
- 0 to 720 minutes, 5 minute steps
- Alarm Type
- Single event, cumulative, disable
- Operation Keys
- 2 keys (Start/Stop and Max/Min)
- LED Indicator
- REC, high/low alarm
- Meter Size
- 70 (L) x 50 (W) x 23 (H) mm
- LCD Size
- 30 (L) x 18 (W) mm
- Operating Temperature
- -30 to 70°C
- Operating Humidity
- Below 90% RH
- Storage Temperature
- -40 to 85°C
- Storage Humidity
- Below 90% RH
- Weight
- Approximately 70 g
- Battery
- 1 x 3.0V CR2. 1 year life while BLE broadcast and alarm are off, 3 months while BLE broadcast is on.
Specifications
Specifications
- Model
- 88463 AZ Barometric, Temperature & Humidity Recorder
- Temperature Range
- NTC Thermistor, -30 to 70°C
- Temperature Resolution
- 0.1°C
- Temperature Accuracy
- ±0.5°C
- Humidity Range
- Capacitor, 0.1 to 99.9% RH
- Humidity Resolution
- 0.1% RH
- Humidity Accuracy
- ±3% RH (at 25°C, 10 to 90% RH; others ±5% RH)
- Barometric Pressure
- 300 to 1100 hPa, 8.9 to 32.5 inHg
- Barometric Resolution
- 0.1 hPa, 0.1 inHg
- Barometric Accuracy
- ±3 hPa (at 0 to 60°C), ±5 hPa (-20 to 0°C). Accuracy is not specified in another temperature range.
- Sampling Points
- 24K:T & 24K:RH, 16K:T, 16K:RH, 16K:Baro
- Sampling Interval
- 10 seconds to 120 minutes
- Start Delay
- 0 to 1440 minutes, 10 minute steps
- Alarm Range
- Programmable from -30 to 70°C
- Alarm Delay
- 0 to 720 minutes, 5 minute steps
- Alarm Type
- Single event, cumulative, disable
- Operation Keys
- 2 keys (Start/Stop and Max/Min)
- LED Indicator
- REC, high/low alarm
- Meter Size
- 70 (L) x 50 (W) x 23 (H) mm
- LCD Size
- 30 (L) x 18 (W) mm
- Operating Temperature
- -30 to 70°C
- Operating Humidity
- Below 90% RH
- Storage Temperature
- -40 to 85°C
- Storage Humidity
- Below 90% RH
- Weight
- Approximately 70 g
- Battery
- 1 x 3.0V CR2. 1 year life while BLE broadcast and alarm are off, 3 months while BLE broadcast is on.
