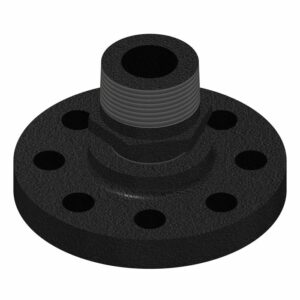

The Elcometer 8 Hole Pot Flange is a flange assembly for Elcometer blast machines, supplied under part numbers MT28552, MT28552N, MT28536 and MT28536N, that connects the abrasive media valve to the pot coupling. Its eight holes ensure the media valve can be oriented accurately without having to over tighten the flange into the pot coupling, which protects the thread and keeps the valve correctly aligned.
The range covers different valve types and connection sizes. The 8 hole reducing nipple flange assembly for blast machines using GV or AGV abrasive valves reduces 32 mm to 25 mm and is supplied as MT28552 in the PED version or MT28552N in the ASME version. The assembly for the Elcometer 1020 using the MGV abrasive valve reduces 32 mm to 13 mm and is supplied as MT28536 in PED or MT28536N in ASME form, so the correct part depends on the valve fitted and the applicable pressure code.
Spare parts are available individually, including the reducing hex nipples and matching flanges in both PED and ASME versions. The 8 Hole Pot Flange is used in abrasive blasting setups for surface preparation. It is supplied by BAMR, South Africa's authorised Elcometer distributor.
8 Hole Pot Flange
The Elcometer 8 Hole Pot Flange has 8 holes to ensure accurate orientation of the media valve without having to over tighten the flange into the pot coupling.
When to use the 8 Hole Pot Flange
Use this flange when fitting a media valve to a blast pot and you need the valve to seat in the correct orientation. Its 8 holes let you align the valve accurately without over-tightening the flange into the pot coupling. It is a surface prep blasting spare for pots, pumps and fluid handling.
- 1Accurate valve orientationEight holes give finer alignment positions, so the media valve sits where it should without forcing the flange into place.
- 2Avoids over-tighteningBecause orientation does not depend on torque, you keep the flange and pot coupling threads from being strained to get the valve square.
- 3Matched reducing nipples and flangesIt is supplied with 13mm and 25mm flanges and 32mm reducing hex nipples in BSP and NPT/NPSM, so you can match the connection to your existing pot threads.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the 8 Hole Pot Flange
Use this flange when fitting a media valve to a blast pot and you need the valve to seat in the correct orientation. Its 8 holes let you align the valve accurately without over-tightening the flange into the pot coupling. It is a surface prep blasting spare for pots, pumps and fluid handling.
- 1Accurate valve orientationEight holes give finer alignment positions, so the media valve sits where it should without forcing the flange into place.
- 2Avoids over-tighteningBecause orientation does not depend on torque, you keep the flange and pot coupling threads from being strained to get the valve square.
- 3Matched reducing nipples and flangesIt is supplied with 13mm and 25mm flanges and 32mm reducing hex nipples in BSP and NPT/NPSM, so you can match the connection to your existing pot threads.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Spare Parts
Spare Parts
- 32mm to 13mm Reducing Hex Nipple
- MT30021
- 13mm Flange
- MT30530
- 32mm to 25mm Reducing Hex Nipple
- MT30528
- 25mm Flange
- MT29553
- 32mm to 13mm Reducing Hex Nipple
- MT30021N
- 13mm Flange
- MT30530N
- 32mm to 25mm Reducing Hex Nipple
- MT30528N
- 25mm Flange
- MT29553N
Frequently asked questions
Why does the 8 Hole Pot Flange have 8 holes?
The 8 holes ensure accurate orientation of the media valve without requiring you to over-tighten the flange into the pot coupling.
What reducing hex nipples are available as spares?
The 32mm to 13mm reducing hex nipple (MT30021) and the 32mm to 25mm reducing hex nipple (MT30528) are stocked as spares.
What spare flanges does BAMR supply?
The 13mm flange (MT30530) and the 25mm flange (MT29553) are both available as spares.
Which nipple connects to which flange?
The 32mm to 13mm nipple (MT30021) connects to the 13mm flange (MT30530). The 32mm to 25mm nipple (MT30528) connects to the 25mm flange (MT29553).
