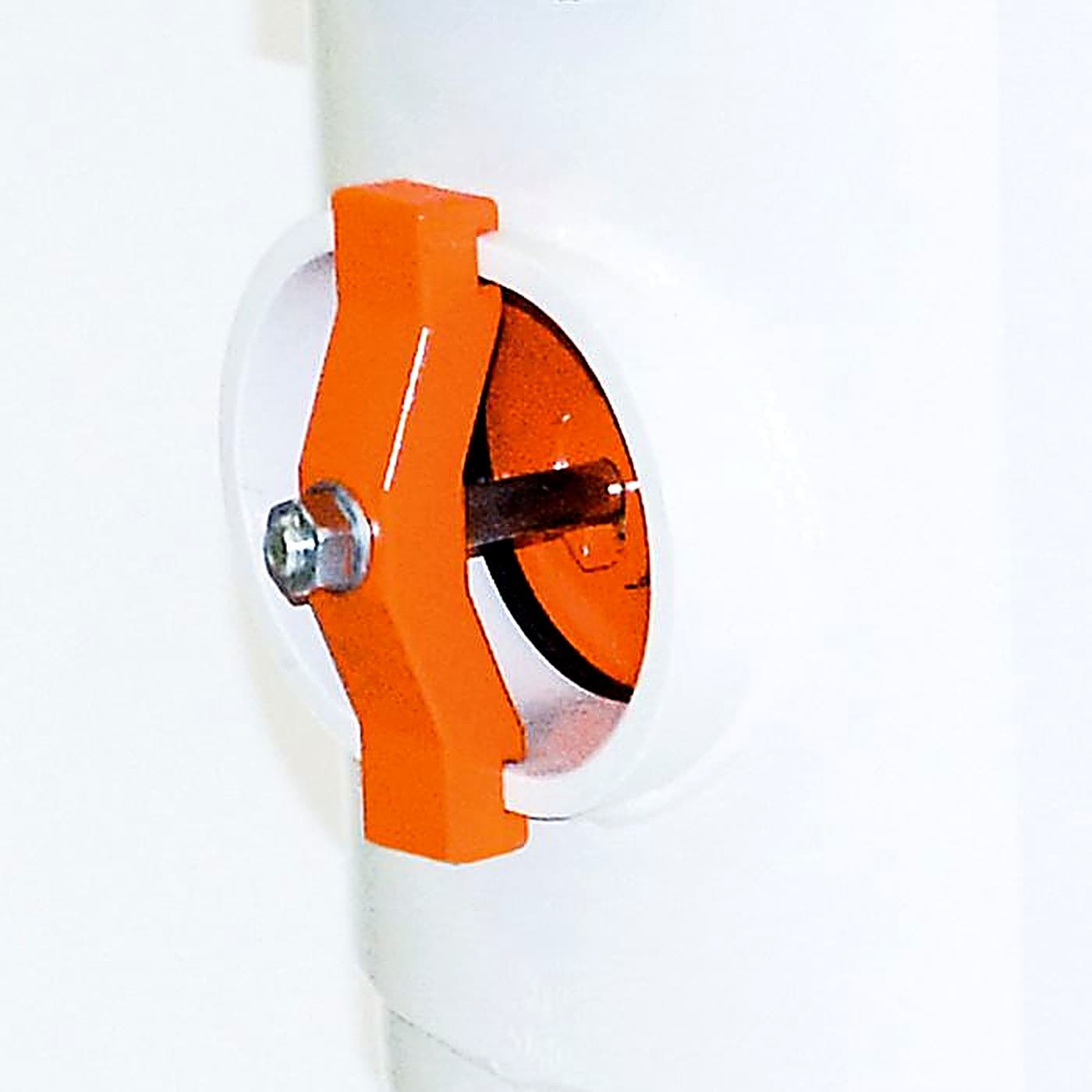

The Elcometer Access Door & Assembly is the inspection hatch door, gasket and fastening hardware used to open, seal and service Elcometer abrasive blast machines. The doorway of the Elcometer Access Door is wide enough to admit both arms, which makes internal inspection and routine servicing of the blast pot quicker and less awkward than reaching through a small opening.
A leaking or misaligned hatch wastes abrasive and compromises the seal a blast machine needs to hold pressure, so each Elcometer Access Door is fitted with an ElcoFit wrap-around sealing gasket. The gasket aligns itself as the door is closed, removing the guesswork of seating a flat gasket correctly and reducing the chance of an air or media leak after maintenance. If the yoke or threaded nut wears, those parts can be sourced and replaced individually rather than scrapping the whole assembly of the Elcometer Access Door.
The range for the Elcometer Access Door covers the main fitting types. The MT29693 hatch door suits the Elcometer 1020, while MT28616 fits all other Elcometer blast machines. The MT28613 ElcoFit gasket, MT28615 yoke and the M16 x 110mm hatch bolts (MT29695 BSP and MT29695N NPT/NPSM) are available as spares for the Elcometer Access Door, along with M16 flanged nuts in BSP (MT29696) and NPT/NPSM (MT29696N) threads. Supplied by BAMR, South Africa's authorised Elcometer distributor.
Access Door & Assembly
Elcometer's abrasive blast machines make inspection and servicing easy, thanks to the large access doorway which is wide enough for both of your arms.
- Large doorway access fits both arms ideal for servicing
- ElcoFit™ wrap-around sealing gasket makes door alignment easy and fast
- Quickly replace the yoke and nut if threaded as the parts can be easily sourced
When to use the Access Door & Assembly
Specify this when servicing or inspecting an Elcometer abrasive blast machine and you need easy entry to the inside of the pot. The doorway is wide enough for both arms, and an ElcoFit wrap-around gasket makes door alignment fast. It is a surface prep blasting spare across the Elcometer blast machine range.
- 1Both arms fit insideA doorway wide enough for both arms makes internal inspection and servicing of a blast machine practical rather than a one-handed struggle.
- 2ElcoFit gasket aligns fastThe wrap-around sealing gasket makes door alignment easy and quick, reducing the time the machine is out of service after maintenance.
- 3Replaceable yoke and nutThe yoke and nut can be sourced and swapped easily, so a worn or damaged door fastening does not mean replacing the whole assembly.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Access Door & Assembly
Specify this when servicing or inspecting an Elcometer abrasive blast machine and you need easy entry to the inside of the pot. The doorway is wide enough for both arms, and an ElcoFit wrap-around gasket makes door alignment fast. It is a surface prep blasting spare across the Elcometer blast machine range.
- 1Both arms fit insideA doorway wide enough for both arms makes internal inspection and servicing of a blast machine practical rather than a one-handed struggle.
- 2ElcoFit gasket aligns fastThe wrap-around sealing gasket makes door alignment easy and quick, reducing the time the machine is out of service after maintenance.
- 3Replaceable yoke and nutThe yoke and nut can be sourced and swapped easily, so a worn or damaged door fastening does not mean replacing the whole assembly.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Product Range
- Elcometer Inspection Hatch Door for Elcometer 1020 Universal Suitable for Blast Machine :...
- MT29693
- M16 Hexagon Flanged Nut BSP Thread Suitable for Blast Machine : Universal
- MT29696
- NPT / NPSM Thread Suitable for Blast Machine : Universal
- MT29696N
- Elcometer Inspection Hatch Door for all Elcometer Blast Machines (excluding the Elcometer...
- MT28616
- ElcoFit™ Door Sealing Gasket Universal Suitable for Blast Machine : Universal
- MT28613
- Elcometer Inspection Door Hatch Bolt - M16 x 110mm BSP Thread Suitable for Blast Machine...
- MT29695
- NPT / NPSM Thread Suitable for Blast Machine : Universal
- MT29695N
- Inspection Hatch Door Yoke Universal Suitable for Blast Machine : Universal
- MT28615
Frequently asked questions
Which hatch door should I specify for my Elcometer blast machine?
For the Elcometer 1020, order MT29693. For all other Elcometer blast machines, order MT28616. Both are designed to provide convenient access for inspection and servicing.
Are the bolts and nuts available in different thread types?
Yes. Both the M16 x 110mm Inspection Door Hatch Bolt and M16 Hexagon Flanged Nut are available in BSP thread or NPT/NPSM thread versions. Check your machine documentation to confirm which thread type you need.
Can I replace just the door seal or gasket?
The ElcoFit™ Door Sealing Gasket (MT28613) is supplied separately and is universal across Elcometer blast machines, so you can replace it without replacing the door itself.
What makes the access doorway easier to service than a standard port?
The large doorway is wide enough to accommodate both of your arms, allowing easy inspection and servicing of the blast machine interior without contortions.
Are all the assembly components interchangeable across different Elcometer models?
Most components are universal, including the sealing gasket and hatch door yoke. However, the inspection hatch door differs between the Elcometer 1020 (MT29693) and other models (MT28616). Thread variants (BSP or NPT/NPSM) are available to match your specific machine.
