The AZ 7201 Gas Leak Detector is a portable instrument for detecting and measuring combustible gas leaks, covering Natural Gas, Methane (CH4) and Propane (C3H8, also known as LPG). Undetected leaks of these gases create a fire and explosion hazard, so a handheld detector that pinpoints where gas is escaping is used to make spaces safe in both industrial and domestic settings, from waste disposal, livestock farming and coal mining to a kitchen, garage or living room.
A flexible 465mm stainless-steel probe reaches into hard-to-access spots, where a reliable semi-conductor sensor and a built-in discrimination filter help isolate the target gas. A five-level LED indicator shows the severity of a leak, and an earphone jack allows silent operation. The AZ 7201 Gas Leak Detector responds within 10 seconds and warms up within 60 seconds, with auto-calibration on power-up and automatic power-off to preserve battery life. The AZ 7201 Gas Leak Detector runs on 4 x AA batteries or a 9V adaptor and weighs about 120g.
The measuring ranges of the AZ 7201 Gas Leak Detector are 120 to 1920 ppm for methane (sensitivity 1200 ppm) and 40 to 640 ppm for propane (sensitivity 40 ppm). The AZ 7201 Gas Leak Detector operates from -5 to 45 degrees C and is manufactured in an ISO 9001 certified facility. Supplied by BAMR, South Africa's authorised distributor.

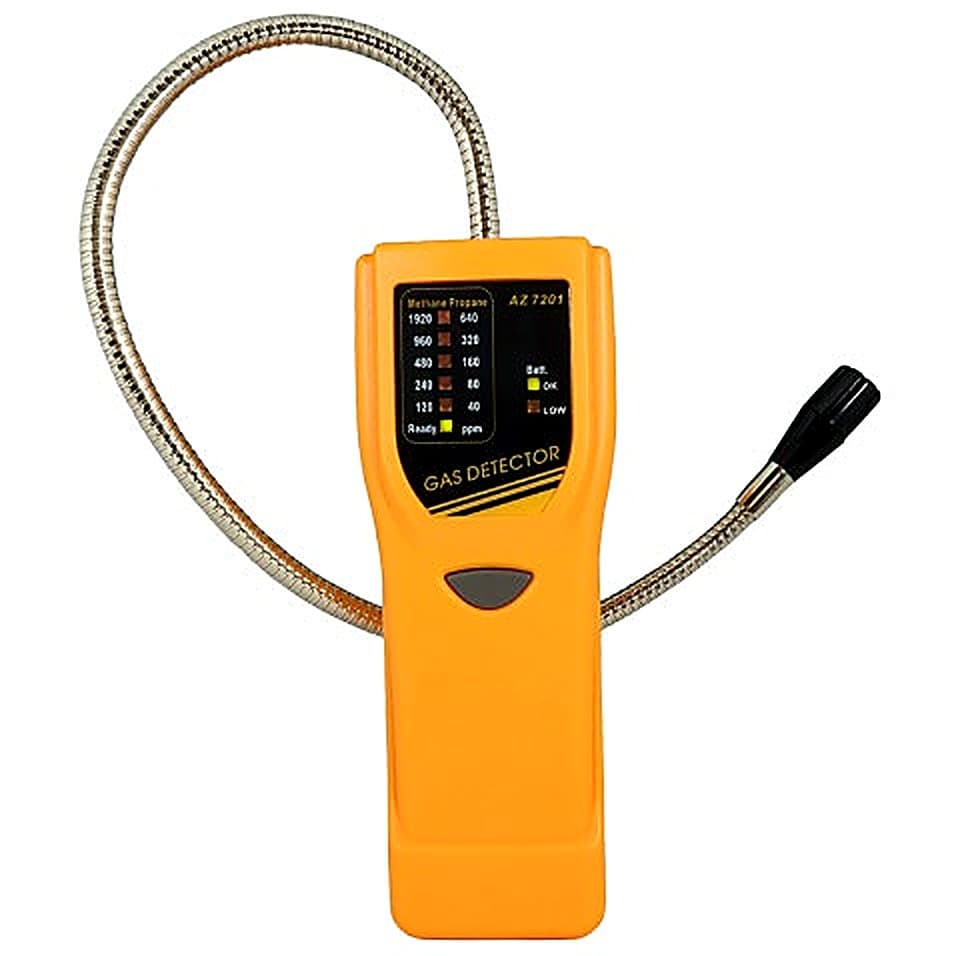

AZ 7201 Gas Leak Detector
The AZ 7201 Gas Leak Detector can be used in the gas extraction environment such as waste disposal, livestock farming and coal mining; it can also be used in more domestic settings such as the kitchen, garage or living room.
- Compact and portable design ideal for busy environments
- Measures Methane up to 120 ppm (parts per million)
- Built-in filter for high discrimination rate
- LED indicator with 5 Levels for leakage detection
- Low battery and status update indicators earphone jack allows for silent operation
- Reliable Semi-Conductor sensor
- Auto-calibration function which activates when the unit is powered on
- Flexible Stainless-Steel probe allows you to measure in hard-to-reach places
- Measures Natural Gas, Methane (CH4) and Propane (C3H8, liquefied petroleum gas, LP-gas or LPG)
Specifications
- Model
- AZ 7201 Gas Leak Detector
- Methane Range
- 120-1920 ppm
- Methane Sensitivity
- 1200 ppm
- Propane Range
- 40-640 ppm
- Propane Sensitivity
- 40 ppm
- Gas Discrimination Filter
- Built-in
- Response Time
- within 10 seconds
- Warm Up Time
- within 60 seconds
- Meter Size
- 175(L) x 47(W) x 28(H )mm
- Operating Temperature
- -5-45℃
- Operating RH%
- 5-95% RH (avoid condensation)
- Storage Temperature
- -20-50℃
- Storage RH%
- 0-95% RH (avoid condensation)
- Power Supply
- 4 x AA Batteries or 9V Adaptor
- Weight
- ±120g
- Flexible Probe Length
- 465 mm
Specifications
Specifications
- Model
- AZ 7201 Gas Leak Detector
- Methane Range
- 120-1920 ppm
- Methane Sensitivity
- 1200 ppm
- Propane Range
- 40-640 ppm
- Propane Sensitivity
- 40 ppm
- Gas Discrimination Filter
- Built-in
- Response Time
- within 10 seconds
- Warm Up Time
- within 60 seconds
- Meter Size
- 175(L) x 47(W) x 28(H )mm
- Operating Temperature
- -5-45℃
- Operating RH%
- 5-95% RH (avoid condensation)
- Storage Temperature
- -20-50℃
- Storage RH%
- 0-95% RH (avoid condensation)
- Power Supply
- 4 x AA Batteries or 9V Adaptor
- Weight
- ±120g
- Flexible Probe Length
- 465 mm
Downloads
Frequently asked questions
What gases does the AZ 7201 detect and measure?
The AZ 7201 detects methane (120-1920 ppm range) and propane (40-640 ppm range). It has a built-in gas discrimination filter to distinguish between gas types.
How quickly does the AZ 7201 respond to a gas leak?
The detector responds within 10 seconds of detecting gas. Allow 60 seconds warm-up time after power-on before the meter is ready for measurement.
What environments is the AZ 7201 designed for?
The detector suits both industrial extraction environments (waste disposal, livestock farming, coal mining) and domestic settings (kitchen, garage, living room).
What power options does the AZ 7201 offer?
The detector runs on four AA batteries or a 9V adaptor, providing flexibility for portable and fixed installations.
Can the AZ 7201 probe reach confined spaces?
The flexible 465 mm probe allows access to tight spaces where leaks are difficult to reach, making it versatile for confined area testing.
What are the operating temperature and humidity limits?
The detector operates from -5°C to 45°C at 5-95% RH. Storage conditions range -20°C to 50°C. Avoid condensation in both operating and storage modes.
