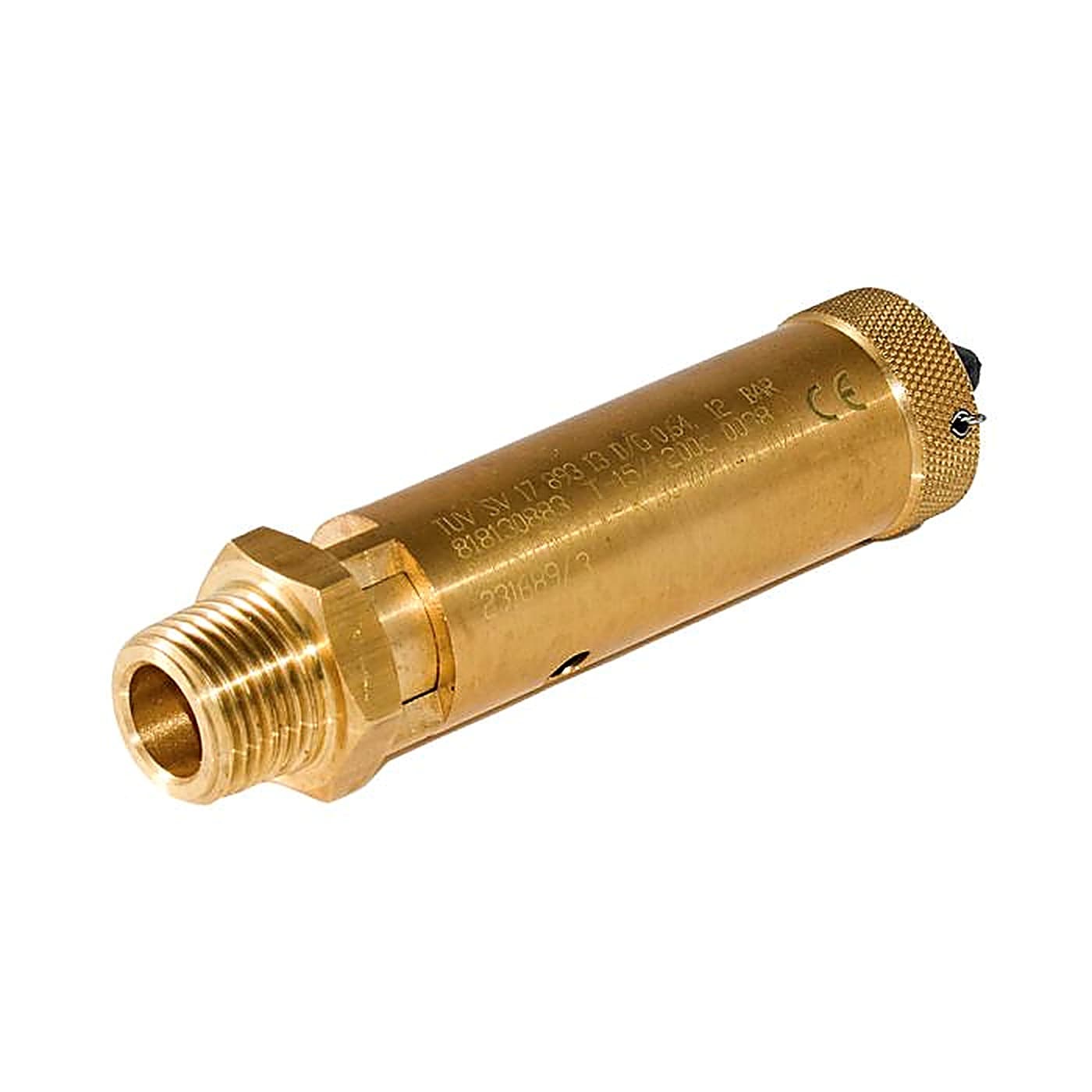

Certified 13mm Pressure Relief Valve

Product Description

Pressure relief valves must be incorporated into the blast machine system to meet global safety standards. Elcometer’s certified pressure relief valves can be easily fitted to the air manifold which is fitted to the RCV4000+ remote control valve. Pressure relief valves are designed to discharge the compressed air in the blast machine upon reaching the crack pressure.

Product Range

12bar Certified 13mm Pressure Relief Valve

PED
  • Maximum Working Pressure :12bar
  • Thread Type :BSP
  • Part Number :MT28606



ASME
  • Maximum Working Pressure :12bar
  • Thread Type :NPT / NPSM
  • Part Number :MT28606N



15bar Certified 13mm Pressure Relief Valve


PED
  • Maximum Working Pressure :15bar
  • Thread Type :BSP
  • Part Number :MT28607



ASME
  • Maximum Working Pressure :15bar
  • Thread Type :NPT / NPSM
  • Part Number :MT28607N

Spare Parts

PED

Part NumberDescription
MT30537Pressure Gauge
MT30539Pressure Gauge Connection Assembly (includes Pressure Gauge, T Piece, Bush, Nipple and Plug)



ASME

Part NumberDescription
MT30537NPressure Gauge
MT30539NPressure Gauge Connection Assembly (includes Pressure Gauge, T Piece, Bush, Nipple and Plug)
