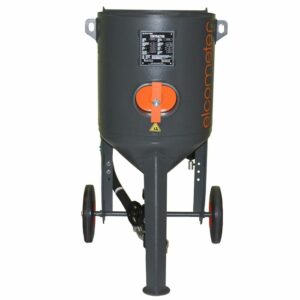

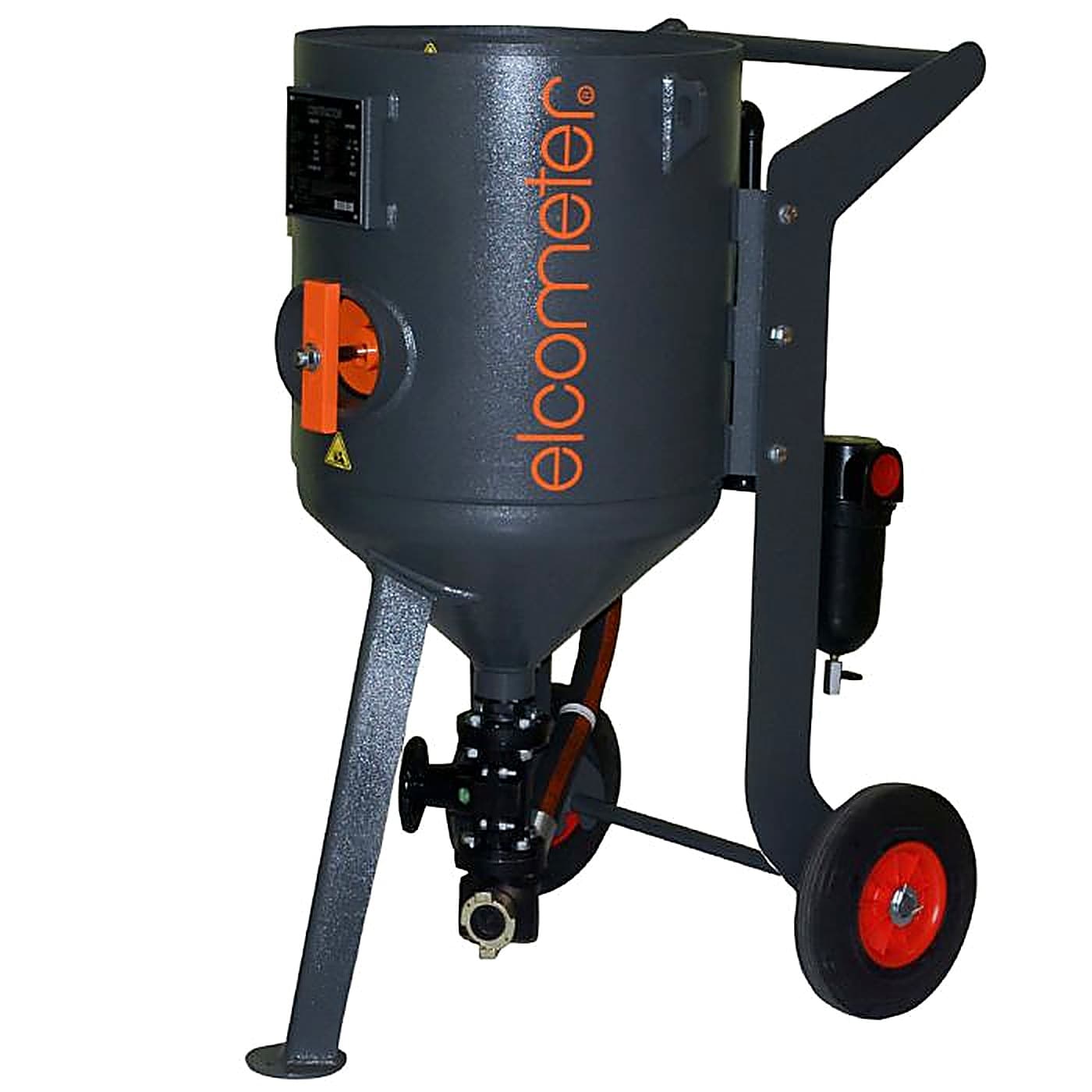

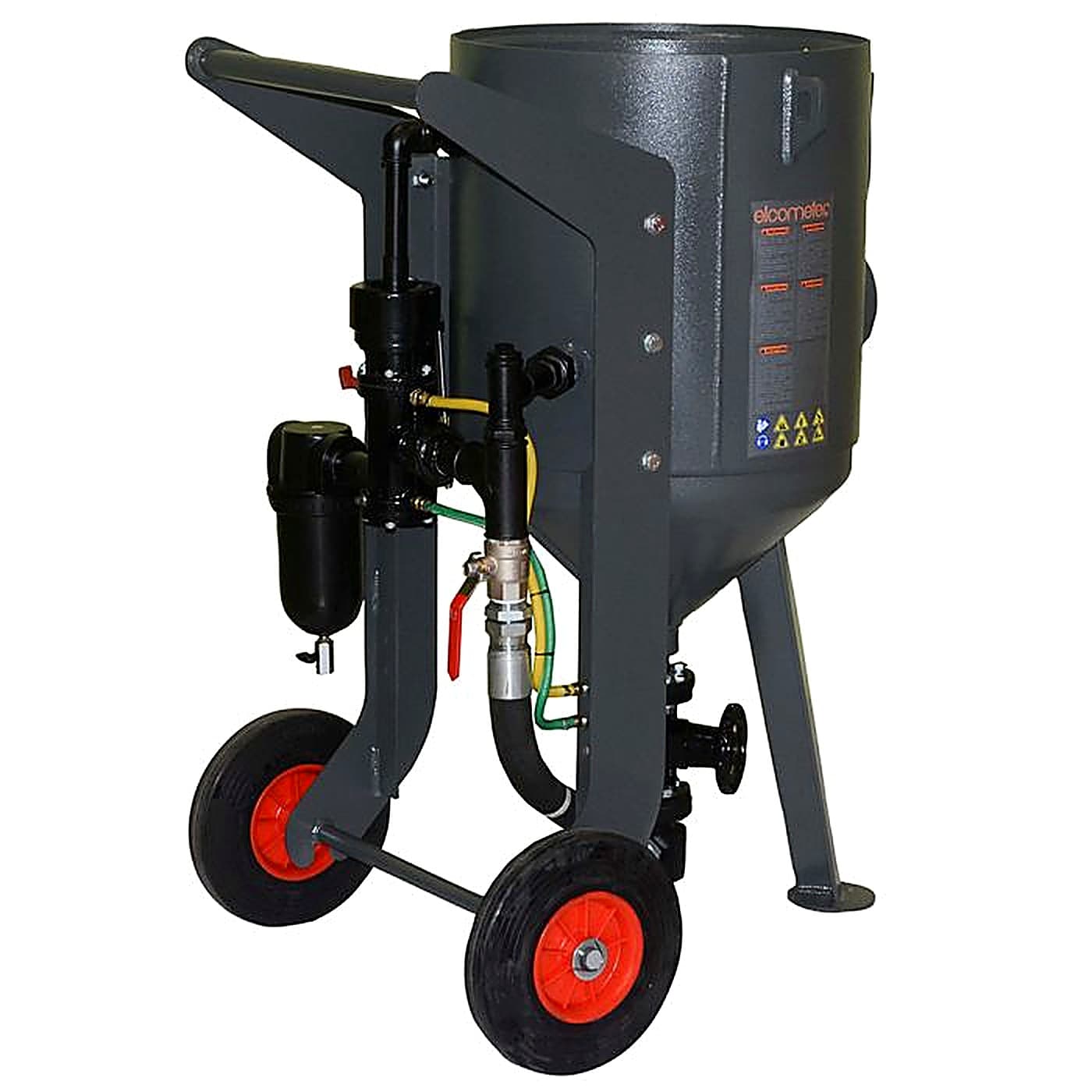

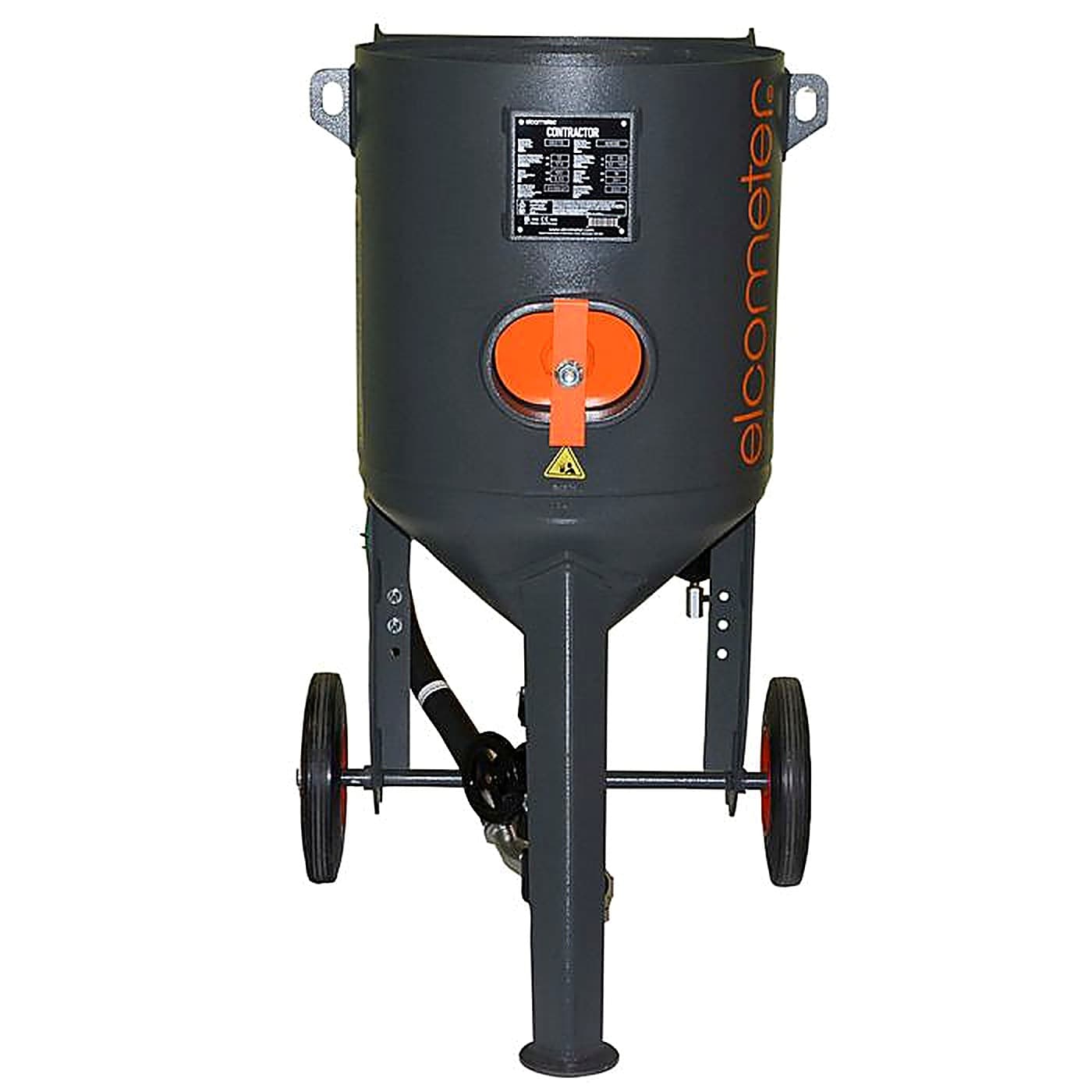

Elcometer 100C Contractor Portable Abrasive Blast Machine – 12bar
Product Description
The Elcometer 100C Contractor Abrasive Blast Machine is ideal for mobile contractors requiring continuous high production blasting.
Utilising industry standard remote control valves, grit valves and 32mm pipework, the Elcometer 100C Abrasive Blast Machine is highly competitive and easy to maintain.
Built to the same high quality as the Elcometer Performance and Performance HP blast pots, the contractor range of blast machines are cost effective, easy to use and Elcometer Engineered for reliability.
UKCA and CE approved, the machines are fully tested and certified to International Standards including PED 2014/68EU and PE(s)R 2016.
Key features of Elcometer Contractor Blast Machines include:
 | Heavy Duty Construction The Elcometer Automatic General Valve has a built in fail-safe feature that shuts off both the blast stream and media flow at the handle quickly and safely – reducing wastage. |
 | Reliable Performance Standard bore 32mm pipework throughout for reliable airflow performance. |
 | Concave Dishes Our high flow concave dish comes complete with a deflector plate for fast filling & operator safety. |
 | Exhaust Manifolds Industry standard exhaust manifolds allow air to exhaust through the silencer safely. |
 | Fast Flow Cone 45/90° cone to maximise abrasive flow rate. |
 | Moisture Separators High performance moisture separator prevents water and oil from entering the blast pot. |
 | Large Inspection Access Elcometer’s Contractor abrasive blast machines make inspection and servicing easy, thanks to the large doorway access that is wide enough to fit both arms. |
 | Waterproof Sieves & Lids Optional sieves & lids are designed to fit over the top of the machine to prevent water ingress, keeping the media dry. |
Product Range
Kit includes:
- 100 litre Abrasive Blast Machine
- Pressure Test Certificate
- Remote Control Valve with Air Manifold, Exhaust & Silencer
- 10m Pneumatic Control Hose and Deadman’s Handle (DMHII)
- Choke Valve and Pusher Line
- Abrasive Metering Valve with Mixer T and Metal Pot Coupling
- Moisture Separator
PED
- Maximum Working Pressure :12bar
- Valve Type :SGV
- Part Number :M100B-G
Spare Parts
| Elcometer 100C Contractor Portable Abrasive Blast Machine Spare Parts | |||||||
| Item | Part Number | Description | |||||
| 1 | MT32050 | Pop Up Valve | |||||
| 2 | MT32051-2 | Pop-Up Shaft; M100B | |||||
| 3 | MT29611 | 25mm Female Equal Elbow | |||||
| 4 | MT28617 | Moisture Separator | |||||
| 5 | MT32053 | 1-1/4” Pipe | |||||
| 6 | MT29664 | 6mm Bulkhead Connector (x3) | |||||
| 7 | MT32054-2 | Twinline Air Hose Assembly (Yellow & Green) | |||||
| 8 | MT28627-5 | Pop-Up Valve Ring (x5) | |||||
| 9 | MT32052 | Deflector Plate with Fasteners | |||||
| 10 | MT32035 | 25mm Backnut | |||||
| 11 | MT29673 | 25mm Female/Female Union Taper Seat | |||||
| 12 | MT32036 | 1″ to 3/4″ Reducing Hex Nipple | |||||
| 13 | MT32037 | 19mm 90° BSPP Elbow | |||||
| 14 | MT32038-2 | 19mm Pipe; M100B | |||||
| 15 | MT32039 | 19mm Socket | |||||
| 16 | MT32024 | 25mm Male/Female Union Taper Seat | |||||
| 17 | MT32025-2 | 25mm Choke Pipe; M100B | |||||
| 18 | MT32027 | 25mm Equal T | |||||
| 19 | MT32028 | 1-1/4″ to 1″ Reducing Hex Bush | |||||
| 20 | MT29681 | 25mm Exhaust Plug | |||||
| 21 | MT32044 | Remote Control Valve c/w Silencer and Union Elbow | |||||
| 22 | MT29656 | Petcock Valve Assembly – (Red Handle) | |||||
| 23 | MT32032 | 32mm Male/Female Equal Union Taper Seat | |||||
| 24 | MT32029 | 32mm Equal Pitcher T | |||||
| 25 | MT30094 | 38mm Choke Valve Handle | |||||
| 26 | MT32032 | 32mm Ball Valve | |||||
| 27 | MT32033 | 32mm 60° Cone Male/Male Adaptor | |||||
| 28 | MT32043 | Silencer c/w Union Elbow | |||||
| 29 | MT28616 | Elcometer Inspection Hatch Door | |||||
| 30 | MT28613 | ElcoFit™ Door Sealing Gasket | |||||
| 31 | MT32049 | Elcometer Inspection Door Fixings | |||||
| 32 | MT32048 | Elcometer Inspection Door Yoke | |||||
| 33 | MT32047-2 | 300mm Single Spare Wheel Kit | |||||
| – | MT29603-4 | Contractor Decal Kit | |||||
| – | MT32046-2 | Contractor 20″ 100L 1 1/4” Pusher Hose Assembly | |||||
Technical Specifications
| Elcometer 100C Contractor Abrasive Blast Machine – 12bar | |||
| Capacity1 | |||
| Volume | 100 Litres | ||
| Garnet Grit | 234kg | ||
| Steel Shot | 440kg | ||
| Model: | Portable | ||
| Valve: | Standard Grit Valve (SGV) | ||
| Dimensions | |||
| Pot Diameter: | 508mm | ||
| Height (a): | 1175mm | ||
| Width (b): | 704mm | ||
| Depth (c): | 865mm | ||
| Weight | 153kg | ||
| Pipework Diameter | 32mm | ||
| Maximum Working Pressure (WP)2: | 12bar | ||
| Operating Temperature Range: | 0 to 60oC | ||
| Kit Contents | |
| Part Number | M100B-G |
| Abrasive Blast Machine | ■ |
| Pressure Test Certificate | ■ |
| Remote Control Valve with Air Manifold, Exhaust & Silencer | ■ |
| 10m Pneumatic Control Hose & Deadman’s Handle (DMHII) | ■ |
| Choke Valve and Pusher Line | ■ |
| Abrasive Metering Valve with Mixer T and Metal Pot Coupling | ■ |
| Moisture Separator | ■ |
| 1 Aluminium & steel shot capacity figures based on typical media bulk density. Note that bulk density varies according to media size and grade. |
| 2 Do not operate this abrasive blast machine unless there is an appropriate safety pressure relief valve within the pressurised system as a whole. |
