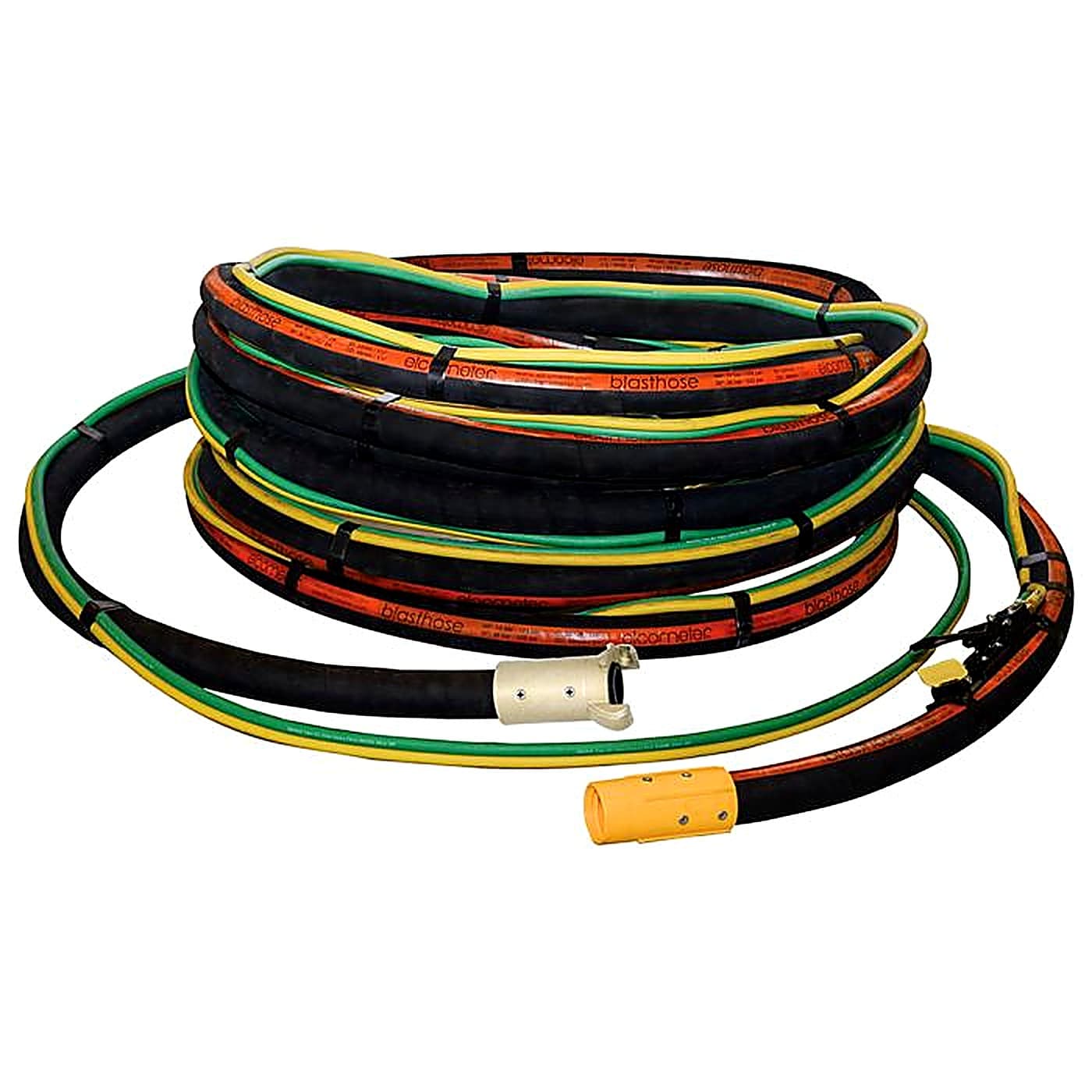

Elcometer 13mm ID – 12bar Blast Hose Assembly with Nozzle Holder & Quick Coupling
Product Description
Available in 5 or 10m lengths with a maximum working pressure of 12bar and a 3 times safety margin, the following blast hose assemblies have an internal diameter of 13mm and are supplied with a nylon nozzle holder and a cast iron quick coupling with 3⁄4” fine threads.
The following Elcometer blast hose assemblies come complete with:
- Blast Hose
- Twinline Pneumatic Remote Control Hose
- DMH II Deadman’s Handle
- Nozzle Holder
- Quick Coupling
2 Ply Braid Reinforcement
Elcometer’s blast hose features highly woven cord linings in a 2 ply cross pattern to improve hose strength and allow flexibility.
Tough Outer Cover
Manufactured using abrasion resistant and anti-static natural and styrene-butadiene rubber with a cloth impression, the tough weather resistant cover prolongs the life of the hose.
Anti-Static and Abrasion Resistant Inner Wall
The Elcometer blast hose is manufactured out of natural and styrene-butadiene rubber compound with carbon black, has an abrasion resistance value of 50mm3 in accordance with DIN53516 and has an anti-static rating (R) of R<106 Ω/m. This dissipates static electricity to the ground to protect the blaster from injuries caused by a static shock.
Product Range
Elcometer 13mm ID 12bar Blast Hose Assembly with Nylon Nozzle Holder (Fine Thread) & Cast Iron Quick Coupling – 5m
BSP Thread
- Maximum Working Pressure :12bar
- Internal Diameter (ID) :13mm
- Thread Type :19mm Fine
- Hose Length :5m
- Outside Diameter (OD) :28mm
- Minimum Bend Radius :105mm
- Nozzle Holder :Nylon
- Quick Coupling :Cast Iron
- Part Number :BH13NFSB-5
NPT / NPSM Thread
- Maximum Working Pressure :12bar
- Internal Diameter (ID) :13mm
- Thread Type :19mm Fine
- Hose Length :5m
- Outside Diameter (OD) :28mm
- Minimum Bend Radius :105mm
- Nozzle Holder :Nylon
- Quick Coupling :Cast Iron
- Part Number :BH13NFSN-5
Elcometer 13mm ID 12bar Blast Hose Assembly with Nylon Nozzle Holder (Fine Thread) & Cast Iron Quick Coupling – 10m
BSP Thread
- Maximum Working Pressure :12bar
- Internal Diameter (ID) :13mm
- Thread Type :19mm Fine
- Hose Length :10m
- Outside Diameter (OD) :28mm
- Minimum Bend Radius :105mm
- Nozzle Holder :Nylon
- Quick Coupling :Cast Iron
- Part Number :BH13NFSB-10
NPT / NPSM Thread
- Maximum Working Pressure :12bar
- Internal Diameter (ID) :13mm
- Thread Type :19mm Fine
- Hose Length :10m
- Outside Diameter (OD) :28mm
- Minimum Bend Radius :105mm
- Nozzle Holder :Nylon
- Quick Coupling :Cast Iron
- Part Number :BH13NFSN-10
Technical Specifications
PED
| Part Number | BH13NFSB-5 | BH13NFSB-10 |
| Hose Length | 5m | 10m |
| Nozzle Holder | Nylon | Nylon |
| Thread Type | 3/4″ Fine | 3/4″ Fine |
| Quick Coupling | Cast Iron | Cast Iron |
| Maximum Working Pressure | 12bar | 12bar |
| Internal Diameter (ID) | 13mm | 13mm |
| Outside Diameter (OD) | 28mm | 28mm |
| Minimum Bend Radius | 105mm | 105mm |
| Abrasion Resistance | (50mm3, DIN53516) | (50mm3, DIN53516) |
| Anti-Static Rating | (R<106 Ω/m) | (R<106 Ω/m) |
ASME
| Part Number | BH13NFSN-5 | BH13NFSN-10 |
| Hose Length | 5m | 10m |
| Nozzle Holder | Nylon | Nylon |
| Thread Type | 3/4″ Fine | 3/4″ Fine |
| Quick Coupling | Cast Iron | Cast Iron |
| Maximum Working Pressure | 12bar | 12bar |
| Internal Diameter (ID) | 13mm | 13mm |
| Outside Diameter (OD) | 28mm | 28mm |
| Minimum Bend Radius | 105mm | 105mm |
| Abrasion Resistance | (50mm3, DIN53516) | (50mm3, DIN53516) |
| Anti-Static Rating | (R<106 Ω/m) | (R<106 Ω/m) |
