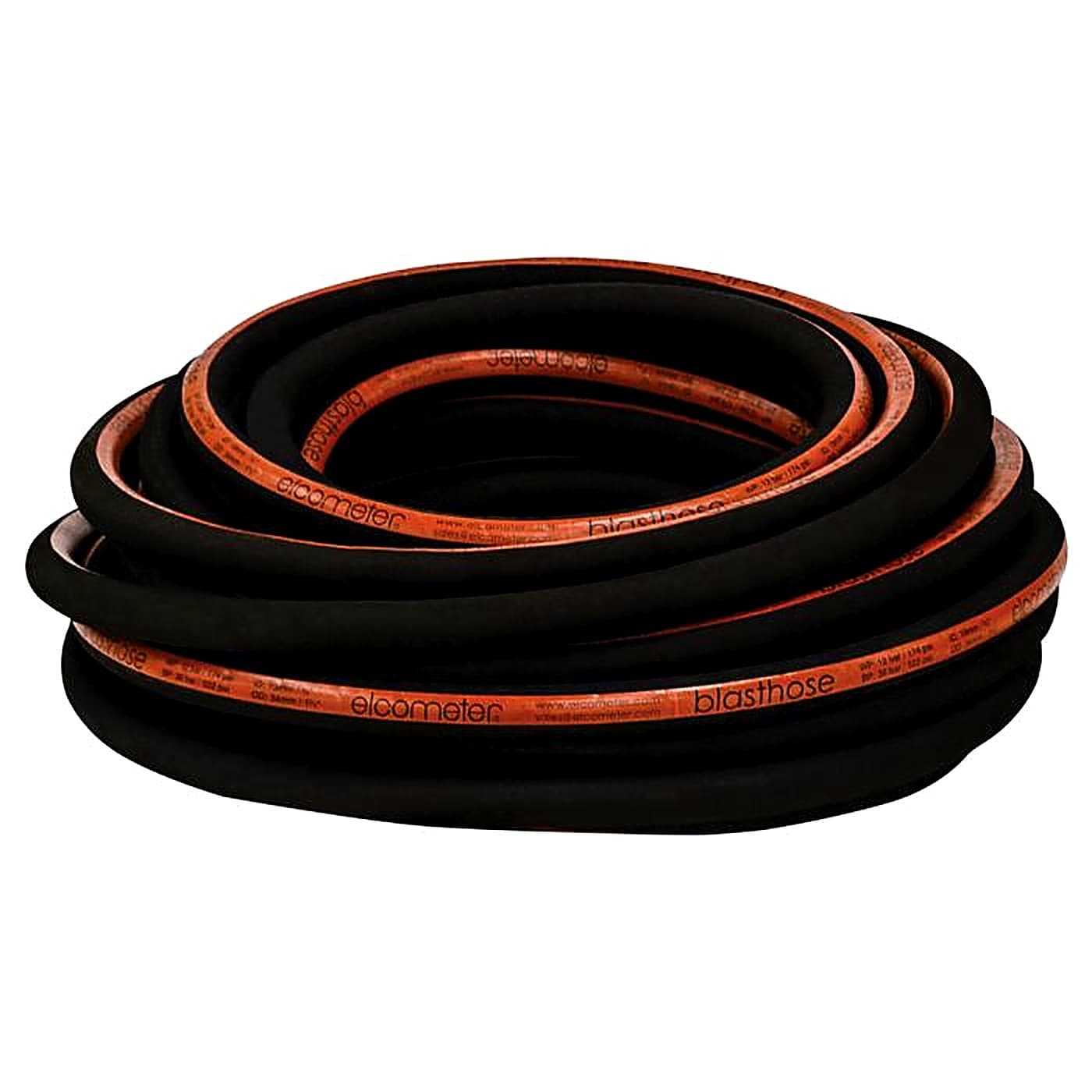

The Elcometer 15bar Blast Hose (BH32X / BH38X) is an anti-static abrasive blast hose supplied in 40m lengths and rated to a maximum working pressure of 15bar, available in two internal diameters to suit a blast project.
A blast hose carries abrasive at high pressure and velocity, so it must resist internal wear, contain the pressure safely, and dissipate the static charge that builds up as media moves through it. A static discharge can injure the operator, and a hose that wears through or kinks loses pressure and stops the job. The Elcometer 15bar Blast Hose addresses these with an abrasion-resistant, anti-static inner wall made from a natural and styrene-butadiene rubber compound with carbon black, giving an abrasion resistance value of 50mm cubed to DIN53516 and an anti-static rating of R less than 10 to the power 6 ohms per metre, which conducts the static charge to ground. A two-ply cross-braid cord reinforcement adds strength while keeping the hose flexible, and a tough, weather-resistant outer cover prolongs its life.
The BH32X has a 32mm internal diameter, 48mm outside diameter and 256mm minimum bend radius; the BH38X has a 38mm internal diameter, 56mm outside diameter and 304mm minimum bend radius. Both are 40m long, rated to 15bar working pressure with a 45bar maximum burst pressure, and operate from -30 to +85 degrees C.
The Elcometer 15bar Blast Hose is used in abrasive blasting for surface preparation across protective coating, corrosion control and marine work. Supplied by BAMR, South Africa's authorised distributor.
Elcometer 15bar Blast Hose
The Elcometer Blast Hose is available in anti-static 40m lengths with a number of hose diameters, in 15bar pressure to meet the needs of your blast project.
- Tough Outer Cover Elcometer blast hoses are manufactured using abrasion resistant and anti-static natural and styrene-butadiene rubber with a cloth impression, the tough weather resistant cover prolongs the life of the blast hose.
- 2 Ply Braid Reinforcement Elcometer's blast hose features highly woven cord linings in a 2 ply cross pattern to improve blast hose strength and allow flexibility.
- Anti-Static and Abrasion Resistant Inner Wall The Elcometer blast hose is manufactured out of natural and styrene-butadiene rubber compound with carbon black, has an abrasion resistance value of 50mm³ in accordance with DIN53516 and has an anti-static rating (R) of R<10⁶ Ω/m. This dissipates static electricity to the ground to protect the blaster from injuries caused by a static shock.
- Flexible, anti-static and incredibly tough Elcometer blast hoses ensure minimal pressure losses take place within the blast hose.
Technical Specifications
| Part Number | BH32X | BH38X |
|---|---|---|
| Hose Length | 40m | 40m |
| Internal Diameter (ID) | 32mm | 38mm |
| Outside Diameter (OD) | 48mm | 56mm |
| Minimum Bend Radius | 256mm | 304mm |
| Maximum Working Pressure | 15bar | 15bar |
| Maximum Burst Pressure | 45bar | 45bar |
| Operating Temperature | -30 to +85 o C | -30 to +85 o C |
| Abrasion Resistance | 50mm³, DIN53516 | 50mm³, DIN53516 |
| Anti-Static Rating | R<10⁶ Ω/m | R<10⁶ Ω/m |
Specifications
Technical Specifications
| Part Number | BH32X | BH38X |
|---|---|---|
| Hose Length | 40m | 40m |
| Internal Diameter (ID) | 32mm | 38mm |
| Outside Diameter (OD) | 48mm | 56mm |
| Minimum Bend Radius | 256mm | 304mm |
| Maximum Working Pressure | 15bar | 15bar |
| Maximum Burst Pressure | 45bar | 45bar |
| Operating Temperature | -30 to +85 o C | -30 to +85 o C |
| Abrasion Resistance | 50mm³, DIN53516 | 50mm³, DIN53516 |
| Anti-Static Rating | R<10⁶ Ω/m | R<10⁶ Ω/m |
Standards
Standards
Accessories
Accessories

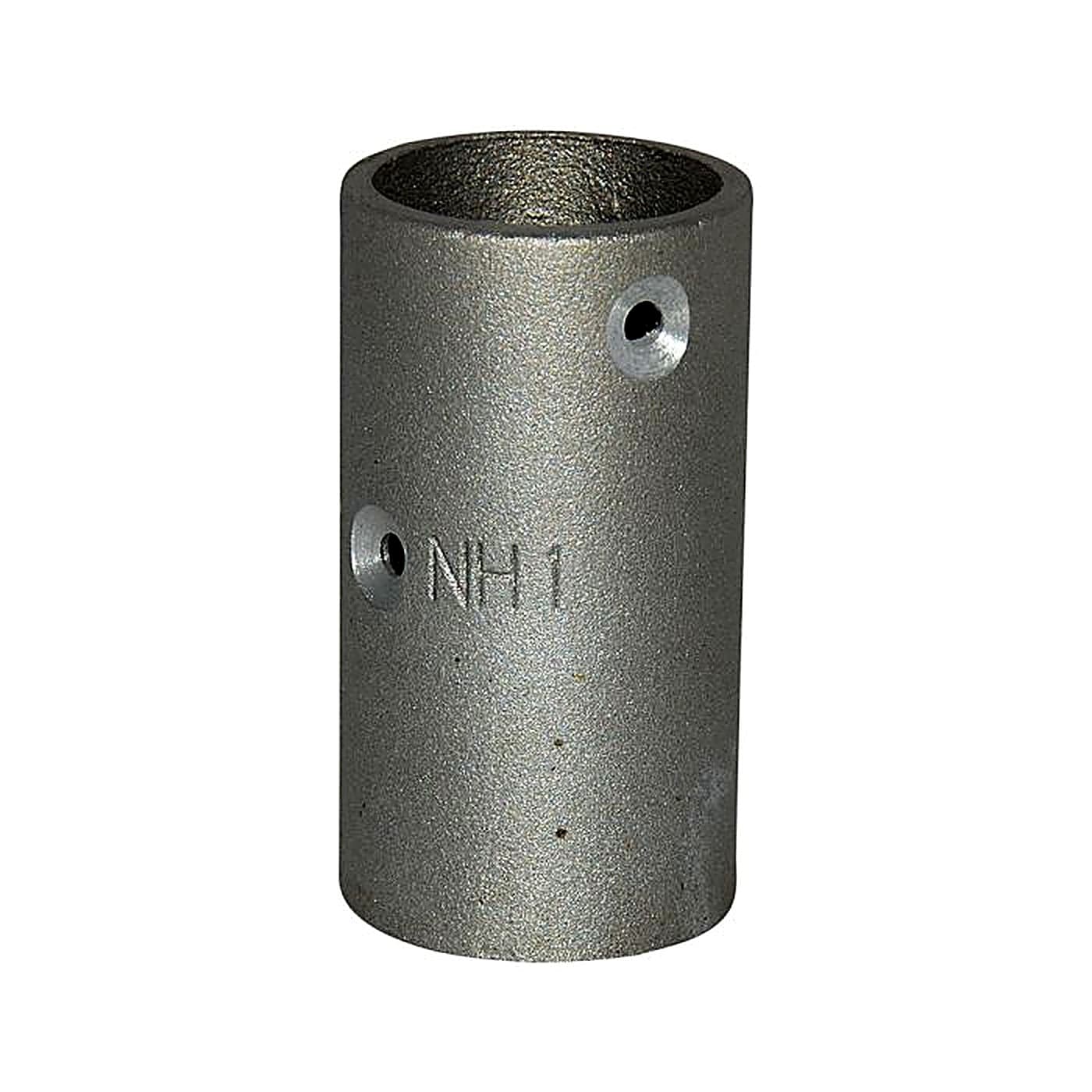

| Aluminium Blast Nozzle Holders |

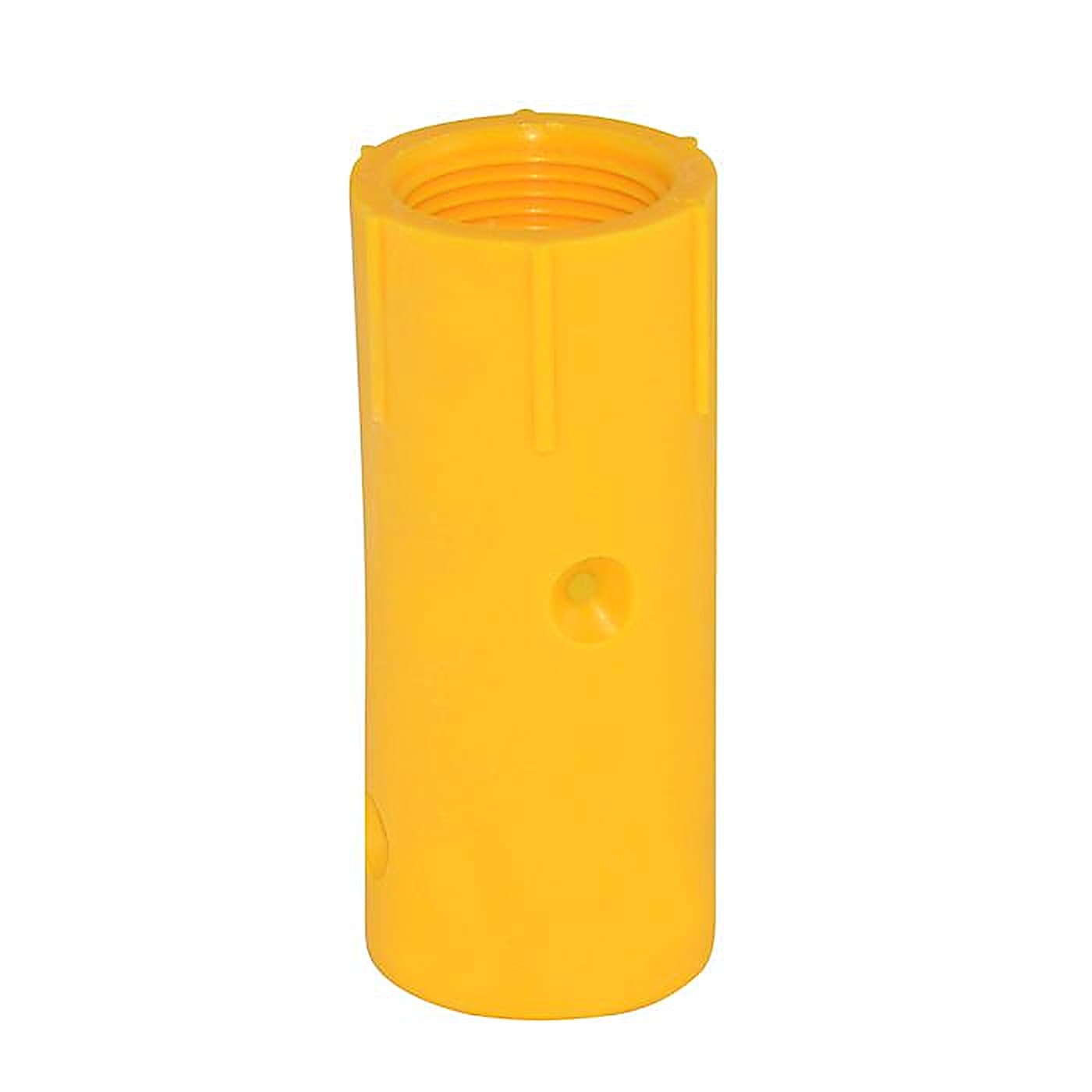

| Nylon Blast Nozzle Holders |
Downloads
Frequently asked questions
What's the difference between the BH32X and BH38X blast hose?
The BH32X has a 32mm internal diameter, 48mm outside diameter and a 256mm minimum bend radius. The BH38X has a 38mm internal diameter, 56mm outside diameter and a 304mm minimum bend radius. Both are supplied in 40m lengths at the same 15bar maximum working pressure.
Do the BH32X and BH38X carry an anti-static rating?
Yes. Both the BH32X and BH38X have an anti-static rating of R<10^6 Ohm/m, listed in the technical specification alongside the 15bar maximum working pressure.
How resistant are the BH32X and BH38X to abrasion from blast media?
Both hoses are rated to DIN53516 for abrasion resistance, with a wear limit of 50mm cubed. This rating is the same across the 32mm and 38mm diameter versions.
What temperature range are the BH32X and BH38X rated for?
Both models have an operating temperature range of -30 to +85 degrees Celsius, the same for both hose diameters.
What pressure can I safely run through the BH32X or BH38X?
Both are rated to a maximum working pressure of 15bar and a maximum burst pressure of 45bar. Check that your blast pot or compressor's output stays within the 15bar working limit before connecting.
