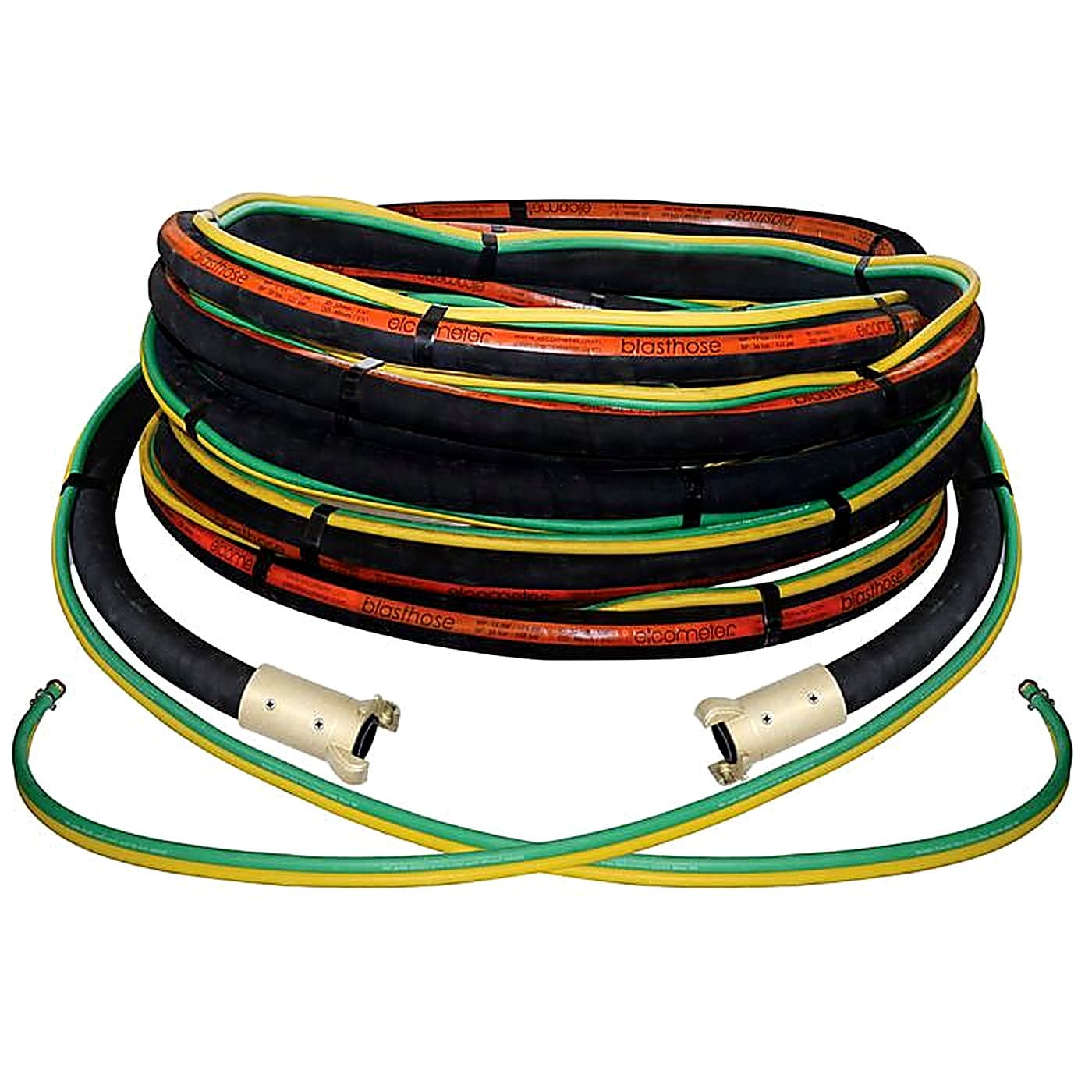

Elcometer 25mm ID 12bar Blast Hose Extension
Product Description
Available in 10 or 20m lengths with a maximum working pressure of 12bar and a 3 times safety margin, the following blast hose extensions have an internal diameter of 25mm and are ideal for when your blast hose is unable to reach the desired location.
The following Elcometer blast hose extensions come complete with:
- Blast Hose
- Twinline Pneumatic Remote Control Hose
- 2 Quick Coupling
Tough Outer Cover
The tough weather resistant cover prolongs the life of the hose as it is manufactured using abrasion resistant and anti-static natural and styrene-butadiene rubber with a cloth impression.
Anti-Static and Abrasion Resistant Inner Wall
The Elcometer blast hose is manufactured out of natural and styrene-butadiene rubber compound with carbon black, has an abrasion resistance value of 50mm3 in accordance with DIN53516 and has an anti-static rating (R) of R<106 Ω/m. This dissipates static electricity to the ground to protect the blaster from injuries caused by a static shock.
2 Ply Braid Reinforcement
Elcometer’s blast hose features highly woven cord linings in a 2 ply cross pattern to improve hose strength and allow flexibility.
Product Range
Elcometer 25mm ID 12bar Blast Hose Extension with Cast Iron Quick Couplings – 10m
BSP Thread
- Maximum Working Pressure :12bar
- Internal Diameter (ID) :25mm
- Hose Length :10m
- Outside Diameter (OD) :38mm
- Minimum Bend Radius :200mm
- Quick Coupling :Cast Iron
- Part Number :BH25SB-10
NPT / NPSM Thread
- Maximum Working Pressure :12bar
- Internal Diameter (ID) :25mm
- Hose Length :10m
- Outside Diameter (OD) :38mm
- Minimum Bend Radius :200mm
- Quick Coupling :Cast Iron
- Part Number :BH25SN-10
Elcometer 25mm ID 12bar Blast Hose Extension with Cast Iron Quick Couplings – 20m
BSP Thread
- Maximum Working Pressure :12bar
- Internal Diameter (ID) :25mm
- Hose Length :20m
- Outside Diameter (OD) :38mm
- Minimum Bend Radius :200mm
- Quick Coupling :Cast Iron
- Part Number :BH25SB-20
NPT / NPSM Thread
- Maximum Working Pressure :12bar
- Internal Diameter (ID) :25mm
- Hose Length :65.6ft (20m)
- Outside Diameter (OD) :38mm
- Minimum Bend Radius :200mm
- Quick Coupling :Cast Iron
- Part Number :BH25SN-20
Elcometer 25mm ID 12bar Blast Hose Extension with Nylon Quick Couplings – 10m
BSP Thread
- Maximum Working Pressure :12bar
- Internal Diameter (ID) :25mm
- Hose Length :10m
- Outside Diameter (OD) :38mm
- Minimum Bend Radius :200mm
- Quick Coupling :Nylon
- Part Number :BH25NB-10
NPT / NPSM Thread
- Maximum Working Pressure :12bar
- Internal Diameter (ID) :25mm
- Hose Length :10m
- Outside Diameter (OD) :38mm
- Minimum Bend Radius :200mm
- Quick Coupling :Nylon
- Part Number :BH25NN-10
Elcometer 25mm ID 12bar Blast Hose Extension with Nylon Quick Couplings – 20m
BSP Thread
- Maximum Working Pressure :12bar
- Internal Diameter (ID) :25mm
- Hose Length :20m
- Outside Diameter (OD) :38mm
- Minimum Bend Radius :200mm
- Quick Coupling :Nylon
- Part Number :BH25NB-20
NPT / NPSM Thread
- Maximum Working Pressure :12bar
- Internal Diameter (ID) :25mm
- Hose Length :20m
- Outside Diameter (OD) :38mm
- Minimum Bend Radius :200mm
- Quick Coupling :Nylon
- Part Number :BH25NN-20
Technical Specifications
PED
| Part Number | BH25NB-10 | BH25NB-20 | BH25SB-10 | BH25SB-20 |
| Hose Length | 10m (32.8ft) | 20m (65.6ft) | 10m (32.8ft) | 20m (65.6ft) |
| Quick Coupling | Nylon | Nylon | Cast Iron | Cast Iron |
| Maximum Working Pressure | 12bar (174psi) | 12bar (174psi) | 12bar (174psi) | 12bar (174psi) |
| Internal Diameter (ID) | 25mm (1″) | 25mm (1″) | 25mm (1″) | 25mm (1″) |
| Outside Diameter (OD) | 38mm (11/2“) | 38mm (11/2“) | 38mm (11/2“) | 38mm (11/2“) |
| Minimum Bend Radius | 200mm (77/8“) | 200mm (77/8“) | 200mm (77/8“) | 200mm (77/8“) |
| Abrasion Resistance | (50mm3, DIN53516) | (50mm3, DIN53516) | (50mm3, DIN53516) | (50mm3, DIN53516) |
| Anti-Static Rating | (R<106 Ω/m) | (R<106 Ω/m) | (R<106 Ω/m) | (R<106 Ω/m) |
ASME
| Part Number | BH25NN-10 | BH25NN-20 | BH25SN-10 | BH25SN-20 |
| Hose Length | 10m | 20m | 10m | 20m |
| Quick Coupling | Nylon | Nylon | Cast Iron | Cast Iron |
| Maximum Working Pressure | 12bar | 12bar | 12bar | 12bar |
| Internal Diameter (ID) | 25mm | 25mm | 25mm | 25mm |
| Outside Diameter (OD) | 38mm | 38mm | 38mm | 38mm |
| Minimum Bend Radius | 200mm | 200mm | 200mm | 200mm |
| Abrasion Resistance | (50mm3, DIN53516) | (50mm3, DIN53516) | (50mm3, DIN53516) | (50mm3, DIN53516) |
| Anti-Static Rating | (R<106 Ω/m) | (R<106 Ω/m) | (R<106 Ω/m) | (R<106 Ω/m) |
