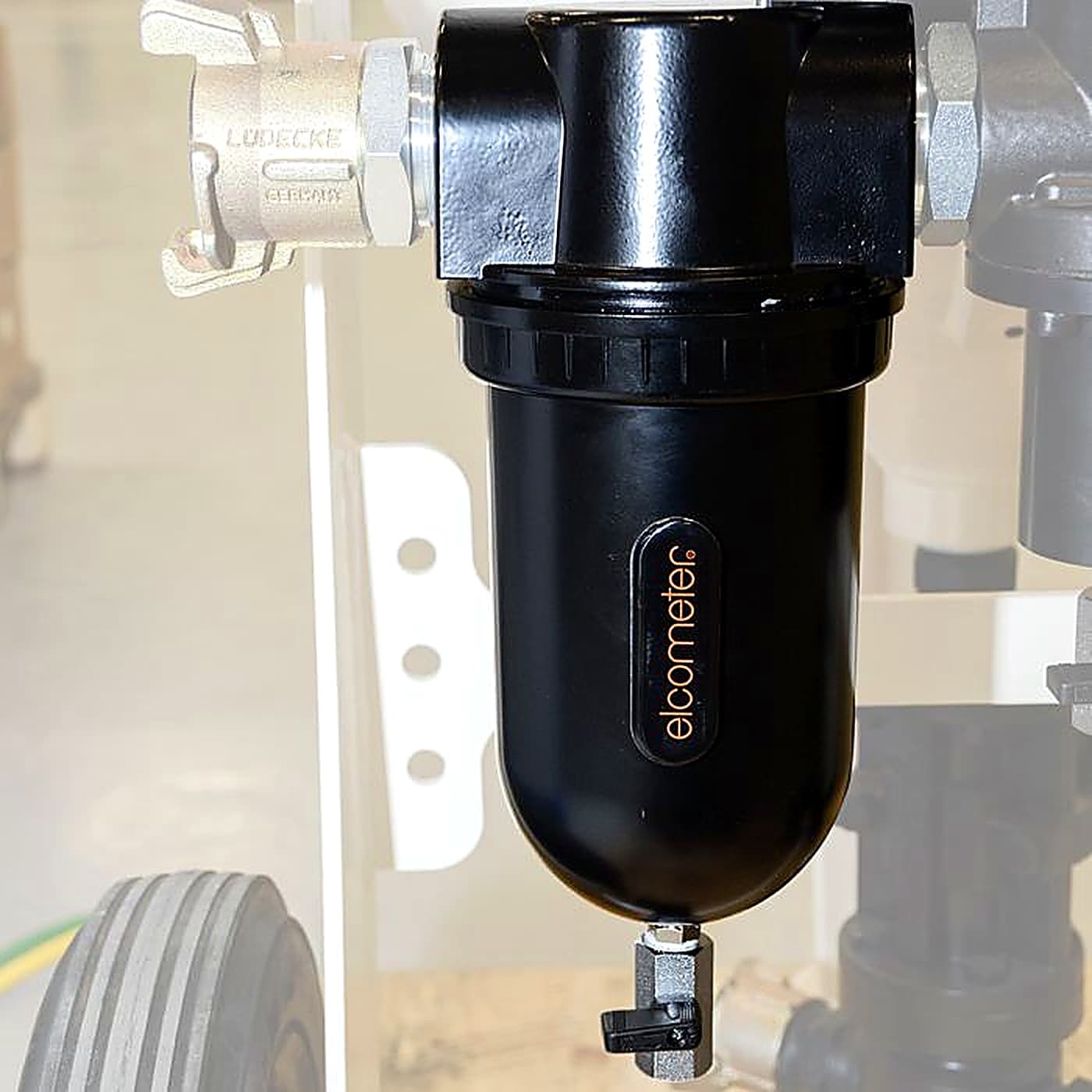

The Elcometer 38mm Moisture Separator (part numbers MT28617 and MT28617N) is an in-line air treatment unit that prevents moisture and oil from the compressor reaching the abrasive blast machine. Compressed air carries water and oil that, if allowed into the blast pot, make the abrasive damp so it clumps and clogs the machine, interrupting blasting and contaminating the prepared surface. Removing that contamination keeps the media flowing and the surface clean.
The Elcometer 38mm Moisture Separator eliminates up to 98% of the moisture and oil from the compressed air before it enters the blast machine, keeping the abrasive dry. The Elcometer 38mm Moisture Separator is rated to a working pressure of 15 bar, and rather than using a glass viewing area it is built without one so there is no glass to break under pressure. The unit is offered in two variants, the PED part number MT28617 and the ASME part number MT28617N, with replaceable internal components including the filter element, air deflector and vessel available as spare parts for the Elcometer 38mm Moisture Separator.
Used in abrasive blasting, surface preparation and corrosion control work, the Elcometer 38mm Moisture Separator is supplied by BAMR, South Africa's authorised Elcometer distributor.
Elcometer 38mm Moisture Separator
The highly efficient Elcometer Moisture Separator prevents moisture and oil from the compressor entering the blast machine. Eliminating up to 98% of the moisture and oil from compressed air, the moisture separator stops the abrasive becoming damp and clogging the blast machine.
- Prevents moisture and oil from the compressor entering the blast machine
- Eliminates up to 98% of the moisture and oil from compressed air
- Stops the abrasive becoming damp and clogging the blast machine
- Rated to a working pressure of 15bar No glass viewing area to ensure it will not break under pressure
When to use the Elcometer 38mm Moisture Separator
Use this separator when compressed air feeding a blast machine carries moisture or oil that would dampen the abrasive and clog the pot. It fits between the compressor and the blast machine to keep the abrasive flowing in humid or oily air supply conditions.
- 1Removes up to 98% moisture and oilEliminating up to 98% of moisture and oil from the compressed air stops the abrasive becoming damp and clogging the blast machine, which keeps blasting consistent.
- 2Protects the blast machineBy preventing moisture and oil from the compressor reaching the machine, it reduces stoppages and the downtime caused by clogged abrasive.
- 3Built for pressure safetyRated to a 15bar working pressure with no glass viewing area, it avoids the risk of a sight glass breaking under pressure on site.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Elcometer 38mm Moisture Separator
Use this separator when compressed air feeding a blast machine carries moisture or oil that would dampen the abrasive and clog the pot. It fits between the compressor and the blast machine to keep the abrasive flowing in humid or oily air supply conditions.
- 1Removes up to 98% moisture and oilEliminating up to 98% of moisture and oil from the compressed air stops the abrasive becoming damp and clogging the blast machine, which keeps blasting consistent.
- 2Protects the blast machineBy preventing moisture and oil from the compressor reaching the machine, it reduces stoppages and the downtime caused by clogged abrasive.
- 3Built for pressure safetyRated to a 15bar working pressure with no glass viewing area, it avoids the risk of a sight glass breaking under pressure on site.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Spare Parts
Spare Parts
- Moisture Separator Top Manifold
- MT30031
- Threaded Steel Bar MS
- MT30032
- Moisture Separator Air Deflector
- MT30033
- Moisture Separator Filter Element
- MT29435
- Moisture Separator Plastic Dome
- MT30034
- Nut MS
- MT30035
- O-Ring For MMSI-32 and MSI-38 MS
- MT29436
- Moisture Separator Vessel
- MT30036
- Moisture Separator Holding Ring
- MT30037
- 1 / 4 " Male Adaptor
- MT30085
- 1 / 4 " HP Ball Valve Female - Black
- MT28619
- Moisture Separator Top Manifold
- MT30031N
- Threaded Steel Bar MS
- MT30032
- Moisture Separator Air Deflector
- MT30033
- Moisture Separator Filter Element
- MT29435
- Moisture Separator Plastic Dome
- MT30034
- Nut MS
- MT30035
- O-Ring For MMSI-32 and MSI-38 MS
- MT29436
- Moisture Separator Vessel
- MT30036N
- Moisture Separator Holding Ring
- MT30037
- 1 / 4 " Male Adaptor
- MT30085N
- 1 / 4 " HP Ball Valve Female - Black
- MT28619N
Frequently asked questions
Why is moisture from compressed air a problem in abrasive blasting?
Moisture and oil from the compressor dampen the abrasive and clog the blast machine. The Elcometer 38mm Moisture Separator eliminates up to 98% of these contaminants before they enter the system, keeping the abrasive dry and preventing equipment clogging.
How effective is the Elcometer 38mm at removing moisture and oil?
The separator removes up to 98% of moisture and oil from compressed air. This level of protection ensures the abrasive stays free-flowing and dry, preventing the equipment clogging and reduced blasting efficiency that occurs when moisture and oil reach the blast machine.
What spare parts are available for the Elcometer 38mm?
Replacement components include the filter element (MT29435), air deflector, plastic dome, vessel, top manifold, holding ring, O-ring, and 1/4" adaptors. These are available separately for maintenance and ongoing operation.
Can the Elcometer 38mm be serviced or repaired?
Yes. The moisture separator uses replaceable components including the filter element, dome, and manifold. A full range of spare parts is available, allowing you to maintain the unit's performance and restore efficiency without replacing the entire separator.
