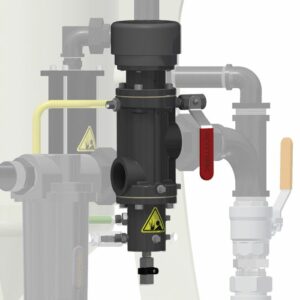

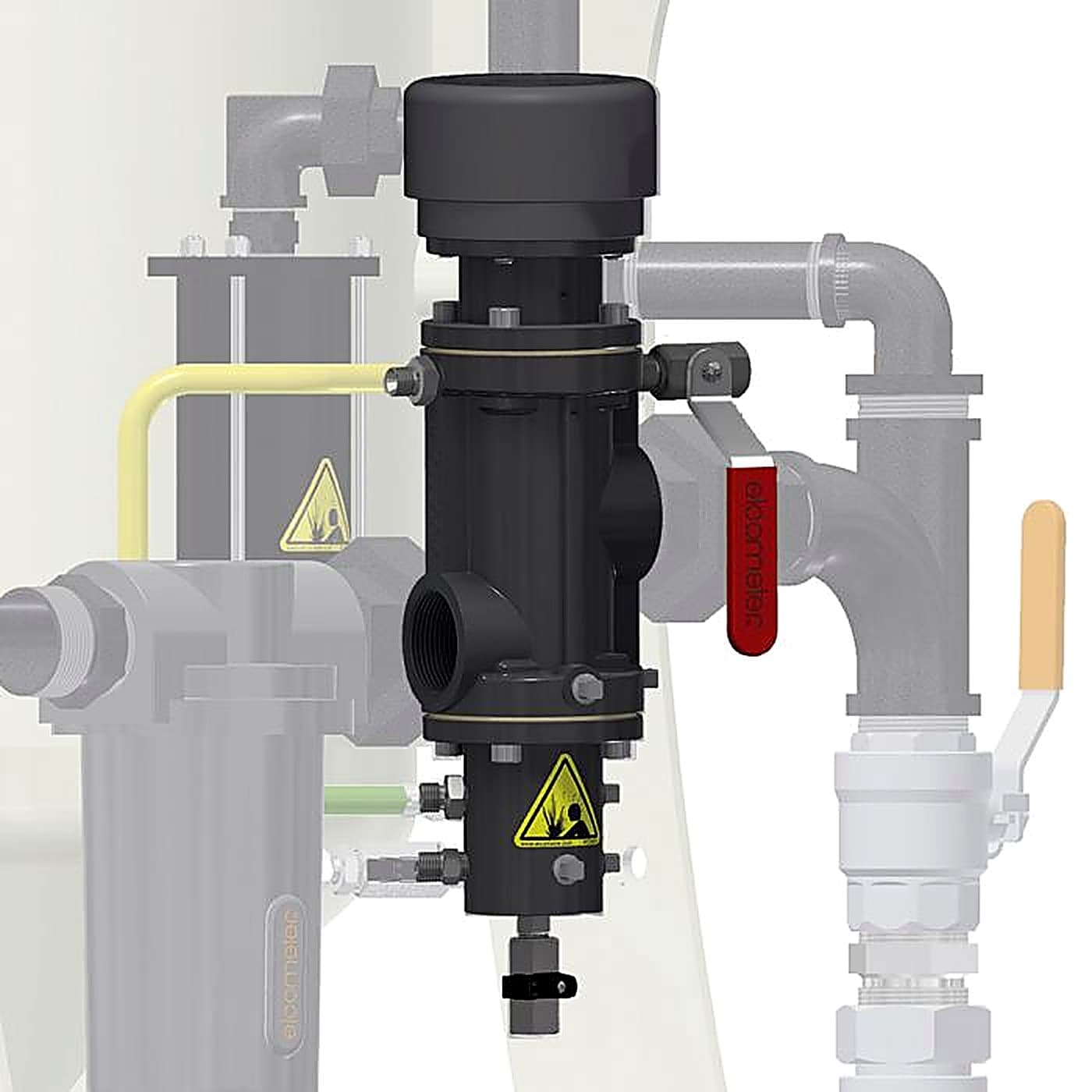

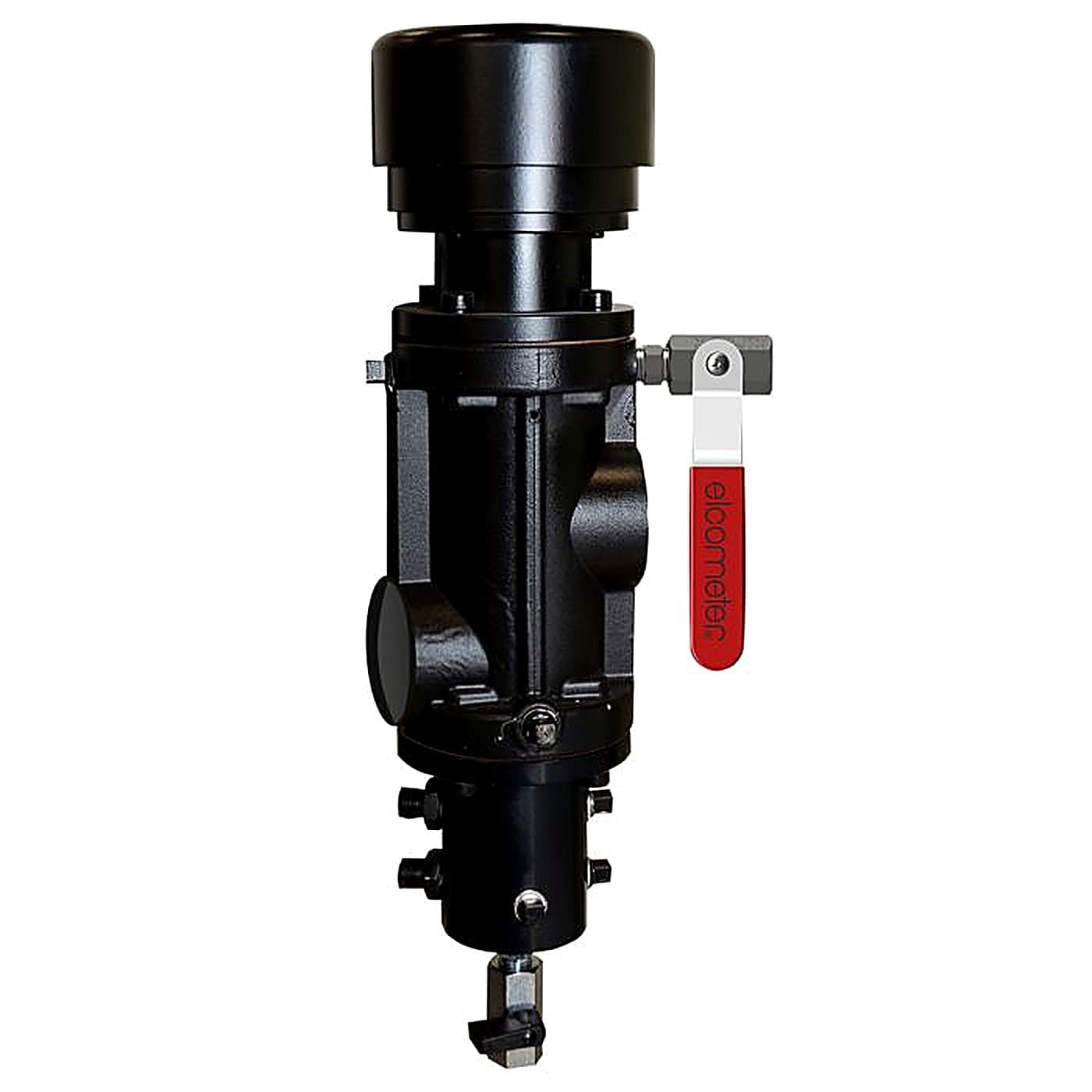

The Elcometer RCV4000+ Remote Control Valve 32mm (PED part number RCV4000P-125B, ASME part number RCV4000P-125N) is a pneumatic remote control valve that incorporates two valves in one unit, the lower controlling the compressed air inlet and the upper controlling the exhaust outlet as air exits the abrasive blast machine. The Elcometer RCV4000+ Remote Control Valve 32mm allows the operator to control and depressurise the blast machine from the nozzle, which is central to safe abrasive blasting.
Control is by a pneumatic deadman's handle connected to 6mm inlet and outlet ports on the side of the Elcometer RCV4000+ Remote Control Valve 32mm through two airline hoses, known as twinline. Closing the deadman's lever activates both valves simultaneously, and releasing it deactivates the RCV4000+ immediately. A red safety petcock on the valve body provides emergency depressurisation of the system.
The Elcometer RCV4000+ Remote Control Valve 32mm comes with an integrated air manifold offering multiple air outlets for ancillary equipment such as pressure gauges, ball vibration units to fluidise the media flow, and air supply for a breathe air filter and pressure relief valve. The Elcometer RCV4000+ Remote Control Valve 32mm is available in three versions: 19mm for the Elcometer 1020 Blast Machine, 38mm for larger Elcometer blast machines, and this 32mm version for other blast machines. Supplied by BAMR, South Africa's authorised Elcometer distributor.
Elcometer RCV4000+ Remote Control Valve 32mm

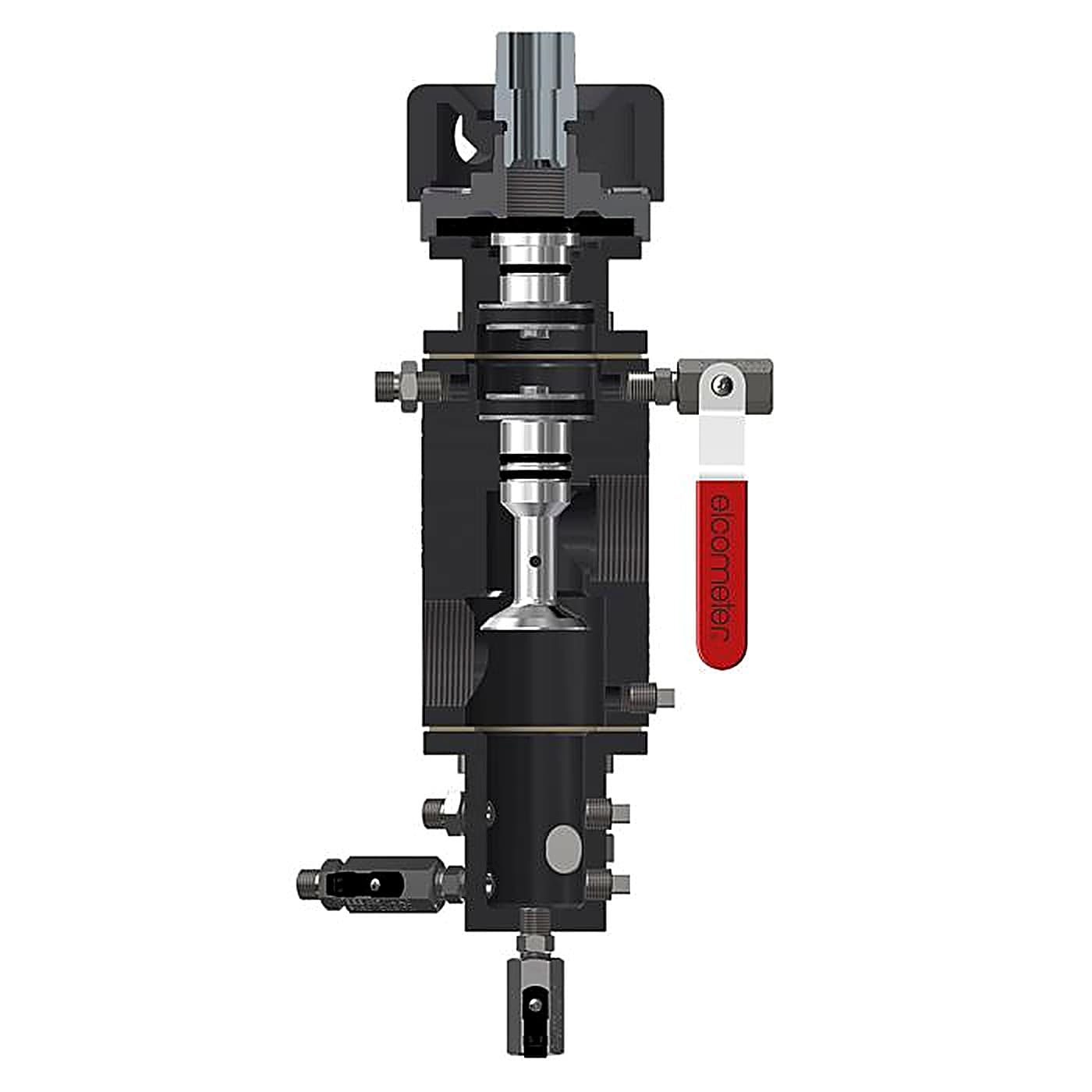

The RCV4000+ Remote Control Valve incorporates two valves in one unit, the lower unit controls the compressed air inlet and the upper unit controls the exhaust outlet as air exits the abrasive blast machine.
- Two valves in one unit The lower unit controls compressed air inlet and the upper unit controls exhaust outlet as air exits the abrasive blast machine.
- Pneumatic deadman's handle control Connected via two airline hoses (twinline) to 6mm inlet and outlet ports on the side of the valve.
- Integrated air manifold Multiple air outlets allowing attachment of ancillary equipment such as pressure gauges, ball vibration units and air supply connections.
- Emergency safety petcock Red safety petcock on valve body acts as emergency stop for the system.
- Available in three versions 19mm for Elcometer 1020 Blast Machine, 38mm for larger Elcometer blast machines, and 32mm for other blast machines.
Standards Reference
- British Standard Reference
- BS4518
Specifications
Standards Reference
- British Standard Reference
- BS4518
Spare Parts
Spare Parts
- Male Adaptor 3 / 4 " BSP to 1″ BSP
- MT30022
- Bleed-Off Manifold (BSP)
- MT30023
- O Ring BS4518 89.5 ID x 3.0 Cord
- KIT 1
- Top Cover (BSP)
- MT30024
- Rubber Valve Seat
- KIT 1
- Bleed-Off Valve
- MT30025
- Bleed-Off Cylinder Housing
- MT30026
- M8 x 25 Hex Socket Cap Screws (x8)
- KIT 2
- Gasket 90mm OD x 52 ID x 2mm Thick (x2)
- KIT 1
- Piston
- MT30081
- 1 ⁄ 4 " Square Head BSP ST/ST Plug (x2)
- MT28596
- Piston Lip Seal 38 x 50 x 6 (x2)
- KIT 1
- 1 1 ⁄ 2 " x 1 1 ⁄ 2 " BSP Reducing Bush
- MT28594
- Remote Control Valve Body
- MT30082
- O Ring 3.53 Cord x 23.29 ID (x3)
- KIT 1
- Inlet Valve
- MT30083
- Base Plate (BSP)
- MT30084
- 1 ⁄ 4 " BSP Male Adaptor, Pneumatic
- MT30085
- 1 ⁄ 4 " HP Ball Valve Female - Black Handle
- MT28619
- Petcock - 1 ⁄ 4 " HP Ball Valve Female - Red
- MT29656
- 1 / 4 " BSP 60° Cone x 1 / 4 " BSP Male Adaptor
- MT30086
- RCV Manifold
- MT30087
- 1 / 2 " BSP Plug Solid
- MT30099
- RCV Service Kit 1 (contains items 3, 5, 9, 12 & 15)
- MT30055
- RCV Service Kit 2 (contains item 8)
- MT30056
- RCV Service Kit 3 (contains Allen Key & RCV Tool)
- MT30072
- RCV Service Kit 4 (contains items 11 & 23)
- MT28605
- Male Adaptor 3 / 4 " to 1″
- MT30022N
- Bleed-Off Manifold
- MT30023N
- O Ring BS4518 89.5 ID x 3.0 Cord
- KIT 1
- Top Cover
- MT30024
- Rubber Valve Seat
- KIT 1
- Bleed-Off Valve
- MT30025
- Bleed-Off Cylinder Housing
- MT30026
- M8 x 25 Hex Socket Cap Screws (x8)
- KIT 2
- Gasket 90mm OD x 52 ID x 2mm Thick (x2)
- KIT 1
- Piston
- MT30081
- 1 ⁄ 4 " Square Head ST/ST Plug (x2)
- MT28596N
- Piston Lip Seal 38 x 50 x 6 (x2)
- KIT 1
- 1 1 ⁄ 2 " x 1 1 ⁄ 2 " Reducing Bush
- MT28594N
- Remote Control Valve Body
- MT30082N
- O Ring 3.53 Cord x 23.29 ID (x3)
- KIT 1
- Inlet Valve
- MT30083
- Base Plate
- MT30084N
- 1 ⁄ 4 " Male Adaptor, Pneumatic
- MT30085N
- 1 ⁄ 4 " HP Ball Valve Female - Black Handle
- MT28619N
- Petcock - 1 ⁄ 4 " HP Ball Valve Female - Red
- MT29656N
- 1 / 4 " 60° Cone x 1 / 4 " Male Adaptor
- MT30086N
- RCV Manifold
- MT30087N
- 1 / 2 " Plug Solid
- MT30099N
- RCV Service Kit 1 (contains items 3, 5, 9, 12 & 15)
- MT30055
- RCV Service Kit 2 (contains item 8)
- MT30056
- RCV Service Kit 3 (contains Allen Key & RCV Tool)
- MT30072
- RCV Service Kit 4 (contains items 11 & 23)
- MT28605N
Downloads
Frequently asked questions
What do the two valve sections in the RCV4000+ actually control?
The lower section controls the compressed air inlet to the abrasive blast machine, and the upper section controls the exhaust outlet as air leaves it. Both functions are combined in a single valve body.
What's the difference between the RCV4000P-125B and RCV4000P-125N?
The 125B's spares are the BSP-labelled parts, such as Male Adaptor MT30022 and Reducing Bush MT28594. The 125N uses the equivalent parts under N-suffixed part numbers (MT30022N, MT28594N) without the BSP designation, so order spares against the SKU you actually have.
What's included in RCV Service Kit 1, and when would I need it?
Service Kit 1 (MT30055) bundles the O Ring BS4518, Rubber Valve Seat, Gasket 90mm OD x 52mm ID, Piston Lip Seal 38 x 50 x 6, and O Ring 3.53 Cord x 23.29 ID, the main seals and gaskets in the valve. It covers routine reseal work in one kit rather than ordering each part separately.
What does RCV Service Kit 4 cover?
Service Kit 4 (MT28605 / MT28605N) contains the 1/4 inch Square Head BSP ST/ST Plug and the 1/2 inch BSP Plug Solid. It is a smaller kit than Kit 1, covering just these two plugs rather than the main seal set.
Which standard do the RCV4000+'s O-rings comply with?
The valve's O-rings, including the O Ring BS4518 89.5 ID x 3.0 Cord, reference British Standard BS4518.
Is a tool included for servicing the RCV4000+?
Yes. RCV Service Kit 3 (MT30072) contains an Allen Key and the RCV Tool, the two items needed to carry out maintenance on the valve.
