The Elcometer RCV4000 Remote Control Valve 32mm (PED part number RCV4000-125B, ASME part number RCV4000-125N) is a pneumatic remote control valve used to safely pressurise and depressurise an abrasive blast machine at the blast nozzle using a deadman's handle. Controlling the air supply from the nozzle, rather than at the machine, is fundamental to safe abrasive blasting, allowing the operator to cut off the blast stream immediately.
The Elcometer RCV4000 Remote Control Valve 32mm quickly cuts off the flow of compressed air to the blast hose, and a built-in exhaust valve de-pressurises the machine quickly and safely. It has a universal fit to blast machines with remote control valve ports, so it is not limited to Elcometer machines. The whole RCV system can be removed by undoing just two union joints, making it fast to service in the field and minimising downtime. It is offered in 38mm, 32mm and 19mm versions, and the RCV4000+ variant adds an air manifold for ancillary equipment.
The valve is designed and built in Great Britain from high grade, non-corrosive aluminium. It is used in surface preparation, protective coatings and corrosion control work. Supplied by BAMR, South Africa's authorised Elcometer distributor.

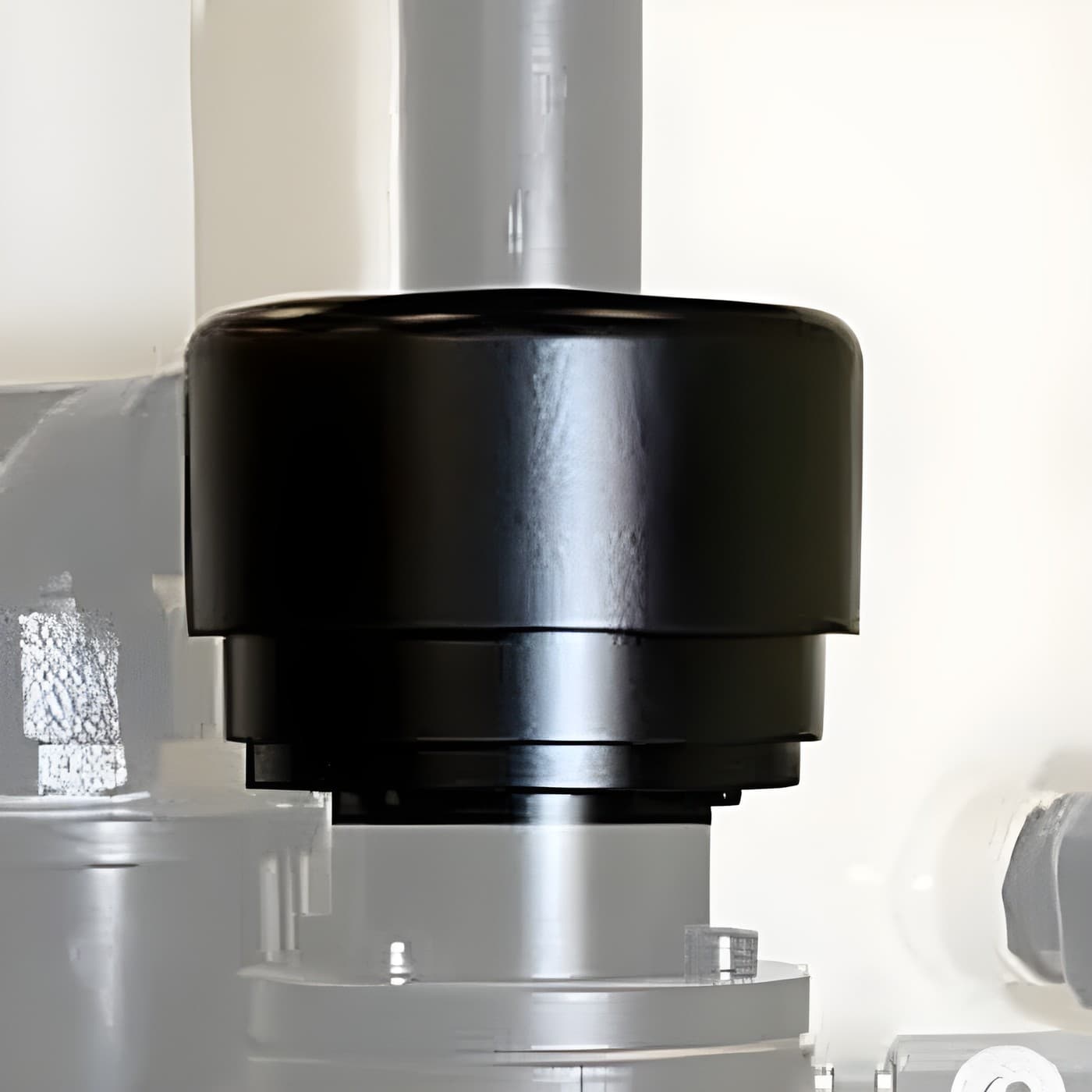

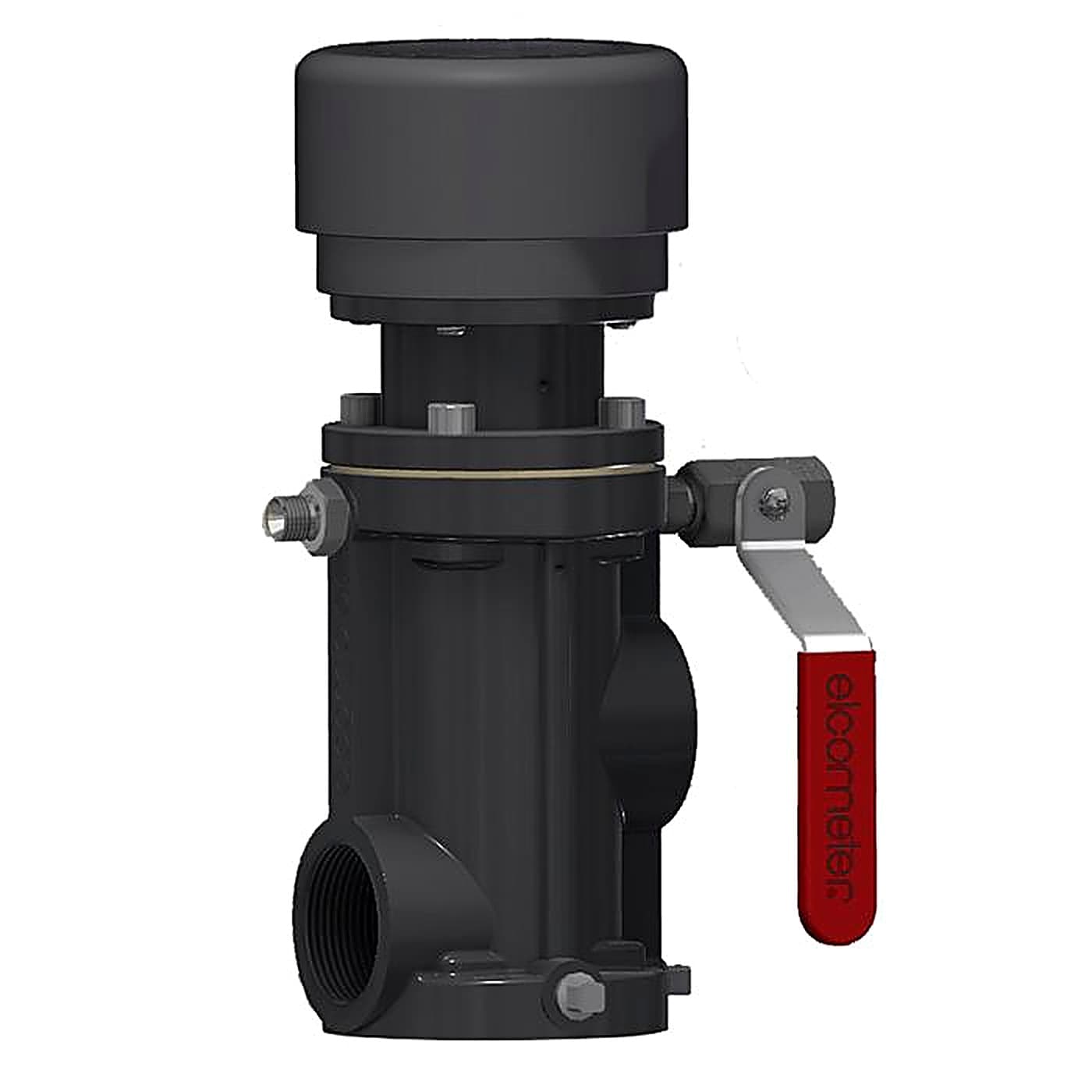

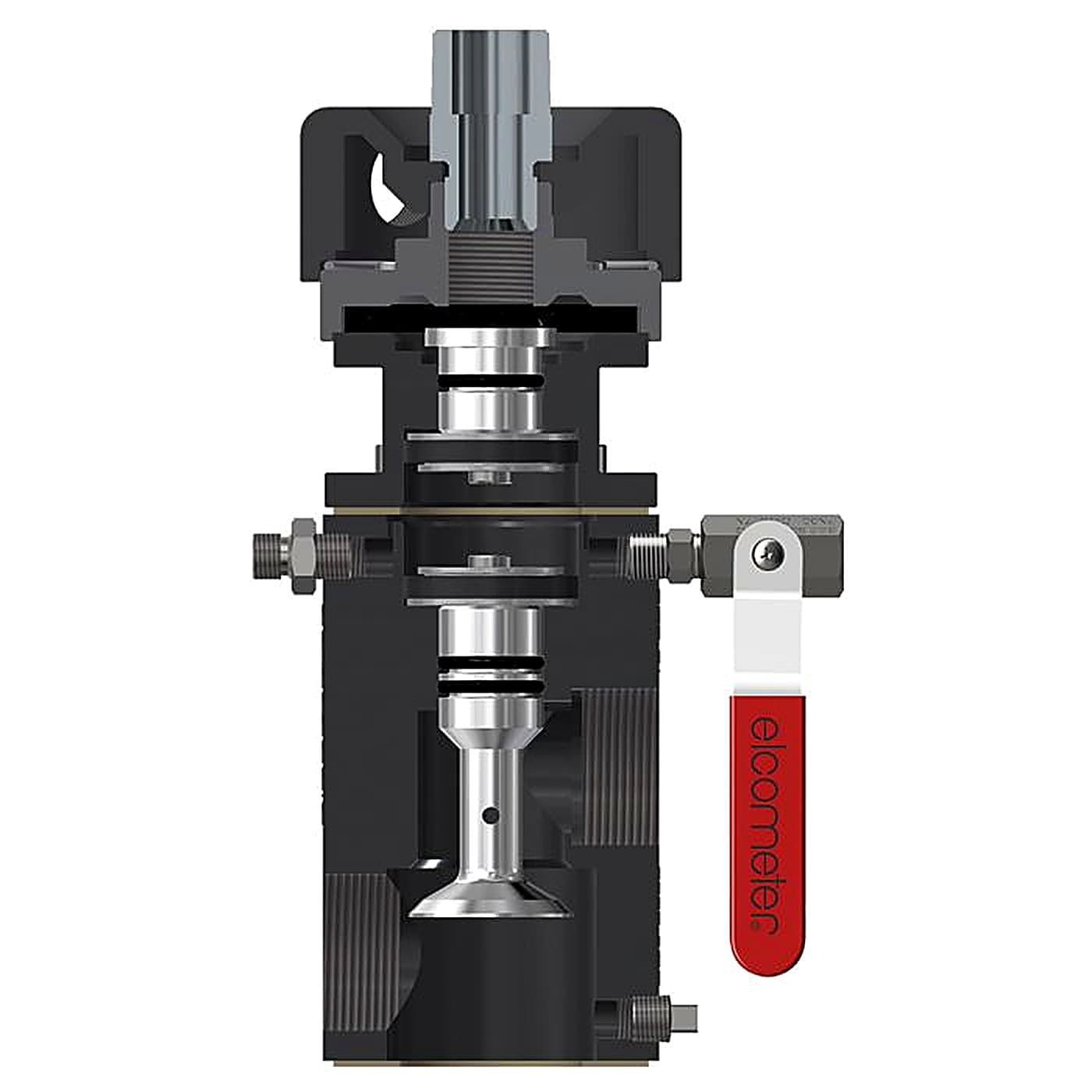

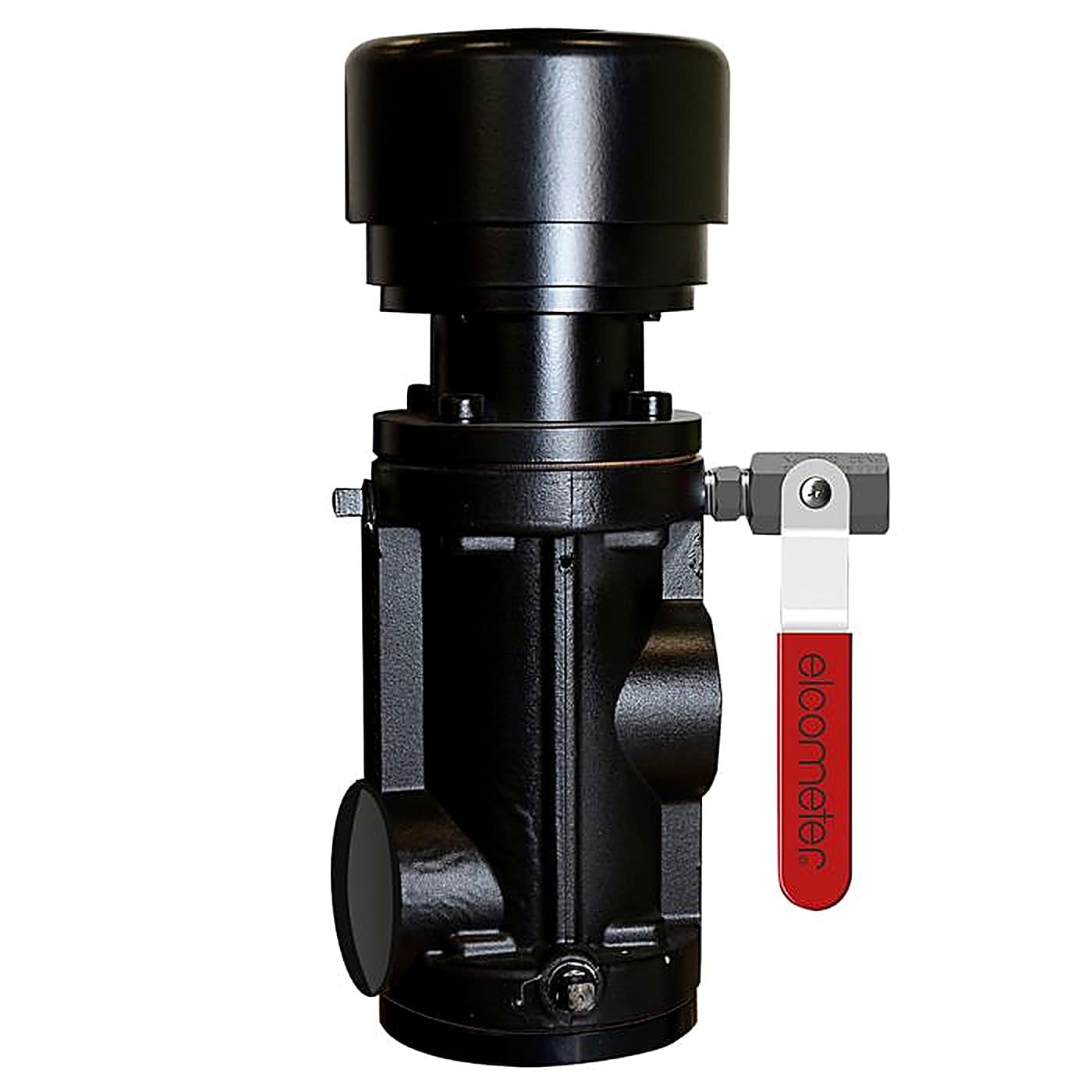

Elcometer RCV4000 Remote Control Valve 32mm
Elcometer RCV4000 Remote Control Valves are used to safely pressurise and depressurise abrasive blast machines at the blast nozzle using a deadman's handle.
- Quickly cuts off the flow of compressed air to the blast hose
- Easy and fast to service, the whole RCV system can be removed by undoing two unions joints
- Available with 38mm, 32mm or 19mm versions
- Built-in exhaust valve de-pressurises quickly and safely
- RCV4000+ includes air manifold for ancillary equipment
- Designed and built in Great Britain out of high grade, non-corrosive aluminium
Accessories
| Elcometer RCV4000 Exhaust Manifold Assembly |

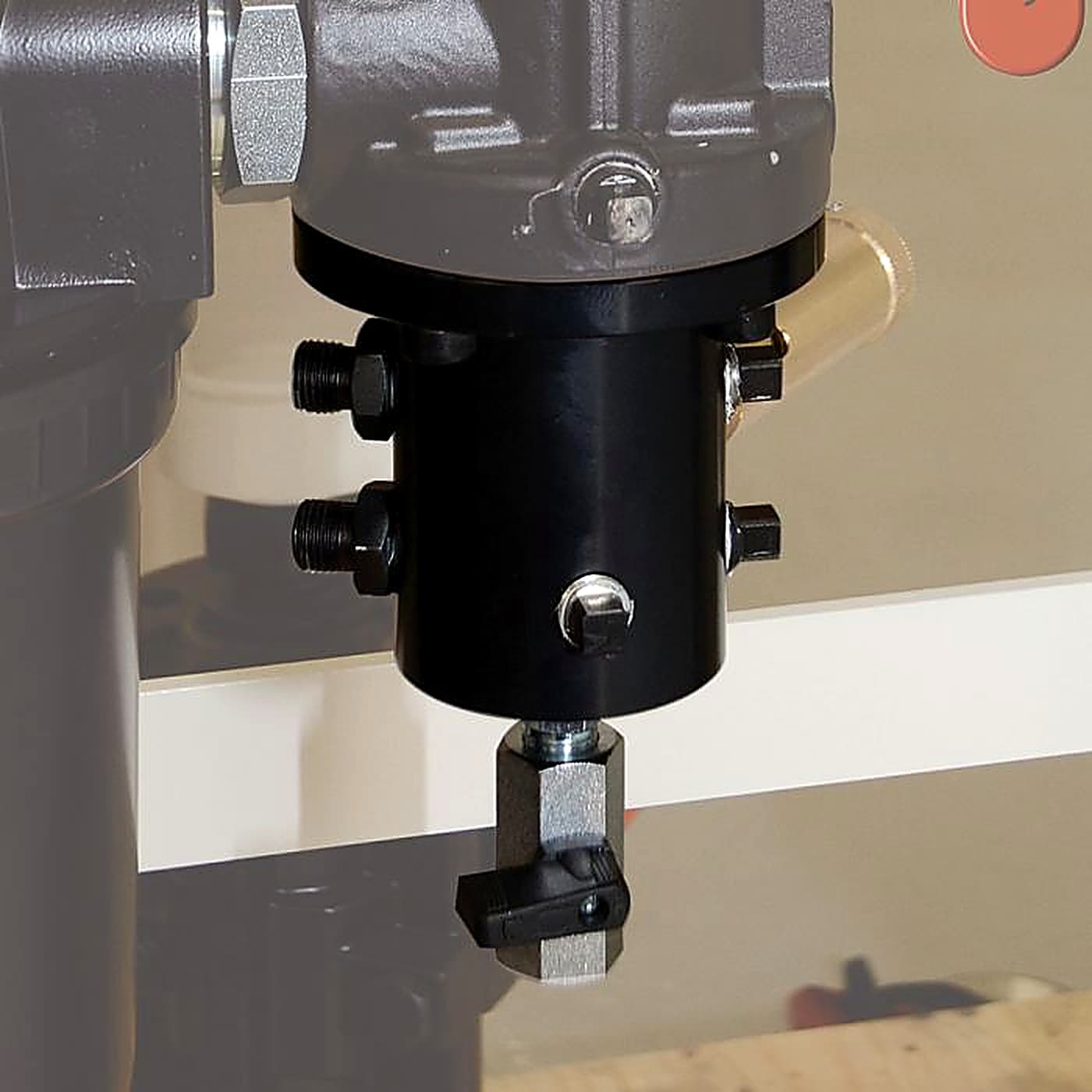

| Elcometer RCV4000 Air Manifold Assembly |

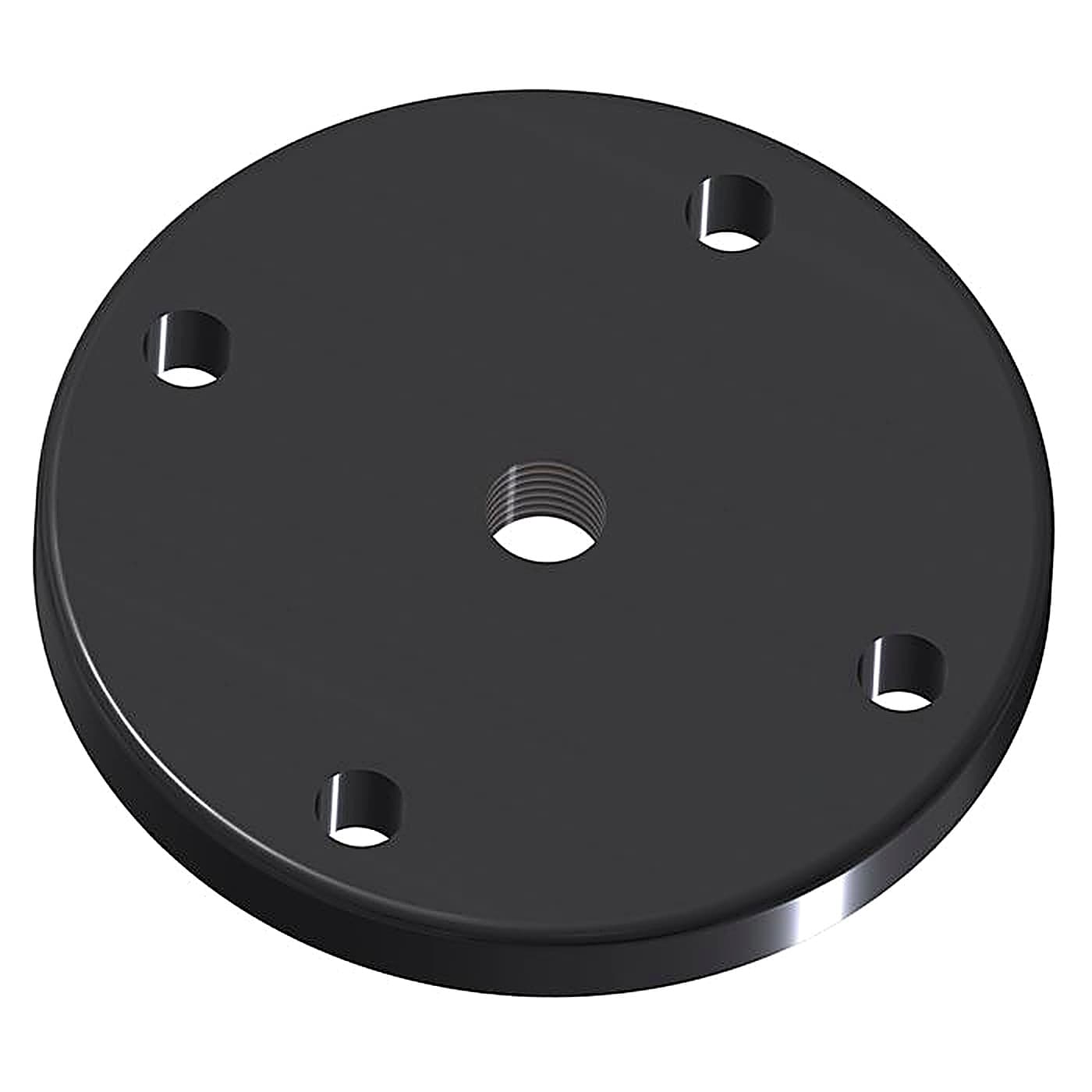

| Elcometer RCV4000 Base Plate |
Accessories
Accessories
| Elcometer RCV4000 Exhaust Manifold Assembly |
| Elcometer RCV4000 Air Manifold Assembly |
| Elcometer RCV4000 Base Plate |
Spare Parts
Spare Parts
- M8 x 25 Hex Socket Cap Screws (x8)
- KIT 2
- Gasket 90mm OD x 52 ID x 2mm Thick (x2)
- KIT 1
- Piston
- MT30081
- 1 ⁄ 4 " Square Head BSP ST/ST Plug (x2)
- MT28596
- Piston Lip Seal 38 x 50 x 6 (x2)
- KIT 1
- 1 1 ⁄ 2 " x 1 1 ⁄ 2 " BSP Reducing Bush
- MT28594
- Remote Control Valve Body
- MT30082
- O Ring 3.53 Cord x 23.29 ID (x3)
- KIT 1
- Inlet Valve
- MT30083
- Base Plate (BSP)
- MT30084
- 1 ⁄ 4 " BSP Male Adaptor, Pneumatic
- MT30085
- 1 ⁄ 4 " HP Ball Valve Female - Black Handle
- MT28619
- Petcock - 1 ⁄ 4 " HP Ball Valve Female - Red
- MT29656
- RCV Service Kit 1 (contains items 3, 5, 9, 12 & 15)
- MT30055
- RCV Service Kit 2 (contains item 8)
- MT30056
- RCV Service Kit 3 (contains Allen Key & RCV Tool)
- MT30072
- M8 x 25 Hex Socket Cap Screws (x8)
- KIT 2
- Gasket 90mm OD x 52 ID x 2mm Thick (x2)
- KIT 1
- Piston
- MT30081
- 1 ⁄ 4 " Square Head ST/ST Plug (x2)
- MT28596N
- Piston Lip Seal 38 x 50 x 6 (x2)
- KIT 1
- 1 1 ⁄ 2 " x 1 1 ⁄ 2 " Reducing Bush
- MT28594N
- Remote Control Valve Body
- MT30082N
- O Ring 3.53 Cord x 23.29 ID (x3)
- KIT 1
- Inlet Valve
- MT30083
- Base Plate
- MT30084N
- 1 ⁄ 4 " Male Adaptor, Pneumatic
- MT30085N
- 1 ⁄ 4 " HP Ball Valve Female - Black Handle
- MT28619N
- Petcock - 1 ⁄ 4 " HP Ball Valve Female - Red
- MT29656N
- RCV Service Kit 1 (contains items 3, 5, 9, 12 & 15)
- MT30055
- RCV Service Kit 2 (contains item 8)
- MT30056
- RCV Service Kit 3 (contains Allen Key & RCV Tool)
- MT30072
Downloads
Frequently asked questions
Is the RCV4000 suitable for abrasive blasting operations?
The RCV4000 is a remote control valve designed to safely pressurise and depressurise abrasive blast machines at the nozzle. It is controlled via a deadman's handle for operator safety.
How does the deadman's handle improve safety?
The deadman's handle provides direct control of pressure. Releasing the handle immediately depressurises the system, creating a failsafe mechanism that protects operators during blasting.
What British Standard Pipe connections does the RCV4000 use?
The valve uses BSP connections including 1/4" BSP for pneumatic adaptors and larger BSP fittings for supply and outlet lines, depending on machine configuration.
What spare parts and service kits are available?
Full spare parts are stocked including pistons, seals, gaskets, and valve bodies. Three service kits (MT30055, MT30056, MT30072) cover routine maintenance and repairs.
