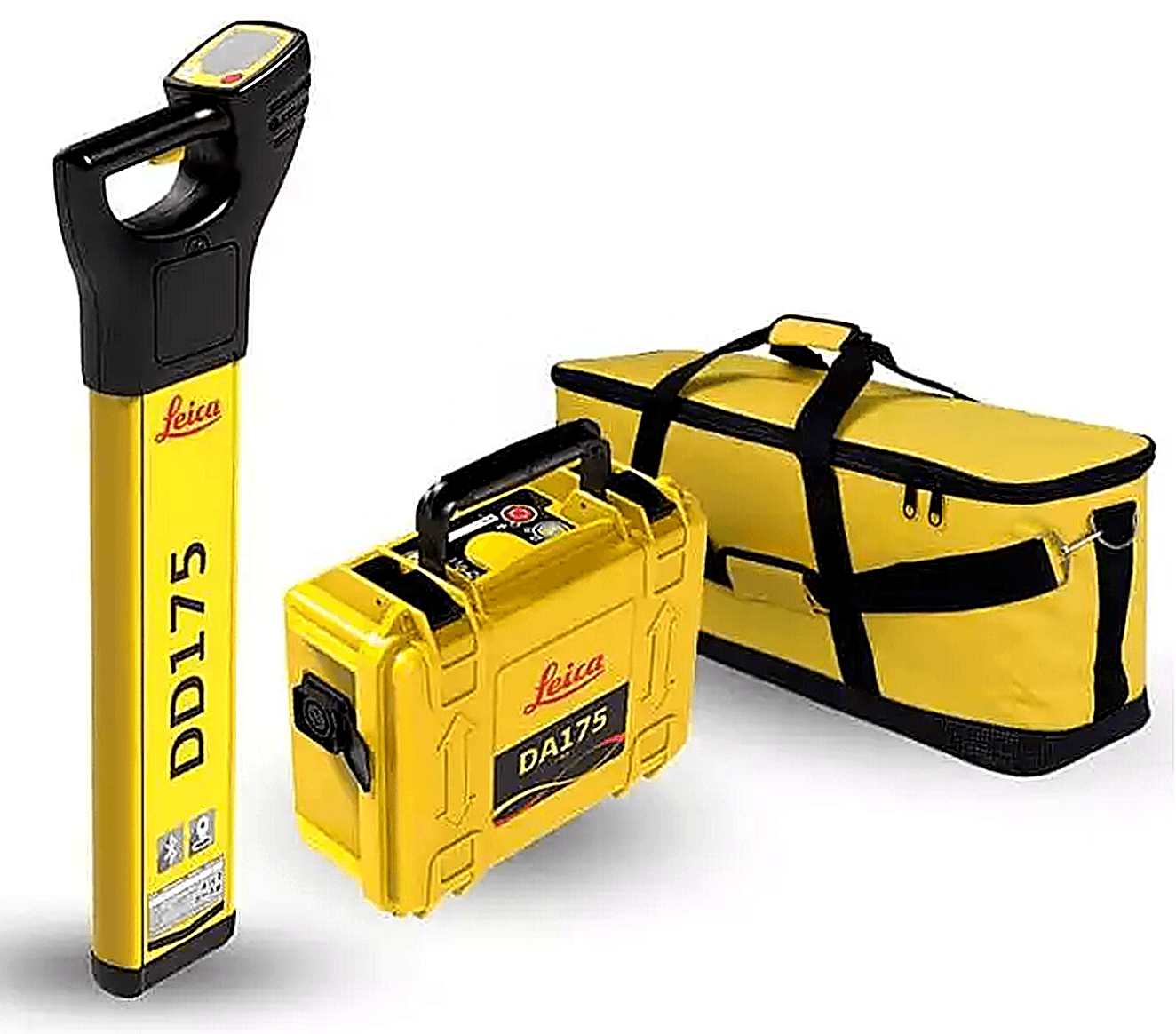

The Leica DD175 Depth and GPS Package (part number 6017281) pairs the DD175 buried utility locator with the DA175 signal transmitter to detect the position of buried cables and pipes before excavation. Locating services in advance helps prevent operator injury, asset damage and the costs that follow an unexpected strike, and the package's advanced automatic controls make it easy to use with minimal user experience.
The locator detects the signals radiated by buried services. It provides Power mode (50 Hz or 60 Hz model), Radio mode (15 kHz to 60 kHz) and Auto, with transmitter modes at 32.768 (33) kHz, 8.192 (8) kHz, 512 Hz and 640 Hz for extended trace range. Depth range is 0.3 m to 3 m for a line and 0.3 m to 9.99 m for a sonde, with 10 percent depth accuracy and signal current measurement. The locator is rated IP54, runs about 15 hours on 6 x LR6 (AA) alkaline batteries and weighs 2.7 kg.
The supplied DA175 transmitter applies the signal in induction mode at 32.768 (33) kHz and 8.192 (8) kHz, or in direct-connection mode adding 512 Hz and 640 Hz, with up to 1 Watt output into a 300 ohm buried service. It is rated IP67 with the cover closed and IP65 open, runs around 30 hours of intermittent use on 4 x D alkaline (IEC LR20) batteries and weighs 2.5 kg.
An integrated GPS and Bluetooth module with internal data logging lets results be shared with the DX Software Suite. The package is supplied by BAMR, South Africa's authorised distributor.
Leica DD175 Depth and GPS Package
The Leica DD175 Depth and GPS package features advanced automatic controls making it easy-to-use, requiring minimal user experience. The DD175 Depth and GPS package simplifies detecting the position of buried cables and pipes before excavation work, helping prevent operator injury, asset damage and any subsequent costs.
- Integrated GPS & BT Module
- Internal Data Logging
- Connectivity with DX Software Suite
- Extended Trace Range with Additional 512 Hz and 640Hz frequencies
- Signal current measurement
Buried Utility Locator (DD175)
- Power
- 50Hz / 60Hz Model
- Radio
- 15kHz - 60kHz
- Auto
- Power, Radio, 33kHz
- Transmitter Mode
- 32.768 (33) kHz / 8.192 (8) kHz / 512 Hz / 640 Hz
- Depth Range
- Line 0.3m to 3m / Sonde 0.3m to 9.99m (depth to an undistorted signal)
- Depth Accuracy
- 10%
- Environmental Standard
- IP54
- Operating Temperature
- -20° C to 50° C
- Battery
- 6 x LR6 (AA) Alkaline
- Battery Operated Time
- 15 hours (constant use at 20°C)
- Dimensions (HxWxD)
- 760 x 250 x 85 mm
- Weight with Batteries
- 2.7 kg
- Internal Data Storage
- Yes
- Data Logging
- Yes
- GPS
- Yes
- Bluetooth
- Yes
Signal Transmitter (DA175)
- Induction Mode Frequencies
- 32.768 (33) kHz / 8.192 (8) kHz
- Power Output
- Up to 1 Watt max. when connected to a buried service with an impedance of 300 Ω
- Direct Connection Mode Frequencies
- 32.768 (33) kHz / 8.192 (8) kHz / 512 kHz / 640 Hz
- Environmental Standard
- Cover Closed: IP67 / Cover Open: IP65
- Operating Temperature
- -20° C to 50° C
- Storage Temperature
- -40° C to 70° C
- Battery
- 4 x D alkaline (IEC LR20)
- Battery Operating Time
- 30 hrs intermittent use at 20 °C
- Dimensions (HxWxD)
- 250 x 206 x 113 mm
- Weight with Batteries
- 2.5 kg
Part Numbers
- Part Numbers
- 6017281
Specifications
Buried Utility Locator (DD175)
- Power
- 50Hz / 60Hz Model
- Radio
- 15kHz - 60kHz
- Auto
- Power, Radio, 33kHz
- Transmitter Mode
- 32.768 (33) kHz / 8.192 (8) kHz / 512 Hz / 640 Hz
- Depth Range
- Line 0.3m to 3m / Sonde 0.3m to 9.99m (depth to an undistorted signal)
- Depth Accuracy
- 10%
- Environmental Standard
- IP54
- Operating Temperature
- -20° C to 50° C
- Battery
- 6 x LR6 (AA) Alkaline
- Battery Operated Time
- 15 hours (constant use at 20°C)
- Dimensions (HxWxD)
- 760 x 250 x 85 mm
- Weight with Batteries
- 2.7 kg
- Internal Data Storage
- Yes
- Data Logging
- Yes
- GPS
- Yes
- Bluetooth
- Yes
Signal Transmitter (DA175)
- Induction Mode Frequencies
- 32.768 (33) kHz / 8.192 (8) kHz
- Power Output
- Up to 1 Watt max. when connected to a buried service with an impedance of 300 Ω
- Direct Connection Mode Frequencies
- 32.768 (33) kHz / 8.192 (8) kHz / 512 kHz / 640 Hz
- Environmental Standard
- Cover Closed: IP67 / Cover Open: IP65
- Operating Temperature
- -20° C to 50° C
- Storage Temperature
- -40° C to 70° C
- Battery
- 4 x D alkaline (IEC LR20)
- Battery Operating Time
- 30 hrs intermittent use at 20 °C
- Dimensions (HxWxD)
- 250 x 206 x 113 mm
- Weight with Batteries
- 2.5 kg
Part Numbers
- Part Numbers
- 6017281
Packing List
Packing List
Accessories
Accessories

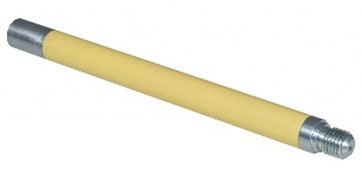

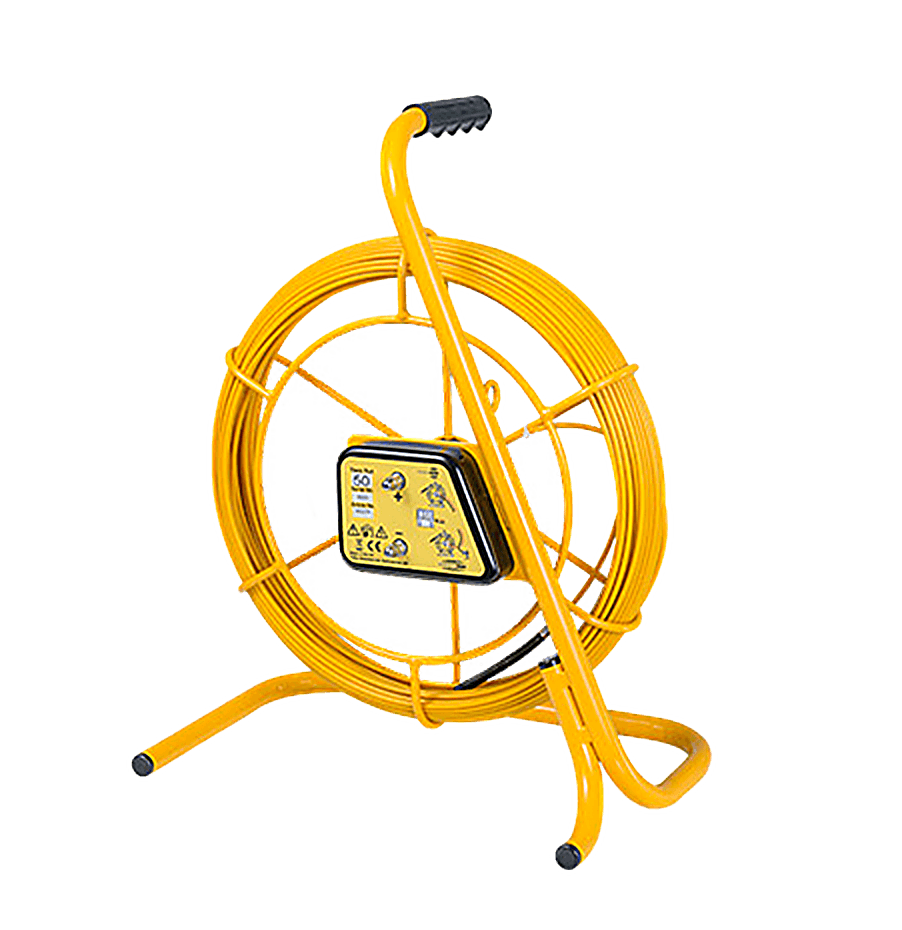

- Trace Rod 50
- 850278
- Trace Rod 80
- 850279

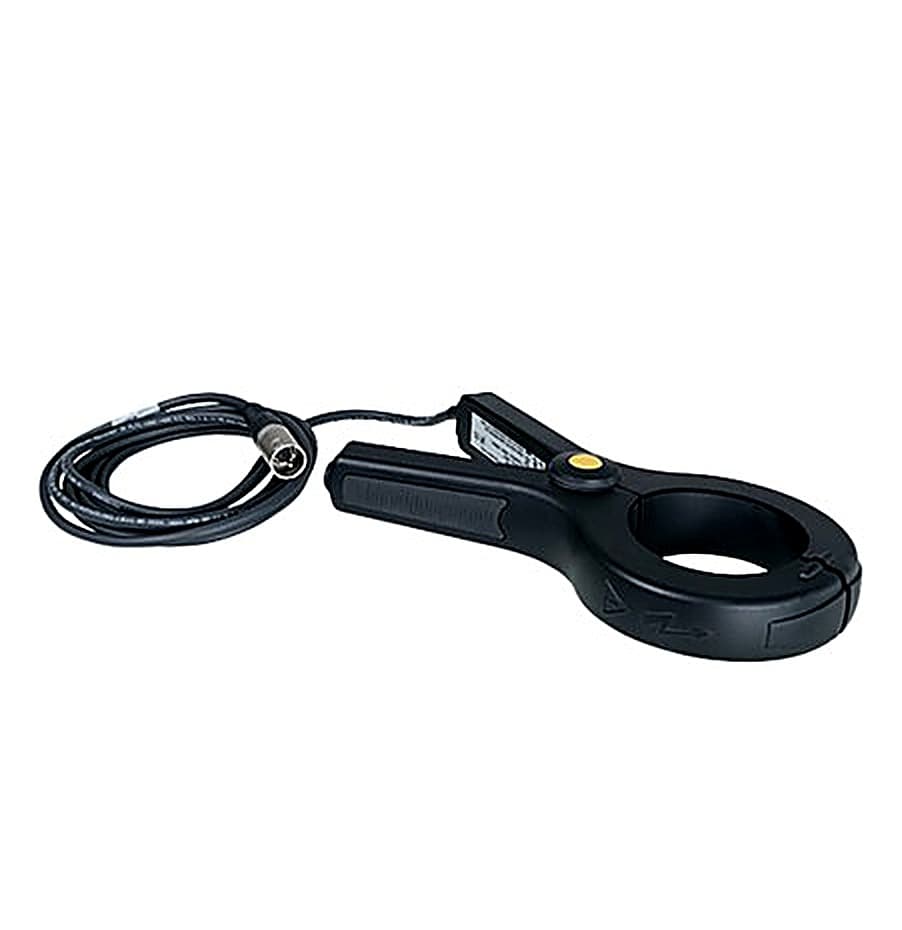

- Transmitter Clamp 100mm
- 850280
- Transmitter Clamp 80mm
- 850281

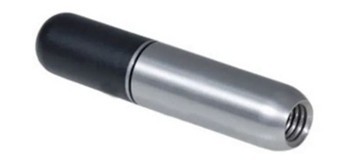

- Mini Sonde 33
- 850288
- Midi Sonde 33/8
- 850289
- Maxi Sonde 33/8
- 850290
- Clamp Sonde 33
- 850291
- Duct Sonde
- 856131
Features and Components
Features and Components
Features: Integrated GPS & BT Module Internal
Data Logging Connectivity with DX Software Suite Extended Trace Range with Additional 512 Hz and 640Hz frequencies Signal current measurement Components:
Buried Utility

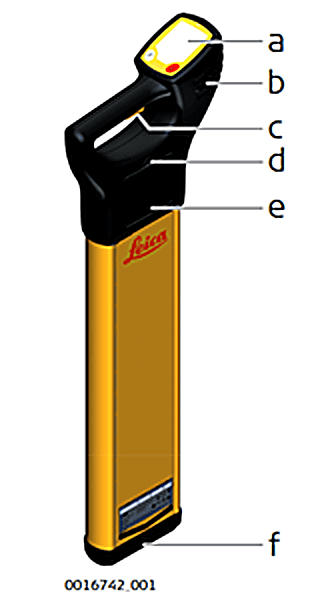

Locator a) Display Panel - Contains the operational controls. b) Speakers - (mounted internally left and right) Active at power on and when a signal is detected c) On/Off Trigger - Press and hold the trigger to activate the Locator. Release the trigger to deactivate. d)
Battery Hatch
Release - Pressing the release button unlocks the battery hatch allowing access to the battery compartment. e) Battery Compartment - 6 x LR6 (AA) alkaline batteries are used. Replace all batteries when indicated. f) Case Foot - The case foot can be replaced if it is worn.

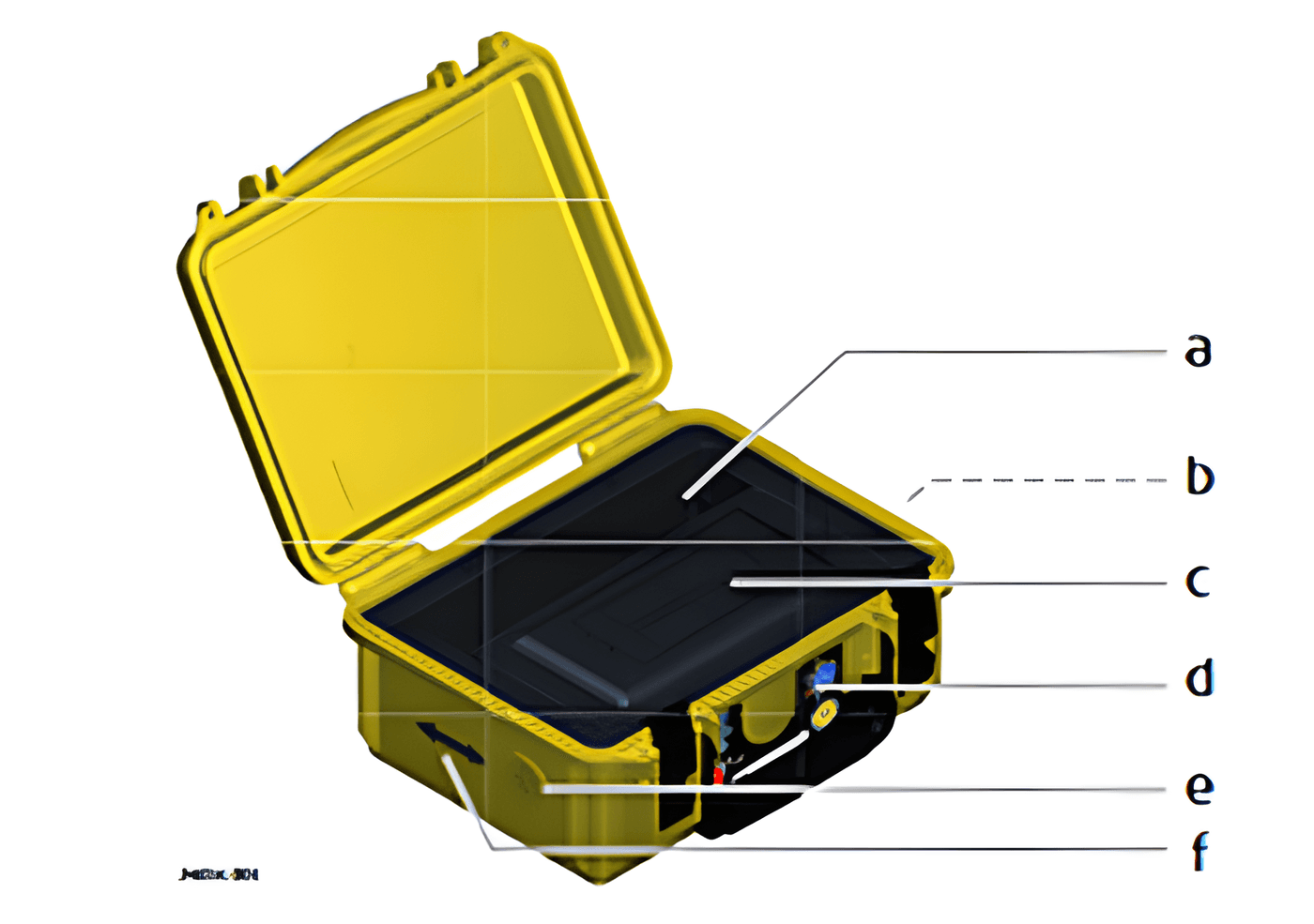

Contact your agency or Leica Geosystems authorised service workshop. Signal Transmitter a) Accessory compartment b) Connection socket c) 4 × LR20 alkaline batteries compartment d) Signal transmitter keyboard e) Speaker f) Induction arrow
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Leica DD175 (50Hz) Depth & GPS package | 6017281 |
Downloads
Frequently asked questions
What detection depths does the DD175 achieve?
The DD175 detects buried utilities from 0.3m to 3m in line mode and 0.3m to 9.99m in sonde mode, with depth accuracy of 10%.
How long will the batteries last on site?
The receiver runs for 15 hours on continuous use with six AA alkaline batteries. The transmitter operates for approximately 30 hours on intermittent use with four D alkaline batteries.
Can the DD175 operate in wet or muddy site conditions?
The receiver is rated IP54, dust and splash resistant. The transmitter is rated IP67 with cover closed (waterproof to 1 metre depth) and IP65 with cover open (splash resistant).
What transmission frequencies does the DD175 operate at?
The DD175 operates at 33kHz, 8kHz, 512Hz and 640Hz. Auto mode selects the optimal frequency automatically. The DA175 transmitter delivers up to 1 Watt maximum output at these frequencies.
What sonde accessories are available?
Five sonde types are available as optional accessories: Mini Sonde 33, Midi Sonde 33/8, Maxi Sonde 33/8, Clamp Sonde 33, and Duct Sonde.
Can the DD175 store location data and transmit it wirelessly?
Yes. The receiver has internal data storage and data logging capability, plus Bluetooth connectivity for wireless connection to mobile devices or external equipment.
