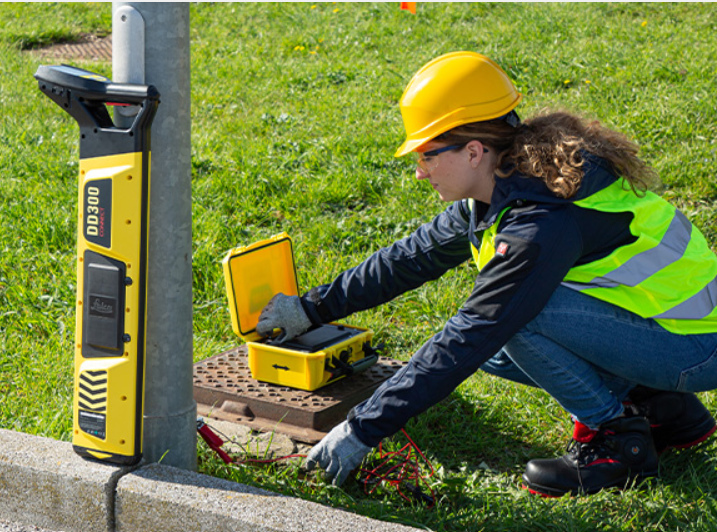

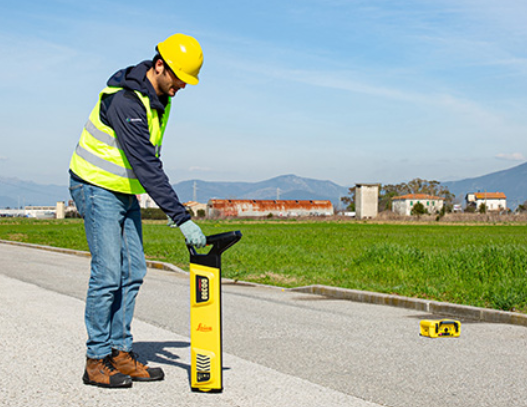

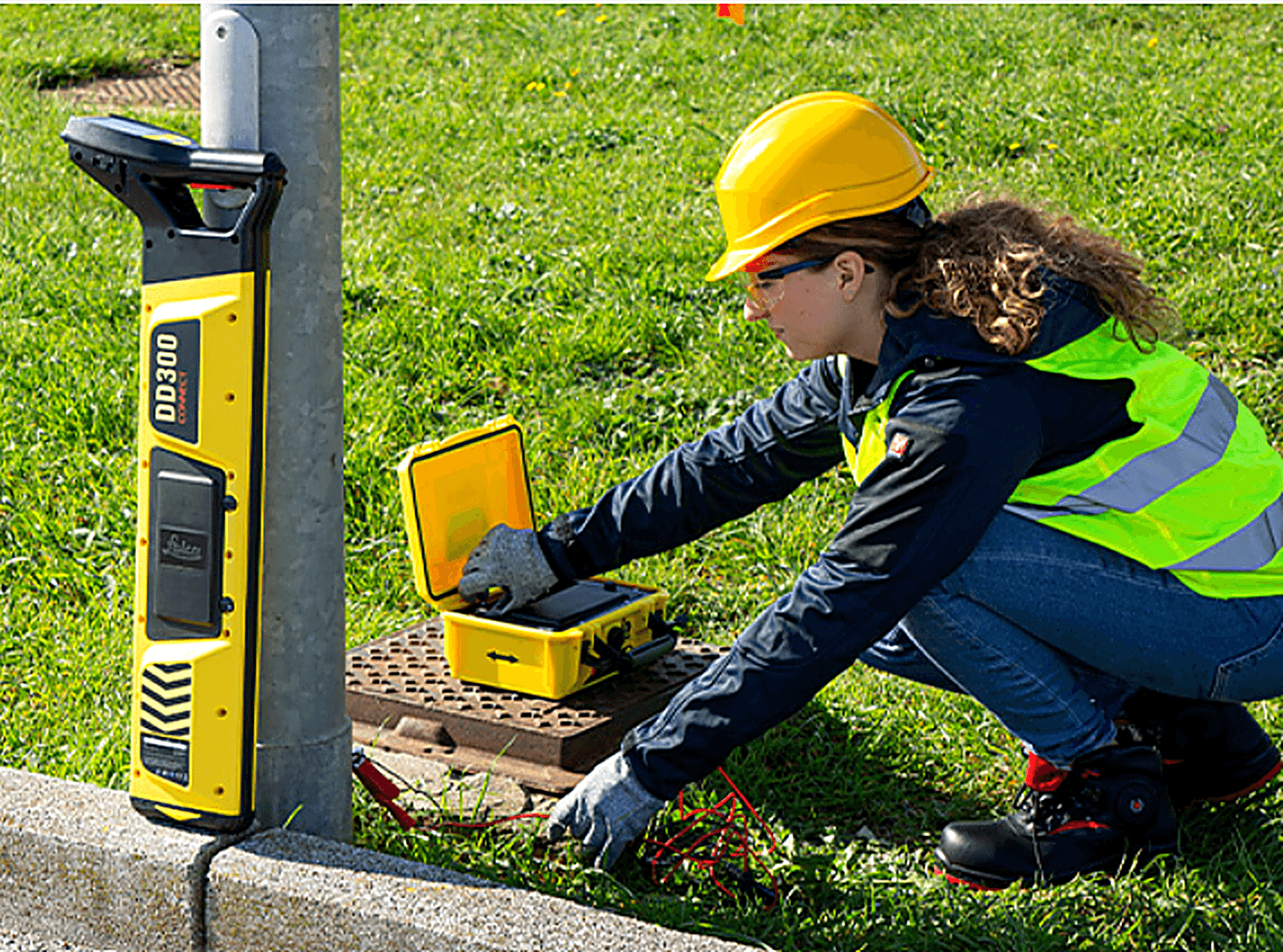

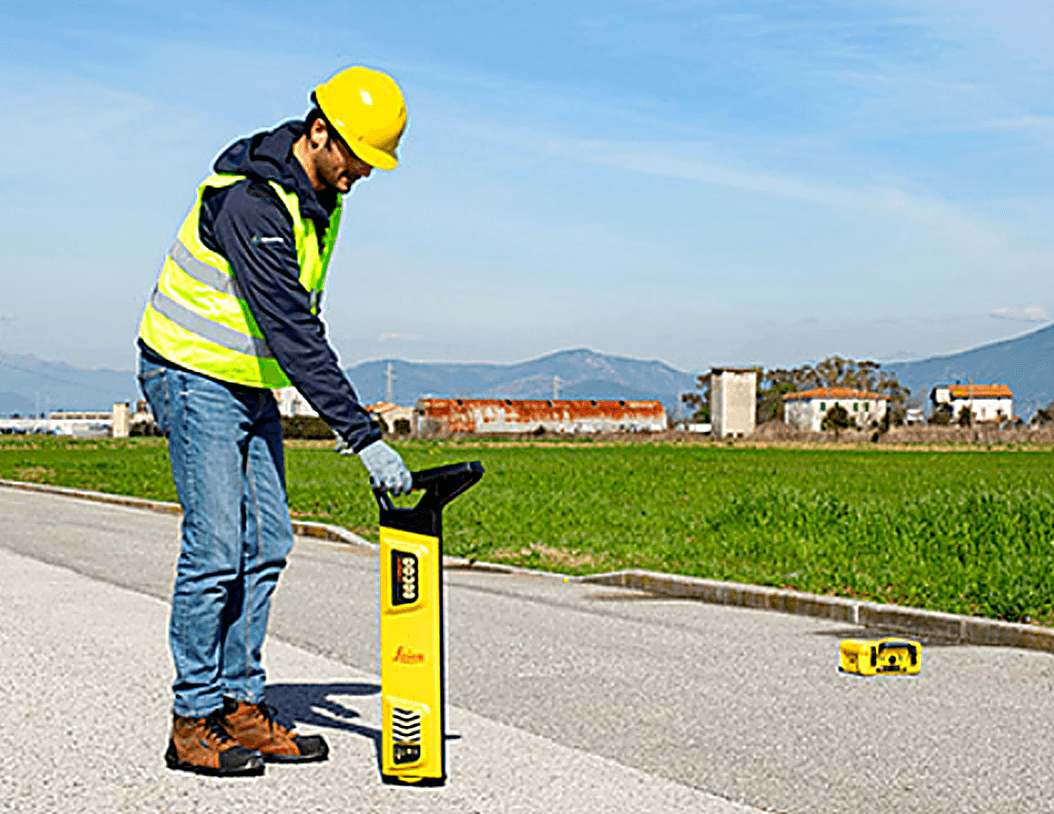

The Leica DD300 Connect Depth Package (part numbers 1003191 and 1003819, no longer supplied) is a utility locator solution that pairs the DD300 Connect locator with the DA300 1 Watt signal transmitter for the detection of underground pipes and cables. It is built to suit basic through to expert users, improving safety by mitigating the risks faced by anyone working on a construction site where buried services must be found before excavation.
The locator uses a digital trim that helps pinpoint the desired target even in multi-target environments, with the operator managing the gain bar manually while locating. It offers Power mode (50/60 Hz mains and harmonics), Radio (15 kHz to 60 kHz) and Auto, plus transmitter modes spanning 131.072 (131) kHz, 83.078 (83) kHz, 32.768 (33) kHz, 8.192 (8) kHz, 512 Hz and 640 Hz; the 83 kHz frequency bridges the gap from 33 kHz to 131 kHz. Depth range is 0.1 m to 7 m for a line and 0.1 m to 10 m for a sonde, with 5 percent depth accuracy. An LCD colour screen with video tutorials guides a step-by-step survey.

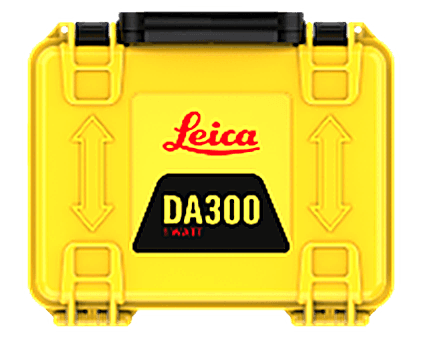

The locator carries 8 GB internal memory, u-blox GPS, Bluetooth and an IP65 rating, runs about 10 hours on 4 x LR20 alkaline batteries (Li-Ion optional) and weighs 2.86 kg. The DA300 transmitter outputs up to 1 Watt, is rated IP67 and runs around 15 hours. Both connect to DX Shield software for utility analysis and reporting that reduces utility strikes, repair costs and project downtime.
The Leica DD300 Connect Depth Package - No Longer Supplied is supplied by BAMR, South Africa's authorised distributor.
Leica DD300 Connect Depth Package - No Longer Supplied

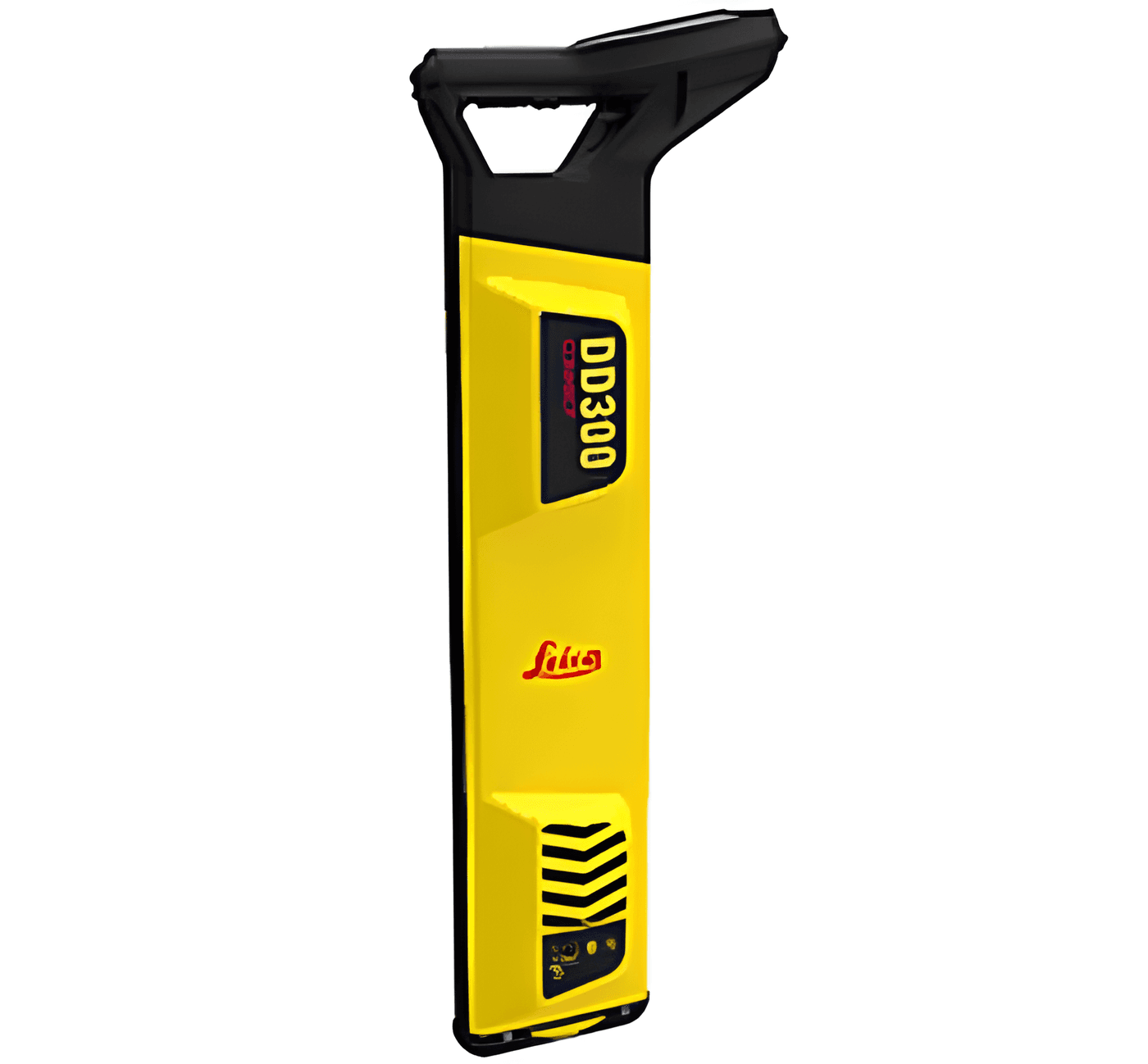

The Leica DD300 CONNECT is the utility locator solution allowing basic to expert users in the detection of underground pipes with ease-of-use, speed and accuracy, improving safety by mitigating risks associated with anyone who is working on construction sites.
- Easy and Accurate DD300 CONNECT is equipped with an innovative digital trim, providing accurate detection even in multi-target environments.

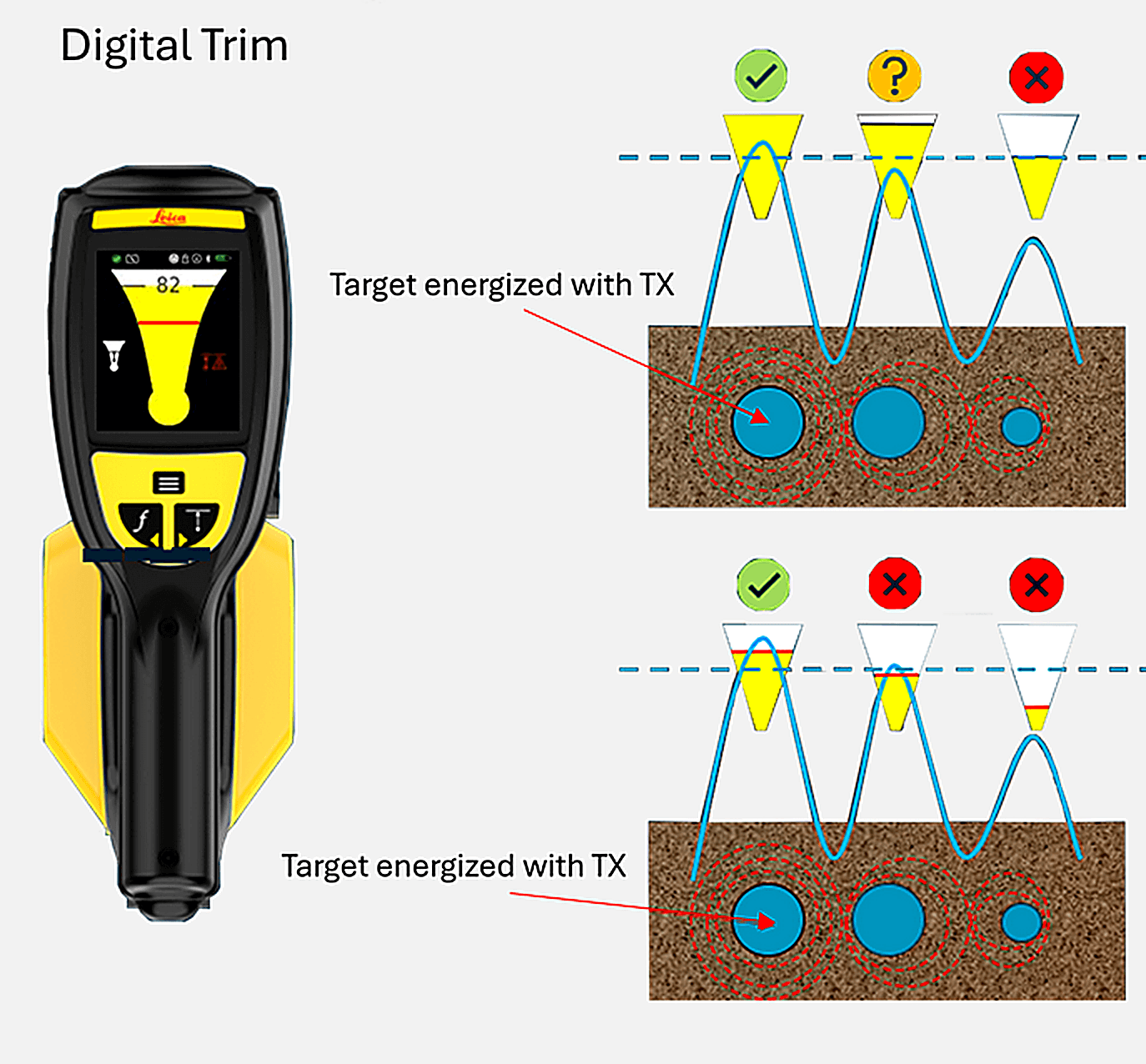

- Digital Trim The digital trim assists the operator in pinpointing the desired target, allowing the manual management of the gain bar while locating underground utilities.
- One for All Leica DD300 Connect encompasses everything users would need, from entry level to expert users. LCD Colour screen with Video Tutorials allows for a simplified step-by-step survey experience.
- Reliable DD300 CONNECT offers a wide range of standard frequencies. It boasts an 83kHz bridging the gap from 33kHz to 131kHz.

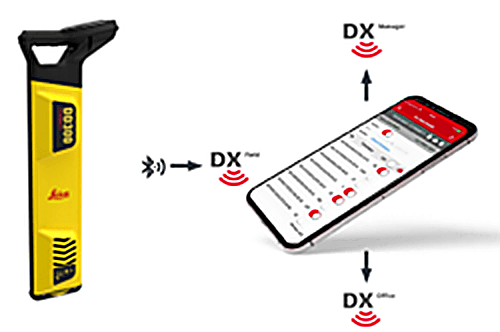

- DX Shield Software For professionals looking to streamline utility locating operations, the Leica DD 300 CONNECT utility locator solution represents a single source solution. DX Shield provides a space for utility analysis and a convenient connection between locators to increase productivity and save time. DX Shield software allows you to gain a better understanding of task performance and site complexities with easy-to-use reports that provide a fast and convenient overview of product use, reducing utility strikes and saving direct repair costs and project downtime.
DD300 Connect
- Mode
- DD300 Connect
- Power
- 50 / 60 Hz (Mains Electrical and Harmonics)
- Radio
- 15kHz to 60kHz
- Auto
- Power, Radio, 33kHz
- Transmitter Modes
- 131.072 (131) kHz / 83.078 (83) kHz / 32.768 (33) kHz / 8.192 (8) kHz / 512 Hz / 640 Hz
- Depth Range
- Line 0.1m to 7m (4 inches to 23 feet), Sonde 0.1 to 10m (4 inches to 32.8 feet)
- Depth Accuracy *
- 5%
- Bluetooth
- Class 2 BLE Dual Mode Module / Bluetooth Classic 2.1 / Bluetooth 4.0 (LE)
- GPS **
- Chipset (1): u-blox GPS; Receiver Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1; Accuracy (2): Horizontal Position 2.5 m Autonomous, 2.0 m SBAS, CEP; Start time: Cold 45 s typical, Aided 7s typical, Hot 1s typical
- Memory Capacity
- 8 GB Internal Memory
- Environmental Standard
- IP65
- Operating Temperature
- -20°C to 50°C
- Battery
- 4 x LR20 Alkaline Battery or Li-Ion as Optional
- Battery Operating Time ***
- 10h
- Dimensions (HxWxD)
- 765mm x 290mm x 93mm
- Weight with Batteries
- 2.86 kg
- * Legend
- Depth to an undistorted signal
- ** Legend
- (1) All data/information according to manufacturer u-blox GPS; Leica Geosystems does not assume any liability whatsoever for such information. (2) Accuracy is dependent upon various factors including atmospheric conditions, multipath, obstructions, signal geometry and number of tracked satellites.
- *** Legend
- Constant use at 20°C
DA300
- Induction Mode Frequencies
- 32.768 (33) kHz / 8.192 (8) kHz
- Power Output
- Up to 1 Watt maximum
- Direct Connection Mode Frequencies
- 131.072 (131) kHz / 83.078 (83) kHz / 32.768 (33) kHz / 8.192 (8) kHz / 512 Hz / 640 Hz
- Environmental Standard
- IP67
- Operating Temperature
- -20°C to +50°C
- Storage Temperature
- -40°C to +70°C
- Battery
- 4 x LR20 Alkaline Battery or Li-Ion as Optional
- Battery Operating Time **
- 15h
- Dimensions (HxWxD)
- 250mm x 206mm x 113mm
- Weight with Batteries
- 2.46 kg
- ** Legend
- Defined at 20°C Power Level 2
Part Numbers
- Part Numbers
- 1003191
- Part Numbers
- 1003819
- Transmitter Cable Extension
- 850286
- System Carry Bag
- 850277
Specifications
DD300 Connect
- Mode
- DD300 Connect
- Power
- 50 / 60 Hz (Mains Electrical and Harmonics)
- Radio
- 15kHz to 60kHz
- Auto
- Power, Radio, 33kHz
- Transmitter Modes
- 131.072 (131) kHz / 83.078 (83) kHz / 32.768 (33) kHz / 8.192 (8) kHz / 512 Hz / 640 Hz
- Depth Range
- Line 0.1m to 7m (4 inches to 23 feet), Sonde 0.1 to 10m (4 inches to 32.8 feet)
- Depth Accuracy *
- 5%
- Bluetooth
- Class 2 BLE Dual Mode Module / Bluetooth Classic 2.1 / Bluetooth 4.0 (LE)
- GPS **
- Chipset (1): u-blox GPS; Receiver Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1; Accuracy (2): Horizontal Position 2.5 m Autonomous, 2.0 m SBAS, CEP; Start time: Cold 45 s typical, Aided 7s typical, Hot 1s typical
- Memory Capacity
- 8 GB Internal Memory
- Environmental Standard
- IP65
- Operating Temperature
- -20°C to 50°C
- Battery
- 4 x LR20 Alkaline Battery or Li-Ion as Optional
- Battery Operating Time ***
- 10h
- Dimensions (HxWxD)
- 765mm x 290mm x 93mm
- Weight with Batteries
- 2.86 kg
- * Legend
- Depth to an undistorted signal
- ** Legend
- (1) All data/information according to manufacturer u-blox GPS; Leica Geosystems does not assume any liability whatsoever for such information. (2) Accuracy is dependent upon various factors including atmospheric conditions, multipath, obstructions, signal geometry and number of tracked satellites.
- *** Legend
- Constant use at 20°C
DA300
- Induction Mode Frequencies
- 32.768 (33) kHz / 8.192 (8) kHz
- Power Output
- Up to 1 Watt maximum
- Direct Connection Mode Frequencies
- 131.072 (131) kHz / 83.078 (83) kHz / 32.768 (33) kHz / 8.192 (8) kHz / 512 Hz / 640 Hz
- Environmental Standard
- IP67
- Operating Temperature
- -20°C to +50°C
- Storage Temperature
- -40°C to +70°C
- Battery
- 4 x LR20 Alkaline Battery or Li-Ion as Optional
- Battery Operating Time **
- 15h
- Dimensions (HxWxD)
- 250mm x 206mm x 113mm
- Weight with Batteries
- 2.46 kg
- ** Legend
- Defined at 20°C Power Level 2
Part Numbers
- Part Numbers
- 1003191
- Part Numbers
- 1003819

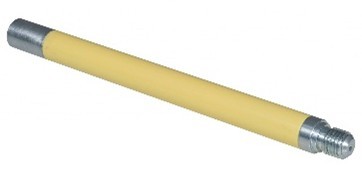

- Transmitter Cable Extension
- 850286

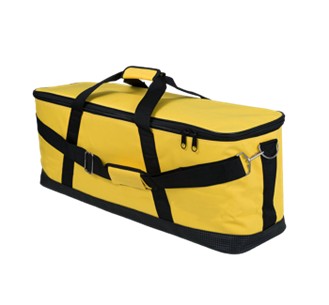

- System Carry Bag
- 850277

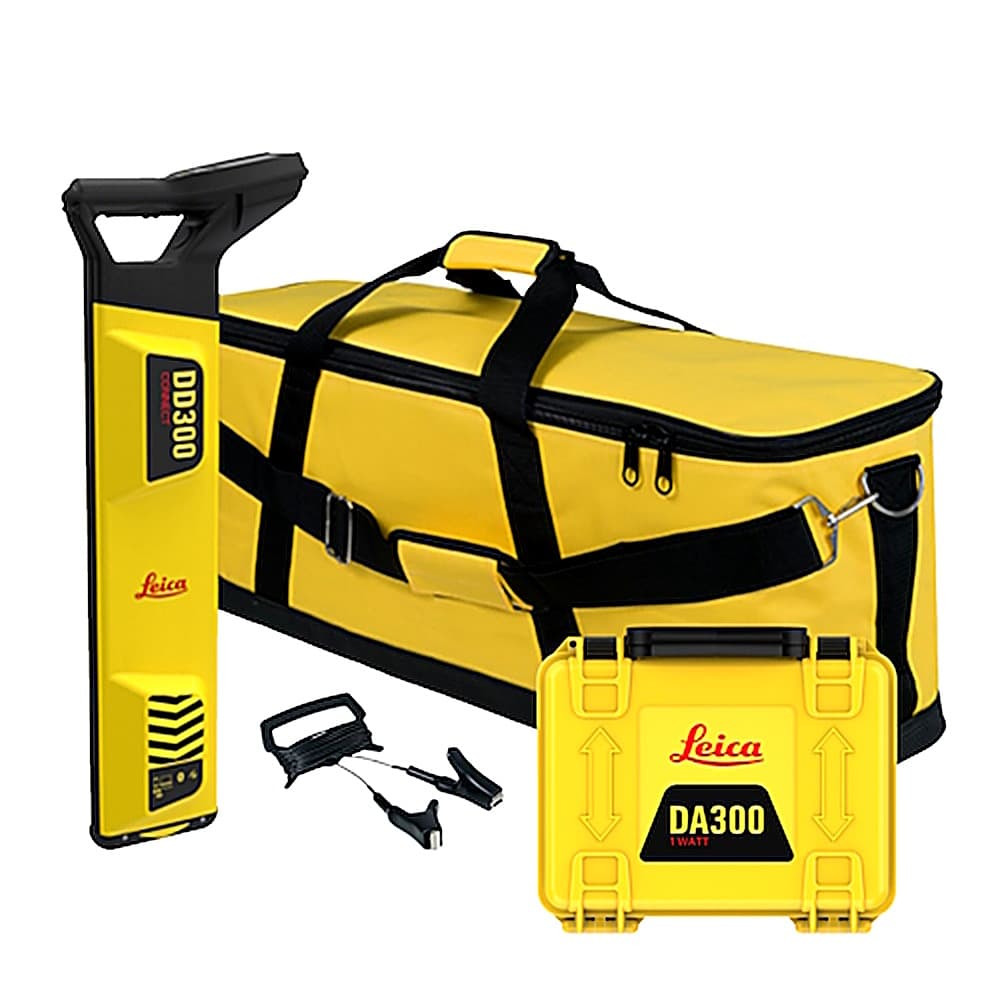

Packing List
Packing List
Accessories
Accessories

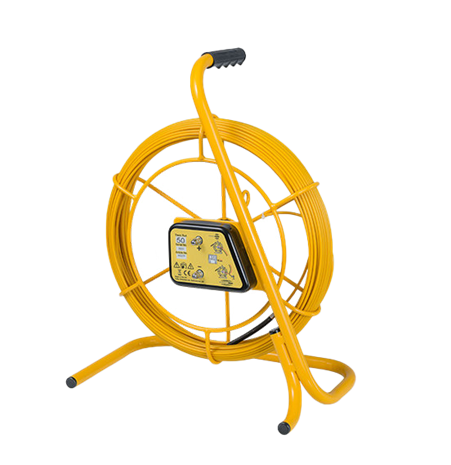

- Trace Rod 50
- 850278
- Trace Rod 80
- 850279

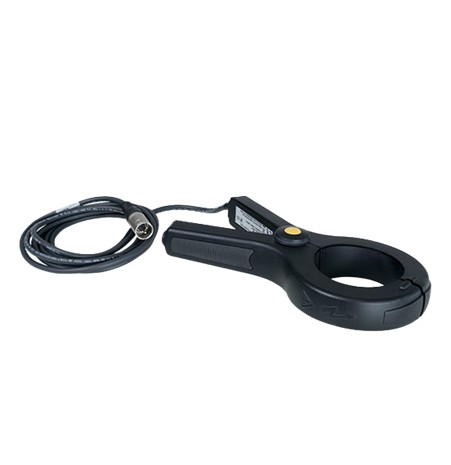

- Transmitter Clamp 100mm
- 850280
- Transmitter Clamp 80mm
- 850281

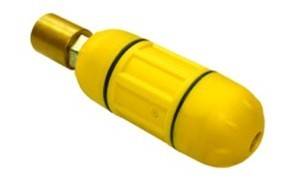

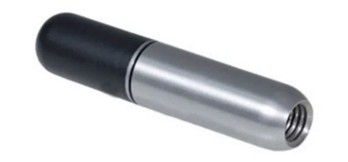

- Mini Sonde 33
- 850288
- Midi Sonde 33/8
- 850289
- Maxi Sonde 33/8
- 850290
- Clamp Sonde 33
- 850291
- Duct Sonde
- 856131
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Leica DD300 Connect Locator | 1003191 |
| Leica DA300 Signal Transmitter | 1003819 |
| Transmitter Cable Extension | 850286 |
| System Carry Bag | 850277 |
Downloads
Frequently asked questions
What are the maximum detection depths for line tracing and sonde use?
Line tracing detects pipes up to 7 metres deep, whilst sonde detection extends to 10 metres. Depth accuracy is 5% to an undistorted signal.
How long will the batteries last on a single charge?
The DD300 receiver operates for 10 hours on alkaline batteries, whilst the DA300 transmitter runs for 15 hours. Lithium-ion batteries are available as an optional alternative.
What are the environmental protection ratings?
The DD300 receiver is IP65 rated, the DA300 transmitter is IP67 rated. Both operate between -20°C and +50°C, suitable for harsh construction site conditions.
Can the system record pipe locations with GPS?
Yes, integrated GPS provides 2.5 metre horizontal accuracy (autonomous) or 2.0 metre accuracy with SBAS correction, allowing you to map and record detected pipe locations on site.
