Mini Flat Valve Pot Connection
Specialist pick
Image 1 / 1
About this product

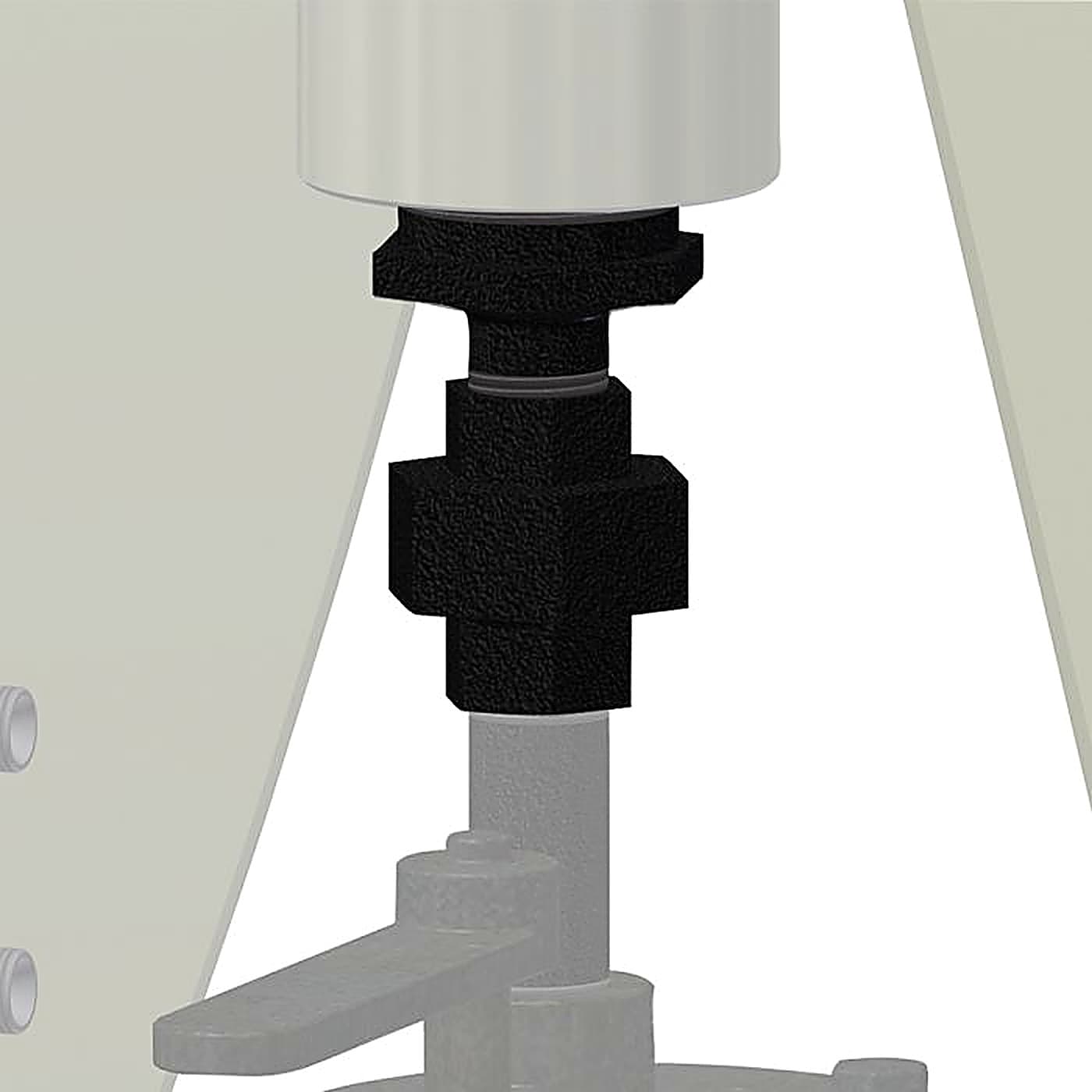

The Mini Flat Valve Pot Connection is a set of connection fittings that link the Elcometer Mini Flat Valve to the blast pot, suitable for the Elcometer 1020 abrasive blast machines. The pot connection is where the media valve joins the pressure vessel that holds the abrasive, so it has to seal correctly and match the thread standard the machine is built to.

The range of the Mini Flat Valve Pot Connection covers several fittings for the MFV. The nipple 60mm long is MT28567 in BSP thread or MT28567N in NPT/NPSM. The reducing hex nipple 32mm x 13mm is MT30021 in BSP or MT30021N in NPT/NPSM. The female to female union with taper seat is MT30020 in BSP or MT30020N in NPT/NPSM. Offering each fitting in both thread standards lets the Mini Flat Valve Pot Connection be matched to the existing machine and local pipework.

These fittings of the Mini Flat Valve Pot Connection are used in abrasive blasting for surface preparation ahead of coating and corrosion protection work. The Mini Flat Valve Pot Connection is supplied by BAMR, South Africa's authorised distributor of Elcometer equipment.

Elcometer

Mini Flat Valve Pot Connection

SKU · MT28567 (+5 more)

The Mini Flat Valve Pot Connection is suitable for the Elcometer 1020 abrasive blast machines.

    Indicative price
    POA
    Specialist-built quote, by close of business
    Request a quote
    Or ask a quick question on WhatsApp
    Used by inspection teams in
    RefiningMarineMiningBridge / civil
    Specifications

    Product Range

    Mini Flat Valve Pot Connection Nipple 60mm Long for use with Elcometer MFV 13mm BSP Threa...
    MT28567
    NPT / NPSM Thread Valve Type : MFV
    MT28567N
    Mini Flat Valve Pot Connection Reducing Hex Nipple for use with Elcometer MFV 32mm x 13mm...
    MT30021
    NPT / NPSM Thread Valve Type : MFV
    MT30021N
    Mini Flat Valve Pot Connection Female/Female Union Taper Seat for use with Elcometer MFV...
    MT30020
    NPT / NPSM Thread Valve Type : MFV
    MT30020N
    Answers

    Frequently asked questions

    Which Mini Flat Valve Pot Connection variant do I need?

    Three options are available: the 60mm long nipple (MT28567/MT28567N) with 13mm thread, the reducing hex nipple (MT30021/MT30021N) at 32mm x 13mm, and the female/female union with taper seat (MT30020/MT30020N). Choose based on your pot connection configuration.

    Will this fit my Elcometer 1020 abrasive blast machine?

    The Mini Flat Valve Pot Connection is designed for the Elcometer 1020. Confirm that your machine uses the Elcometer MFV valve to ensure compatibility.

    Should I order the BSP or NPT/NPSM thread variant?

    BSP versions (MT28567, MT30021, MT30020) use British Standard Pipe thread. NPT/NPSM versions (with 'N' suffix) use National Pipe Thread. Check your Elcometer MFV valve's thread specification before ordering.

    What's the difference between the nipple and the union?

    The nipple (MT28567) is a straight connector. The hex nipple (MT30021) is a reducing connector (32mm x 13mm). The union (MT30020) provides a female/female connection with taper seat for flexible coupling positions.
