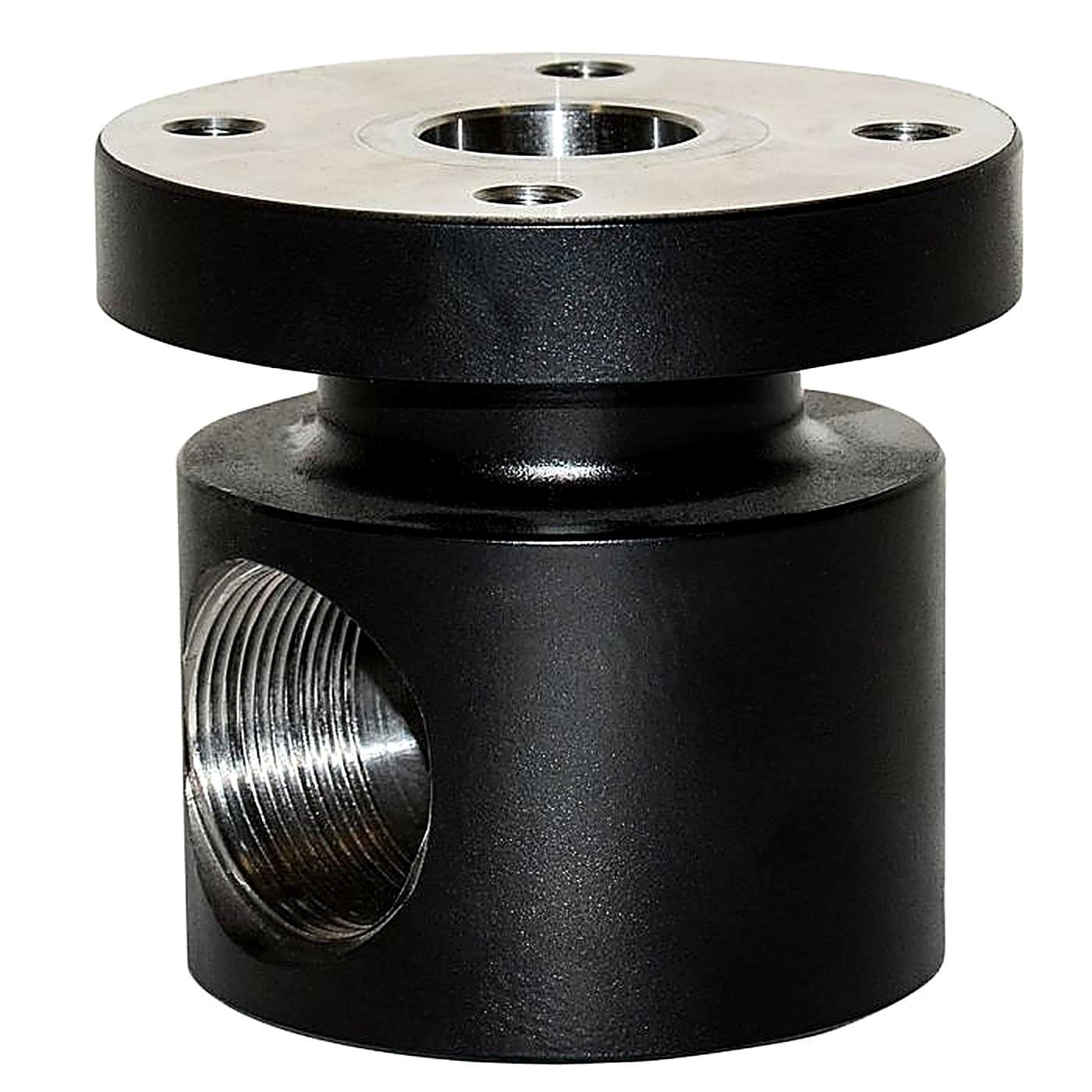

The Mixer T for Elcometer GV and AGV Abrasive Media Valves 38mm is a connection fitting supplied as part number MT28553 in the PED version or MT28553N in the ASME version. It connects to the base of the GV and AGV abrasive media valves, allowing abrasive media to mix with the air from the pusher line. This is a high-wear point on a blast machine because the abrasive cuts continuously against the fitting, so the design focuses on extending service life and limiting damage.
The Mixer T is machined from a solid piece of ultra-hard wearing steel so it lasts longer than softer fittings. An internal shoulder prevents grit from entering the thread, which minimises wear and maximises lifetime. When the bore does begin to wear, the fitting can simply be rotated by 180° to present a fresh surface and double its service life before replacement.
This fitting is used in abrasive blasting for surface preparation in coatings and corrosion protection work. The Mixer T for Elcometer GV and AGV Abrasive Media Valves 38mm is supplied by BAMR, South Africa's authorised distributor of Elcometer equipment.
Mixer T for Elcometer GV and AGV Abrasive Media Valves 38mm
The Elcometer Mixer T is made from ultra-hard wearing machined steel so that they last longer, and when it starts to wear out, simply rotate it by 180° to double its service life.

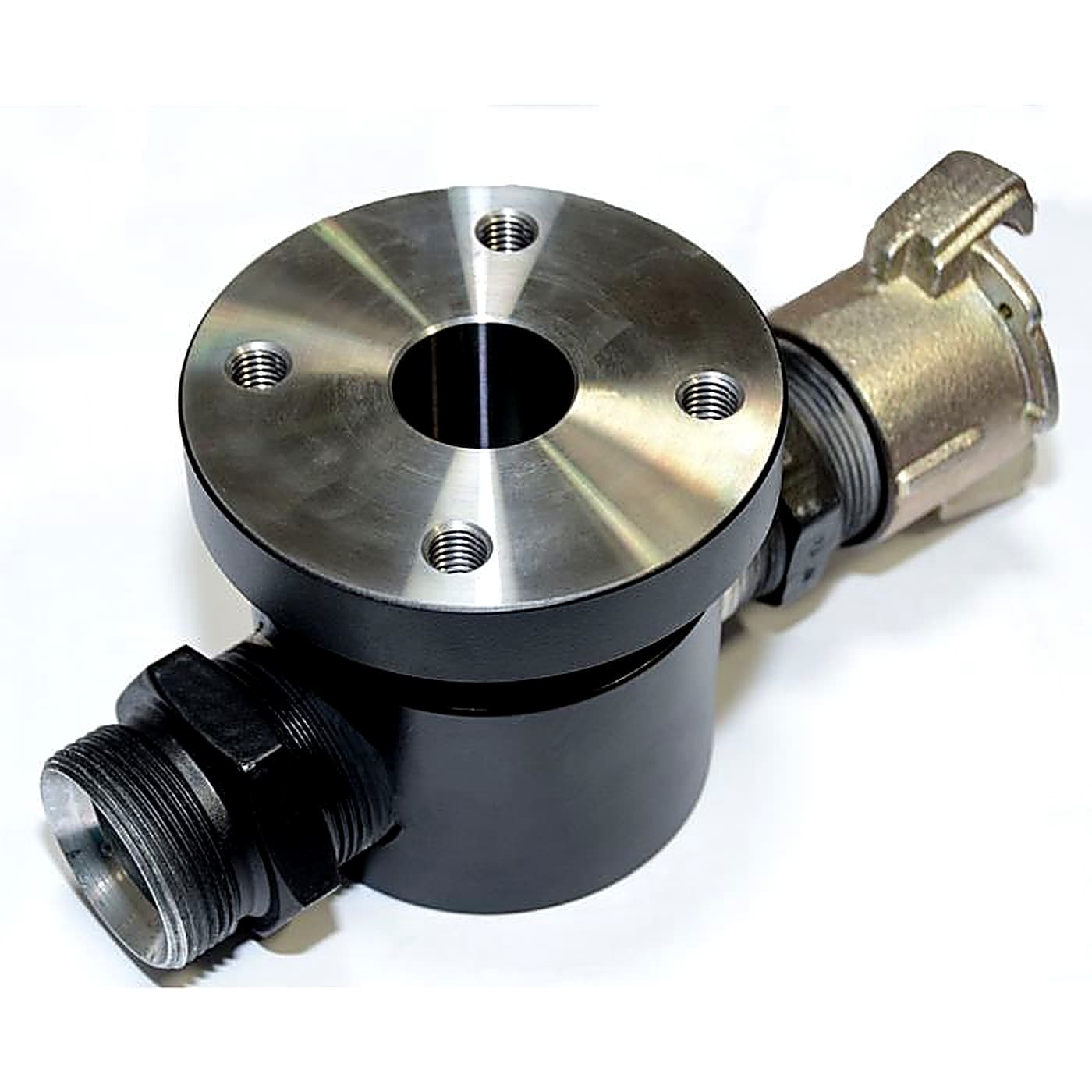

- Connects to the base of GV and AGV abrasive media valves allowing abrasive media to mix with air from the pusher line
- Machined from a solid piece of hard wearing steel
- Internal shoulder prevents grit from entering thread minimising wear and maximising lifetime
Spare Parts
- 38mm Male/Male Adaptor - 60 1 CONE
- MT29710
- 38mm BSP Forged Hex Nipple 3000lb
- MT29014
- Elcometer ABM 38mm BSP Pot Coupling
- MT30002
- 38mm Male/Male Adaptor - 60 1 CONE
- MT29710N
- 38mm Forged Hex Nipple 3000lb
- MT29014N
- Elcometer ABM 38mm Pot Coupling
- MT30002N
Spare Parts
Spare Parts
- 38mm Male/Male Adaptor - 60 1 CONE
- MT29710
- 38mm BSP Forged Hex Nipple 3000lb
- MT29014
- Elcometer ABM 38mm BSP Pot Coupling
- MT30002
- 38mm Male/Male Adaptor - 60 1 CONE
- MT29710N
- 38mm Forged Hex Nipple 3000lb
- MT29014N
- Elcometer ABM 38mm Pot Coupling
- MT30002N
Frequently asked questions
Which Elcometer abrasive media valve systems does this 38mm Mixer T fit?
The Mixer T 38mm is designed for use with the Elcometer GV and AGV Abrasive Media Valves.
How do I extend the service life of the Mixer T?
The Mixer T is made from ultra-hard wearing machined steel. When it starts to wear out, simply rotate it by 180 degrees to expose a fresh surface. This reversal doubles its service life without replacement.
What spare parts are compatible with the 38mm Mixer T?
Compatible parts include the 38mm Male/Male Adaptor (60 degree cone), the 38mm BSP Forged Hex Nipple (3000lb rated), and the Elcometer ABM 38mm BSP Pot Coupling. Each is available in standard and N series variants.
Why does rotating the Mixer T by 180 degrees matter?
Rotation exposes a new, unworn surface on the opposite side of the component, doubling its effective service life. This is possible because the Mixer T is made from reversible ultra-hard wearing machined steel.
