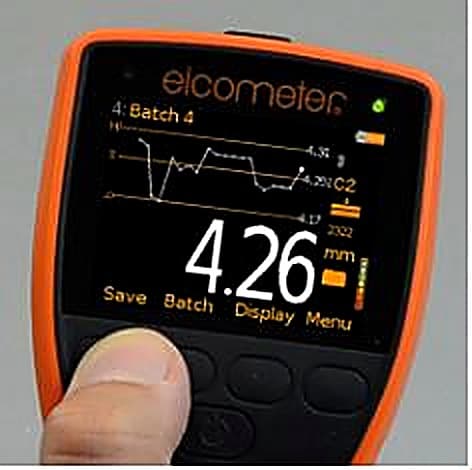

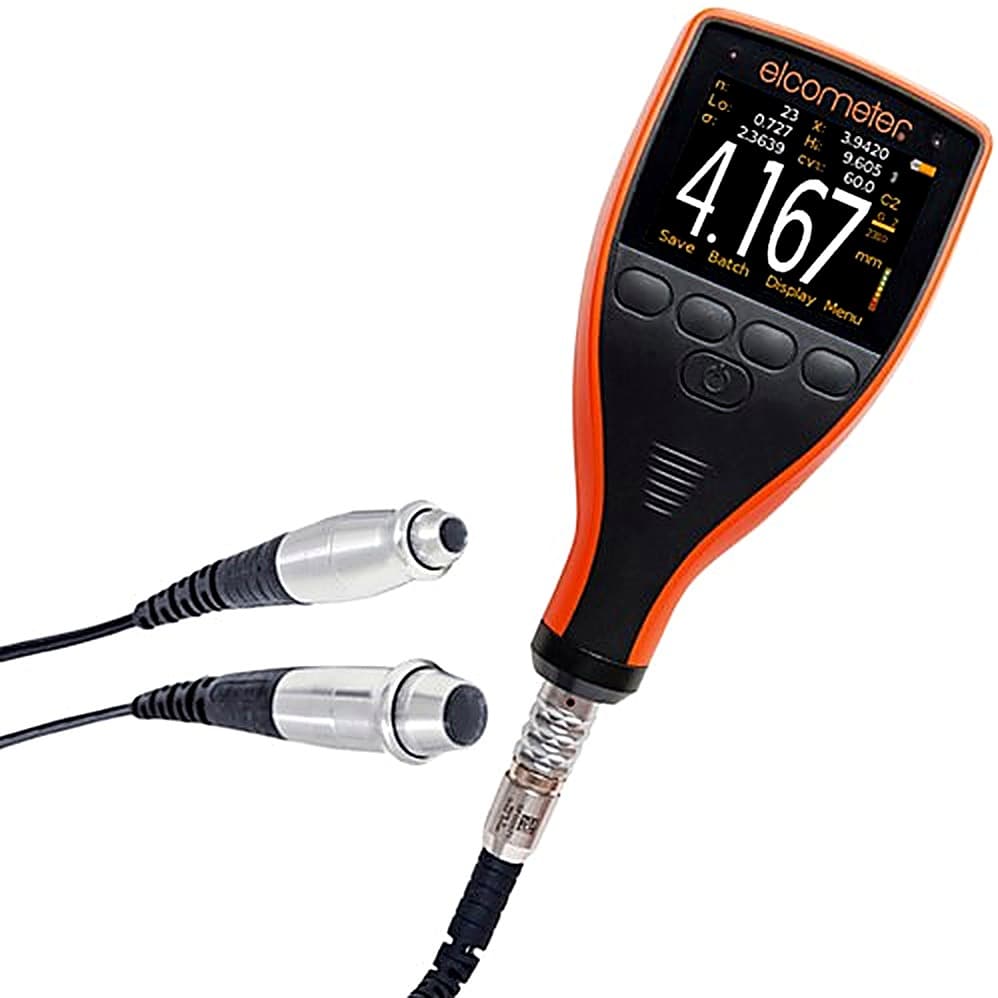

The Elcometer 500 Concrete Coating Thickness Gauge (part numbers A500C-B, A500C-T and kit A500-KIT) measures the thickness of coatings on concrete and similar substrates non-destructively. Coatings on concrete protect floors, tanks and structures from chemical attack and wear, so confirming the applied thickness without cutting into the film is essential to verify the coating meets specification before the asset goes into service.
The Elcometer 500 Concrete Coating Thickness Gauge takes over 60 readings per minute in standard mode and over 140 in scan mode. There is no need to set up gates or know the coating thickness in advance; the operator selects the coating material from the gauge library and measures. A signal strength indicator only displays a reading once it turns green, preventing false or incorrect values, and the intelligent probes use user-replaceable tips with the gauge prompting when a tip needs changing. Two probe scales are available: C1 covers 150 to 2,500um and C2 covers 750 to 9,000um, both with accuracy of 2% or 10um and resolution down to 1um.
Rugged and sealed against dirt and water to an IP54 equivalent rating, the Elcometer 500 Concrete Coating Thickness Gauge runs on two AA batteries (about 15 hours alkaline, 28 hours lithium) and weighs 161g without the transducer. Readings transfer via USB or Bluetooth to ElcoMaster software and the ElcoMaster mobile app for analysis and reporting. It can be used in accordance with ASTM D6132, SSPC PA9 and ISO 2808 Method 10. Suited to laboratory and job-site use in concrete and corrosion protection, it is supplied by BAMR, South Africa's authorised Elcometer distributor.
Elcometer 500 Concrete Coating Thickness Gauge
The Elcometer 500 Coating Thickness Gauge accurately measures the thickness of coatings on concrete and other similar substrates non-destructively.
- Fast Measuring over 60 readings per minute in standard mode and over 140 readings per minute in scan mode, the Elcometer 500 coating thickness gauge can significantly reduce your inspection times.
- Reliable The Elcometer 500 will only display the coating thickness reading if the signal strength indicator turns green, preventing false or incorrect readings. If the coating thickness is outside the measurement range, the Elcometer 500 tells you on the display.
- Intelligent The Elcometer 500 measurement probes are supplied with user replaceable probe tips. If the tip is damaged or wears during use you can replace it and carry on. The gauge even informs you when you need to change the probe tip, maximising inspection time.
- Easy to Use There is no need to set up gates, range values or know the thickness of the coating, simply select the coating material from the gauge library and start measuring.
- Ergonomic The Elcometer 500 gauge and intelligent probes have all been ergonomically designed for continuous use. No force is required to take a reading.
- Rugged Robust, ergonomic and sealed against dirt and water, equivalent to a rating of IP54, the Elcometer 500 has been designed to work in harsh environments, making it the ideal gauge for the laboratory or the job site.
When to use the Elcometer 500

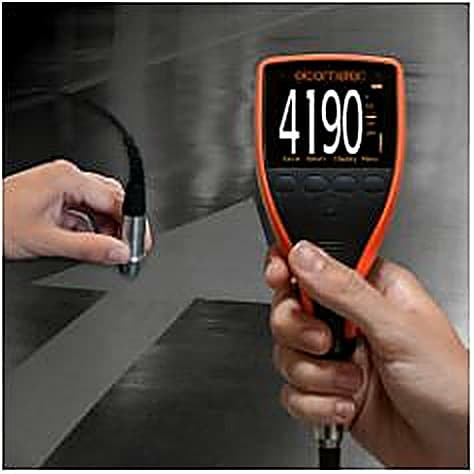

Reach for the Elcometer 500 when you need to measure coating thickness on concrete and similar substrates without cutting into the film. It reads non-destructively from a library of coating materials, so you select the material and start measuring. It suits inspectors checking coatings on floors, walls and structures on site or in the lab.
- 1Non-destructive on concreteIt measures coating thickness on concrete and similar substrates non-destructively, so you verify build without damaging the finish.
- 2Confirms valid readingsIt only displays a reading when the signal strength indicator turns green, preventing false or incorrect figures, and tells you when thickness is out of range.
- 3Fast with no setupOver 60 readings per minute in standard mode and over 140 in scan mode, with no gates or range values to set, cuts inspection time on large areas.
- 4Built for harsh sitesSealed against dirt and water to an IP54 equivalent rating, it works in the lab or on a rough job site.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Elcometer 500
Reach for the Elcometer 500 when you need to measure coating thickness on concrete and similar substrates without cutting into the film. It reads non-destructively from a library of coating materials, so you select the material and start measuring. It suits inspectors checking coatings on floors, walls and structures on site or in the lab.
- 1Non-destructive on concreteIt measures coating thickness on concrete and similar substrates non-destructively, so you verify build without damaging the finish.
- 2Confirms valid readingsIt only displays a reading when the signal strength indicator turns green, preventing false or incorrect figures, and tells you when thickness is out of range.
- 3Fast with no setupOver 60 readings per minute in standard mode and over 140 in scan mode, with no gates or range values to set, cuts inspection time on large areas.
- 4Built for harsh sitesSealed against dirt and water to an IP54 equivalent rating, it works in the lab or on a rough job site.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
● = certificate available
| Part Number | Description | Certificate |
|---|---|---|
| A500C-B | Elcometer 500 Coating Thickness Gauge Model B | ● |
| A500C-T | Elcometer 500 Coating Thickness Gauge Model T | ● |
| A500-KIT 1 | Elcometer 500 Coatings on Concrete Inspection Kit | ● |
| Operating Temperature | -10 to 50°C | |
| Power Supply | 2 x AA batteries (rechargeable batteries can be used) | |
| Battery Life | Alkaline: Approximately 15 hours Lithium: Approximately 28 hours | |
| Gauge weight | 161g including batteries, without transducer | |
| Gauge Dimensions | 141 x 73 x 37mm without transducer |
■ = standard □ = optional
| Product Features | ■ Standard | □ Optional |
|---|---|---|
| Model B | ||
| Fast, accurate reading rate; 60+ readings per minute | ■ | ■ |
| Repeatable & reproducible measurements | ■ | ■ |
| Easy to use menu structure; in 30+ languages | ■ | ■ |
| Tough, impact, waterproof & dust resistant; equivalent to IP54 | ■ | ■ |
| Bright colour screen; with automatic rotating display (0°, 90°, 180° & 270°) | ■ | ■ |
| Scratch & solvent resistant display; 2.4″ (6cm) TFT | ■ | ■ |
| USB power supply; via PC | ■ | ■ |
| Test certificate & 2 year gauge warranty* | ■ | ■ |
| Ambient light sensor; with adjustable auto brightness | ■ | ■ |
| Automatic probe recognition | ■ | ■ |
| Gauge software updates¹; via ElcoMaster® software | ■ | ■ |
| Data output | ■ | ■ |
| USB; to computer | ■ | |
| Bluetooth®; to computer, Android™ & iOSǂ devices | ||
| Measurement units; μm, mm, mils, inch | ■ | ■ |
| Signal strength indicator | ■ | |
| User selectable reading resolution; Low & High reading resolution | ■ | ■ |
| Display modes; user selectable | ■ | |
| Readings | ■ | |
| Readings & differential; reading and the offset from a set nominal difference | ■ | |
| Bar graph | ||
| Live reading trend graph; in batch mode | ||
| Run chart; trend graph of last 20 readings | ||
| User selectable statistics; | ■ | ■ |
| Number of readings; η, Mean (average); x, Standard deviation; σ, | ■ | |
| Highest reading; Hi, Lowest reading; Lo, Coefficient of variation; CV% | ||
| Normal dry film thickness; NDFT, High & low limits; definable | ||
| audible & visual alarms, Number of readings above high limit; | ||
| Number of readings below low limit; Range; I | ||
| Multiple calibration methods with on-screen instructions; in 30+ languages | ■ | ■ |
| Material selection; preset choice of materials or | ■ | |
| create own user defined materials | ||
| Velocity entry; direct entry of a material's sound-velocity | ■ | |

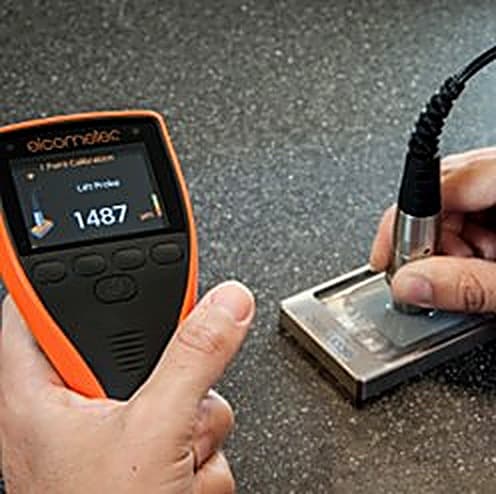

| 1 Point; using a coating sample of known thickness | ■ | |
| Calibration lock; with optional PIN code unlock | ■ | ■ |
| Gauge memory; number of readings | 100,000 | |
| Number of batches; with unique batch calibrations | 1,000 | |
| Alpha-numeric batch names; user definable on the gauge | ■ | |
| Fixed batch size mode; with batch linking | ■ | |
| Batch review graph | ■ | |
| Delete last reading | ■ | ■ |
| Limits; 40 user definable audible & visual pass/fail warnings | ■ | |
| Live reading mode; transfer of individual readings to external device | USB | USB & Bluetooth® |
| Reading save function | ■ | ■ |
| Date and time stamp | ■ | |
| Scan mode | ■ | |
| ElcoMaster® software & USB cable | □ | ■ |
| Protective case | ■ | ■ |
| Plastic transit case | □ | ■ |
- Operating Temperature
- -10 to 50°C
- Range
- 150 - 2,500 micrometres
- Accuracy
- plus or minus 2% or plus or minus 10 micrometres
- Resolution
- Low: 10 micrometres, 0.01mm; High: 1 micrometre, 0.001mm
- Range
- 750 - 9,000 micrometres
Packing List
Packing List
Standards
Standards
Accessories
Accessories
| T50027602-1 | C1 Replacement Probe Tip; Pack of 2 |
| T50027602-2 | C2 Replacement Probe Tip; Pack of 2 |
| T50027604 | Probe Tip Oil; 4ml Bottle |
| T92015701 | Ultrasonic Couplant; 120ml |
| T92024034-7 | Ultrasonic Couplant; 300ml |
| T92024034-8 | Ultrasonic Couplant; 500ml |
| T92024034-3 | Ultrasonic Couplant; 3.8l |
| T92024034-9 | Ultrasonic Couplant (High Temp); 60ml for use in high temperature environments up to 398°C |
| T99022255-13 | C1 Foil Set: 1 & 2mm |
| T99022255-13C | C1 Foil Set - Certified: 1 & 2mm |
| T99022255-14 | C2 Foil Set: 3 & 8mm |
| T99022255-14C | C2 Foil Set - Certified: 3 & 8mm |

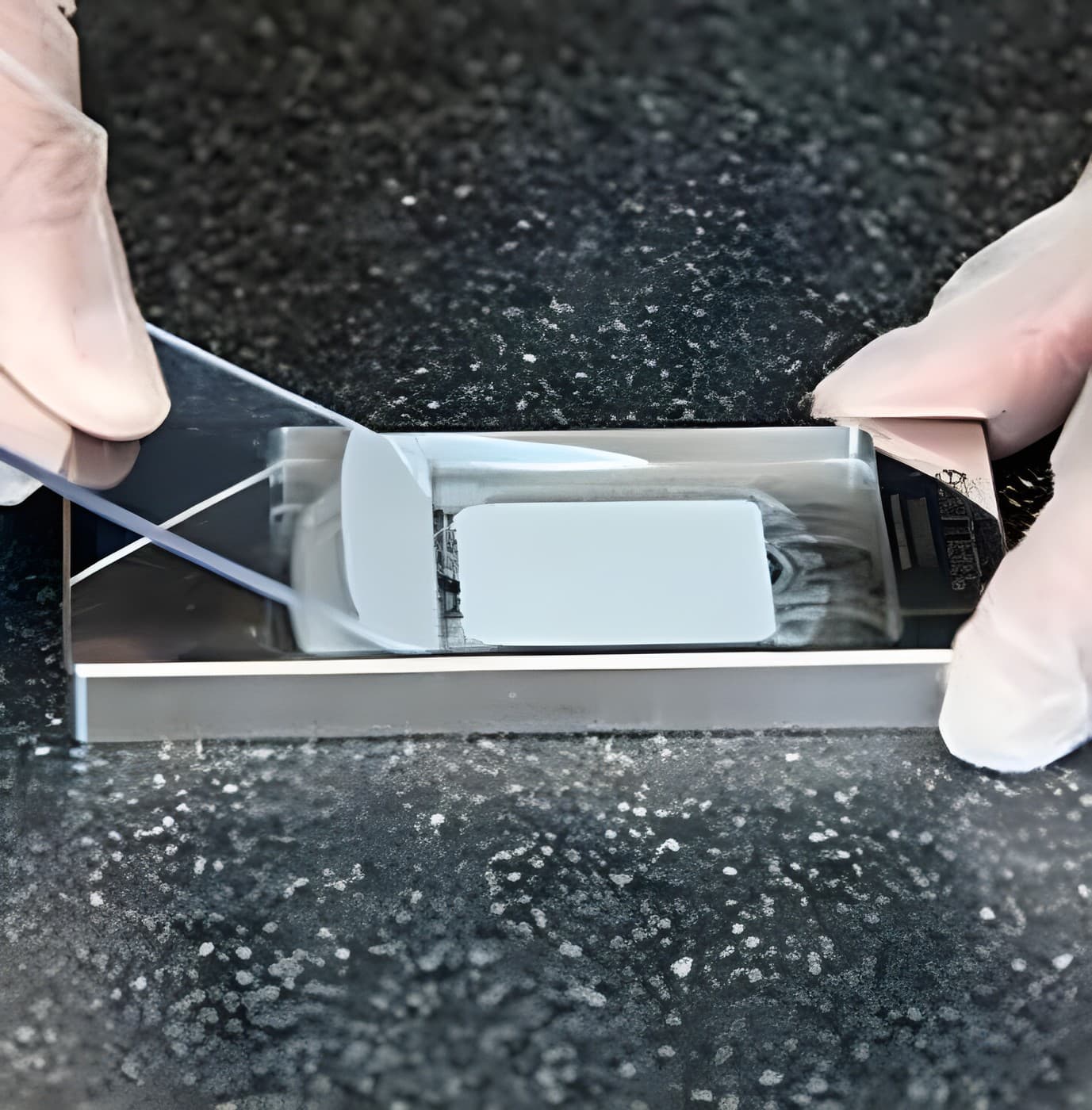

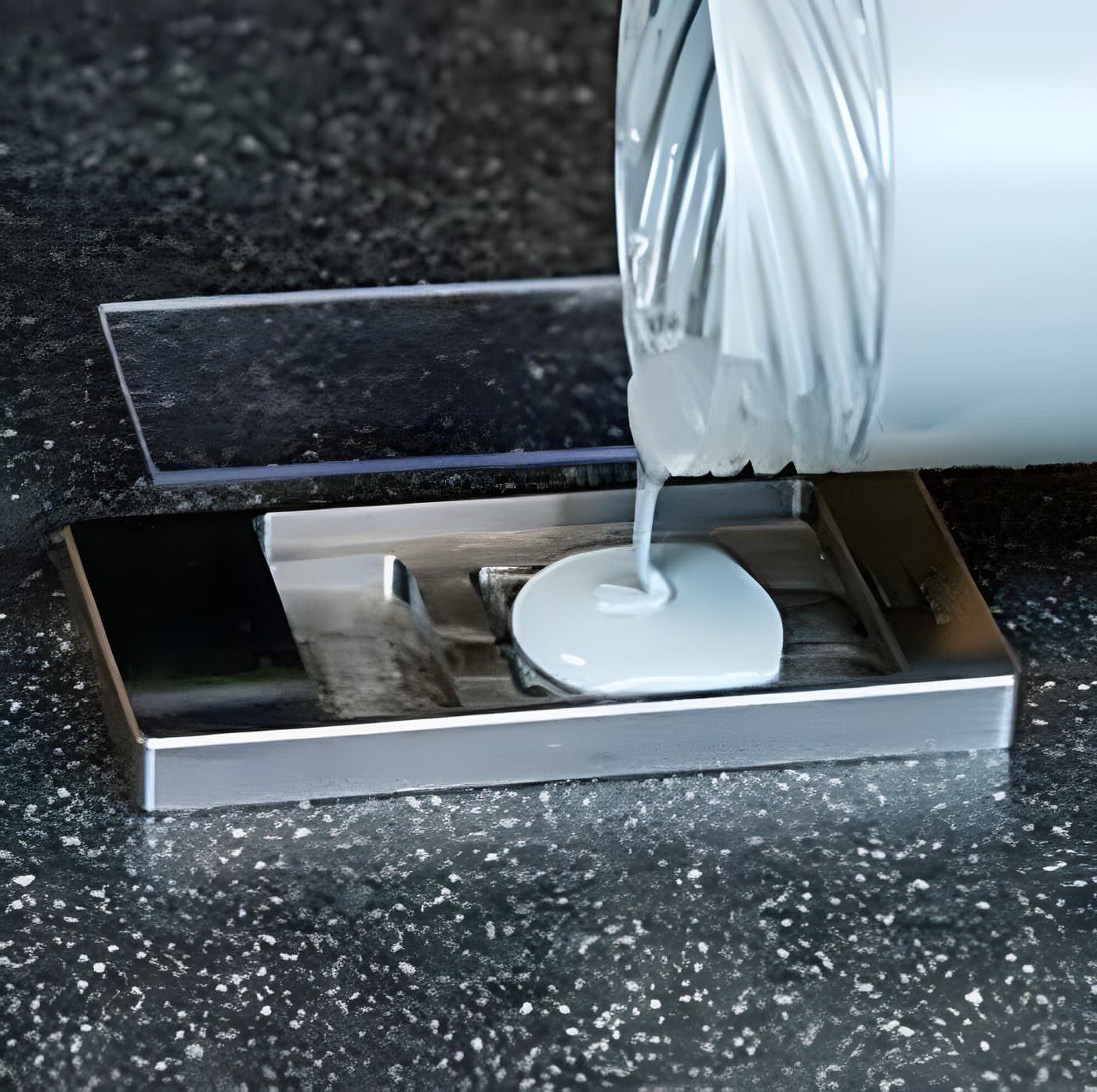

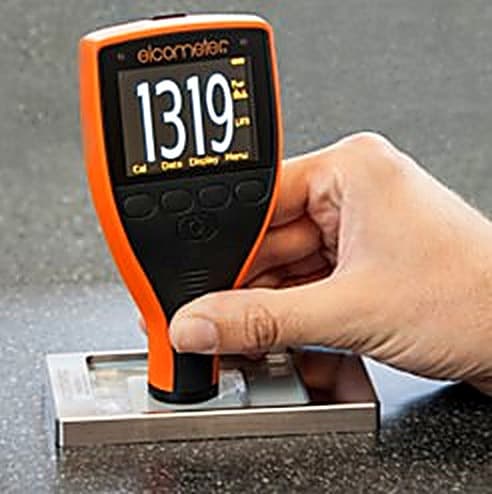

| T50027567-1 | Elcometer 500 Coating Calibration Mould (CCM) |
Downloads
Videos
Videos
Frequently asked questions
What does the Elcometer 500 measure, and on what substrate?
The 500 measures coating thickness on concrete and similar substrates non-destructively. It carries two measurement ranges: 150 to 2,500 micrometres, and 750 to 9,000 micrometres.
What accuracy and resolution does the 500 provide?
Accuracy is plus or minus 2% or plus or minus 10 micrometres. Resolution is selectable: low resolution gives 10 micrometres (0.01mm) and high resolution gives 1 micrometre (0.001mm).
How is the Elcometer 500 powered, and how long do the batteries last?
Two AA batteries power the gauge. Alkaline batteries give approximately 15 hours of use; lithium approximately 28 hours. Rechargeable batteries can also be used. The gauge can also be powered via USB from a PC.
How much data can the gauge store?
The gauge memory holds up to 100,000 readings across 1,000 batches with user-defined alpha-numeric batch names and date and time stamps.
Does the 500 support wireless data transfer?
The gauge supports both USB and Bluetooth output to PC, iOS, and Android devices, with live transfer of individual readings to an external device via USB and Bluetooth.
