Elcomaster Software

Product Description

ElcoMaster® is a fast, easy to use software and mobile app for all your data management, reporting and quality assurance needs. It’s not just taking measurements but what you do with the collected data that matters.

It’s not just taking measurements but what you do with the collected data that matters.

As inspectors can spend up to 30% of their working week producing reports, ElcoMaster® saves time and money by producing professional bespoke reports in seconds – even when out on site.

Easy to connect
Using ElcoMaster®’s gauge wizard, connecting a gauge & downloading data (via Bluetooth® or USB) is fast and easy

Import existing reports
Scan your existing report into ElcoMaster® and drag & drop all your data where you want it, then simply save and print

Export, print or send
Export, print, .pdf or email directly from ElcoMaster® at the click of a button

Multi-site access through secure cloud computing

Key Features:

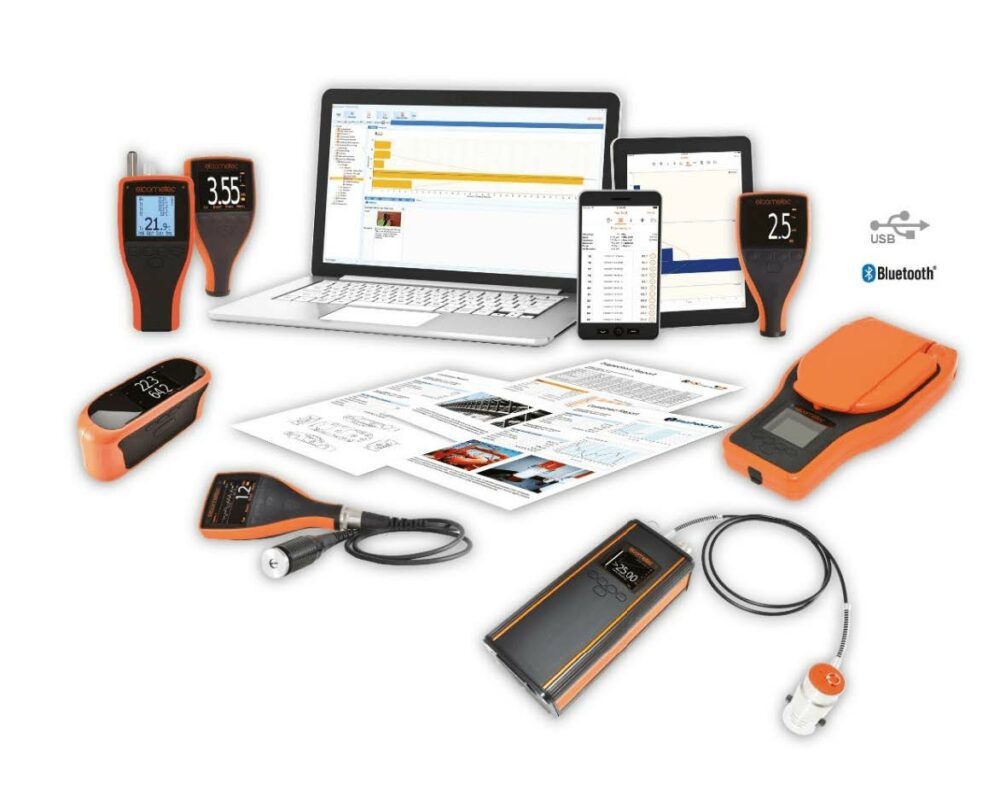

  • Import and combine measurements via Bluetooth® or USB from a full range of Elcometer gauge
  • Store data in a simple file tree, by project and by inspection type
  • Easy on screen analysis with histograms, statistics, measurements, limits, notes, diagrams and photographs
  • Export data direct to Microsoft Excel. csv. txt. Cqatk formats etc to save time and prevent keying in errors
  • Generates reports instantly using standard or pre-designed templates in seconds. No need for data manipulation simply connect the gauge, download data and drag & drop
  • Combine multiple inspection parameters (such as DFT, profile, climate, adhesion and gloss) together with images, notes and other project specific information in bespoke quality reports to set you apart from the competition
  • In many industries multiple sites/locations/production lines are used to fabricate the product components which are brought together at the final assembly line.  Different inspection parameters all need to be combined to approve the final product.  Using Cloud technology ElcoMaster® gives you real time quality control monitoring inspection projects in any location


Technical Specification

Model ElcoMaster 2.0 New ElcoMaster
Surface Profile
Elcometer 224 Mk1*
Elcometer 224 Mk2
Surface Cleanliness
Elcometer 130
Climatic Conditions
Elcometer 319
Dry Film Thickness
Elcometer 456 Mk3*
Elcometer 456 Mk4
Elcometer 500
Elcometer 355
Elcometer 311
Elcometer 415
Elcometer 510
Elcometer 480
Elcometer 408*
Elcometer 407*
Oven Data Logger
Elcometer 215
Elcometer 3045*
Ultrasonic NDT
Elcometer MTG2
Elcometer MTG4
Elcometer MTG6
Elcometer MTG8
Elcometer 204*
Elcometer 304*
Elcometer 307*
Elcometer PTG6
Elcometer PTG8
Elcometer 206*
Elcometer 206DL*
Elcometer 208*
Elcometer 208DL*
Elcometer CG10*
Elcometer CG20*
Elcometer CG50DL*
Elcometer CG60DL*
Elcometer CG70ABDL
Elcometer CG70BDL*
Elcometer CG100BDL
Elcometer CG100ABDL
Elcometer CG100B
Elcometer CG100ABDL+
Elcometer UG20DL
Elcometer 207*
Elcometer 207DL*
Elcometer PG70DL*
Elcometer PG70ABDL
Elcometer FD800DL+
Elcometer FD800DL
Elcometer FD700DL+
Elcometer FD700+
Elcometer SG80BDL*

* Discontinued from sale, still supported by ElcoMaster 2.0
