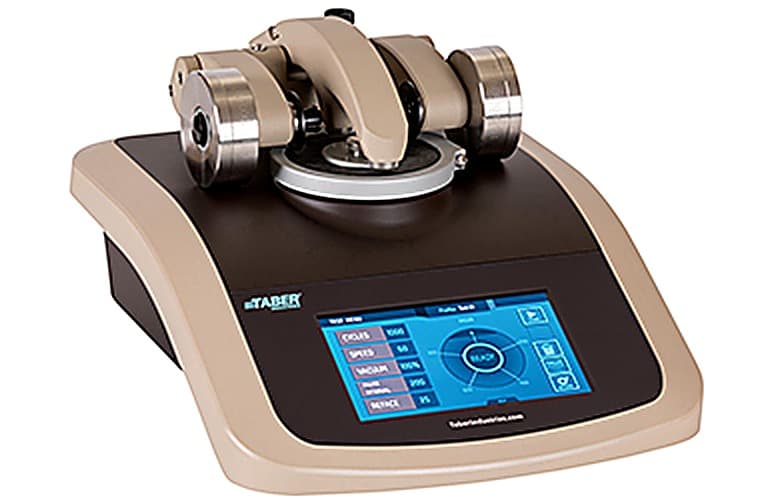

Elcometer 1700 & 1750 Taber Rotary Abrasers
Product Description
Used primarily in the testing of ceramics, plastics, textiles, metals, leather, rubber and painted, lacquered and electroplated surfaces, accelerated wear test procedures have also been written into many test specifications including ASTM, ISO, TAPPI and DIN – as well as automotive manufacturing procedures around the world.
Choose from a wide variety of abrading wheels and abraser accessories to simulate real-life wear conditions.
Features
- Platform speeds 60 and 72rpm
- Balanced, calibrated arms and wheel mounts
- Vacuum system with precision height adjustment
- Sealed aluminium housing with membrane control panel and digital display
Technical Specifications
| Part Number | Description | Certificate | |
| UK/EUR 230V | US 115V | ||
| ST981700-2 | ST981700-1 | Elcometer Taber® 1700 Single Head Abraser (UK/EUR 230V) | • |
| ST981750-2 | ST981750-1 | Elcometer Taber® 1750 Dual Head Abraser (UK/EUR 230V) | • |
| Dimensions | Elcometer Taber 1700: 315 x 391.2 x 213.4mm | ||
| Elcometer Taber 1750: 535.9 x 393.7 x 213.4mm | |||
| Vacuum Unit: 279 x 279 x 610mm | |||
| Weight | Elcometer Taber® 1700: 14.9kg | ||
| Elcometer Taber® 1750: 24.9kg | |||
| Vacuum unit: 10.4kg | |||
Data Sheet
Elcometer 1700 & 1750 Taber Rotary Abrasers – Data Sheet
Elcometer 1700 & 1750 Taber Rotary Abrasers Data Sheet
Standards
The Elcometer 1700 & 1750 Taber Rotary Abrasers can be used in accordance with:
- ANSI INCITS 322
- AS/NZS 1580.403.2
- AS/NZS 4266.2
- ASTM C1353
- ASTM C217
- ASTM C241
- ASTM C501
- ASTM D1044
- ASTM D3389
- ASTM D3884
- ASTM D4060
- ASTM D6037
- ASTM D-7255
- ASTM F1478
- ASTM F1978
- ASTM F362
- ASTM F 510
- BS 5599
- DIN 52347
- DIN 53109
- DIN 53754
- DIN 53799
- DIN 68861-2
- ECCA T16
- EN 13329
- EN 13523-16
- EN 14323
- EN 14327
- EN 14354
- EN 14431
- EN 14688
- EN 14864
- EN 1504-2
- EN 438-2
- EN 660-2
- EN 13696
- FORD BN108-02
- GM9515P
- ISO 10074
- ISO 14656
- ISO 24338
- ISO 3537
- ISO 4586-2
- ISO 5470-1
- ISO 7784-1
- ISO 7784-2
- ISO 9352
- JIS A 1453
- JIS H 8503
- JIS K 5600-5-8
- JIS K 5600-5-9
- JIS K 6404-22
- JIS K 6902
- JIS K 7205
- NEMA LD 3
- NF Q03-055
- SAE J 1530
- SAE J 1847
- SAE J 365
- SAE J 948
- SIS 923509
- SS 923509
- TAPPI T 476
- UNE 135203-1
- UNE 48250
- UNE 56842
- UNE 56843
- UNE 56868
UNE 57095
Packing List
Packing List
Elcometer Taber® 1700 Single Head Abraser
- Single head abraser unit with switchable power input (115/230v, 60/50hz)
- Vacuum unit (with 115V or 230V power supply)
- 2 x 500g Auxiliary weights
- 2 x 1000g Auxiliary weights
- SH-125 Specimen holder (supplied fitted to the abraser)
- SH-101 Hold down ring (supplied fitted to the abraser)
- S-12 Hand brush,
- Torx T25 screwdriver
- Operating instructions
Elcometer Taber® 1750 Dual Head Abraser
- Dual head abraser unit with switchable power input (115/230v, 60/50hz)
- Vacuum unit (with 115V or 230V power supply)
- Vacuum y-adaptor & hose kit
- 4 x 500g Auxillary weights
- 4 x 1000g Auxillary weights
- 2 x SH-125 specimen holder (supplied fitted to the abraser)
- 2 x SH-101 hold down ring (supplied fitted to the abraser)
- S-12 Hand brush
- Torx T25 screwdriver
- Operating instructions
Accessories
| Part Number | Description |
| ST985000 | Model 5000 Sample Cutter |
| ST132030 | Calibration Verification Kit |
| ST128530 | Replacement Blades (Pack of 5) |
| ST980355 | Taber Grit Feeders |
| ST136134-115 | Complete set (115V, 60Hz) – both base and upper units |
| ST136134-230 | Complete set (230V, 50Hz) – both base and upper units |
| ST136132 | Upper unit only |
| ST136133-115 | Base unit only (115V, 60Hz) |
| ST136133-230 | Base unit only (230V, 50Hz) |
