To avoid assessment error when performing color contrast, it is easy to simulate different light sources to compare color difference via the BEVS 1201 Color Assessment Cabinet touch screen panel. Ideal application for the Graphic Arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
The BEVS 1201 has up to 6 light sources: D65 (International Standard Artificial Daylight, 6500K), TL84 (4000K), CWF (Cool White Fluorescent, 4150K), F (incandescent, 2700K), UV (365nm) and U30 (Warm White Fluorescent, 3000K). It is easy to operate via touch screen and automatically alternates among light sources. The BEVS1201/6 adds 2 U30 lamps to the BEVS1201/5.

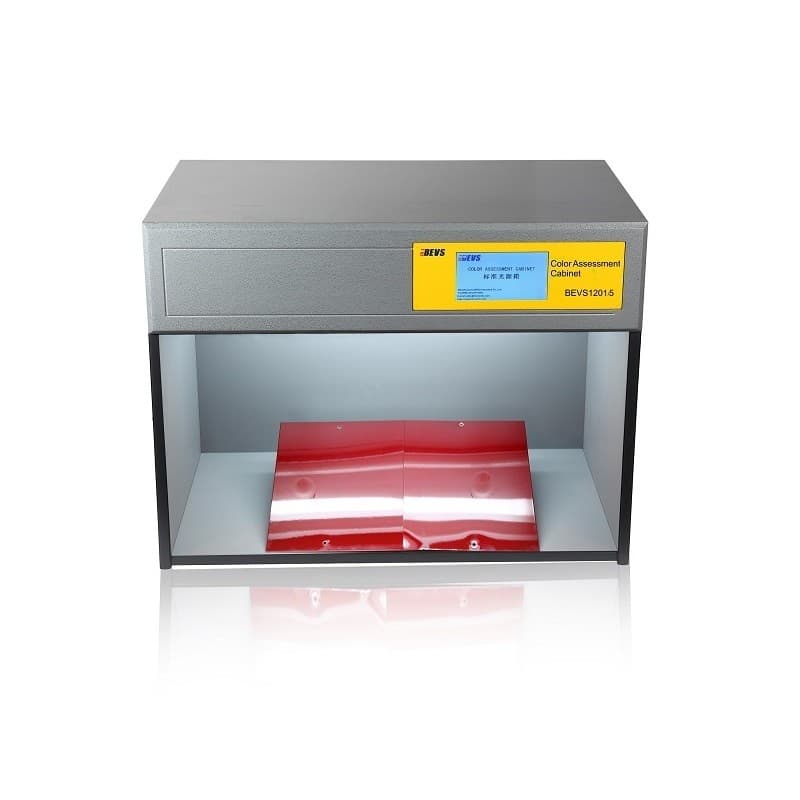

BEVS 1201 Color Assessment Cabinet
A colour assessment cabinet that simulates different light sources to compare colour difference, selected via touch screen panel. It carries up to 6 light sources, D65, TL84, CWF, F, UV and U30, and alternates among them automatically.
- Up to 6 light sources. Up to 6 light sources.
- Touch screen. Easy to operate via touch screen.
- Automatic alternating. Automatically alternating among light sources.
When to choose the BEVS 1201 Color Assessment Cabinet
The BEVS 1201 is a colour assessment cabinet for comparing colour difference under up to 6 standard light sources, switched from a touch screen panel.
- 1Checking a colour match holds under different lightingTwo samples can match in daylight and differ under shop lighting or at sunset. The BEVS 1201 switches between D65 daylight, TL84 and CWF store lighting, F incandescent and U30 warm white, so a match can be checked under each light in turn in the same cabinet, avoiding assessment error when performing color contrast.
- 2Detecting optical brighteners and fluorescent pigmentsThe UV lamp (365nm) is for viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments, which do not show under ordinary light but change how a colour appears.
- 3Choosing between the BEVS1201/5 and the BEVS1201/6Both carry the same D65, TL84, CWF, F and UV lamps. The BEVS1201/6 adds 2 U30 lamps (Warm White Fluorescent, American Standard), for work checked against American warm white lighting, and is taller inside (670x350x500 mm against 670x350x380 mm on the BEVS1201/5) for larger or taller samples.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to choose the BEVS 1201 Color Assessment Cabinet
The BEVS 1201 is a colour assessment cabinet for comparing colour difference under up to 6 standard light sources, switched from a touch screen panel.
- 1Checking a colour match holds under different lightingTwo samples can match in daylight and differ under shop lighting or at sunset. The BEVS 1201 switches between D65 daylight, TL84 and CWF store lighting, F incandescent and U30 warm white, so a match can be checked under each light in turn in the same cabinet, avoiding assessment error when performing color contrast.
- 2Detecting optical brighteners and fluorescent pigmentsThe UV lamp (365nm) is for viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments, which do not show under ordinary light but change how a colour appears.
- 3Choosing between the BEVS1201/5 and the BEVS1201/6Both carry the same D65, TL84, CWF, F and UV lamps. The BEVS1201/6 adds 2 U30 lamps (Warm White Fluorescent, American Standard), for work checked against American warm white lighting, and is taller inside (670x350x500 mm against 670x350x380 mm on the BEVS1201/5) for larger or taller samples.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Technical info
- D65
- International Standard Artificial Daylight. Color temperature 6500K. Power 18W
- TL84
- Applied to stores in Europe, Japan and China. Color temperature 4000K. Power 18W
- CWF
- (Cool White Fluorescent) American Standard. Color temperature 4150K. Power 18W
- F
- "Sun-setting Light Yellow" incandescent light source (imitation of sunset). Color temperature 2700K. Power 40W
- UV
- Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments. 365nm. Power 18W
- U30
- Warm White Fluorescent, American Standard. Color temperature 3000K. Power 18W
BEVS1201/5
- D65
- 2
- TL84
- 2
- CWF
- 2
- F
- 4
- UV
- 1
- U30
- 0
- Exterior size
- 710x405x570 mm
- Interior size
- 670x350x380 mm
BEVS1201/6
- D65
- 2
- TL84
- 2
- CWF
- 2
- F
- 4
- UV
- 1
- U30
- 2
- Exterior size
- 710x530x570 mm
- Interior size
- 670x350x500 mm
Accessories
Accessories
| Optional accessory: 45° Sample observing table |
Downloads
Frequently asked questions
What does the BEVS 1201 Color Assessment Cabinet do?
It simulates different light sources so colour difference between samples can be compared via a touch screen panel, avoiding assessment error when performing color contrast.
Which light sources does the BEVS 1201 have?
Up to 6: D65 International Standard Artificial Daylight (6500K), TL84 (4000K), CWF Cool White Fluorescent (4150K), F incandescent (2700K), UV (365nm) and U30 Warm White Fluorescent (3000K).
What is the difference between the BEVS1201/5 and the BEVS1201/6?
Both have 2 D65, 2 TL84, 2 CWF, 4 F and 1 UV lamp. The BEVS1201/6 adds 2 U30 lamps. The BEVS1201/5 is 710x405x570 mm outside and 670x350x380 mm inside; the BEVS1201/6 is 710x530x570 mm outside and 670x350x500 mm inside.
What is the UV light on the BEVS 1201 for?
Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments.
Which industries use the BEVS 1201?
The Graphic Arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
Are there accessories for the BEVS 1201?
A 45° sample observing table is available as an optional accessory for the BEVS 1201 Color Assessment Cabinet.
