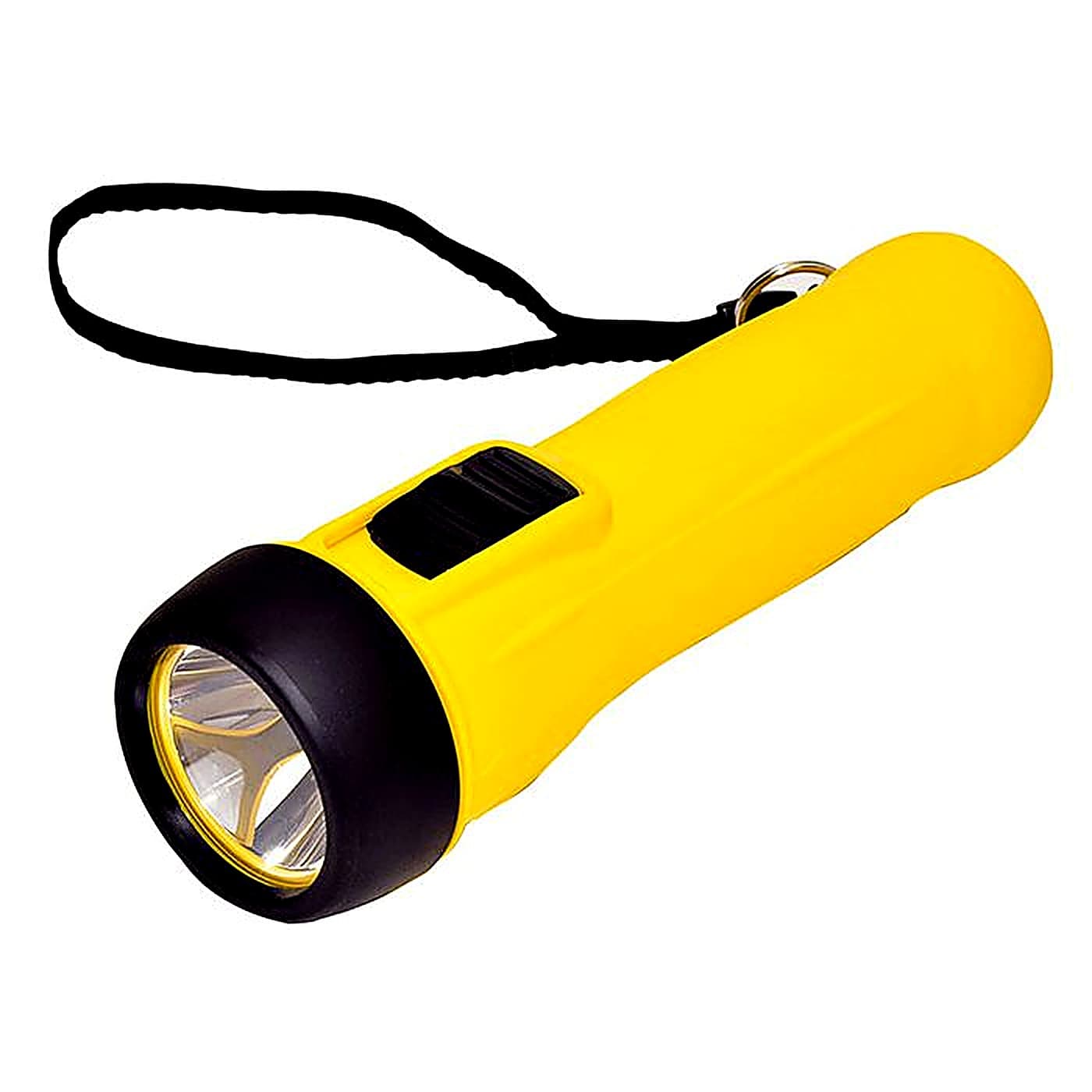

The Elcometer 132 Safety Torch / Flash Light (H132-1A) is an intrinsically safe, explosion proof torch for inspection in low light or dark areas where explosive gas may be present, such as ballast tanks and oil and gas tanks. In these environments sufficient light is needed both for personal safety and so that the coating can be inspected adequately, but a standard torch cannot be used where an ignition source is a hazard.
The Elcometer 132 Safety Torch meets the ATEX directive as category 2 equipment and is approved to the latest EN standards for electrical apparatus in potentially explosive atmospheres. This allows use in Group II applications, zones 1 and 2, with IIA and IIB gases, where the T4 temperature class permits.
The Elcometer 132 Safety Torch is powered by three LR20 (D) batteries, measures 250 x 65mm and weighs 656g. Used by coating inspectors and surface inspectors working in confined spaces, tanks and other hazardous areas, the Elcometer 132 Safety Torch is supplied by BAMR, South Africa's authorised distributor.
Elcometer 132 Safety Torch / Flash Light (Intrinsically Safe)
Many environments can have low light or dark areas and explosive gas present; ballast tanks, oil and gas tanks, etc. It is imperative, not only for safety reasons, but also to be able to inspect the coating adequately, to have sufficient light. The Elcometer 132 Safety Torch / Flash Light is explosion proof and meets the ATEX directive as category 2 equipment. It is approved to the latest EN Standards for electrical apparatus for potential explosive atmospheres. This allows for use in Group II applications zones 1 and 2, IIA and IIB gases, where T4 temperature class permits.
When to use the Elcometer 132 Safety Torch
You reach for this torch when coating inspection takes you into low-light spaces where explosive gas may be present, such as ballast tanks and oil and gas tanks. It is explosion proof and meets the ATEX directive as category 2 equipment, so you can light the work without introducing an ignition risk.
- 1Safe in explosive atmospheresIt is approved for Group II zones 1 and 2 with IIA and IIB gases where the T4 temperature class permits, so it can be taken into tanks where an ordinary torch would be a hazard.
- 2Light to inspect the coatingDark tanks make it impossible to judge a coating properly. Sufficient light is needed both for safety and to assess the surface adequately, which is what this torch is there to provide.
- 3Certified to recognised standardsApproval to the latest EN standards for electrical apparatus in potentially explosive atmospheres gives the documented basis a site safety case needs before entry.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Elcometer 132 Safety Torch
You reach for this torch when coating inspection takes you into low-light spaces where explosive gas may be present, such as ballast tanks and oil and gas tanks. It is explosion proof and meets the ATEX directive as category 2 equipment, so you can light the work without introducing an ignition risk.
- 1Safe in explosive atmospheresIt is approved for Group II zones 1 and 2 with IIA and IIB gases where the T4 temperature class permits, so it can be taken into tanks where an ordinary torch would be a hazard.
- 2Light to inspect the coatingDark tanks make it impossible to judge a coating properly. Sufficient light is needed both for safety and to assess the surface adequately, which is what this torch is there to provide.
- 3Certified to recognised standardsApproval to the latest EN standards for electrical apparatus in potentially explosive atmospheres gives the documented basis a site safety case needs before entry.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
- H132-1A
- Elcometer 132 Safety Torch/Flash Light
- Battery Type
- 3 x LR20 (D)
- Dimensions
- 250 x 65 mm
- Weight
- 656g
Standards
Standards
Frequently asked questions
What explosion proof certification does the Elcometer 132 have?
The torch is explosion proof and approved as ATEX category 2 equipment, meeting the latest EN standards for electrical apparatus for potential explosive atmospheres. This ensures it is safe for use in environments where explosive gases may be present.
Is the H132-1A approved for Group II zones 1 and 2?
Yes, the Elcometer 132 is approved for Group II applications in zones 1 and 2, rated for IIA and IIB gases where T4 temperature class permits. You should verify that your workplace classification matches these specifications before use.
What batteries does the Elcometer 132 use?
The H132-1A uses 3 x LR20 (D) batteries. The torch measures 250 x 65 mm and weighs 656g, making it portable for use in confined spaces and dark areas.
Can I use this torch in ballast tanks and oil and gas tank environments?
Yes, this torch is specifically designed for environments with low light and explosive gas present, including ballast tanks and oil and gas tanks. It provides sufficient light for adequate coating inspection whilst maintaining explosion proof requirements.
Which EN standards does the torch comply with?
The torch is approved to the latest EN standards for electrical apparatus for potential explosive atmospheres. For specific standard references and to confirm compliance with your site requirements, please contact us.
