The Elcometer Protective Coating Inspection Kit 4 is a packaged set of test equipment that lets an inspector assess a substrate before a coating is applied. Coating performance is largely set before the paint goes on, so the Elcometer Protective Coating Inspection Kit 4 groups together the checks that catch problems early, across surface inspection, weld inspection, surface cleanliness, climatic conditions, surface profile and coating thickness.

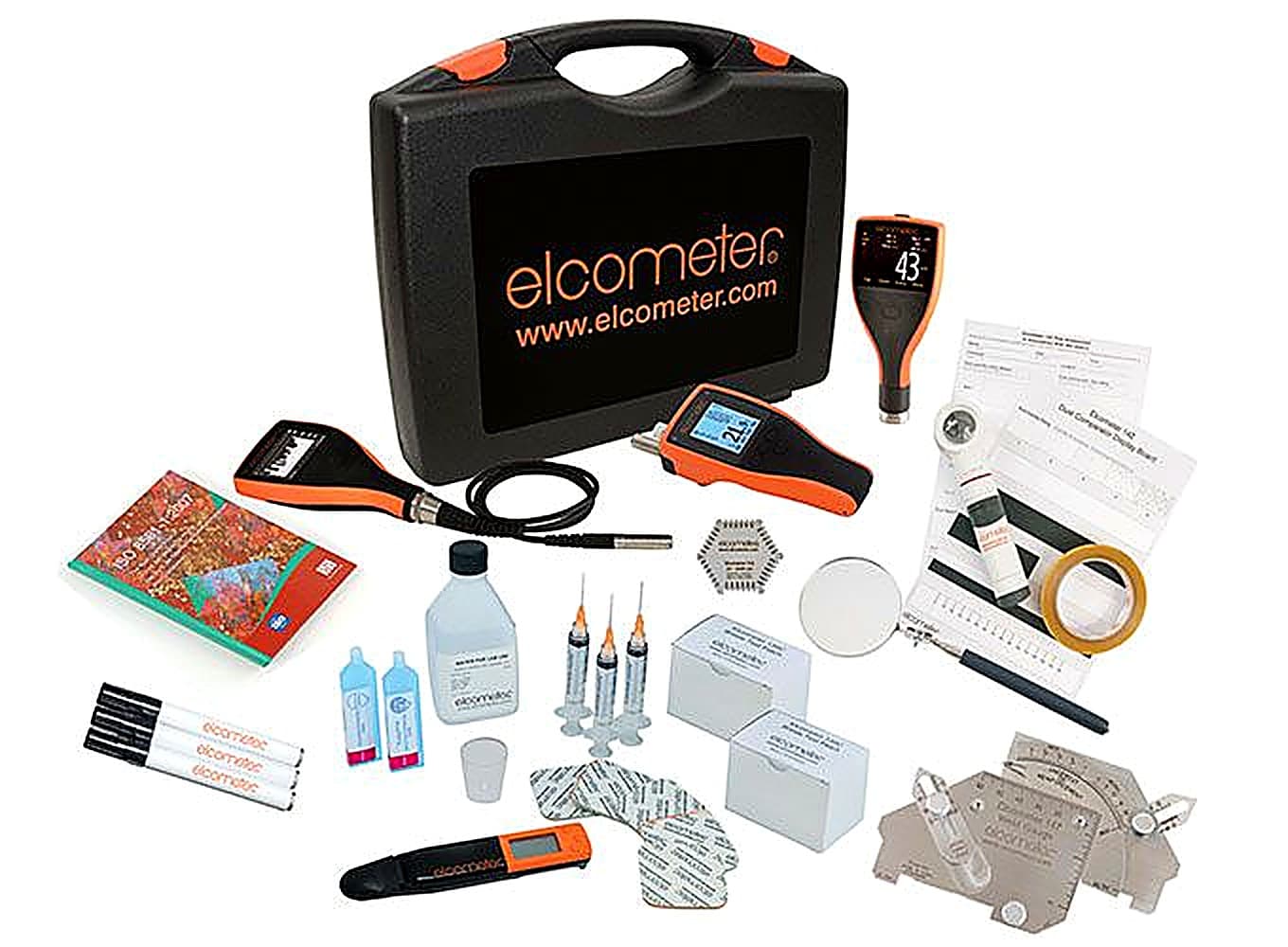

The Elcometer Protective Coating Inspection Kit 4 brings together a wider toolset than the entry-level kits. It includes the Elcometer 128 pictorial surface standards and Elcometer 131 inspection mirrors for surface and weld inspection, the Elcometer 144 paint safe marker pens and Elcometer 147 Cambridge weld gauge, the Elcometer 142 dust tape test kit and the Elcometer 138 Bresle kit with Elcometer 135 Bresle patches for surface cleanliness, the Elcometer 319 digital dewpoint meter for climatic conditions, the Elcometer 224 digital surface profile gauge, the Elcometer 112/3236 hexagonal stainless steel wet film combs, and the Elcometer 456 digital coating thickness gauge for dry film thickness.
The Elcometer Protective Coating Inspection Kit 4 can be used in accordance with a broad list of standards, including SSPC PA 2 and the SSPC VIS 1 to VIS 5 visual references, NACE RP0287, ASTM D 4417-C and ASTM D 4414-A, the ISO 8501-1 and ISO 8502 surface preparation and cleanliness methods, ASTM D 7091, ASTM D 2200, ISO 2360 and many others, so inspectors can report against the codes their projects require. Used in coatings inspection across marine, structural steel and protective coating work, the Elcometer Protective Coating Inspection Kit 4 is supplied by BAMR, South Africa's authorised Elcometer distributor.
Elcometer Protective Coating Inspection Kit 4
The Elcometer Protective Coatings Inspection Kit 4 provides a range of test equipment to help an inspector assess a substrate prior to the application of a coating.
- Surface inspection
- Weld inspection
- Surface cleanliness
- Climatic conditions
- Surface profile
- Coating thickness
Standards
Standards not in bold have been superseded but are still recognised in some industries
Standards
Standards
Standards not in bold have been superseded but are still recognised in some industries
Specifications
Specifications
Y = available on that model
| 1M | 2SM | 2TM | 3SM | 3TM | 4M | 5M | 6M | |
|---|---|---|---|---|---|---|---|---|
| Elcometer MTG2 Material Thickness Gauge | - | - | - | - | - | - | Y | Y |
| Elcometer 128 Pictorial Standards | - | - | - | - | - | Y | Y | Y |
| Elcometer 131/1C Telescopic Inspection Mirror | - | - | - | - | - | Y | Y | Y |
| Elcometer 137 Illuminated Magnifier | - | - | - | - | - | - | - | Y |
| Elcometer 144 Paint Safe Marker Pens (Pack of 3) | - | - | - | - | - | Y | Y | Y |
| Elcometer 147 Weld Gauge | - | - | - | - | - | Y | Y | Y |
| Elcometer 142 Dust Tape Test Kit | - | - | - | - | - | Y | Y | Y |
| Elcometer 138 Bresle Salt Kit 2 | - | - | - | - | - | Y | Y | Y |
| Elcometer 138/2 Surface Contamination Kit | - | - | - | - | - | - | Y | Y |
| Elcometer 122 Testex Replica Tape - Coarse & X-Coarse | Y | Y | Y | - | - | - | - | Y |
| Elcometer 124 Thickness Gauge | Y | Y | Y | - | - | - | Y | Y |
| Elcometer 224 Integral Digital Surface Profile Gauge | - | Basic | - | Basic | Top | Top | - | - |
| Elcometer 224 Separate Digital Surface Profile Gauge | - | - | Top | - | - | - | Top | Top |
| Elcometer 116 Whirling Hygrometer | Y | - | - | - | - | - | - | - |
| Elcometer 114 Dewpoint Calculator | Y | - | - | - | - | - | - | - |
| Elcometer 212 Digital Pocket Thermometer - Surface Probe | Y | - | - | - | - | - | - | - |
| Elcometer 319 Digital Dewpoint Meter | - | Std | Top | Std | Top | Top | Top | Top |
| Elcometer 107 Cross Hatch Cutter | Y | Y | Y | Y | Y | - | - | - |
| Elcometer 112 Hexagonal Wet Film Comb: 25 - 3000μm | Y | Y | Y | - | - | Y | Y | Y |
| Elcometer 115 Wet Film Comb (Set of 4) | - | - | - | Y | Y | |||
| Elcometer 456 Integral Digital F Coating Gauge, 0 - 1500μm | Basic | - | - | - | - | - | - | - |
| Elcometer 456 Separate Digital Coating Thickness Gauge | - | Std | Std | Top | Top | Top | Top | Top |
| Elcometer 456 Standard Separate Probe, 0 - 1500μm | Ferrous | Ferrous | FNF | FNF | ||||
| Elcometer 456 Ferrous Standard Separate F2 Probe, 0-5mm | Ferrous | Ferrous | Ferrous | |||||
| ElcoMaster® Software CD and USB Cable | - | Y | Y | Y | Y | Y | Y | Y |
| Elcometer 121 Paint Inspection Gauge with Cross Hatch | - | - | - | - | - | - | Top | Top |
| cutters 6 x 1, 2 & 3mm & ISO Adhesive Tape | ||||||||
| Elcometer 270 Pinhole Detector (9, 67.5 & 90V) | - | - | - | - | - | - | - | Y |
| Dimensions of Inspection Kit Carry Case | 456 | 456 | 456 | 456 | 456 | 495 | 575 | 575 |
| Breadth (mm) | 384 | 384 | 384 | 384 | 384 | 420 | 475 | 475 |
| Height (mm) | 110 | 127 | 127 | 127 | 127 | 175 | 205 | 205 |
Downloads
Frequently asked questions
Does the Kit 4M include a surface profile gauge?
Yes. The Kit 4M includes the Elcometer 224 Integral Digital Surface Profile Gauge, used to confirm the blast profile is within range before a coating is applied.
Can the Kit 4M measure existing coating thickness, and what range does it cover?
Yes. It includes the Elcometer 456 Separate Digital Coating Thickness Gauge fitted with the Ferrous Standard Separate F2 probe, giving a measurement range of 0 to 5mm on ferrous substrates.
What contamination testing does the Kit 4M include?
The kit includes the Elcometer 138 Bresle Salt Kit 2 for salt contamination testing and the Elcometer 142 Dust Tape Test Kit for assessing surface dust levels.
Does the Kit 4M include moisture or dewpoint measurement?
Yes. The kit includes the Elcometer 319 Digital Dewpoint Meter, used to check ambient and surface conditions before coating application.
What wet film thickness testing does the Kit 4M provide?
The kit includes the Elcometer 112 Hexagonal Wet Film Comb, covering 25 to 3000 micrometres, for checking wet film thickness immediately after coating application.
How is the Kit 4M packaged, and does it include software for recording results?
The kit is supplied in a carry case measuring 495 x 420 x 175mm and includes ElcoMaster software on CD with a USB cable for downloading gauge readings.
