The Elcometer Protective Coating Inspection Kit 5 is a packaged set of test equipment that lets an inspector assess a substrate before a coating is applied, covering surface inspection, weld inspection, surface cleanliness, climatic conditions, surface profile, coating thickness and adhesion. Because most coating failures trace back to conditions present before application, the Elcometer Protective Coating Inspection Kit 5 consolidates the full sequence of pre-application checks into one case so nothing is missed on site.
The Elcometer Protective Coating Inspection Kit 5 extends the toolset to include adhesion testing alongside the surface and cleanliness work. It includes the Elcometer 128 pictorial surface standards and Elcometer 131 inspection mirrors, the Elcometer 144 paint safe marker pens and Elcometer 147 Cambridge weld gauge, the Elcometer 142 dust tape test kit and the Elcometer 138 Bresle kit with Elcometer 135 Bresle patches for surface contamination, the Elcometer 319 digital dewpoint meter, the Elcometer 224 digital surface profile gauge, the Elcometer 112/3236 hexagonal stainless steel wet film combs, the Elcometer 456 digital coating thickness gauge for dry film thickness, and the Elcometer 121 paint inspection gauge with cross hatch for adhesion.
The Elcometer Protective Coating Inspection Kit 5 can be used in accordance with a wide range of standards, including AS 1580.408.4, AS 2331.1.4, AS 3894.3-B and AS 3894.9, AS/NZS 1580.107.3 and others, which lets inspectors report against the codes a project specifies. Used in coatings inspection across marine, structural steel and protective coating work, the Elcometer Protective Coating Inspection Kit 5 is supplied by BAMR, South Africa's authorised Elcometer distributor.

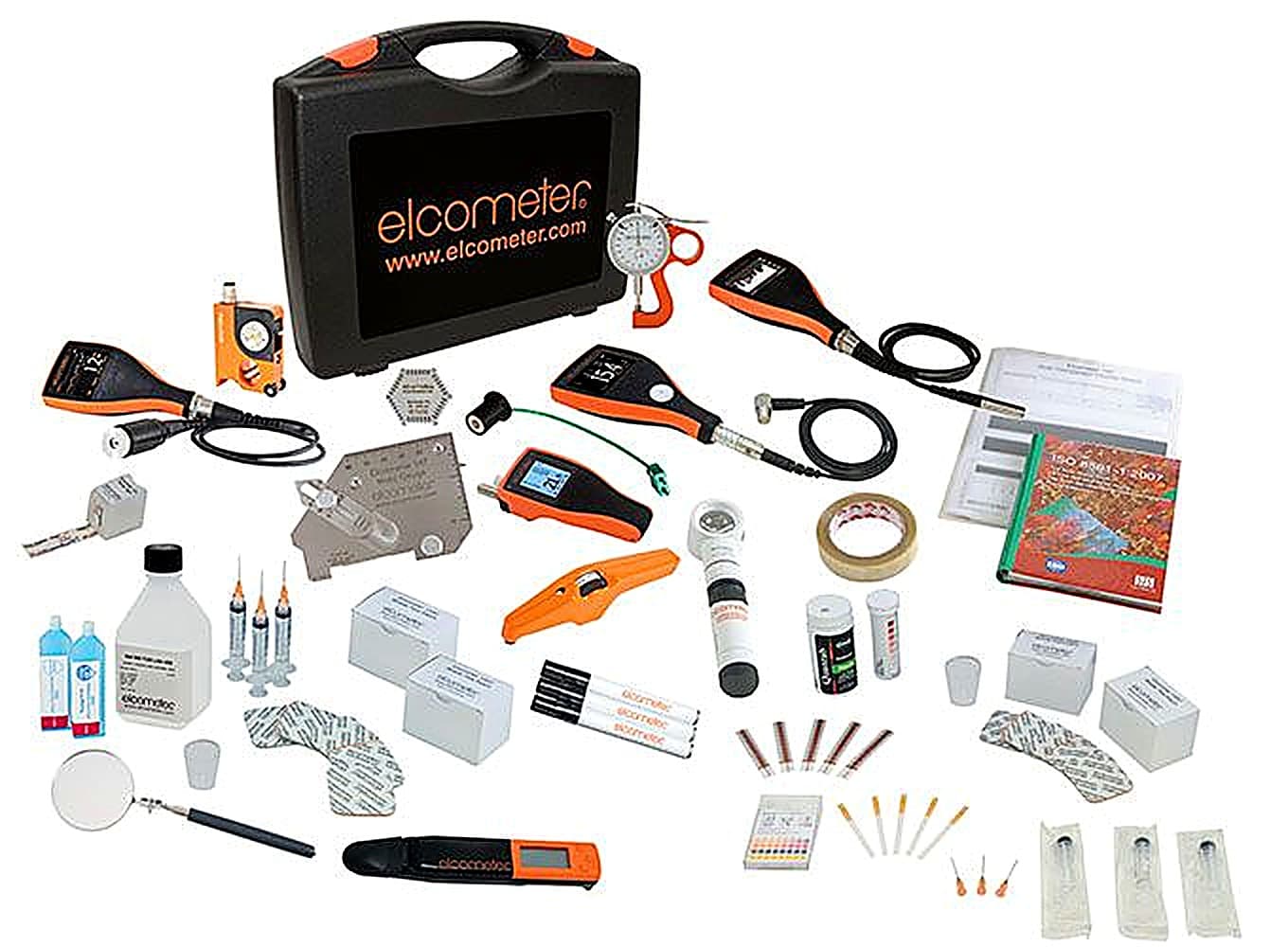

Elcometer Protective Coating Inspection Kit 5
The Elcometer Protective Coatings Inspection Kit 5 provides a range of test equipment to help an inspector assess a substrate prior to the application of a coating. The Elcometer Protective Coatings Inspection Kit 5 measurement parameters include: Surface inspection, Weld inspection, Surface cleanliness, Climatic conditions, Surface profile, Coating thickness, Adhesion.
- Surface inspection
- Weld inspection
- Surface cleanliness
- Climatic conditions
- Surface profile
- Coating thickness
- Adhesion
Standards
Standards not in bold have been superseded but are still recognised in some industries
Standards
Standards
Standards not in bold have been superseded but are still recognised in some industries
Specifications
Specifications
Y = available on that model
| 1M | 2SM | 2TM | 3SM | 3TM | 4M | 5M | 6M | |
|---|---|---|---|---|---|---|---|---|
| Elcometer MTG2 Material Thickness Gauge | - | - | - | - | - | - | Y | Y |
| Elcometer 128 Pictorial Standards | - | - | - | - | - | Y | Y | Y |
| Elcometer 131/1C Telescopic Inspection Mirror | - | - | - | - | - | Y | Y | Y |
| Elcometer 137 Illuminated Magnifier | - | - | - | - | - | - | - | Y |
| Elcometer 144 Paint Safe Marker Pens (Pack of 3) | - | - | - | - | - | Y | Y | Y |
| Elcometer 147 Weld Gauge | - | - | - | - | - | Y | Y | Y |
| Elcometer 142 Dust Tape Test Kit | - | - | - | - | - | Y | Y | Y |
| Elcometer 138 Bresle Salt Kit 2 | - | - | - | - | - | Y | Y | Y |
| Elcometer 138/2 Surface Contamination Kit | - | - | - | - | - | - | Y | Y |
| Elcometer 122 Testex Replica Tape - Coarse & X-Coarse | Y | Y | Y | - | - | - | - | Y |
| Elcometer 124 Thickness Gauge | Y | Y | Y | - | - | - | Y | Y |
| Elcometer 224 Integral Digital Surface Profile Gauge | - | Basic | - | Basic | Top | Top | - | - |
| Elcometer 224 Separate Digital Surface Profile Gauge | - | - | Top | - | - | - | Top | Top |
| Elcometer 116 Whirling Hygrometer | Y | - | - | - | - | - | - | - |
| Elcometer 114 Dewpoint Calculator | Y | - | - | - | - | - | - | - |
| Elcometer 212 Digital Pocket Thermometer - Surface Probe | Y | - | - | - | - | - | - | - |
| Elcometer 319 Digital Dewpoint Meter | - | Std | Top | Std | Top | Top | Top | Top |
| Elcometer 107 Cross Hatch Cutter | Y | Y | Y | Y | Y | - | - | - |
| Elcometer 112 Hexagonal Wet Film Comb: 25 - 3000μm | Y | Y | Y | - | - | Y | Y | Y |
| Elcometer 115 Wet Film Comb (Set of 4) | - | - | - | Y | Y | |||
| Elcometer 456 Integral Digital F Coating Gauge, 0 - 1500μm | Basic | - | - | - | - | - | - | - |
| Elcometer 456 Separate Digital Coating Thickness Gauge | - | Std | Std | Top | Top | Top | Top | Top |
| Elcometer 456 Standard Separate Probe, 0 - 1500μm | Ferrous | Ferrous | FNF | FNF | ||||
| Elcometer 456 Ferrous Standard Separate F2 Probe, 0-5mm | Ferrous | Ferrous | Ferrous | |||||
| ElcoMaster® Software CD and USB Cable | - | Y | Y | Y | Y | Y | Y | Y |
| Elcometer 121 Paint Inspection Gauge with Cross Hatch | - | - | - | - | - | - | Top | Top |
| cutters 6 x 1, 2 & 3mm & ISO Adhesive Tape | ||||||||
| Elcometer 270 Pinhole Detector (9, 67.5 & 90V) | - | - | - | - | - | - | - | Y |
| Dimensions of Inspection Kit Carry Case | 456 | 456 | 456 | 456 | 456 | 495 | 575 | 575 |
| Breadth (mm) | 384 | 384 | 384 | 384 | 384 | 420 | 475 | 475 |
| Height (mm) | 110 | 127 | 127 | 127 | 127 | 175 | 205 | 205 |
Downloads
Frequently asked questions
What's the wet film thickness measurement range?
The kit includes the Elcometer 112 hexagonal wet film comb measuring 25 to 3,000 micrometres.
What dry coating thickness can the kit measure?
The Elcometer 456 digital coating thickness gauge with ferrous F2 probe measures coatings up to 5 millimetres thick.
Can you assess surface profile with Kit 5M?
Yes. The Elcometer 224 digital surface profile gauge measures coating profile and roughness to verify substrate preparation meets coating requirements.
How is adhesion tested?
The Elcometer 121 paint inspection gauge includes cross-hatch cutters (1, 2, and 3 millimetre) and ISO adhesive tape for adhesion assessment per ISO standards.
Does the kit measure environmental conditions?
Yes. The Elcometer 319 digital dewpoint meter measures surface temperature and dewpoint to verify application conditions meet coating specifications.
What inspection tools are included for substrate assessment?
The kit includes the Elcometer 131/1C telescopic mirror for accessing hard-to-reach areas and the Elcometer 147 weld gauge for assessing weld quality.
