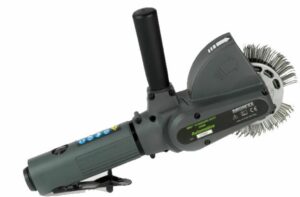

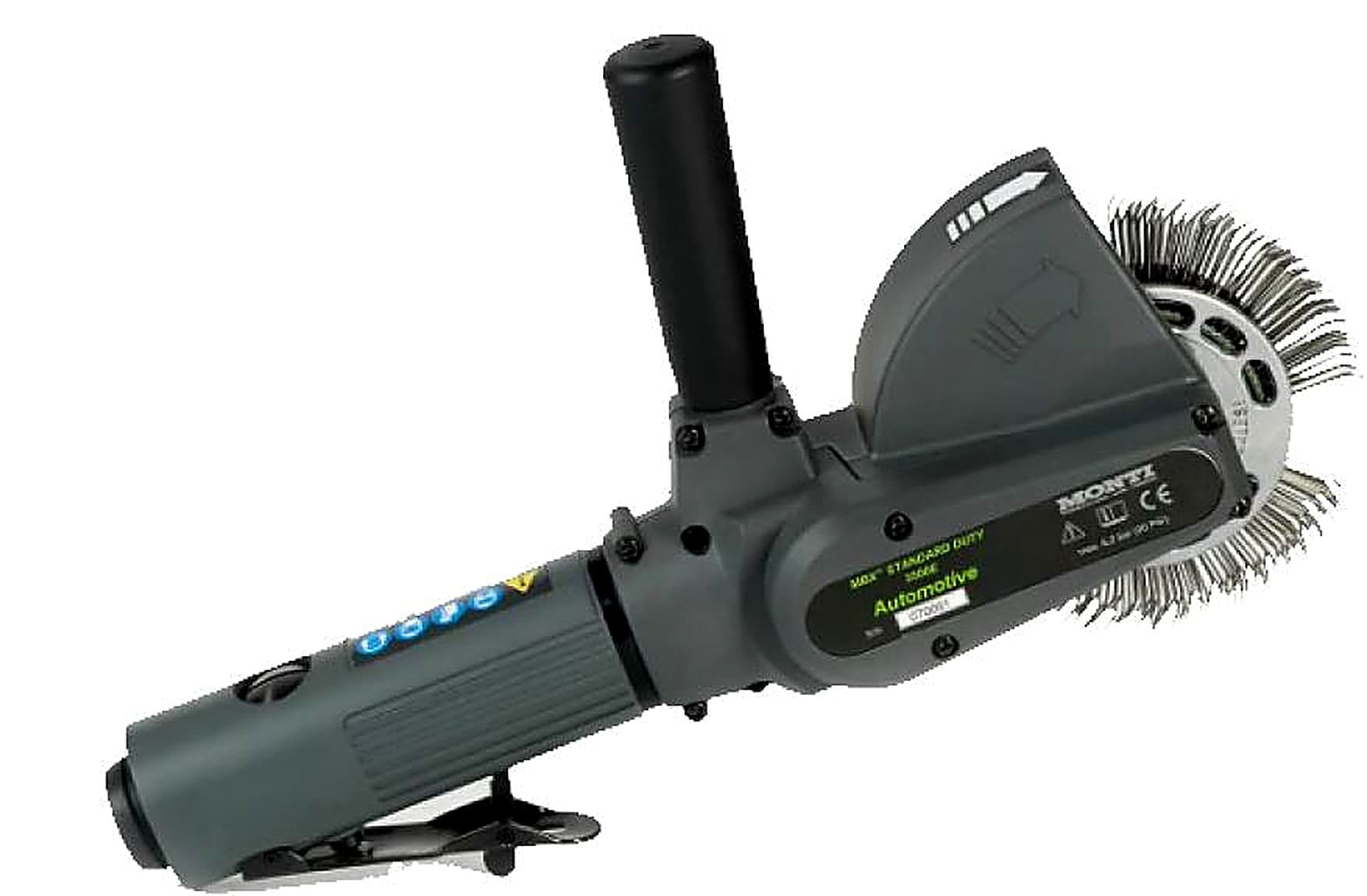

The MontiPower MBX Pneumatic (SP-200-BMC) is an in-line air-powered drive unit that runs a range of wire belts and rubber eraser wheels for surface preparation. It was developed specifically for the automotive industry, where rust, scale and old coatings must be removed cleanly before repair or recoating.
Surface preparation determines how well the next coating holds, and inconsistent or aggressive methods can damage the substrate or leave an uneven profile. The MontiPower MBX Pneumatic rapidly removes corrosion and oxidation from both hard and soft material, cleaning surfaces evenly without clogging or gumming of the bristles. A specially designed gear reduction increases torque at the operating speed, and the low speed combined with light construction supports safe, controlled handling. The compact in-line form of the MontiPower MBX Pneumatic gives full visibility of the work surface and allows access into difficult areas.
The MontiPower MBX Pneumatic measures 260 mm long, 150 mm high including the handle and 70 mm wide, and weighs 1.1 kg, with a belt outer diameter of 100 mm. It requires a flow pressure of 6.2 bar (90 psi) and an average air consumption of 17.5 cfm (0.5 m3/min), running at an idle speed of 3,500 rpm. The threaded air inlet is Rp 1/4 inch, the required interior hose diameter is 9.5 mm (3/8 inch), vibration is 1 m/sec2 and the sound pressure level is 83 dB(A).
The MontiPower MBX Pneumatic is supplied by BAMR, South Africa's authorised distributor.
MontiPower MBX Pneumatic
MBX Pneumatic Drive unit is a unique, easy handling, fast performing power hand tool that drives a variety of wire belts and rubber eraser wheels. This high performance in line tool was specifically developed for surface preparation in the automotive industry.
- Rapidly removes corrosion and oxidation Both hard and soft material
- Performs on uneven surfaces
- Highly flexible in tight areas
- No clogging or gumming of bristles
- Cleans surfaces evenly
- Full visibility of work surface
Details
- Part Number
- SP-200-BMC
- Length
- 260 mm
- Height (incl. handle)
- 150 mm
- Width
- 70 mm
- Weight
- 1.1 kg
- Belt diameter (outer)
- 100 mm
- Required air pressure
- 6.2 bar | 90 psi
- Average air consumption
- 17.5 cfm | 0.5 m³/min
- Idle speed (± 5%)
- 3,500 rpm
- Threaded air inlet
- Rp 1/4"
- Required hose diameter (interior)
- 9.5 mm | 3/8"
- Vibration
- 1 m/sec²
- Sound pressure level
- 83 dB(A)
Specifications
Details
- Part Number
- SP-200-BMC
- Length
- 260 mm
- Height (incl. handle)
- 150 mm
- Width
- 70 mm
- Weight
- 1.1 kg
- Belt diameter (outer)
- 100 mm
- Required air pressure
- 6.2 bar | 90 psi
- Average air consumption
- 17.5 cfm | 0.5 m³/min
- Idle speed (± 5%)
- 3,500 rpm
- Threaded air inlet
- Rp 1/4"
- Required hose diameter (interior)
- 9.5 mm | 3/8"
- Vibration
- 1 m/sec²
- Sound pressure level
- 83 dB(A)
Downloads
Videos
Videos
Frequently asked questions
What air supply does the MontiPower MBX need to run properly?
The MBX requires 6.2 bar (90 psi) of air pressure through a hose with a 9.5 mm (3/8 inch) interior diameter, connected to its Rp 1/4 inch threaded air inlet. Average air consumption is 17.5 cfm (0.5 m³/min).
Is the MBX light and compact enough for tight automotive panel work?
Yes. It measures 260 mm long, 150 mm high with the handle, and 70 mm wide, and weighs 1.1 kg, which suits the confined access points typical of automotive body panel work.
What abrasive attachments can I run on the MBX?
The MBX drives wire belts and rubber eraser wheels for surface preparation, with a belt diameter of 100 mm (outer). Pick the belt or wheel that matches your surface prep task.
How noisy is the MBX in use?
Sound pressure level is 83 dB(A). Factor this into hearing protection requirements for operators using it for extended periods.
What vibration level should I plan for when assessing operator exposure?
The MBX has a vibration figure of 1 m/sec². Use this figure when calculating permitted daily exposure time for operators.
What idle speed does the MBX run at?
Idle speed is 3,500 rpm, plus or minus 5 percent.
