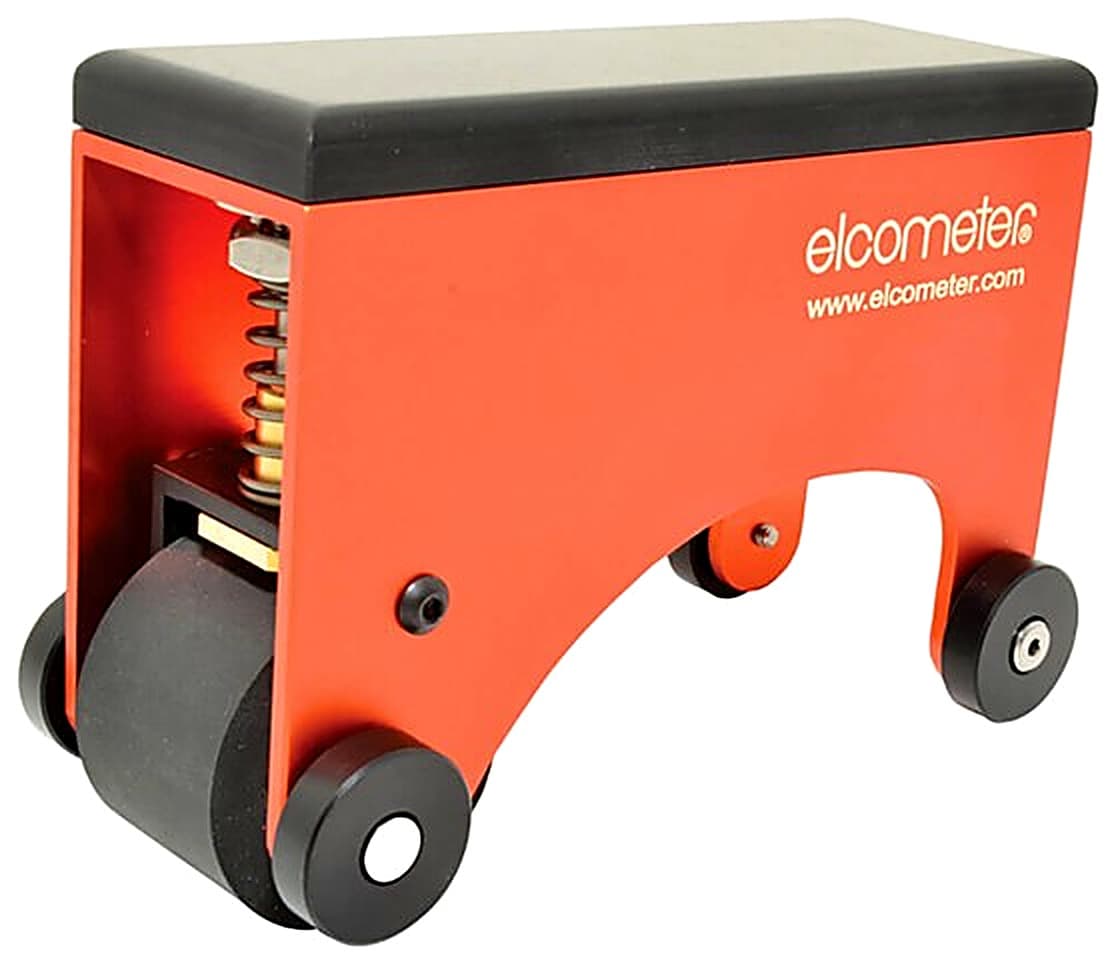

Elcometer 145 Dust Tape Roller


Product Description


The Elcometer 145 Dust Tape Roller is used in conjunction with the Elcometer 142 Dust Tape Test kit to assess the quantity and size of dust particles on surfaces prepared for painting.

The Dust Tape Roller presses the Elcometer 142 Dust Tape to the surface using a controlled constant force as required by BS EN ISO 8502-3 (BS 7079-B3:1993).

The Elcometer 145 Dust Tape Roller can be used in accordance with:

• BS EN ISO 8502-3 (BS 7079-B3:1993)

Specifications

Elcometer 145 Dust Tape Roller – Specifications

Part Number Description
E145—-1 Elcometer 145 Dust Tape Roller
Load Exerted 39.2 to 49.0 N, when spring fully depressed
Dimensions 160 x 70 x 110mm
Weight 615g

Packing List

  • Elcometer 145 Dust Tape Roller
  • Operating Instructions


Data Sheet

Elcometer 145 Dust Tape Roller – Data Sheet

Elcometer 145 Dust Tape Roller Data Sheet

Standards

Elcometer 145 Dust Tape Roller – Standards

The Elcometer 145 Dust Tape Roller can be used in accordance with:

• BS EN ISO 8502-3 (BS 7079-B3:1993)

Instruction Manual

Elcometer 145 Dust Tape Roller – Instruction Manual

Elcometer 145 Dust Tape Roller – Instruction Manual

Test Method

Elcometer 145 Dust Tape Roller – Test Method

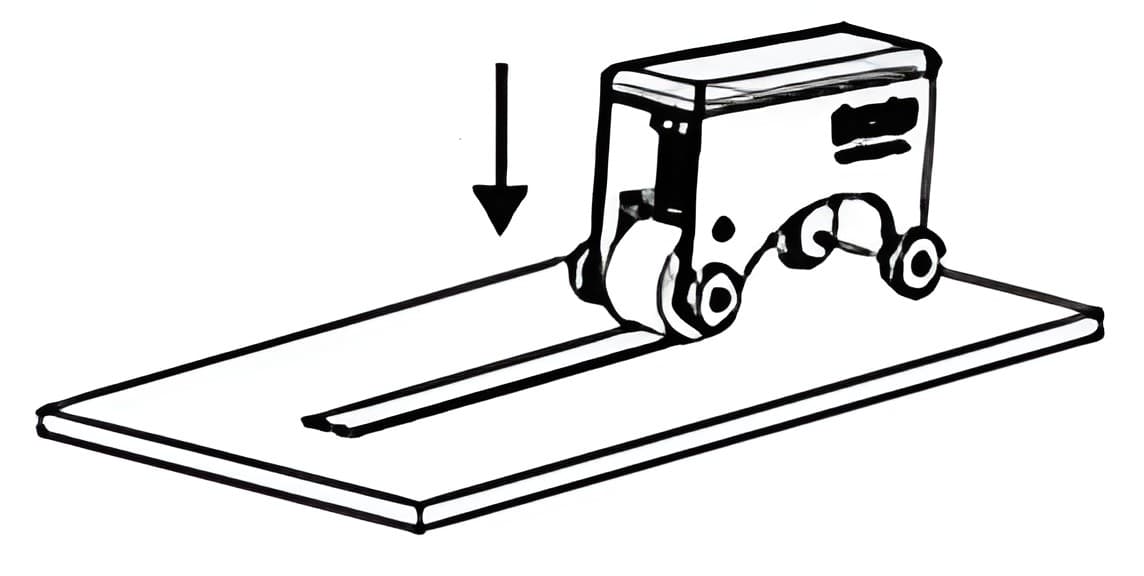

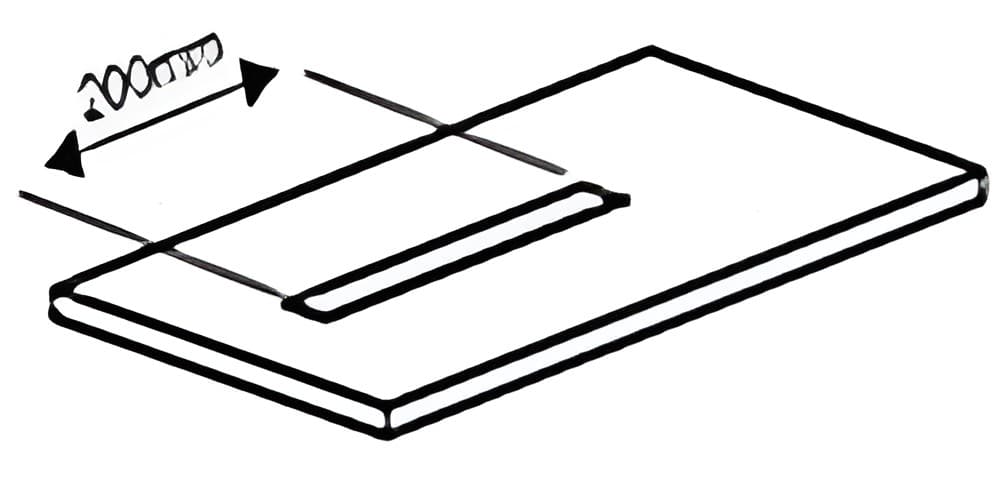

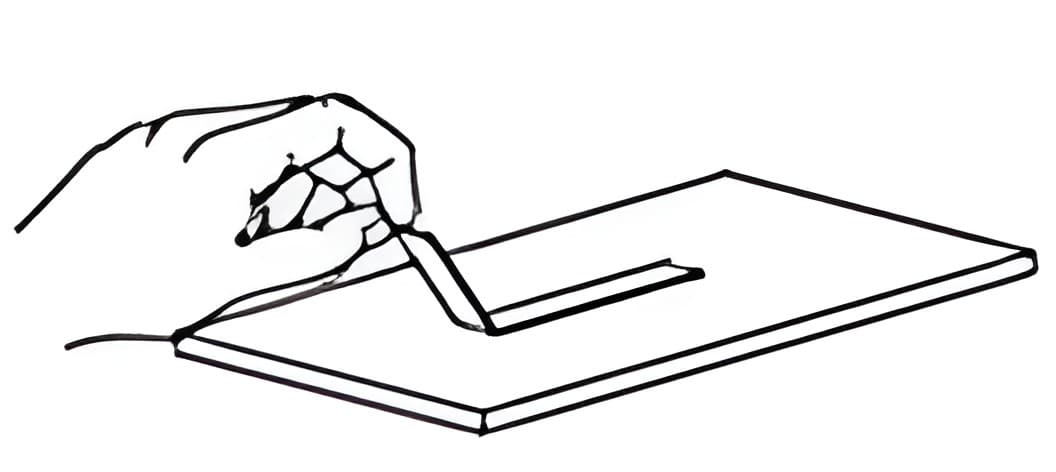

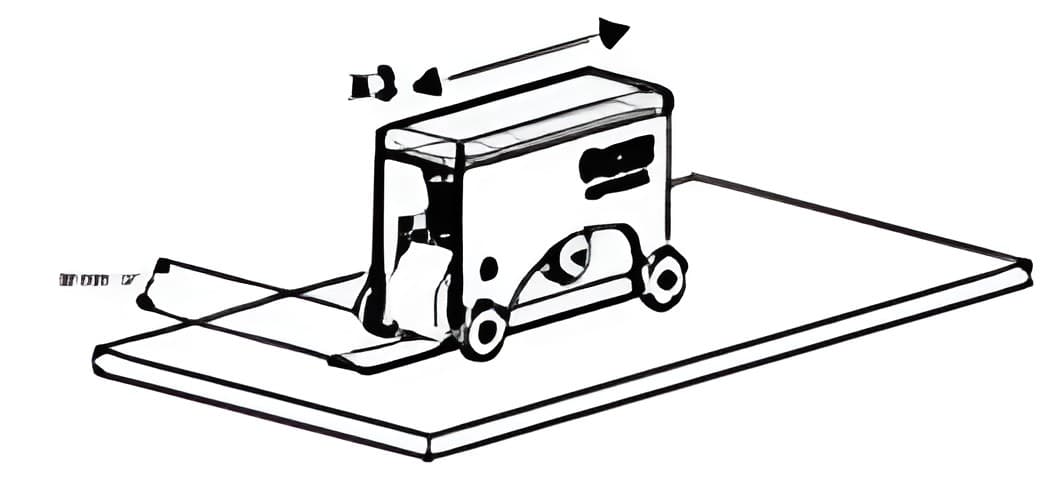

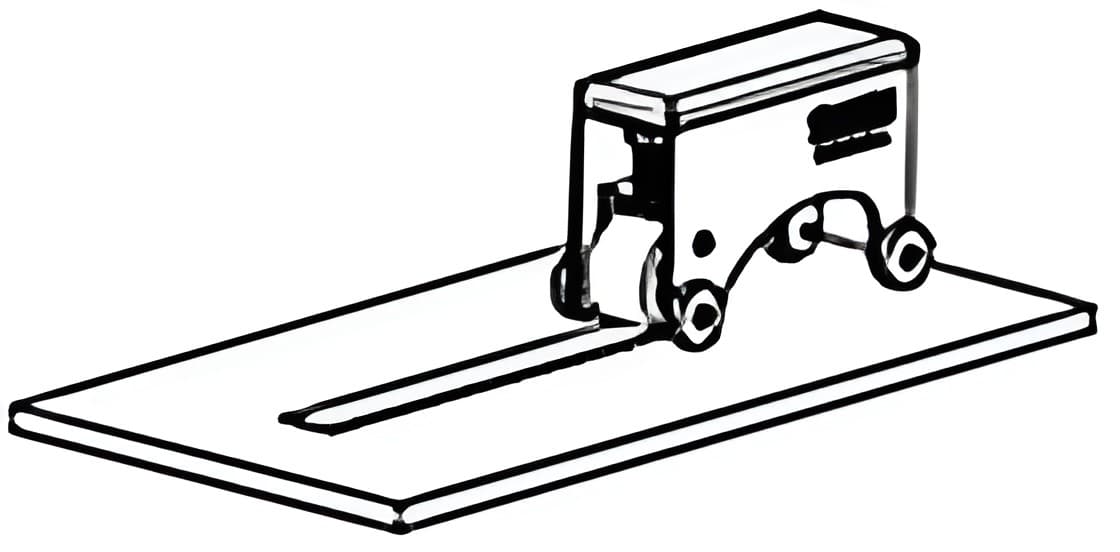

Remove approximately 200mm of tape from the Elcometer 142 Dust Tape Kit Place on surface to be tested Place the roller on the tape (at one end) and push down so all 4 wheels are on the substrate. Move backwards and forwards over the tape three times in each direction, each stroke taking for 5-6 seconds leaving approximately 50mm free. Remove tape and assess using the Elcometer 142 Dust Tape Kit.
