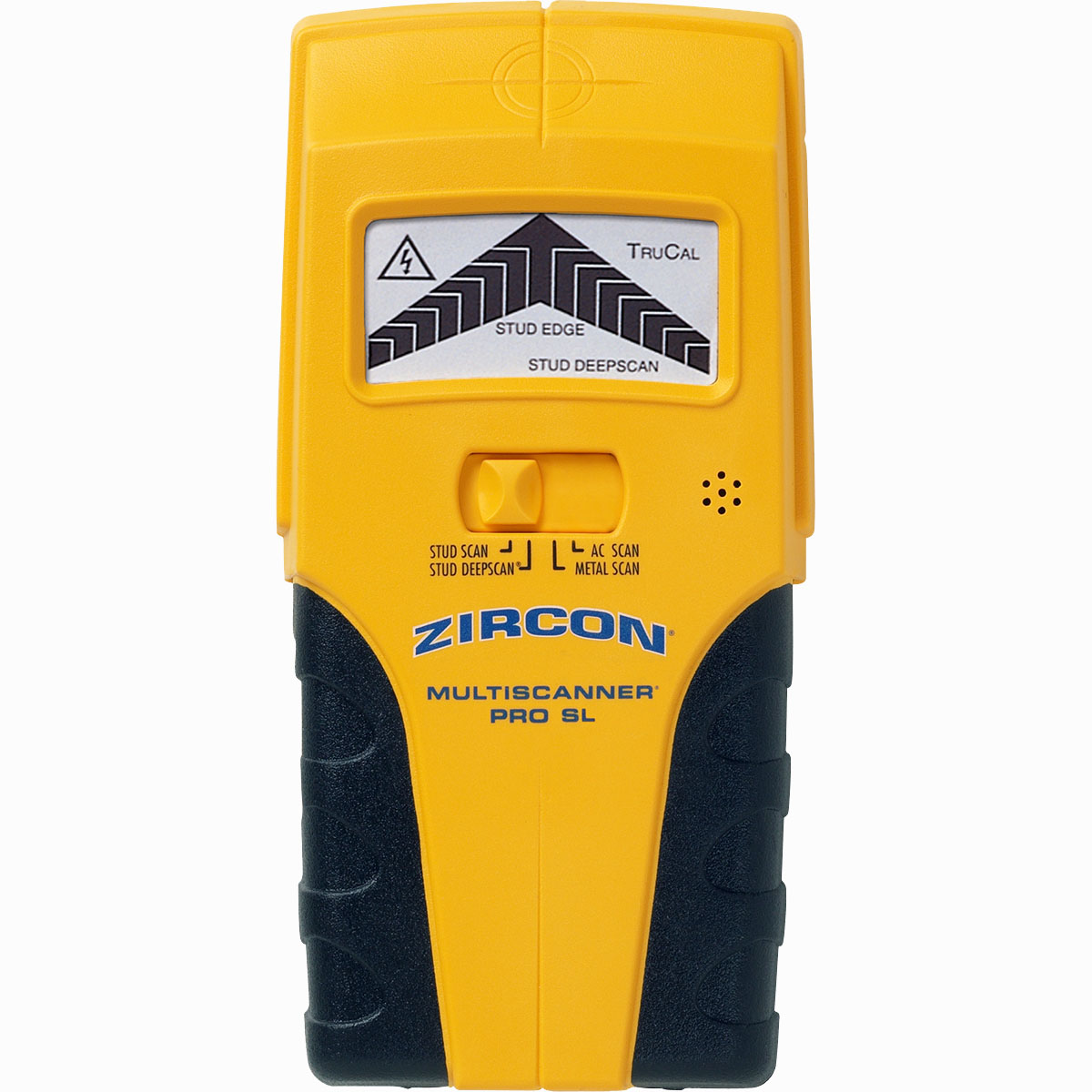

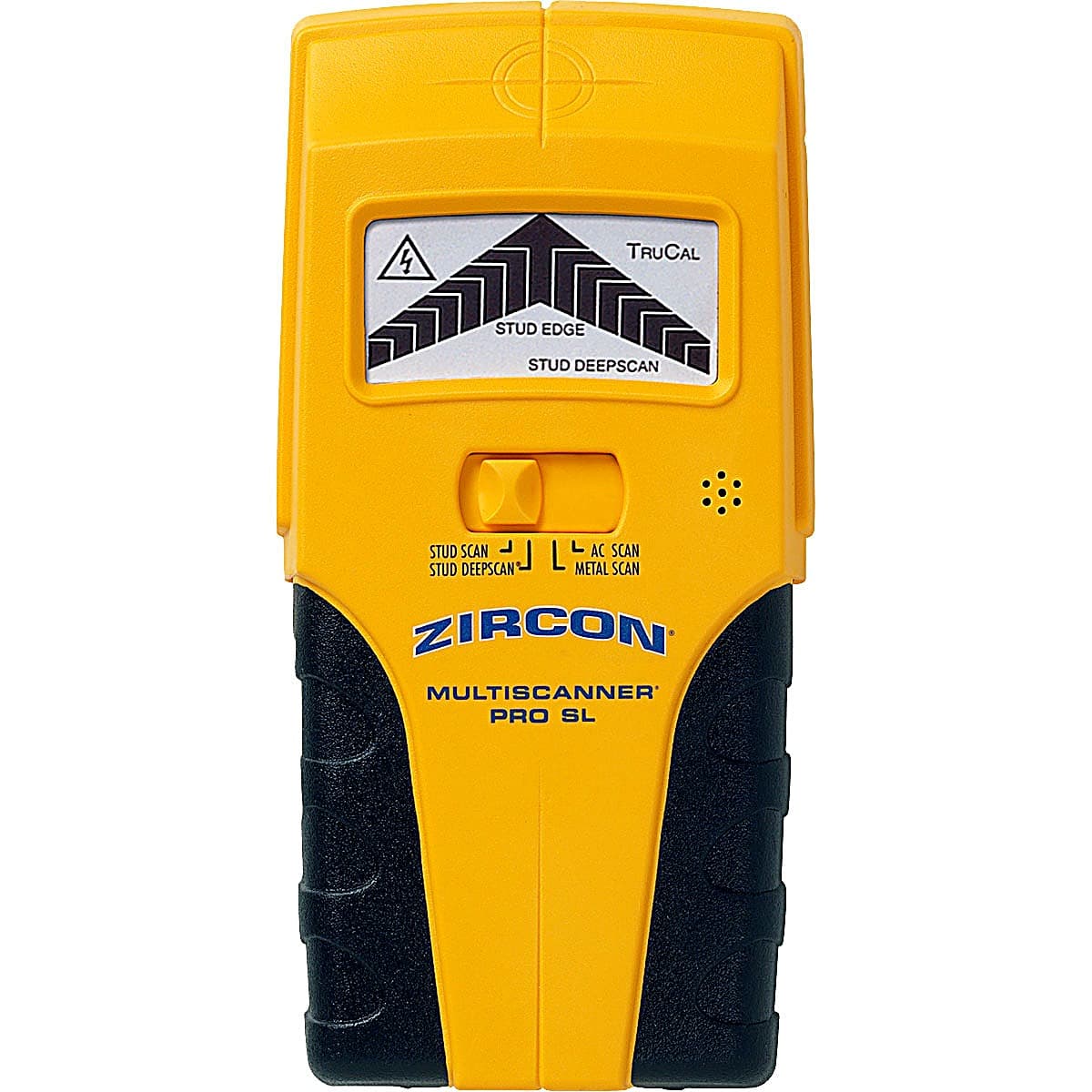

MultiScanner Pro SL Stud Locator
Product Description
MultiScanner® Pro SL with Spot Lite finds studs, metal, and hot AC wiring behind walls, floors, and ceilings
Key Features
|
Specifications
The Advantages of the MultiScanner Pro SL
- Uses a patented sensor to pinpoint the edges of wood or metal studs behind walls, floors, or ceilings.
- Turn off wood and metal scan to look only for hot AC to find and trace wires, even in plastic conduit.
- Metal Scan finds rebar in concrete up to 76 mm deep and concrete pipe or metal conduit up to 38 mm deep behind walls, floors, and ceilings
- Easy-to-understand, on-screen graphics and audio signal indicate target edges
- Exclusive, patented Spot Lite Pointing System shines a bright beam of light over target edges.
| Description | Technical Specifications | |
| Dimensions : | 162 mm x 78 mm x 34 mm | |
| Weight : | 184 g without battery | |
| Battery type : | 9-V alkaline (not included) | |
| Position accuracy : | Stud Scan mode: | typically within 3 mm using the dual scan and mark procedure |
| DeepScan mode: | typically within 5 mm using the same procedure | |
| Metal Scan mode: | typically within 13 mm | |
| Depth : | Up 19 mm in Stud Scan mode | |
| Up to 8 mm in Deep Scan mode | ||
| Up to 38 mm for copper in Metal Scan mode | ||
| Up to 76 mm for rebar in Metal Scan mode | ||
| Operating temperature : | 7° to 49° | |
| Storage temperature : | 29° to 66°C | |
| Humidity : | 80% RH (non-condensing) | |
| Water resistance : | Splash and water resistant, but not waterproof | |
