The BEVS 2501 Laboratory Mixer series features frequency-adapter to adjust speed with advanced touch-screen control design. The BEVS 2501 Laboratory Mixer enables dispersing, mixing and grinding through interchangeable impellers. Operators set speed (RPM) and duration via touchscreen, making the BEVS 2501 Laboratory Mixer ideal for R&D, laboratory and spot testing.
Applications for the BEVS 2501 Laboratory Mixer: Resin/Coatings, Inks, Rubber/Plastics, Automotives, Consumer Chemicals and New Materials.

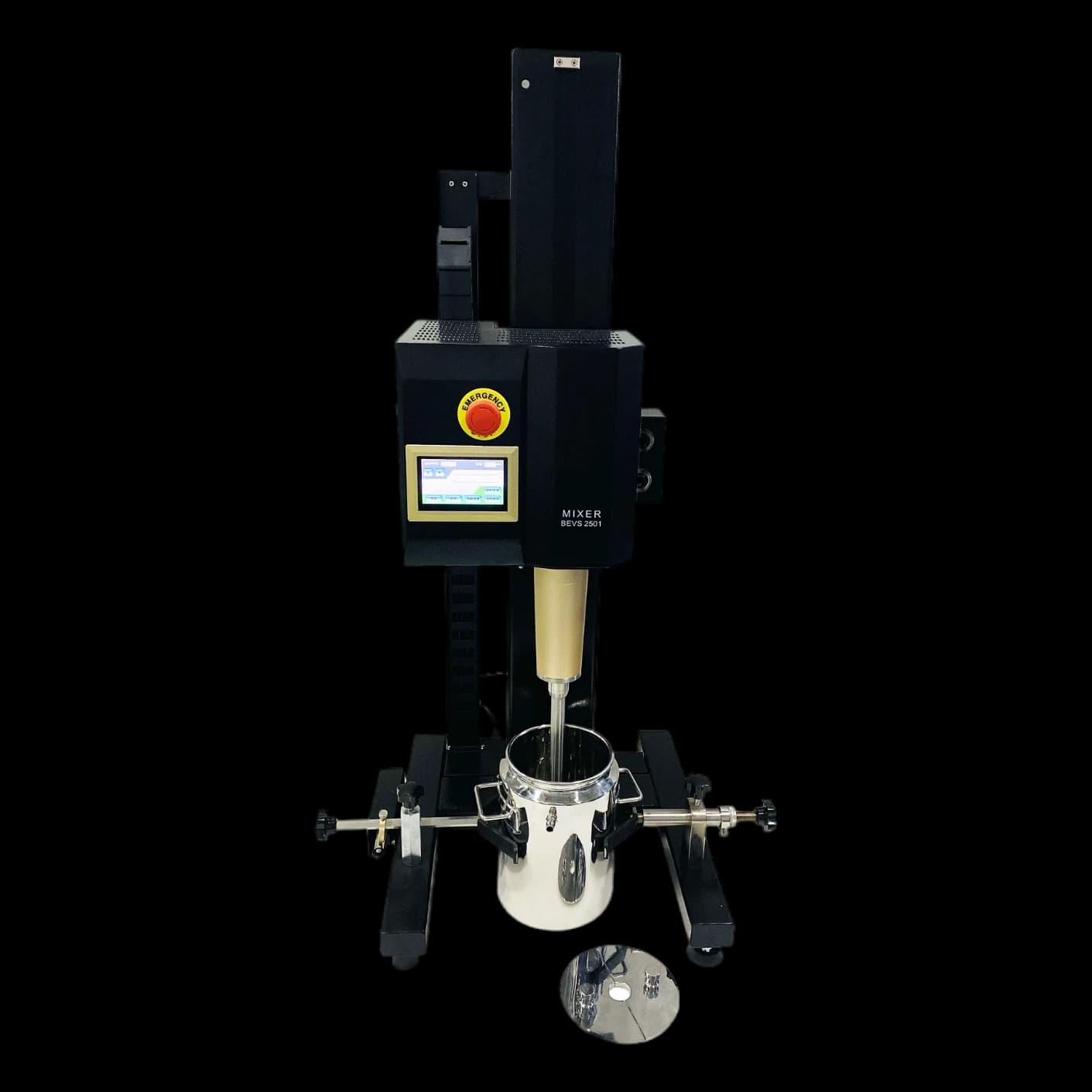

BEVS 2501 Laboratory Mixer
A touch-screen laboratory mixer that disperses, mixes and grinds liquids. Speed and running time are set on the screen, and the frequency-controlled motor runs up to 9000 rpm.
- Touch-screen control. Set speed (rpm) and running time on the screen, with an emergency switch.
- Frequency modulation motor. Maximum speed 9000 rpm.
- Auto or manual lifting. Manual on the 1, 1L and 2L. Automatic on the 2A, 3A and 5A.
- Clamping sensor. Fitted to the series.
- Extended shaft. Available on the L and A series models.
- Up to 20 L. Maximum capacity 20 L.
When to choose the BEVS 2501 Laboratory Mixer
The BEVS 2501 series sets speed and running time on a touch screen and covers vessels from 0.5 L to 20 L, so it suits R&D and QC work where batches need repeating and the batch size varies.
- 1Repeatable batches at set speed and timeSpeed and running time are set on the touch screen and the frequency-controlled motor holds them. That suits R&D and QC work, where one dispersion needs to be repeated the same way on the next batch.
- 2Choosing the size of mixer to match the batchThe series runs from the 2501/1, which takes 0.5 or 1.5 L vessels, up to the 2501/5A, which takes 5, 10 or 20 L vessels. Power goes from 550 W to 1500 W across the range.
- 3Choosing between manual and automatic liftingThe 2501/1, 1L and 2L are lifted by hand. The 2501/2A, 3A and 5A lift automatically, with a lifting stroke of 280 to 400 mm. The L and A models have an extended shaft.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to choose the BEVS 2501 Laboratory Mixer
The BEVS 2501 series sets speed and running time on a touch screen and covers vessels from 0.5 L to 20 L, so it suits R&D and QC work where batches need repeating and the batch size varies.
- 1Repeatable batches at set speed and timeSpeed and running time are set on the touch screen and the frequency-controlled motor holds them. That suits R&D and QC work, where one dispersion needs to be repeated the same way on the next batch.
- 2Choosing the size of mixer to match the batchThe series runs from the 2501/1, which takes 0.5 or 1.5 L vessels, up to the 2501/5A, which takes 5, 10 or 20 L vessels. Power goes from 550 W to 1500 W across the range.
- 3Choosing between manual and automatic liftingThe 2501/1, 1L and 2L are lifted by hand. The 2501/2A, 3A and 5A lift automatically, with a lifting stroke of 280 to 400 mm. The L and A models have an extended shaft.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Model comparison
- BEVS 2501/1
- 550 W, 30-9000 rpm, 250 mm lifting stroke, manual lift, vessels 0.5 / 1.5 L
- BEVS 2501/1L
- 550 W, 30-9000 rpm, 250 mm lifting stroke, manual lift, vessels 0.5 / 1.5 L
- BEVS 2501/2L
- 750 W, 60-6000 rpm, 280 mm lifting stroke, manual lift, vessels 0.5 / 1.5 L
- BEVS 2501/2A
- 750 W, 60-6000 rpm, 280 mm lifting stroke, auto lift, vessels 1.5 / 3 / 5 L
- BEVS 2501/3A
- 1100 W, 60-6000 rpm, 330 mm lifting stroke, auto lift, vessels 3 / 5 / 10 L
- BEVS 2501/5A
- 1500 W, 300-6000 rpm, 400 mm lifting stroke, auto lift, vessels 5 / 10 / 20 L
General
- Maximum capacity
- 20 L (model 2501/5A)
- Maximum speed
- 9000 rpm
- Model suffixes
- L = extended shaft, A = automatic lifting
What's in the kit
What's in the kit
Accessories
Accessories
| Dispersing discs | 30, 40, 50, 60, 80, 100, 120, 150 and 200 mm |
| BEVS 2501/P/025 | Milling disc, 45 mm, nylon |
| BEVS 2501/P/026 | Milling disc, 60 mm, nylon |
| BEVS 2501/P/027 | Milling disc, 45 mm, Teflon |
| BEVS 2501/P/028 | Milling disc, 60 mm, Teflon |
| BEVS 2511/1 | Jacketed stainless steel vessel, 0.5 L |
| BEVS 2511/2 | Jacketed stainless steel vessel, 1.5 L |
| BEVS 2511/3 | Jacketed stainless steel vessel, 3 L |
| BEVS 2511/4 | Jacketed stainless steel vessel, 5 L |
| BEVS 2511/5 | Jacketed stainless steel vessel, 10 L |
| BEVS 2511/6 | Jacketed stainless steel vessel, 20 L |
Downloads
Frequently asked questions
What can the BEVS 2501 Laboratory Mixer do?
The BEVS 2501 Laboratory Mixer disperses, mixes and grinds liquids using interchangeable impellers. Speed (rpm) and running time are set on a touch screen.
What speed range does the BEVS 2501 Laboratory Mixer cover?
The maximum speed is 9000 rpm. The 2501/1 and 1L run 30-9000 rpm, the 2501/2L, 2A and 3A run 60-6000 rpm, and the 2501/5A runs 300-6000 rpm.
What is the largest vessel the BEVS 2501 Laboratory Mixer takes?
The BEVS 2501/5A takes vessels up to 20 L. Its vessels are 5, 10 and 20 L, and the smallest models take 0.5 and 1.5 L.
Which BEVS 2501 models have automatic lifting?
The 2501/2A, 3A and 5A lift automatically. The 2501/1, 1L and 2L lift manually. The letter A in the model name means auto lift, and L means an extended shaft.
What comes with the BEVS 2501 Laboratory Mixer as standard?
The BEVS 2501 Laboratory Mixer comes with 3 dispersing discs and 1 vessel. Jacketed stainless steel vessels are available in 0.5, 1.5, 3, 5, 10 and 20 L, and dispersing discs from 30 to 200 mm.
What industries use the BEVS 2501 Laboratory Mixer?
Resin and coatings, inks, rubber and plastics, automotive, consumer chemicals and new materials. The BEVS 2501 Laboratory Mixer is suited to R&D, laboratory and spot testing.
