The Gamry Interface 1010B is a potentiostat, galvanostat and zero resistance ammeter (ZRA) for physical and analytical electrochemistry. Gamry lists it as the introductory instrument of the Interface 1010 range.
On the DC side it matches the general purpose Interface 1010E. Maximum current is ±1 A across 9 current ranges (10 nA to 1 A, or 11 ranges with internal gain applied), maximum applied potential is ±12 V, and minimum current resolution is 3.3 fA. The control amplifier gives ±20 V compliance at 1 A with five speed settings.
The separation is in impedance work. EIS runs from 10 µHz to 20 kHz at a quoted 99% impedance accuracy, against 2 MHz on the Interface 1010E, so this is the variant to specify when the impedance measurements stay below 20 kHz. Electrometer bandwidth is >10 MHz and CMRR is >80 dB at 10 kHz, both below the 1010E figures. Input impedance is >10^12 Ω.
It takes 2, 3 or 4 cell connections, floats clear of earth ground, and weighs 2.4 kg.
Values listed as typical are representative rather than guaranteed.

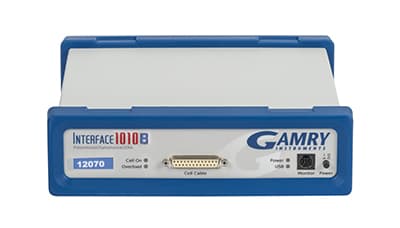

Gamry Interface 1010B Potentiostat / Galvanostat / ZRA
The introductory instrument of the Gamry Interface 1010 range, for physical and analytical electrochemistry. Maximum current ±1 A across 9 current ranges, maximum applied potential ±12 V, and EIS from 10 µHz to 20 kHz at 99% impedance accuracy. It takes 2, 3 or 4 cell connections, is isolated from earth, and weighs 2.4 kg.
Configuration
- Potentiostat
- Yes
- Galvanostat
- Yes
- Zero Resistance Ammeter
- Yes
- Cell Connections
- 2, 3, or 4
- Floating (isolated from earth ground)
- Yes
System
- Max. Current
- ±1 A
- Current Ranges
- 9 (10 nA - 1 A)
- Current Ranges (including internal gain)
- 11
- Min. Current Resolution
- 3.3 fA
- Max. Applied Potential
- ±12 V
- Rise Time
- <1 µs
- Min. Time Base
- 10 µs
- Noise and Ripple
- <20 µV rms
EIS measurement
- Frequency Range
- 10 µHz - 20 kHz
- Impedance Accuracy
- 99%
- Max AC Amplitude
- 2.33 V
- Min AC Amplitude
- 50 µV
Control amp
- Compliance Voltage
- ±20 V (@ 1A)
- Output Current
- >±1 A
- Speed Settings
- 5
- Unity Gain Bandwidth
- 980, 260, 40, 4, 0.4 kHz
Electrometer
- Input Impedance
- >10^12 Ω
- Input Current (typical)
- <20 pA
- Bandwidth
- >10 MHz
- Common Mode Rejection Ratio (CMRR)
- >80 dB (10 kHz); >60 dB (1 MHz)
Potential
- Applied Accuracy
- ±1 mV ±0.2% of setting
- Applied Resolution
- 200 µV, 50 µV, 12.5 µV/bit
- Measured Accuracy
- ±1 mV ±0.3% of reading
- Measured Resolution
- 1 µV, 10 µV, 100 µV, 400 µV/bit
Current
- Applied Accuracy
- ±5 pA ±0.3% of range
- Applied Resolution
- 0.0033% full-scale/bit
- Measured Accuracy
- ±5 pA ±0.3% of range
- Measured Resolution
- 0.0033% full-scale/bit
- Measured Current Bandwidth
- >10 MHz (1A - 100 µA); >1.5 MHz (10 µA); >0.15 MHz (1 µA)
Physical
- Dimensions
- 24 (W) x 6 (H) x 27 (D) cm
- Weight
- 2.4 kg
Specifications
Configuration
- Potentiostat
- Yes
- Galvanostat
- Yes
- Zero Resistance Ammeter
- Yes
- Cell Connections
- 2, 3, or 4
- Floating (isolated from earth ground)
- Yes
System
- Max. Current
- ±1 A
- Current Ranges
- 9 (10 nA - 1 A)
- Current Ranges (including internal gain)
- 11
- Min. Current Resolution
- 3.3 fA
- Max. Applied Potential
- ±12 V
- Rise Time
- <1 µs
- Min. Time Base
- 10 µs
- Noise and Ripple
- <20 µV rms
EIS measurement
- Frequency Range
- 10 µHz - 20 kHz
- Impedance Accuracy
- 99%
- Max AC Amplitude
- 2.33 V
- Min AC Amplitude
- 50 µV
Control amp
- Compliance Voltage
- ±20 V (@ 1A)
- Output Current
- >±1 A
- Speed Settings
- 5
- Unity Gain Bandwidth
- 980, 260, 40, 4, 0.4 kHz
Electrometer
- Input Impedance
- >10^12 Ω
- Input Current (typical)
- <20 pA
- Bandwidth
- >10 MHz
- Common Mode Rejection Ratio (CMRR)
- >80 dB (10 kHz); >60 dB (1 MHz)
Potential
- Applied Accuracy
- ±1 mV ±0.2% of setting
- Applied Resolution
- 200 µV, 50 µV, 12.5 µV/bit
- Measured Accuracy
- ±1 mV ±0.3% of reading
- Measured Resolution
- 1 µV, 10 µV, 100 µV, 400 µV/bit
Current
- Applied Accuracy
- ±5 pA ±0.3% of range
- Applied Resolution
- 0.0033% full-scale/bit
- Measured Accuracy
- ±5 pA ±0.3% of range
- Measured Resolution
- 0.0033% full-scale/bit
- Measured Current Bandwidth
- >10 MHz (1A - 100 µA); >1.5 MHz (10 µA); >0.15 MHz (1 µA)
Physical
- Dimensions
- 24 (W) x 6 (H) x 27 (D) cm
- Weight
- 2.4 kg
