The Gamry Interface 1010T is a potentiostat, galvanostat and zero resistance ammeter (ZRA) built for teaching laboratories. Gamry lists it as the entry-level instrument of the Interface 1010 range.
It has the smallest envelope of the three variants, which is the point: it covers undergraduate and demonstration electrochemistry without the cost of the wider-range models. Maximum current is ±100 mA across 6 current ranges (1 µA to 100 mA, or 8 ranges from 10 nA with internal gain applied), maximum applied potential is ±5 V, and minimum current resolution is 0.3 pA. The general purpose Interface 1010E reaches ±1 A and ±12 V by comparison.
EIS runs from 10 µHz to 20 kHz at a quoted 99% impedance accuracy, against 2 MHz on the Interface 1010E. Minimum time base is 1 ms, so the fastest transient work belongs on one of the other variants. The electrometer has an input impedance of >10^12 Ω, bandwidth above 10 MHz and CMRR above 80 dB at 10 kHz.
It takes 2, 3 or 4 cell connections, floats clear of earth ground, and weighs 2.4 kg.
Values listed as typical are representative rather than guaranteed.

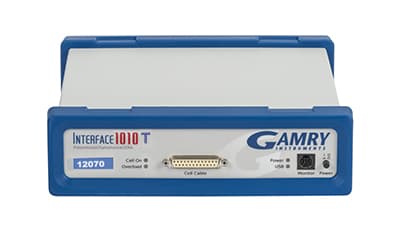

Gamry Interface 1010T Potentiostat / Galvanostat / ZRA
The entry-level instrument of the Gamry Interface 1010 range, for teaching labs. Maximum current ±100 mA across 6 current ranges, maximum applied potential ±5 V, and EIS from 10 µHz to 20 kHz at 99% impedance accuracy. It takes 2, 3 or 4 cell connections, is isolated from earth, and weighs 2.4 kg.
Configuration
- Potentiostat
- Yes
- Galvanostat
- Yes
- Zero Resistance Ammeter
- Yes
- Cell Connections
- 2, 3, or 4
- Floating (isolated from earth ground)
- Yes
System
- Max. Current
- ±100 mA
- Current Ranges
- 6 (1 µA - 100 mA)
- Current Ranges (including internal gain)
- 8 (10 nA - 100 mA)
- Min. Current Resolution
- 0.3 pA
- Max. Applied Potential
- ±5 V
- Rise Time
- <1 µs
- Min. Time Base
- 1 ms
- Noise and Ripple
- <20 µV rms
EIS measurement
- Frequency Range
- 10 µHz - 20 kHz
- EIS Accuracy
- 99%
- AC Amplitude
- 2.33 V maximum; 17.8 µV minimum
Control amp
- Compliance Voltage
- ±20 V (@ 1A)
- Output Current
- >±1 A
- Speed Settings
- 5
- Unity Gain Bandwidth
- 980, 260, 40, 4, 0.4 kHz
Electrometer
- Input Impedance
- >10^12 Ω
- Input Current (typical)
- <20 pA
- Bandwidth
- >10 MHz
- Common Mode Rejection Ratio (CMRR)
- >80 dB (10 kHz); >60 dB (1 MHz)
Potential
- Applied Accuracy
- ±1 mV ±0.2% of setting
- Applied Resolution
- 200 µV, 50 µV, 12.5 µV/bit
- Measured Accuracy
- ±1 mV ±0.3% of reading
- Measured Resolution
- 1 µV, 10 µV, 100 µV, 400 µV/bit
Current
- Applied Accuracy
- ±5 pA ±0.3% of range
- Applied Resolution
- 0.0033% full-scale/bit
- Measured Accuracy
- ±5 pA ±0.3% of range
- Measured Resolution
- 0.0033% full-scale/bit
- Measured Current Bandwidth
- >10 MHz (1A - 100 µA); >1.5 MHz (10 µA); >0.15 MHz (1 µA)
Physical
- Dimensions
- 24 (W) x 6 (H) x 27 (D) cm
- Weight
- 2.4 kg
Specifications
Configuration
- Potentiostat
- Yes
- Galvanostat
- Yes
- Zero Resistance Ammeter
- Yes
- Cell Connections
- 2, 3, or 4
- Floating (isolated from earth ground)
- Yes
System
- Max. Current
- ±100 mA
- Current Ranges
- 6 (1 µA - 100 mA)
- Current Ranges (including internal gain)
- 8 (10 nA - 100 mA)
- Min. Current Resolution
- 0.3 pA
- Max. Applied Potential
- ±5 V
- Rise Time
- <1 µs
- Min. Time Base
- 1 ms
- Noise and Ripple
- <20 µV rms
EIS measurement
- Frequency Range
- 10 µHz - 20 kHz
- EIS Accuracy
- 99%
- AC Amplitude
- 2.33 V maximum; 17.8 µV minimum
Control amp
- Compliance Voltage
- ±20 V (@ 1A)
- Output Current
- >±1 A
- Speed Settings
- 5
- Unity Gain Bandwidth
- 980, 260, 40, 4, 0.4 kHz
Electrometer
- Input Impedance
- >10^12 Ω
- Input Current (typical)
- <20 pA
- Bandwidth
- >10 MHz
- Common Mode Rejection Ratio (CMRR)
- >80 dB (10 kHz); >60 dB (1 MHz)
Potential
- Applied Accuracy
- ±1 mV ±0.2% of setting
- Applied Resolution
- 200 µV, 50 µV, 12.5 µV/bit
- Measured Accuracy
- ±1 mV ±0.3% of reading
- Measured Resolution
- 1 µV, 10 µV, 100 µV, 400 µV/bit
Current
- Applied Accuracy
- ±5 pA ±0.3% of range
- Applied Resolution
- 0.0033% full-scale/bit
- Measured Accuracy
- ±5 pA ±0.3% of range
- Measured Resolution
- 0.0033% full-scale/bit
- Measured Current Bandwidth
- >10 MHz (1A - 100 µA); >1.5 MHz (10 µA); >0.15 MHz (1 µA)
Physical
- Dimensions
- 24 (W) x 6 (H) x 27 (D) cm
- Weight
- 2.4 kg
