The Gamry Interface 5000P is a potentiostat, galvanostat and zero resistance ammeter (ZRA) for battery and supercapacitor work. Gamry lists it as the introductory 5 A instrument of the Interface 5000 range.
It shares the current and potential envelope of the Interface 5000E. Maximum current is ±5 A across 6 current ranges (50 µA to 5 A, or 8 ranges with internal gain applied), minimum current resolution is 15 pA, and maximum applied potential is ±6 V. The control amplifier delivers >±5 A at ±6.5 V compliance, across five speed settings.
The separation is impedance reach. EIS runs from 10 µHz to 20 kHz, against 1 MHz on the Interface 5000E, so this is the variant to specify when the impedance measurements stay below 20 kHz. Maximum current AC amplitude is 5 A.
The electrometer has an input impedance of >10^12 Ω in parallel with under 2 pF, an input current below 25 pA, bandwidth above 12 MHz at -3 dB, and CMRR above 98 dB at 10 kHz. It takes 2, 3, 4 or 5 cell connections.
Values listed as typical are representative rather than guaranteed.

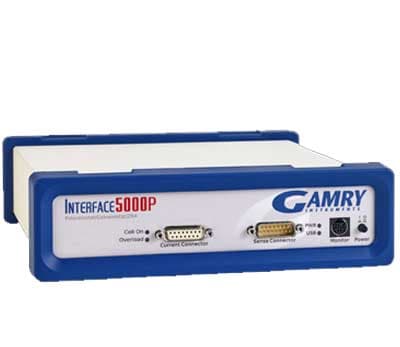

Gamry Interface 5000P Potentiostat / Galvanostat / ZRA
The introductory 5 A instrument of the Gamry Interface 5000 range, for batteries and supercapacitors. Maximum current ±5 A across 6 current ranges, maximum applied potential ±6 V, EIS from 10 µHz to 20 kHz, and 2, 3, 4 or 5 cell connections.
System
- Cell Connections
- 2, 3, 4 or 5
- Max. Current
- ±5 A
- Current Ranges
- 6 (50 µA - 5 A)
- Current Ranges (including internal gain)
- 8
- Min. Current Resolution
- 15 pA
- Max. Applied Potential
- ±6 V
- Rise Time
- <1 µs
- Min. Time Base
- 10 µs
- Noise and Ripple
- <20 µV rms
EIS measurement
- Frequency Range
- 10 µHz - 20 kHz
- Current AC Amplitude
- 5 A maximum
Control amp
- Compliance Voltage
- ±6.5 V
- Output Current
- >±5 A
- Speed Settings
- 5
- Unity Gain Bandwidth
- 1050, 250, 43, 4.4, 0.5 kHz
Electrometer
- Input Impedance
- >10^12 Ω || <2 pF
- Input Current (typical)
- <25 pA
- Bandwidth
- >12 MHz at -3 dB
- Common Mode Rejection Ratio (CMRR)
- >98 dB (10 kHz); >88 dB (100 kHz)
Potential
- Applied Accuracy
- ±1 mV ±0.2% of setting
- Applied Resolution
- 200 µV, 50 µV, 12.5 µV/bit
- Measured Accuracy
- ±0.5 mV ±0.2% of reading
- Measured Resolution
- 200 µV, 20 µV, 2 µV/bit
Current
- Applied/Measured Accuracy
- ±25 pA ±0.05% of range ±0.2% of value
- Applied/Measured Resolution
- 0.0033% full-scale/bit
- Bandwidth
- >5 MHz (5 mA)
Specifications
System
- Cell Connections
- 2, 3, 4 or 5
- Max. Current
- ±5 A
- Current Ranges
- 6 (50 µA - 5 A)
- Current Ranges (including internal gain)
- 8
- Min. Current Resolution
- 15 pA
- Max. Applied Potential
- ±6 V
- Rise Time
- <1 µs
- Min. Time Base
- 10 µs
- Noise and Ripple
- <20 µV rms
EIS measurement
- Frequency Range
- 10 µHz - 20 kHz
- Current AC Amplitude
- 5 A maximum
Control amp
- Compliance Voltage
- ±6.5 V
- Output Current
- >±5 A
- Speed Settings
- 5
- Unity Gain Bandwidth
- 1050, 250, 43, 4.4, 0.5 kHz
Electrometer
- Input Impedance
- >10^12 Ω || <2 pF
- Input Current (typical)
- <25 pA
- Bandwidth
- >12 MHz at -3 dB
- Common Mode Rejection Ratio (CMRR)
- >98 dB (10 kHz); >88 dB (100 kHz)
Potential
- Applied Accuracy
- ±1 mV ±0.2% of setting
- Applied Resolution
- 200 µV, 50 µV, 12.5 µV/bit
- Measured Accuracy
- ±0.5 mV ±0.2% of reading
- Measured Resolution
- 200 µV, 20 µV, 2 µV/bit
Current
- Applied/Measured Accuracy
- ±25 pA ±0.05% of range ±0.2% of value
- Applied/Measured Resolution
- 0.0033% full-scale/bit
- Bandwidth
- >5 MHz (5 mA)
