The Gamry Reference 3000AE is the Reference 3000 potentiostat, galvanostat and zero resistance ammeter (ZRA) with the Auxiliary Electrometer added. Every Reference 3000 specification applies, and the Auxiliary Electrometer section is listed alongside it below.
Gamry describes what the Auxiliary Electrometer adds as eight additional voltage measurements, ideal for stack testing. In practice that means the individual cells of a stack can be monitored while the main channel drives the stack as a whole.
Gamry's own note on the specification sheet is worth repeating: Gamry potentiostats are specified conservatively, and actual performance may be significantly better than the published specifications indicate. Values listed as typical are representative rather than guaranteed.
Gamry Reference 3000AE Auxiliary Electrometer

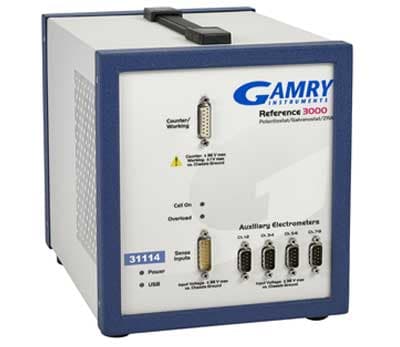

The Gamry Reference 3000 potentiostat, galvanostat and ZRA supplied with the Auxiliary Electrometer, which adds eight additional voltage measurements for stack testing. All Reference 3000 specifications apply, with the Auxiliary Electrometer figures listed separately.
Configuration
- Potentiostat
- Yes
- Galvanostat
- Yes
- Zero Resistance Ammeter
- Yes
- Cell Connections
- 2, 3, or 4
- Floating (isolated from earth)
- Yes
System
- Max. Current
- Hi Current ±3 A; Hi Voltage ±1.5 A
- Current Ranges
- 11
- Current Ranges (with internal gain applied)
- 13
- Max. Applied Potential
- ±11 V; Stack Mode: ±32 V
- Rise Time
- <400 ns
- Noise and Ripple
- <2 µV rms
- Min. Time Base
- 3.333 µs
- Analog/Digital Converter
- 16 bit
- Max. Data Points Per Experiment
- 262,143
EIS measurement
- Frequency Range
- 10 µHz to 1 MHz
- Max AC Amplitude
- 2110 mV rms
- Min AC Amplitude
- 4.03 µV rms
Control amp
- Compliance Voltage
- Hi Current ±15 V; Hi Voltage ±32 V
- Speed Settings
- 5
- Unity Gain Bandwidth (typical)
- 980, 260, 40, 4, 0.4 kHz
Electrometer
- Input Impedance
- >10^14 Ω
- Input Current
- <10 pA
- Bandwidth (-3dB) (typical)
- >10 MHz
- Common Mode Rejection Ratio
- >80 dB (3 Hz); >60 dB (1 MHz)
Applied potential
- Accuracy
- ±1 mV ±0.2 % of setting
- Drift
- <20 µV/°C
- Potential Scan Range
- ±0.4 V, ±1.6 V, ±6.4 V
Measured potential
- Accuracy
- ±1 mV ±0.3% of reading
- Full-Scale Ranges
- 32 V, 12 V, 3 V, 300 mV, 30 mV
Applied current
- Accuracy
- ±10 pA ±0.3 % of range
- Resolution
- 0.0033% full-scale/bit
Measured current
- Accuracy
- ±10 pA ±0.3% of range
- Resolution
- 0.0033% full-scale/bit
iR compensation
- Minimum interrupt time
- 33 µs
- Maximum interrupt time
- 715 s
Auxiliary input and output
- Auxiliary A/D Input, Range
- ±3 V
- Auxiliary A/D Input, Input Impedance
- >100 kΩ or >10 GΩ
- Auxiliary D/A Output, Range
- 0-4 V
- Auxiliary D/A Output, Resolution
- 1 mV
Physical
- Weight
- 6 kg
- Dimensions
- 20 (W) x 23 (H) x 30 (D) cm
Auxiliary Electrometer, input voltage
- Common Mode Range
- ±Compliance Voltage
- Input Resistance
- >10 GΩ
- Input Current
- <10 pA
Auxiliary Electrometer, difference amp
- Difference Voltage
- ±5 V
- CMRR
- >86 dB (DC to 1 kHz); >72 dB (1 kHz to 100 kHz)
- Channel Cross-Talk
- <80 dB
Auxiliary Electrometer, voltage measurement
- Nominal Voltage Range
- ±5.12 V
- µV/bit (no gain)
- 156.25
- µV/bit (x100 gain)
- 1.5625
Specifications
Configuration
- Potentiostat
- Yes
- Galvanostat
- Yes
- Zero Resistance Ammeter
- Yes
- Cell Connections
- 2, 3, or 4
- Floating (isolated from earth)
- Yes
System
- Max. Current
- Hi Current ±3 A; Hi Voltage ±1.5 A
- Current Ranges
- 11
- Current Ranges (with internal gain applied)
- 13
- Max. Applied Potential
- ±11 V; Stack Mode: ±32 V
- Rise Time
- <400 ns
- Noise and Ripple
- <2 µV rms
- Min. Time Base
- 3.333 µs
- Analog/Digital Converter
- 16 bit
- Max. Data Points Per Experiment
- 262,143
EIS measurement
- Frequency Range
- 10 µHz to 1 MHz
- Max AC Amplitude
- 2110 mV rms
- Min AC Amplitude
- 4.03 µV rms
Control amp
- Compliance Voltage
- Hi Current ±15 V; Hi Voltage ±32 V
- Speed Settings
- 5
- Unity Gain Bandwidth (typical)
- 980, 260, 40, 4, 0.4 kHz
Electrometer
- Input Impedance
- >10^14 Ω
- Input Current
- <10 pA
- Bandwidth (-3dB) (typical)
- >10 MHz
- Common Mode Rejection Ratio
- >80 dB (3 Hz); >60 dB (1 MHz)
Applied potential
- Accuracy
- ±1 mV ±0.2 % of setting
- Drift
- <20 µV/°C
- Potential Scan Range
- ±0.4 V, ±1.6 V, ±6.4 V
Measured potential
- Accuracy
- ±1 mV ±0.3% of reading
- Full-Scale Ranges
- 32 V, 12 V, 3 V, 300 mV, 30 mV
Applied current
- Accuracy
- ±10 pA ±0.3 % of range
- Resolution
- 0.0033% full-scale/bit
Measured current
- Accuracy
- ±10 pA ±0.3% of range
- Resolution
- 0.0033% full-scale/bit
iR compensation
- Minimum interrupt time
- 33 µs
- Maximum interrupt time
- 715 s
Auxiliary input and output
- Auxiliary A/D Input, Range
- ±3 V
- Auxiliary A/D Input, Input Impedance
- >100 kΩ or >10 GΩ
- Auxiliary D/A Output, Range
- 0-4 V
- Auxiliary D/A Output, Resolution
- 1 mV
Physical
- Weight
- 6 kg
- Dimensions
- 20 (W) x 23 (H) x 30 (D) cm
Auxiliary Electrometer, input voltage
- Common Mode Range
- ±Compliance Voltage
- Input Resistance
- >10 GΩ
- Input Current
- <10 pA
Auxiliary Electrometer, difference amp
- Difference Voltage
- ±5 V
- CMRR
- >86 dB (DC to 1 kHz); >72 dB (1 kHz to 100 kHz)
- Channel Cross-Talk
- <80 dB
Auxiliary Electrometer, voltage measurement
- Nominal Voltage Range
- ±5.12 V
- µV/bit (no gain)
- 156.25
- µV/bit (x100 gain)
- 1.5625
