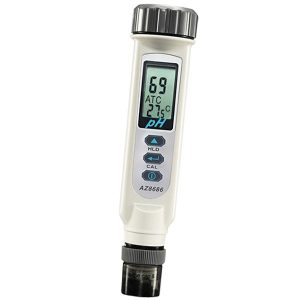

The AZ 8686 High Accuracy pH Meter is a pen-size, fully waterproof instrument that measures pH from 0.00 to 14.00 for water quality testing. Knowing the precise pH of a water sample is the starting point for controlling water treatment chemistry, maintaining aquaculture and pool conditions, and confirming that process water sits within its required range, so accuracy and stable readings matter.
The 8686 measures pH at 0.01 resolution with an accuracy of plus or minus 0.05, and reads temperature from 0 to 60.0 degrees C at 0.1 degree resolution. A large dual LCD shows pH and temperature at the same time, with automatic temperature compensation applied so readings stay accurate as the sample temperature changes. A measuring stability indicator confirms when a reading has settled, and one-touch auto-calibration supports up to three points with adjustable calibration values. The housing carries an IP65 waterproof rating, and a semi-transparent protective cap keeps the electrode moist to extend its service life, which is typically more than six months with good maintenance. A data hold function freezes readings on screen, while a low battery indicator and automatic power-off conserve the four LR44 cells.
It suits laboratories, water treatment facilities, aquaculture and fish farms, swimming pools, and related industries. Compact at about 115 g, the 8686 is supplied by BAMR, South Africa's authorised distributor.

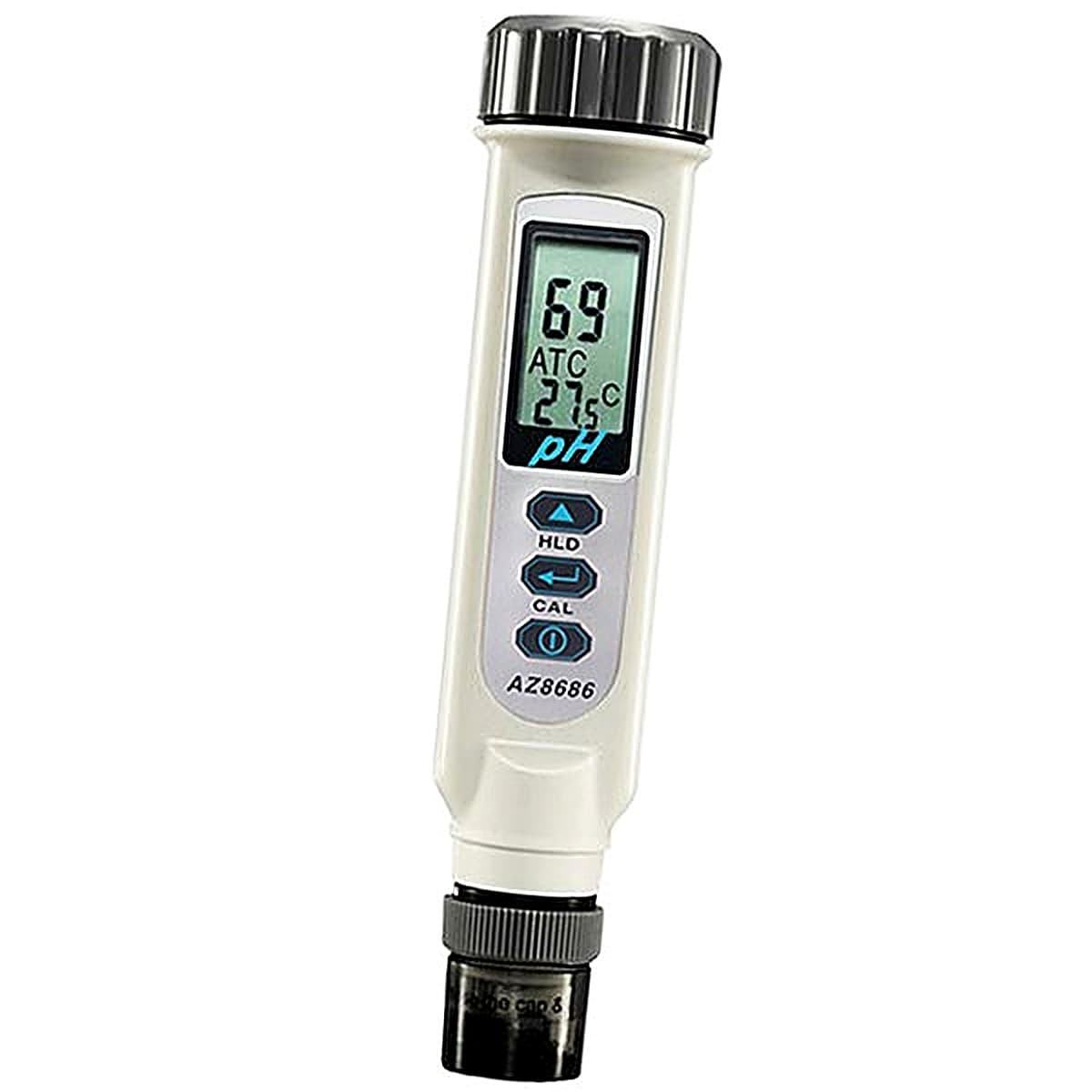

AZ High Accuracy PH Meter
The 8686 AZ pH Meter features full IP65 waterproof protection and measures pH from 0.00 to 14.00, making it ideal for a wide range of water quality testing applications. Its pH electrode is safeguarded by a semi-transparent cap that keeps the sensor moist and ready for use. Calibration is quick and simple thanks to the convenient one-touch auto-calibration function (up to 3 points).
- Large LCD dual display shows both pH and temperature simultaneously, with automatic temperature compensation (ATC) for accurate readings
- pH range: 0.00 to 14.00
- High resolution: 0.01 pH
- Measuring stability indicator for reliable results
- One-touch auto-calibration with up to 3 points (calibration values adjustable)
- Protective cap keeps the sensor moist to extend electrode life
- Fully waterproof housing (IP65 rating)
- Data hold function to freeze readings on screen
- Compact pen-size design - fits easily in your pocket
- Low battery indicator and automatic power-off for battery conservation
Technical Specifications
- Model
- 8686
- pH Measuring Range
- 0.00~14.00
- pH Accuracy
- ±0.05
- pH Resolution
- 0.01
- Temperature Measuring Range
- 0~60.0°C
- Temperature Accuracy
- ±0.5°C
- Temperature Resolution
- 0.1°C
- ATC
- ATC
- pH Calibration
- Up to 3 points
- LCD Size
- 30(L) * 18(W) mm
- Operating Temperature
- 0~50°C
- Operating RH%
- Humidity <80%
- Storage Temperature
- -10~50°C
- Storage RH%
- Humidity <90%
- Sensor Life Time
- >6 months (with good maintenance)
- Meter Size
- 165(L) * 35(W) * 32(H) mm
- Weight
- ~115g
- Battery
- LR44 *4 PCS
Specifications
Technical Specifications
- Model
- 8686
- pH Measuring Range
- 0.00~14.00
- pH Accuracy
- ±0.05
- pH Resolution
- 0.01
- Temperature Measuring Range
- 0~60.0°C
- Temperature Accuracy
- ±0.5°C
- Temperature Resolution
- 0.1°C
- ATC
- ATC
- pH Calibration
- Up to 3 points
- LCD Size
- 30(L) * 18(W) mm
- Operating Temperature
- 0~50°C
- Operating RH%
- Humidity <80%
- Storage Temperature
- -10~50°C
- Storage RH%
- Humidity <90%
- Sensor Life Time
- >6 months (with good maintenance)
- Meter Size
- 165(L) * 35(W) * 32(H) mm
- Weight
- ~115g
- Battery
- LR44 *4 PCS
What's in the kit
What's in the kit
Downloads
Frequently asked questions
Does the 8686 automatically compensate for temperature?
Yes. The 8686 features automatic temperature compensation (ATC) with simultaneous temperature measurement. This ensures pH accuracy is maintained across the 0 to 60°C temperature range, regardless of actual sample temperature.
Can the 8686 be used in wet or damp environments?
Yes. The 8686 has full IP65 waterproof protection, making it safe in wet conditions. The semi-transparent protective cap keeps the sensor moist when not in use.
What is the pH measurement accuracy of the 8686?
The 8686 measures pH from 0.00 to 14.00 with ±0.05 accuracy and 0.01 resolution. It supports up to 3-point auto-calibration, helping you maintain this precision over time.
How long does the sensor last on the 8686?
The sensor typically lasts more than six months with proper maintenance. Keep the semi-transparent protective cap on when not in use to maintain sensor moisture and extend longevity.
What are the operating temperature and humidity requirements for the 8686?
The 8686 operates from 0 to 50°C with humidity below 80%. It can be stored between -10 and 50°C, making it suitable for various laboratory and field environments.
