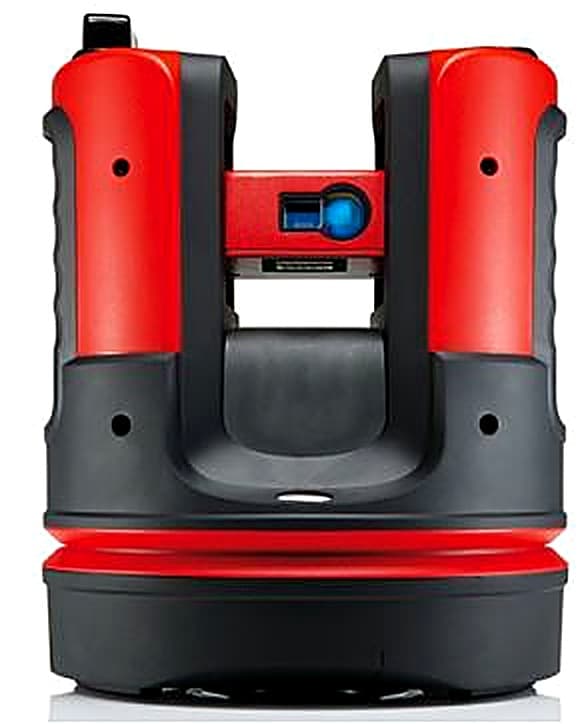

Leica 3D Disto Distance Meter

Product Description

Measure once, cut once.

No matter what you are doing with a 3D Disto, accuracy is paramount. Since form follows function, the 3D Disto is a cross
between a surveyor’s robotic total station and a handheld DISTO.

Like a robotic total station, the 3D Disto’s horizontal and vertical turning axes are motorized — get the laser point close to
the right starting point manually, aim using the video feed by tapping your target on either the Control Unit tablet or a

Windows tablet, then watch the 3D Disto mico-adjust until the laser point is in the crosshairs.

The laser gets the glory, but to measure to 1mm accuracy @ 10m the 3D Disto measures horizontal angle, vertical angle
and a slope distance with angle sensors borrowed from our total stations — technology Leica Geosystems has been refining
for over 90 years.

Features of the Leica 3D Disto Distance Meter

The Leica Geosystems 3D Disto is a unique tool for capturing and projecting accurate three-dimensional measurements.

The speed and precision of the 3D Disto brings unprecedented efficiency to applications like:

Creating CAD templates
CNC is only good as your file. A 3D Disto is the bridge between reality and CAD. When you are cutting to fit and you know your original measurements are accurate, you can
cut even the most expensive materials with confidence.

3D Visualization and Navigation
The upgraded Leica 3D Disto Software for smart devices using Windows® now displays results in three dimensions. With the 3D navigation, it is even easier to check measured points.

Capturing As-Built Measurements
The best way to eliminate surprises later in the job is to know what you are starting with. The 3D Disto accurately captures 3D coordinates with the precision you need for planning. If your
work involves expensive materials that are difficult to cut, transport or are processed off-site, you know accurate “as-built” measurements are critical.

Building Information Modelling (BIM):
Take DXF data directly into your Windows tablet and use the 3D Disto to layout anchor points, transfer heights or verify critical construction locations.


Leica 3D Disto Distance Meter – Specifications

Part Number Description
Range 0.5 up to 50m
Measuring units m, ft, in
X-Range Power Technology yes
Distance in m 10, 30m
Ø of the laser dot in mm 7×7 mm, 9×15mm
Smart Base measuring range
Horizontal 360°
Vertical −80° to > 90°
Distance in m 10, 30, 50m
Typ. tolerance of the P2P function ± 1, 2, 4mm
Levelling range ± 3°
Pointfinder with zoom 8 ×
Picture file format .jpg
Memory for pictures Tablet
CAD data format on device .dxf, .dwg
Memory for CAD files on device Tablet
Display illumination yes
Free software for Windows Software included
General data interface WLAN
Data interface for 3D point data WLAN
Service life of batteries up to 8h
Tripod thread 5/8″
Batteries Li-Ion rechargeable
Charging time 7 h
Protection class IP54
Dimensions Ø 187 × 215.5mm
Weight with batteries 2.8 kg / 6.17 lbs

Packing List

  • Package with Leica 3D Disto in Carry Case
  • Power Supply for 3D Disto
  • Ruler for offset points
  • GZM3 Target Plate
  • 1 USB cable
  • Self-adhesive Target Marks
  • RM100 Remote Control
  • USB Stick
  • Safety Manual
  • Quick Start
  • Producer Certificate
  • Includes software license Leica 3D Disto software for Windows.
